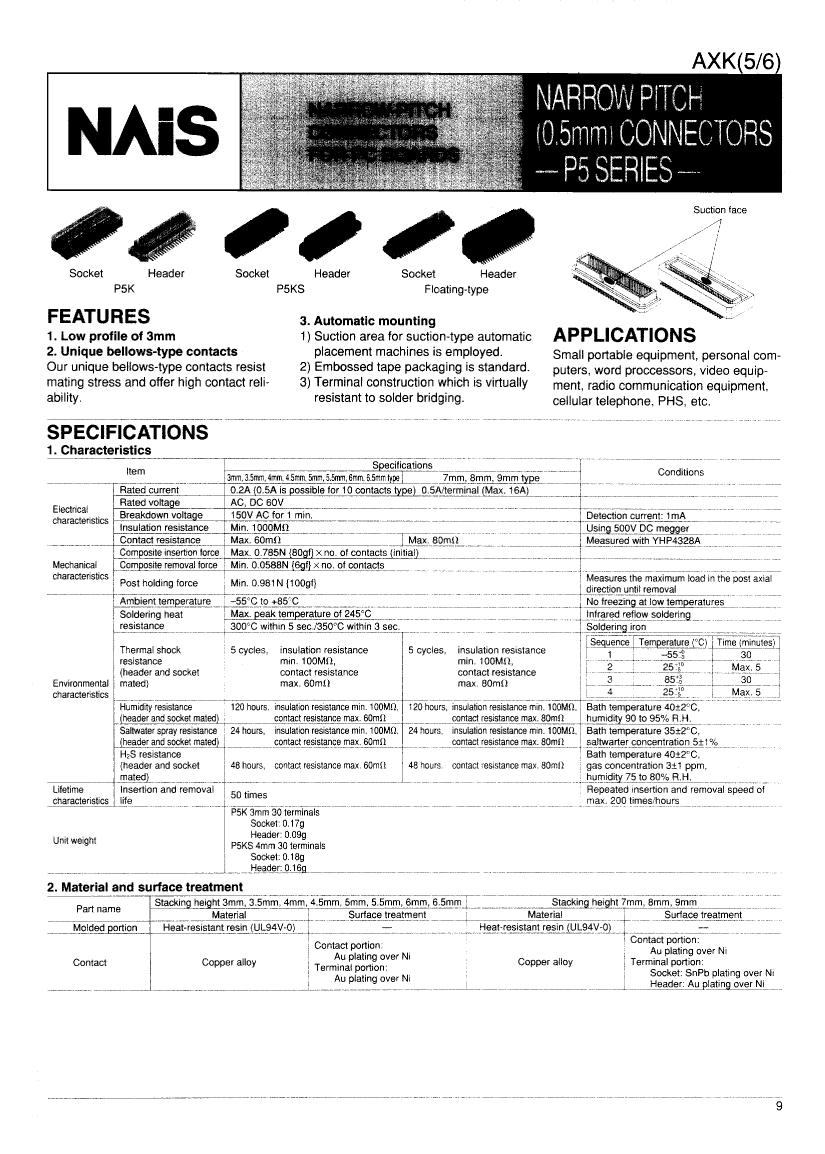

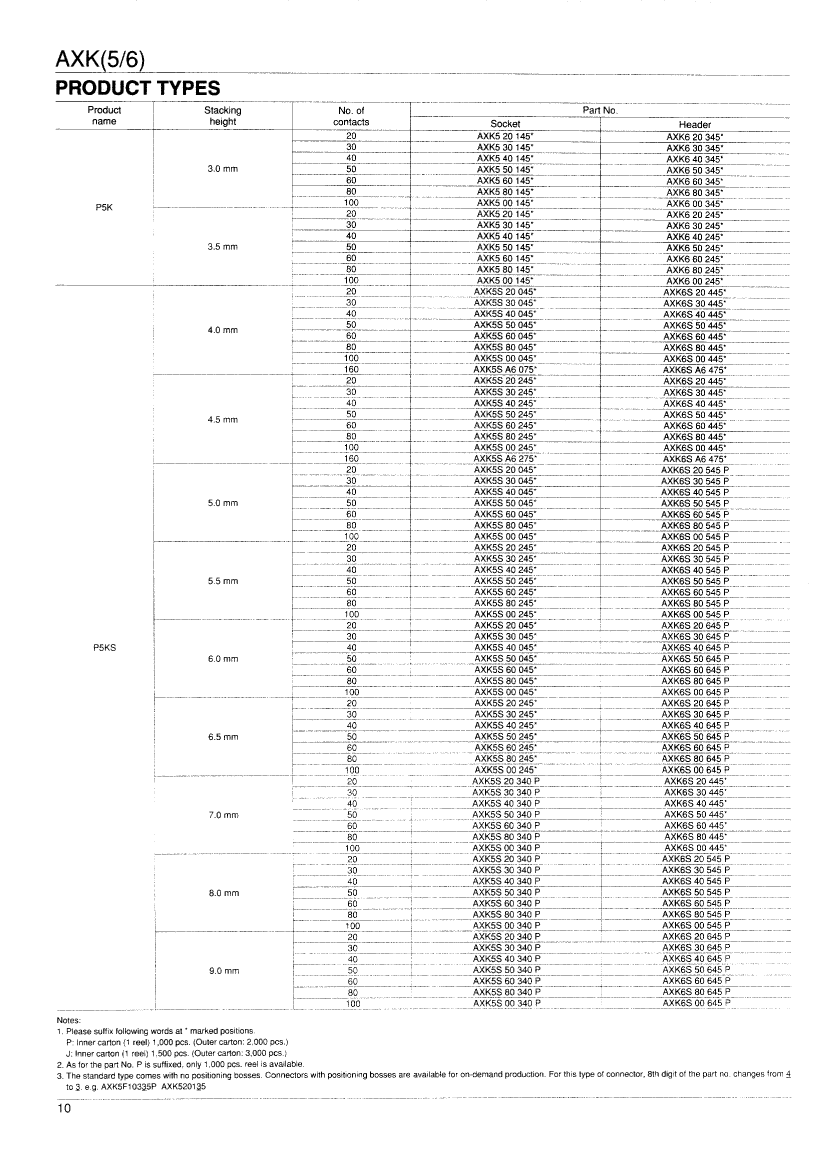

Board Stacking Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Socket

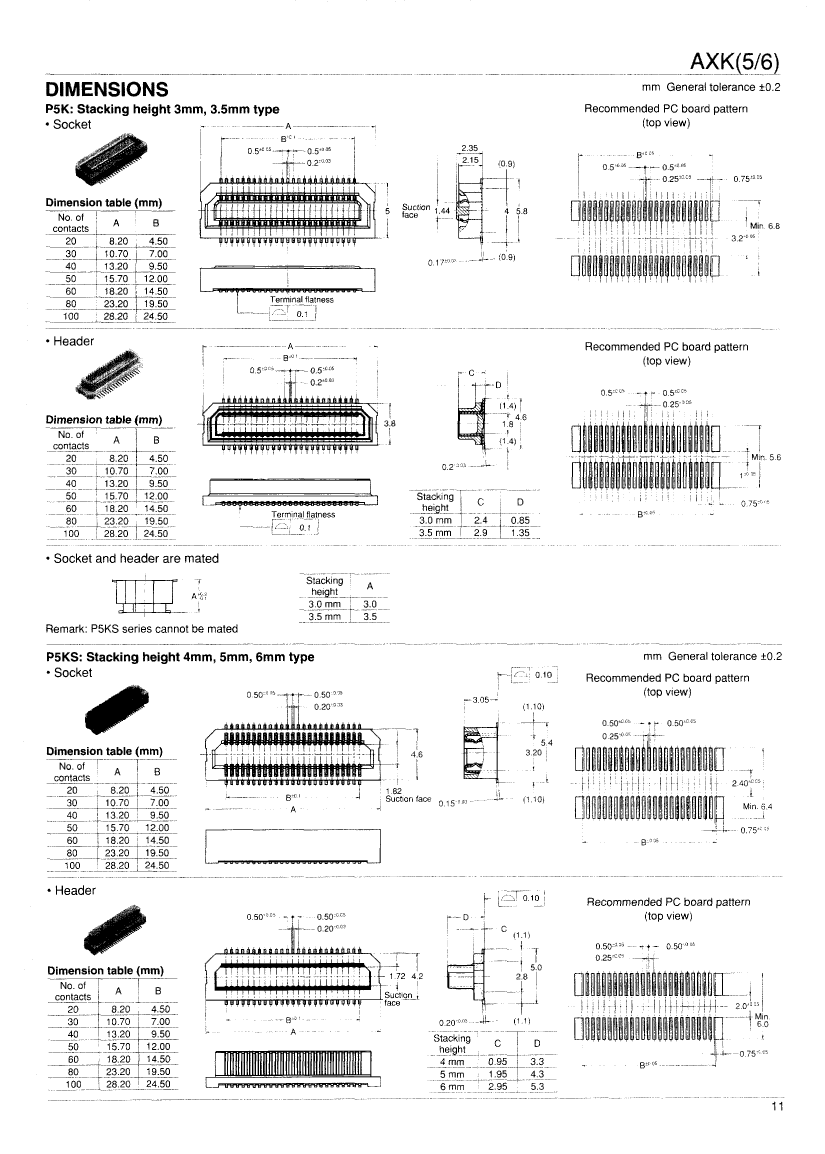

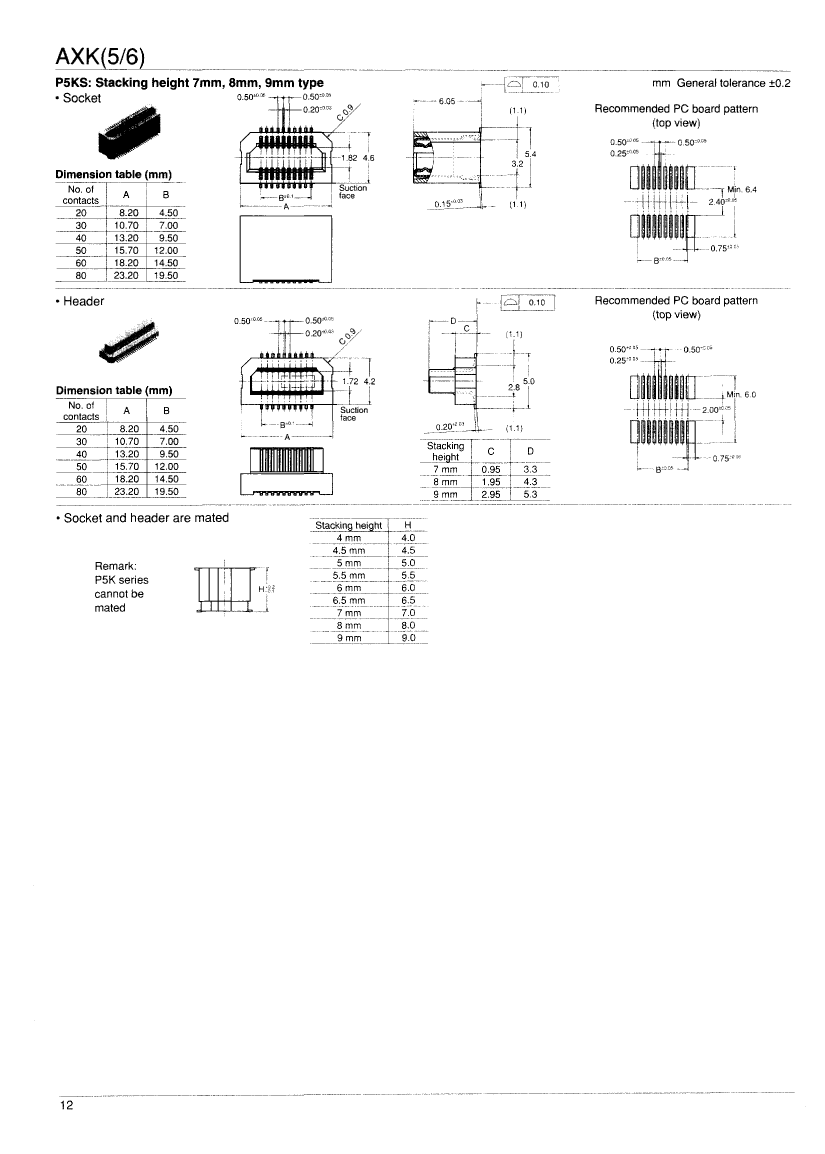

| Parameter Name | Attribute value |
| Maker | Panasonic |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | LOW PROFILE |
| Board mount options | POSITIONING PIN |
| body width | 0.197 inch |
| subject depth | 0.093 inch |
| body length | 0.323 inch |
| Body/casing type | SOCKET |
| Connector type | BOARD STACKING CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | GOLD OVER NICKEL |
| Contact point gender | FEMALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact resistance | 60 mΩ |
| Contact style | BELLOWED TYPE |
| DIN compliance | NO |
| Dielectric withstand voltage | 150VAC V |
| Durability | 50 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | .7784 N |
| Insulation resistance | 1000000000 Ω |
| insulator material | THERMOPLASTIC |
| JESD-609 code | e4 |
| MIL compliance | NO |
| Manufacturer's serial number | P5 |
| Plug contact pitch | 0.02 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 5.0038 mm |
| polarization key | D-SHAPE |
| Rated current (signal) | 0.2 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 0.5 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 20 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .0556 N |
