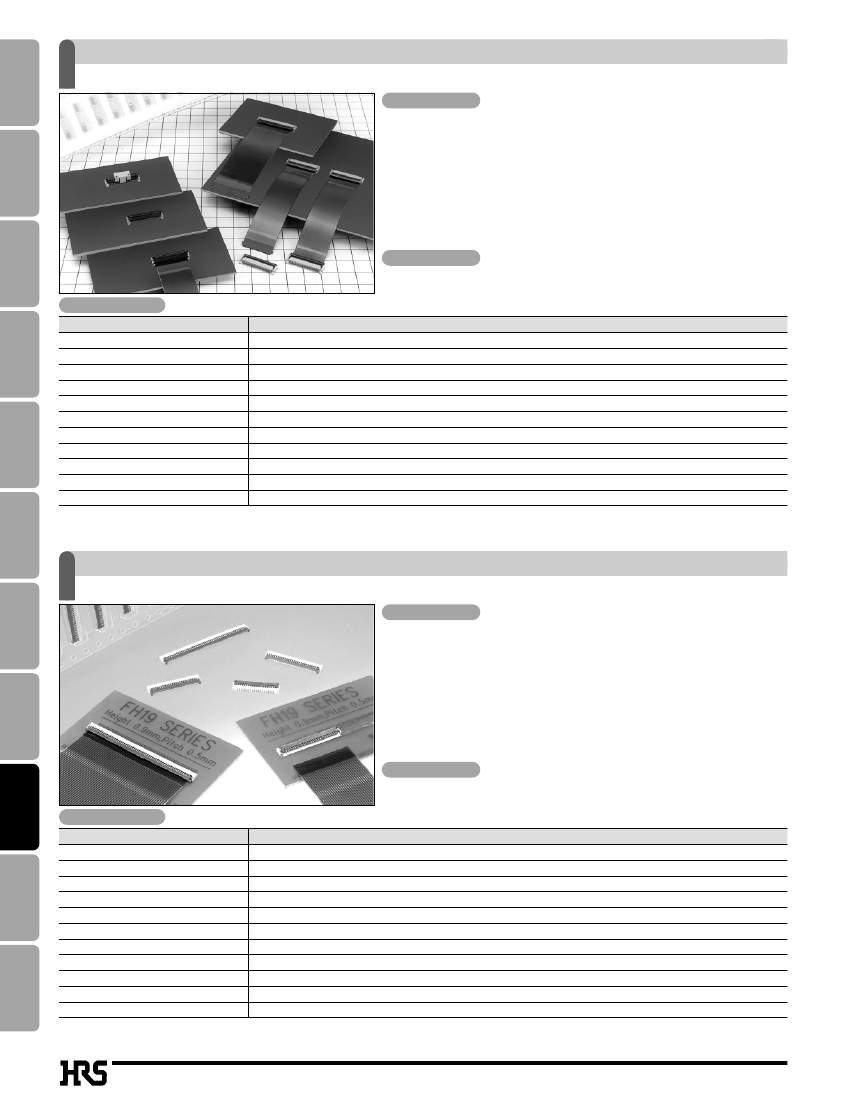

High density FPC connectors (0.3mm/0.4mm/0.5mm pitch)
FH16 Series
Features
q
The FH16 series is a fine pitch of 0.3mm, 0.4mm, and 0.5mm ensures high
density mounting of multipole connectors.
q
Only slight force is required to lock the flip-lock (one-touch rotating type)
zero insertion force (ZIF) structure.
q
The locking mechanism clicks, thus making it possible to confirm secure
flexible printed circuit (FPC) connections.
q
Prevents flexible printed circuit (FPC) from falling out and oblique mating.
q
The staggered pin design with a mounting pitch of 0.6mm ensures ease of
mounting.
Coaxial
Connectors
Rectangular
Connectors
Applications
Notebook PCs, CD-ROM drives, Digital cameras, Printers, Compact
equipment
Specifications
Memory Card
Item
No. of Positions
Current rating (A)
PCB Mount Type
Contact Plating
Terminal Pitch (mm)
Contact Pitch (mm)
Contact Layout
Operating Temperature Range (ç)
Insulator
Applicable FPC/FFC (mm)
Remarks
Requirements
50·60·64·80·90·96
0.15·0.3·0.4
SMT
Gold, tin-lead
0.6·0.8·1
0.3·0.4·05
Double row
-40 to 70
Polyamide, LCP (UL94V-0, Color: Beige), PPS (UL94V-0, Color: Dark brown)
0.3
FPC connector
Card Edge
Connectors
Modular
Connectors
0.5mm pitch, 0.9mm above the board, FPC/FFC connectors
FH19 Series
Features
q
Low profile 0.5mm pitch flexible printed circuit (FPC) connectors.
q
The embossed tape reels made of paper.
q
All bottom surface of the connector with no pattern-prohibited area (i.e.,
over-molding structure).
q
Only slight force is required to lock the flip-lock (one-touch rotating type)
zero insertion force (ZIF) structure.
q
Accepting 0.2mm and 0.3mm thick flexible printed circuit (FPC), flexible flat
cable (FFC), thus ensuring ease of insertion.
Board-to-Wire
Connectors
Board-to-Board
Connectors
Applications
FPC/FFC
Connectors
Mobile Phones, LCD units, DVC units, DSC units, PDA units, Camera
modules, Compact equipment
Specifications
Item
No. of Positions
Current rating (A)
PCB Mount Type
Contact Plating
Terminal Pitch (mm)
Contact Pitch (mm)
Contact Layout
Operating Temperature Range (ç)
Insulator
Applicable FPC/FFC (mm)
Remarks
Requirements
4•5•6•8•9•10•12•13•14•15•16•17•18•20•21•22•24•26•27•30•32•40•45•50
0.5
SMT
Gold, tin-lead
0.5
0.5
Single row
-55 to 85
LCP (UL94V-0, Color: Beige), PPS (UL94V-0, Color: Black, dark brown)
0.2·0.3
FPC/FFC connector
