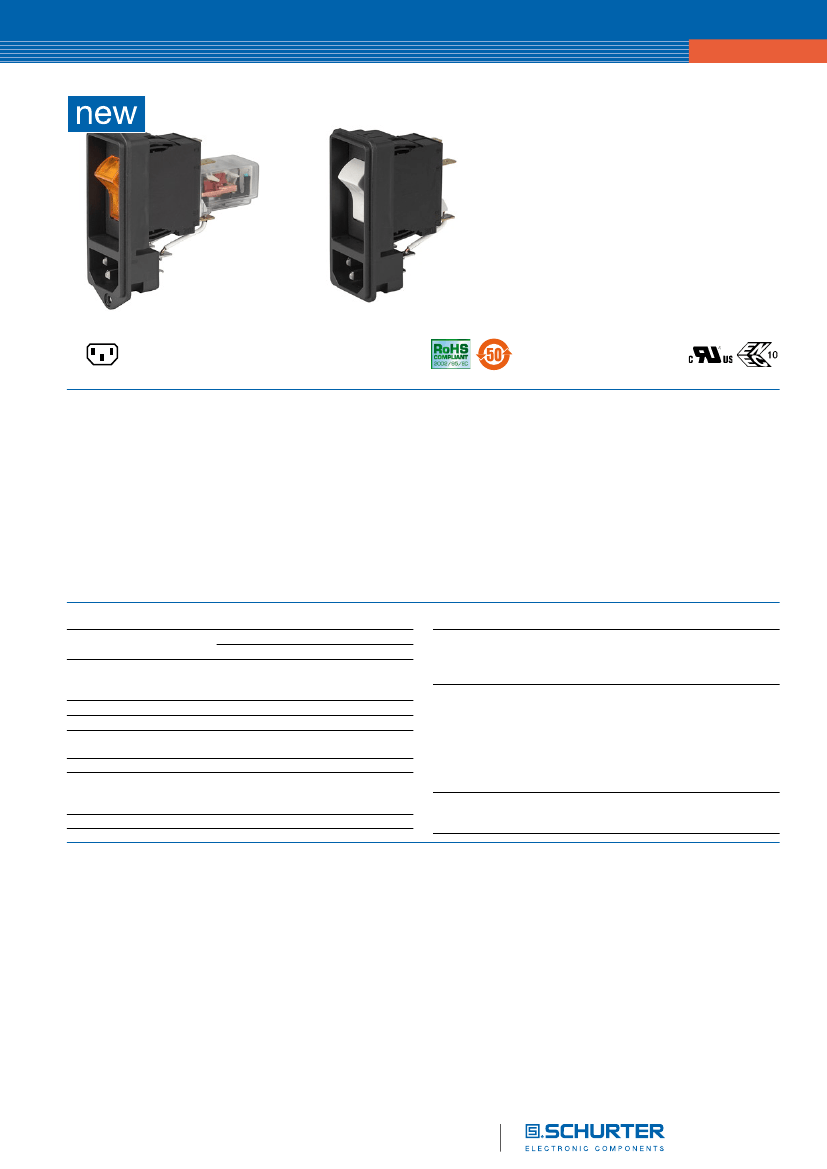

Power entry modules without line filter
www.schurter.com/pg05
IEC Appliance Connector C14 with CBE 1- or 2-pole
DF
C14
70° C
Description
- Panel Mount:
Screw-on version from front or rear side, snap-in version from front
side
- 2 Functions:
Inlet Protection class I, Fuseholder circuit breaker type TA45 2-pole
- Quick connect terminals 6.3 x 0.8 mm
- Alternative: version with line filter DF12
- Substitute for type 6145
Characteristics
- All single elements are already wired
- Line switch non-illuminated or illuminated
Thermal overload protection
Optional with undervoltage release or remote trip release
- Qualified for use in equipment according IEC/EN 60950
Other versions on request
- Unwired versions
- Line switch 1-pole
- Other rocker marking
Approvals: www.schurter.com/approvals
RoHS: http://www.schurter.com/rohs
CHINA-RoHS: www.schurter.com/china-rohs
Webstore: www.schurterinc.com/estore/search.ihtml
Weblinks
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; Hz 50
1 - 15 A / 250 VAC; 60 Hz
> 2.5 kVAC between L-N
> 3 kVAC between L/N-PE
(1 min/50 Hz)
-10 °C to 55 °C
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
Quick connect terminals 6.3 x 0.8 mm
Screw-on: max 8 mm
Mounting screw torque max 0.5 Nm
Snap-in: 1/1.5/2/2.5/3 mm
Thermoplastic, black, UL 94V-0
Appliance-Inlet /-Outlet
C14 acc. to IEC/EN 60320-1,
UL 498, CSA C22.2 no. 42 (for cold
condition) pin-temperature 70 °C, 10 A,
Protection class I
Acc. IEC/EN 60934, UL 1077, CSA
22.2 no. 235
2-pole rocker switch, illuminated or non-
illuminated. Optional with undervoltage-
or remote trip release
Short circuit capacity Icn:
at In < 3A/240VAC : 10 x In
at In ≥ 3A/240VAC : 300A
Rocker switch 2-pole, non-illuminated
or illuminated, acc. to IEC 61058-1
Technical details
Circuit breaker
Allowable Operation Temp.
Degree of Protection
Protection Class
Terminal
Panel Thickness s
Line Switch
Material: Housing
Connectors
DF
www.schurter.com/pg05

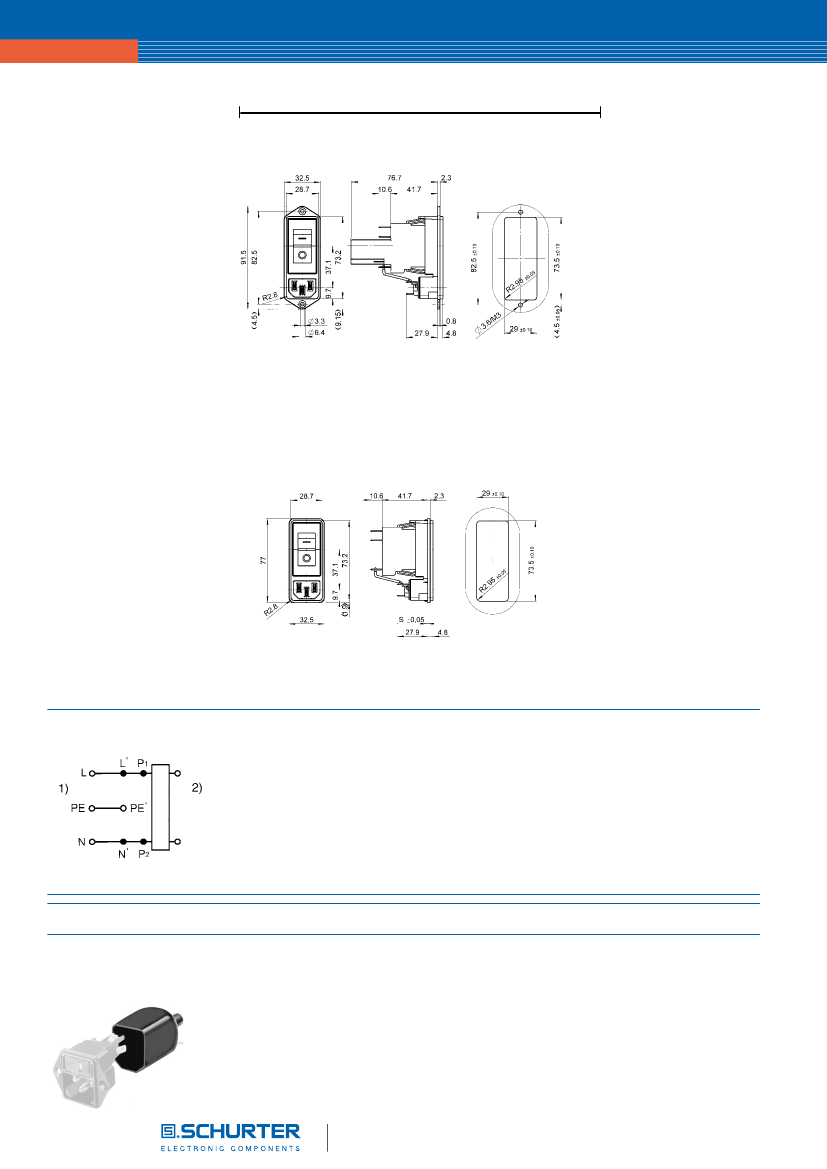

Technical data (continued)
Circuit breaker
Tripping characteristics
I
n
< 3 A
[ min ] [ sec ]
10’000
Type
Rated current
TA45
In < 3 A
1-pole protected
Power entry modules without line filter
Tripping characteristics
_
_
I
n
> 3… < 15 A
[ min ] [ sec ]
10’000
Type
Rated current
TA45
I n
≥
3...
≤
15 A
1-pole protected
60
30
20
10
5
200
100
1
50
20
10
5
2
1
0,5
Tripping time
60
30
20
10
5
200
100
1
50
20
10
5
2
1
0,5
Tripping time
2000
1000
500
Ambient temp.
2-pole protected
+23
°C
2’000
1’000
500
Ambient temp.
2-pole protected
+23
°C
0,3
0,2
0,1
1,05 1,32
2
3
4
[ x In ]
5
8
10
Multiple of rated current
0,3
0,2
0,1
1,05 1,32
2
3
4
[ x In ]
5
8
10
Multiple of rated current
Effect of ambient temperature
1)
The unit is calibrated for an ambient temperature of +23 °C. To
determine the rated current for a lower or higher ambient tempera-
ture, use a correction factor from the table below.
*
Ambient temperature [°C] Correction factor
–10
0,89
– 5
0,91
0
0,92
+23
1,00
+30
1,03
+40
1,08
+55
1,16
* Temperature must be measured at the rear of the breaker next
to the terminals after equipment operating temperature has been
reached.
Example
Rated current at +23 °C
Ambient temperature
Correction factor
Chosen rated current at
+ 40 °C ambient temperature
1)
6,0 A
+40 °C
1,08
6 A x 1,08 = 6,5 A
Order code (Order example)
Type
Order code TA 45
(2-pole rocker-switch without
accessories)
Wiring
1
wired
2
unwired
Protection class
0
Protection class I
DF11. A B T W F 1 5 0 C 0
see table 1
.
0 0 1 0 . 0 1
Mounting
0
Screw
1
Snap-in s = 1.0 mm
2
Snap-in s = 1.5 mm
3
Snap-in s = 2.0 mm
4
Snap-in s = 2.5 mm
5
Snap-in s = 3.0 mm
Terminals
1
Quick connect 6.3 x 0.8
0
Without line filter
0
Without line filter
Please note that Schurter will establish an internal part number for
logistical use in addition to the order code. The format of this inter-
nal part number is, for example DF12.xxxxxxx
The specifications, descriptions and illustrations indicated in this document are based on
Connectors
current information. All content is subject to modifications anamendments.
