LN320GP datasheet, PDF - EEWORLD Datasheet

LN320GP: DescriptionSingle Color LED, Green, Diffused, 7mm,; CategoryLED optoelectronic/LED photoelectric; File Size188KB，4 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

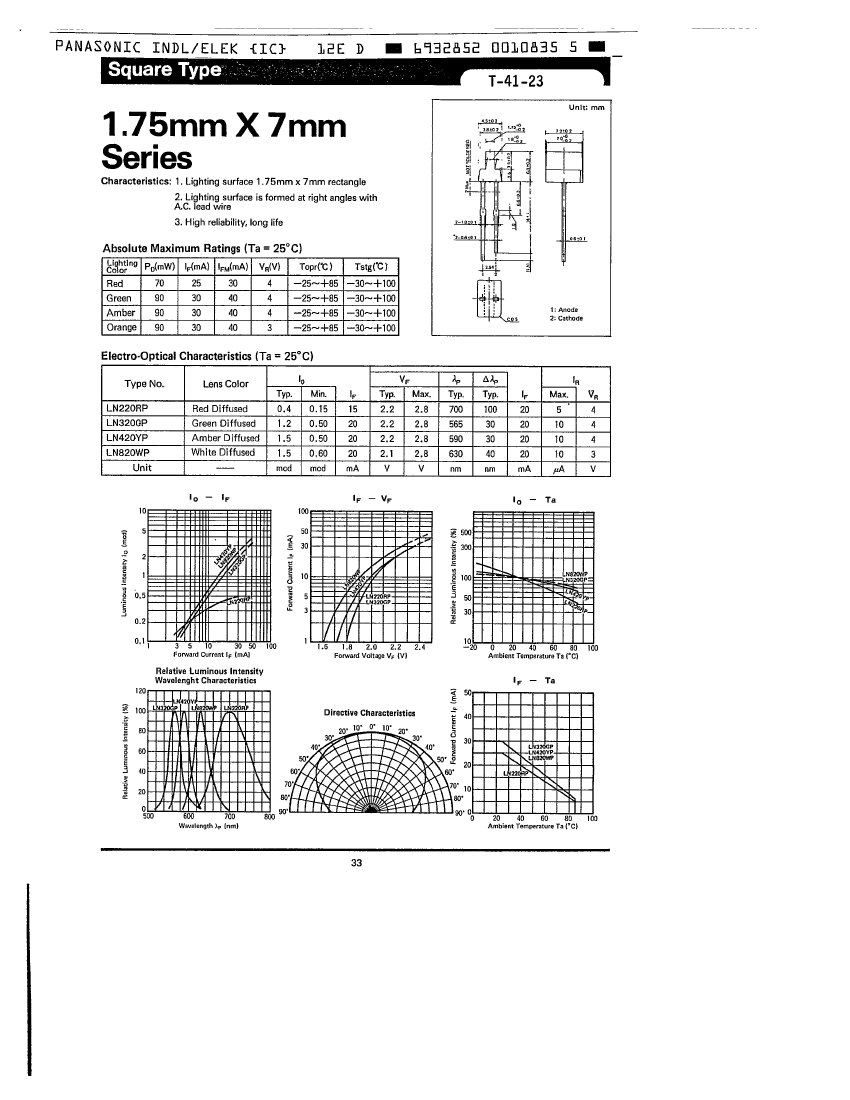

LN320GP Overview

Single Color LED, Green, Diffused, 7mm,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Panasonic
Reach Compliance Code	unknown
color	GREEN
color@wavelength	Green
Configuration	SINGLE
Maximum forward current	0.03 A
Maximum forward voltage	2.8 V
JESD-609 code	e0
Lens type	DIFFUSED
Nominal luminous intensity	1.2 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	6 mm
method of packing	BULK
peak wavelength	565 nm
Maximum reverse voltage	4 V
shape	RECTANGULAR
size	7 mm
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm
perspective	180 deg
Base Number Matches	1

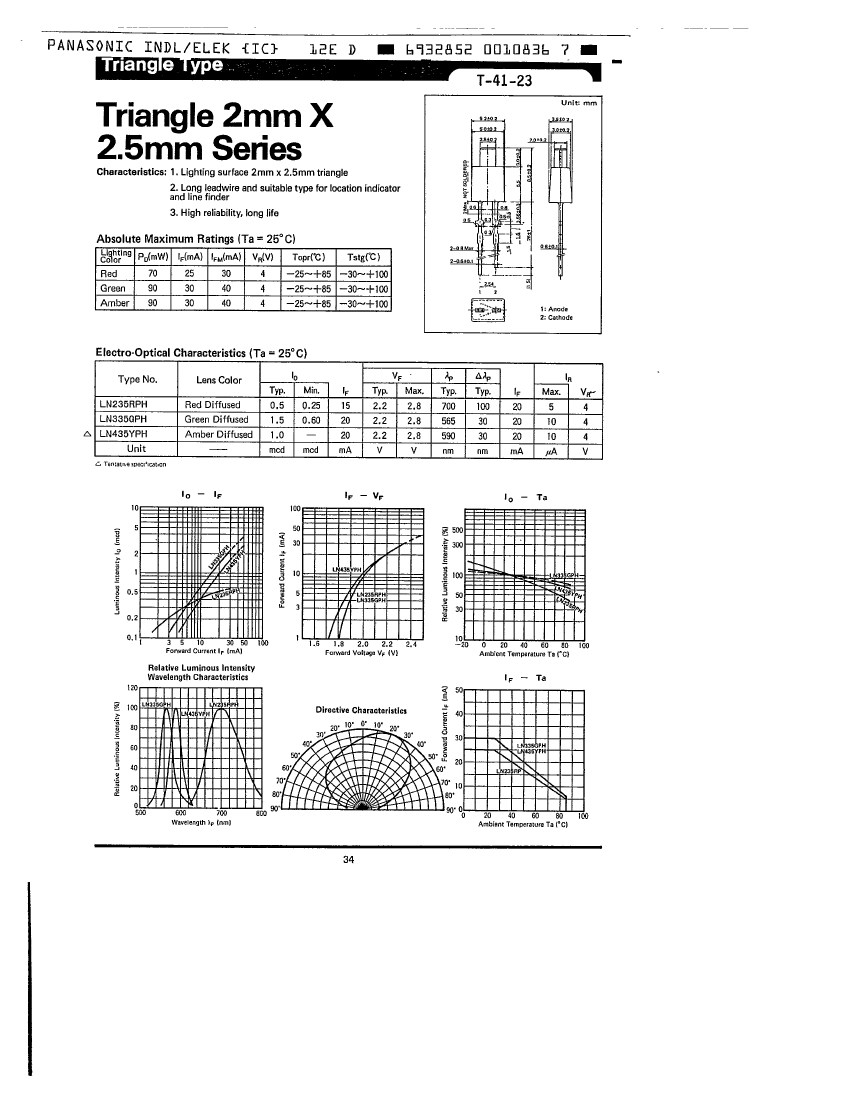

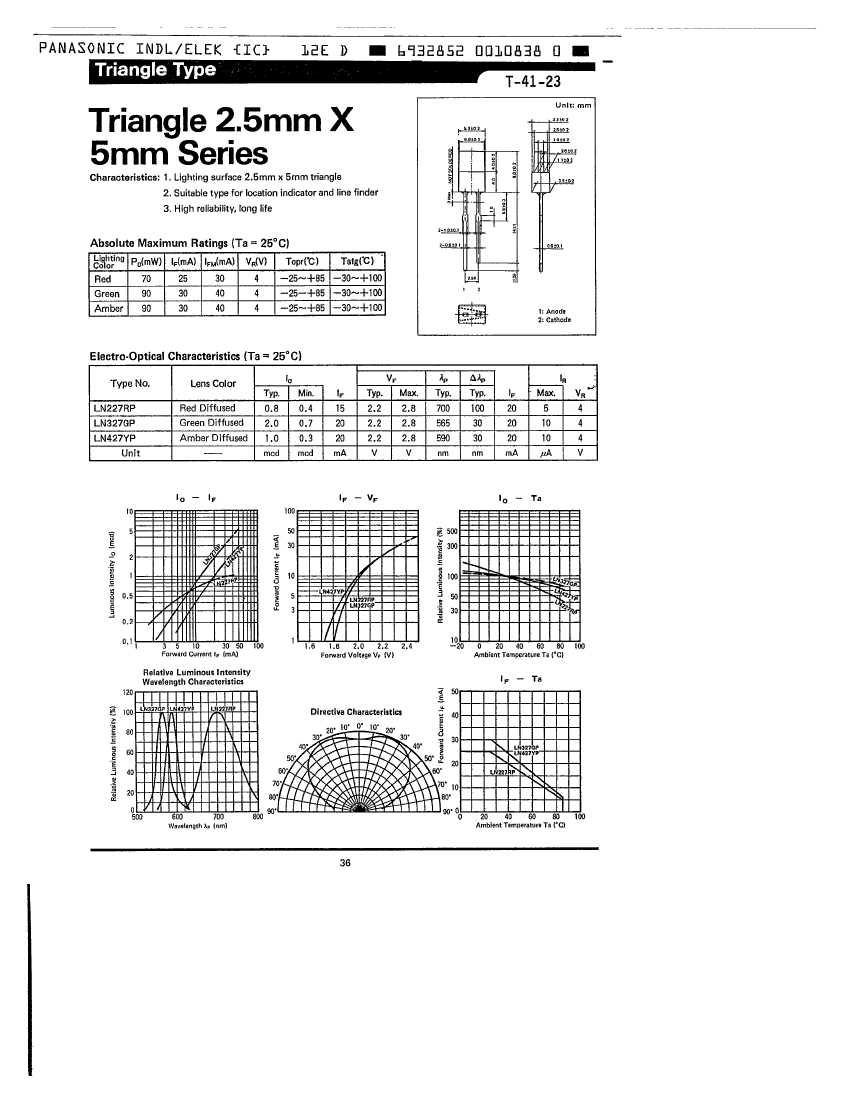

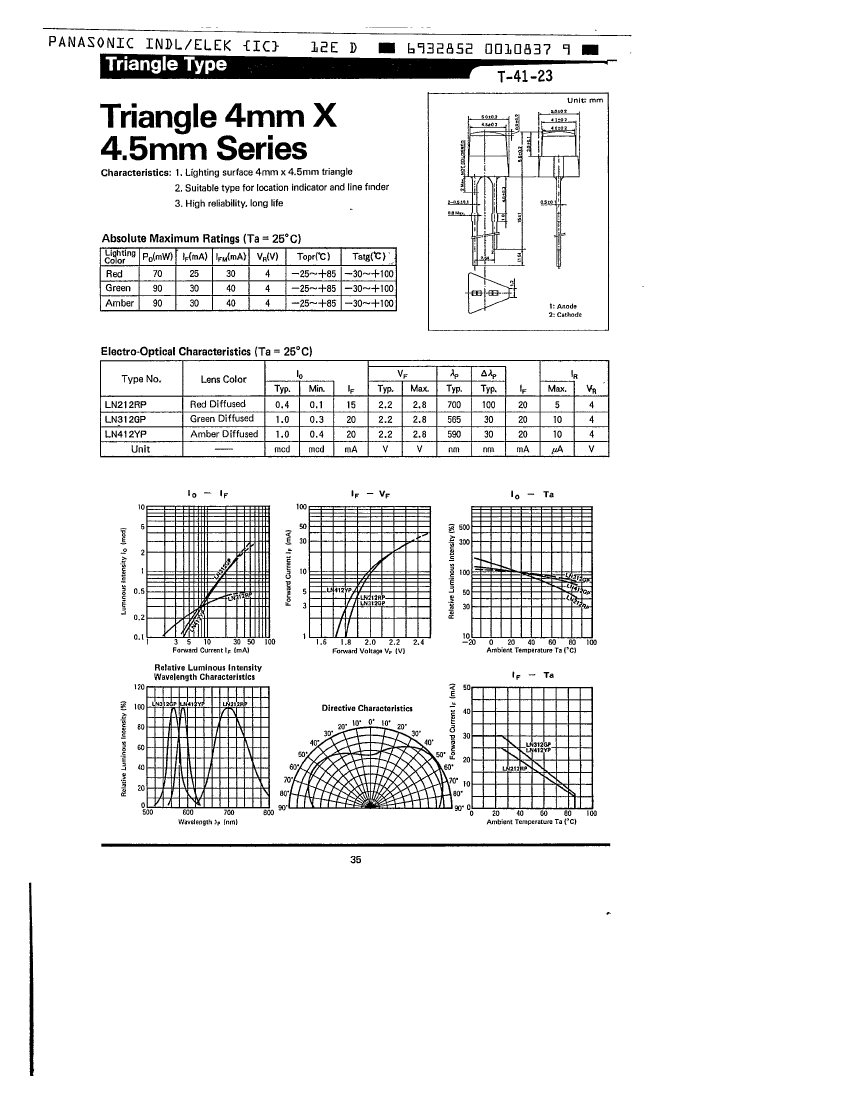

	LN320GP	LN435YPH	LN427YP	LN820WP	LN327GP
Description	Single Color LED, Green, Diffused, 7mm,	Single Color LED, Amber, Diffused, 2.5mm,	Single Color LED, Amber, Diffused, 5mm,	Optoelectronic Device	Single Color LED, Green, Diffused, 5mm,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Is it Rohs certified?	incompatible	incompatible	incompatible	-	incompatible
Maker	Panasonic	-	Panasonic	Panasonic	Panasonic
color	GREEN	AMBER	AMBER	-	GREEN
color@wavelength	Green	Amber	Amber	-	Green
Configuration	SINGLE	SINGLE	SINGLE	-	SINGLE
Maximum forward current	0.03 A	0.03 A	0.03 A	-	0.03 A
Maximum forward voltage	2.8 V	2.8 V	2.8 V	-	2.8 V
JESD-609 code	e0	e0	e0	-	e0
Lens type	DIFFUSED	DIFFUSED	DIFFUSED	-	DIFFUSED
Nominal luminous intensity	1.2 mcd	1.0 mcd	1.0 mcd	-	2.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	-	RADIAL MOUNT
Number of functions	1	1	1	-	1
Number of terminals	2	2	2	-	2
Maximum operating temperature	85 °C	85 °C	85 °C	-	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-	-25 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	-	SINGLE COLOR LED
total height	6 mm	8.5 mm	8 mm	-	8 mm
method of packing	BULK	BULK	BULK	-	BULK
peak wavelength	565 nm	590 nm	590 nm	-	565 nm
Maximum reverse voltage	4 V	4 V	4 V	-	4 V
shape	RECTANGULAR	TRIANGULAR	TRIANGULAR	-	TRIANGULAR
size	7 mm	2.5 mm	5 mm	-	5 mm
surface mount	NO	NO	NO	-	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm
perspective	180 deg	125 deg	140 deg	-	140 deg
