BYV36A datasheet, PDF - EEWORLD Datasheet

BYV36A: DescriptionRectifier Diode, 1 Element, 1.6A, 200V V(RRM),; CategoryDiscrete semiconductor diode; File Size794KB，12 Pages; ManufacturerNorth American Philips Discrete Products Div

Download Datasheet Parametric Compare View All

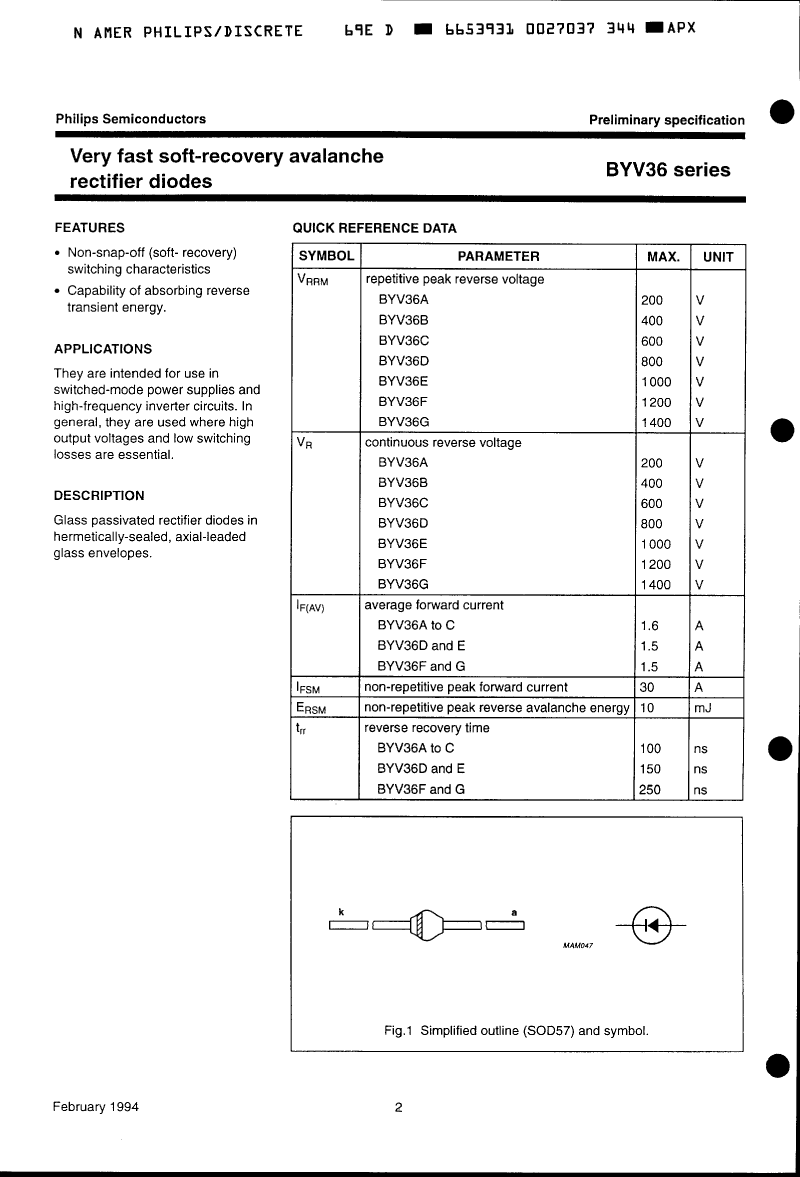

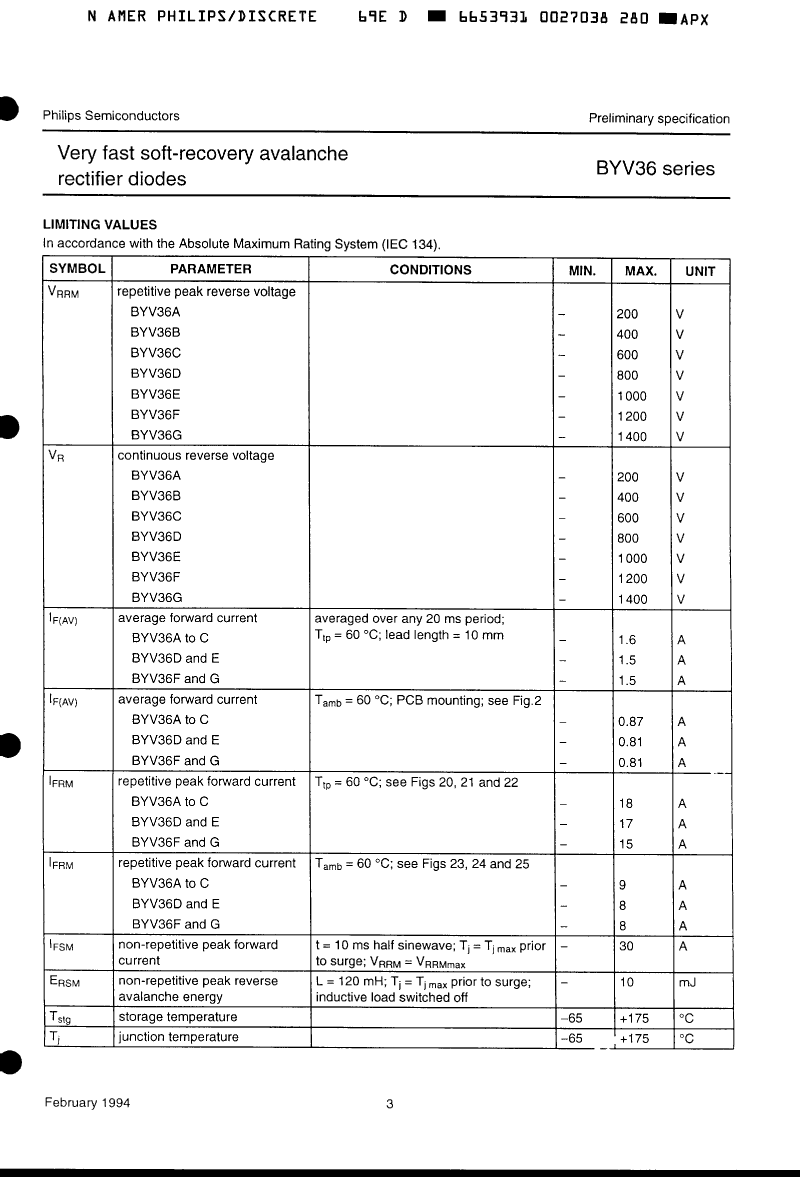

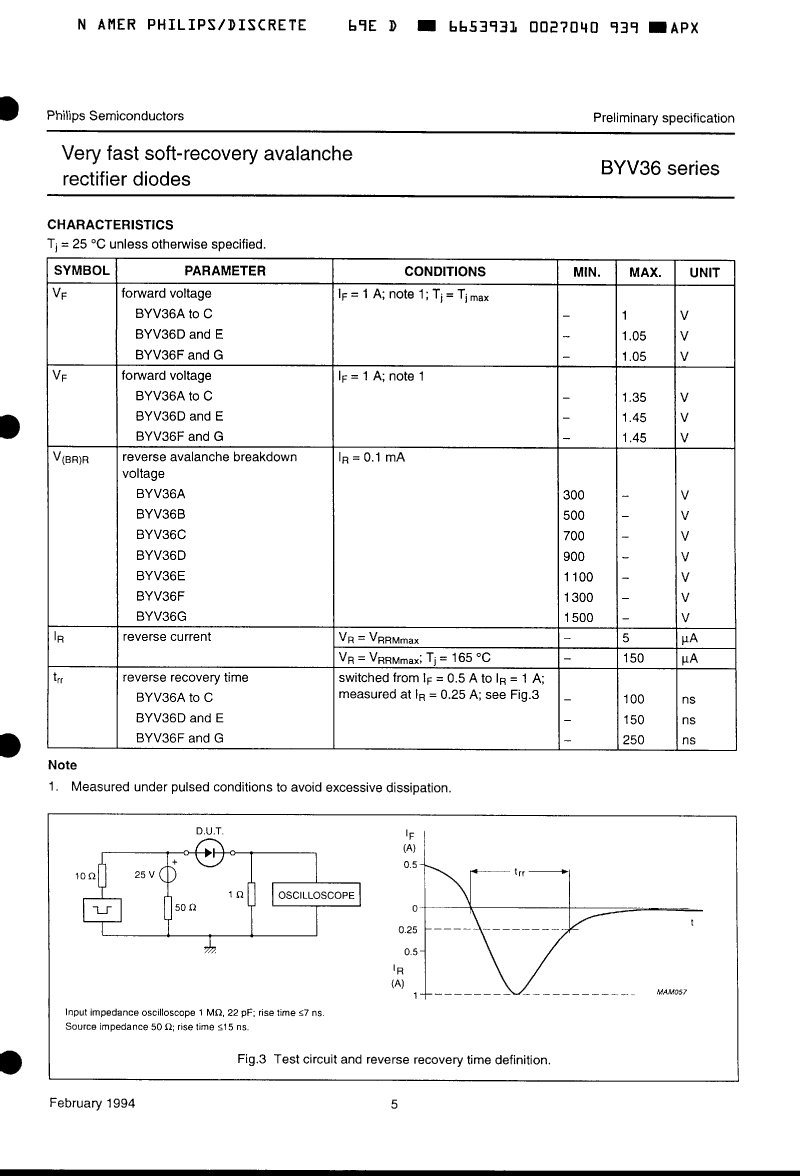

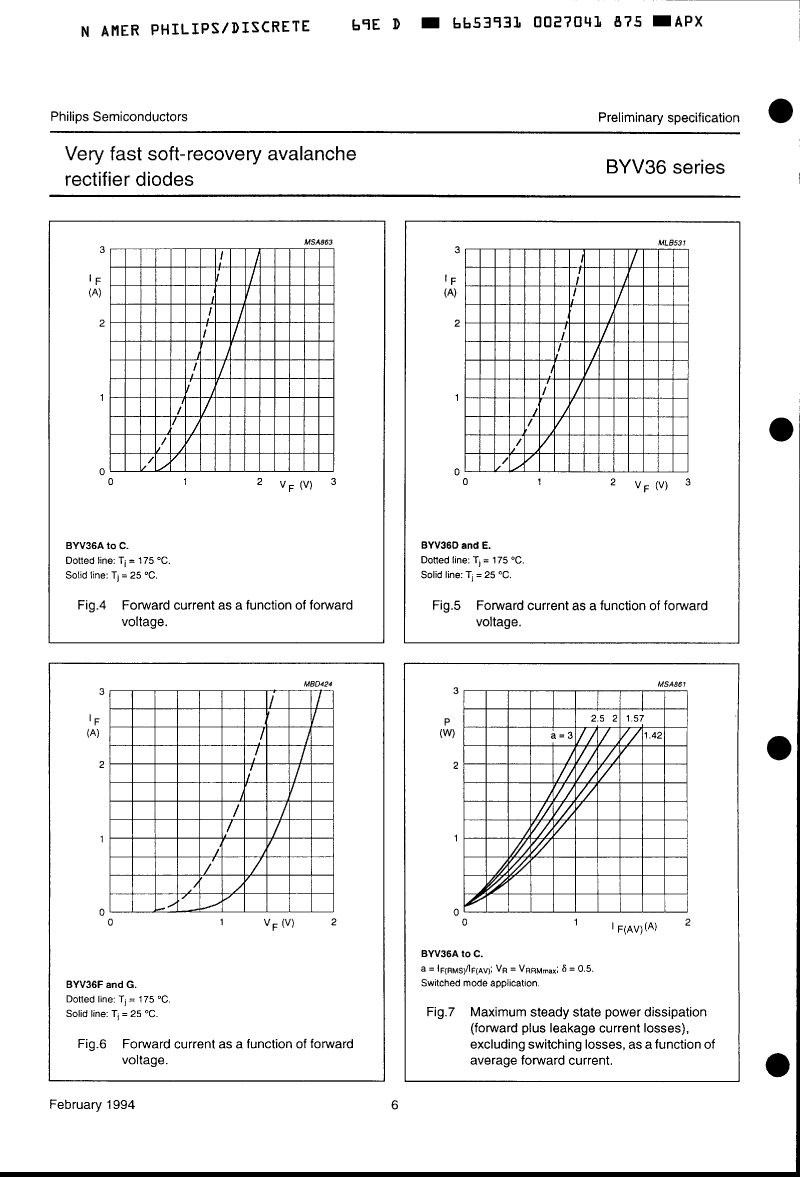

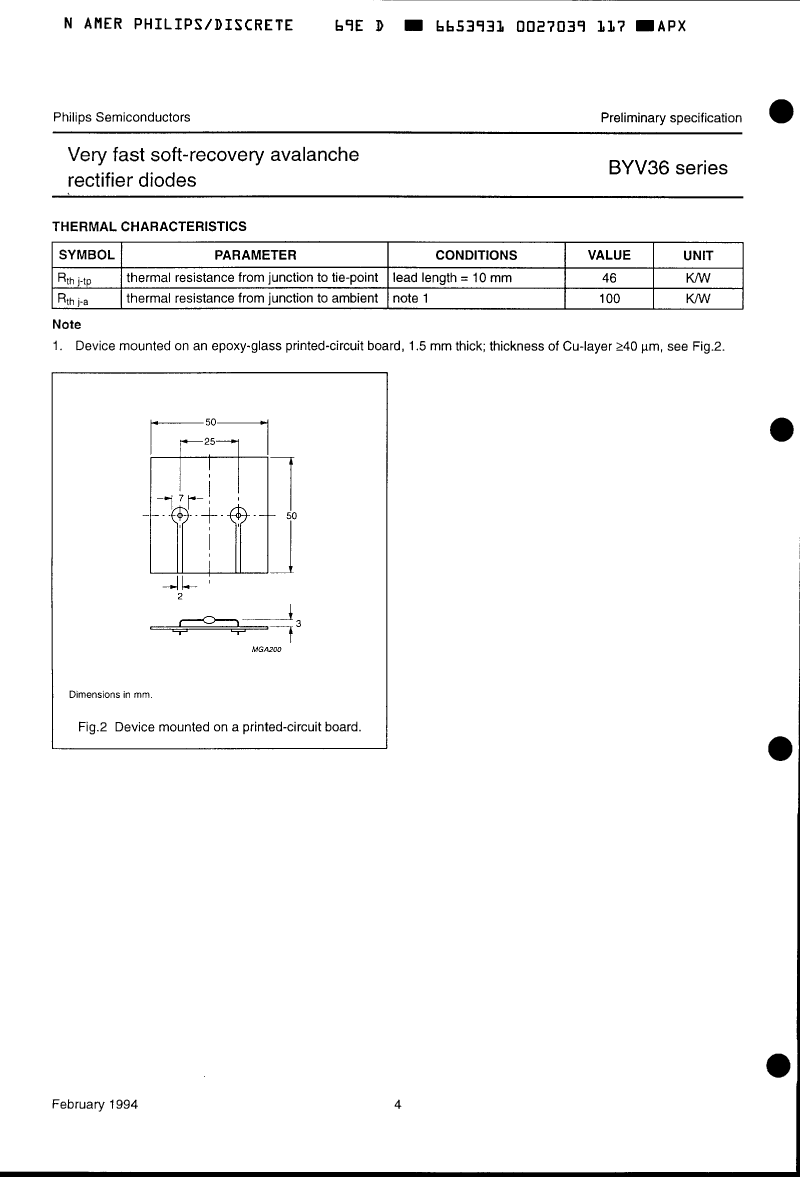

BYV36A Overview

Rectifier Diode, 1 Element, 1.6A, 200V V(RRM),

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	North American Philips Discrete Products Div
Reach Compliance Code	unknown
Configuration	SINGLE
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JESD-609 code	e0
Maximum non-repetitive peak forward current	30 A
Number of components	1
Maximum operating temperature	175 °C
Maximum output current	1.6 A
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.1 µs
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

	BYV36A	BYV36E	BYV36B	BYV36D	BYV36F
Description	Rectifier Diode, 1 Element, 1.6A, 200V V(RRM),	Rectifier Diode, 1 Element, 1.5A, 1000V V(RRM),	Rectifier Diode, 1 Element, 1.6A, 400V V(RRM),	Rectifier Diode, 1 Element, 1.5A, 800V V(RRM),	Rectifier Diode, 1 Element, 1.5A, 1200V V(RRM),
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	North American Philips Discrete Products Div	North American Philips Discrete Products Div	North American Philips Discrete Products Div	North American Philips Discrete Products Div	North American Philips Discrete Products Div
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V	1.45 V	1.3 V	1.4 V	1.1 V
JESD-609 code	e0	e0	e0	e0	e0
Maximum non-repetitive peak forward current	30 A	30 A	30 A	30 A	30 A
Number of components	1	1	1	1	1
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum output current	1.6 A	1.5 A	1.6 A	1.5 A	1.5 A
Maximum repetitive peak reverse voltage	200 V	1000 V	400 V	800 V	1200 V
Maximum reverse recovery time	0.1 µs	0.15 µs	0.1 µs	0.15 µs	0.25 µs
surface mount	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Base Number Matches	1	1	1	-	-
