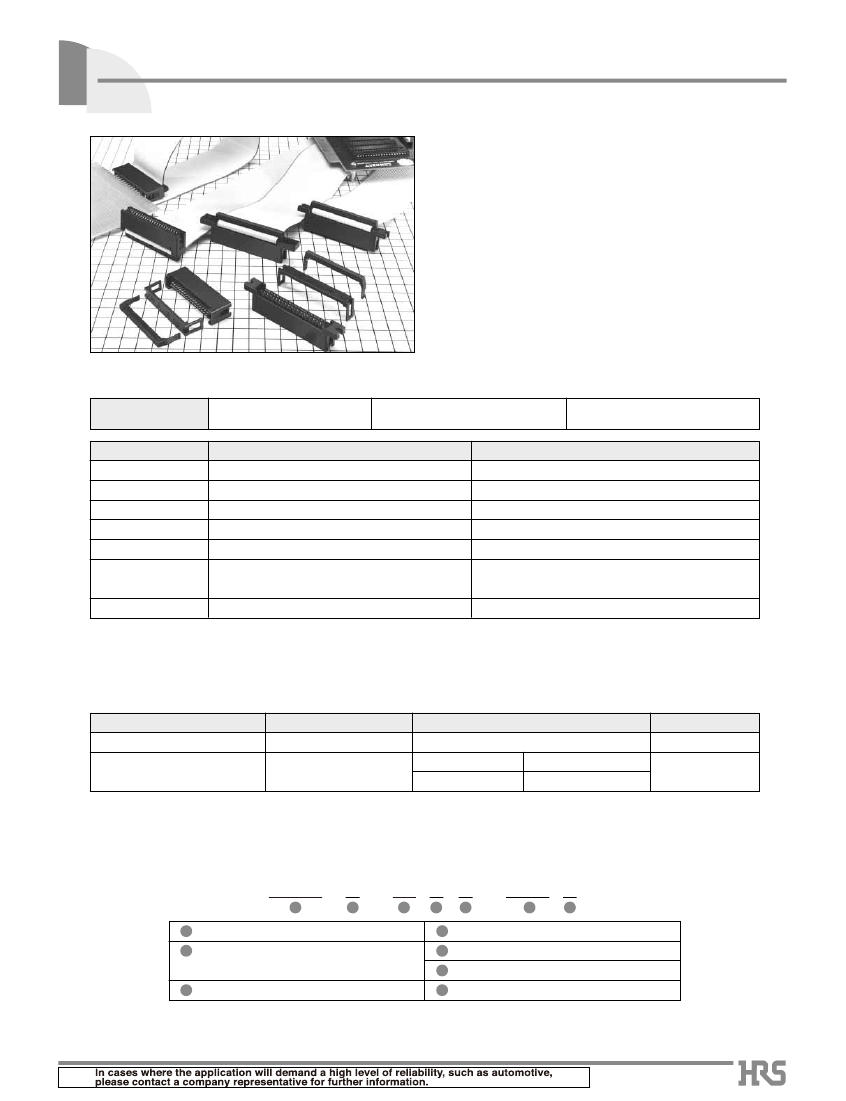

Card Edge Type Ribbon Cable Connectors
HIF5 Series
■
Features
1. Product Variation
The area to install the connector body is classified into three types according to full
hole mounting area, semi-mounting area and non-mounting area.
2. Mounting Density Enhancement
This connector is designed so that the ribbon cable can turn
back within the connector molding range. The connector can be
installed without coming out of the insulator.
Sep.1.2019 Copyright 2019 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
3. Applicable Cable
The applicable cable is a <UL2651>28 AWG flat cable
(7pcs./0.127mm, jacket dia. : 0.8 to 1.0mm).
■
Product Specifications
Rating
Item
1. Insulation Resistance 1000MΩ min.
2. Withstanding voltage
No flashover or insulation breakdown.
3. Contact Resistance 15mΩ max.
4. Vibration
No electrical discontinuity of 1μs or more
5.
Humidity (Steady state)
Insulation resistance : 1000MΩ min.
6. Temperature Cycle
No damage, cracks, or parts looseness.
7. Durability (Mating/un-mating) Contact resistance 15mΩ max.
Current rating : 1A
Voltage rating : 200V AC
Specification
500V DC
650V AC/1 minute
0.1A
Operating Temperature Range :
–55
to
+85ç
(Note 1) Storage Temperature Range :
–10
to
+60ç(Note
2)
Operating Moisture Range:40 to 80% Storage Humidity Range : 40 to 70% (Note 2)
Condition
Frequency : 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(–65ç : 30 minutes
➝
15 to 35ç : 5 minutes max.
125ç : 30 minutes
➝
15 to 35ç : 5 minutes max.) 5 cycles
500 cycles
Note 1 : Includes temperature rise caused by current flow.
Note 2 : The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range
and Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
■
Materials / Finish
Part
Insulator
Contact
Material
PBT
Copper alloy
Contact area
Connection area
Finish
Black
Gold plated over nickel underplated
Nickel plated
Remarks
UL94V-0
---------------
■
Product Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
HIF5
1
1
Series Name : HIF5
C -
*
D A - 2.54 R
2
3
4
5
6
7
4
Contact alignment : D : Double
5
Plating type : A : Selective gold plated
6
Contact Pitch : 2.54mm
7
Connection type : R : Ribbon cable
2
Mold type C : With half mounting hole
D : Without mounting hole
3
Number of contacts : 20, 26, 34, 40, 50, 60
B59

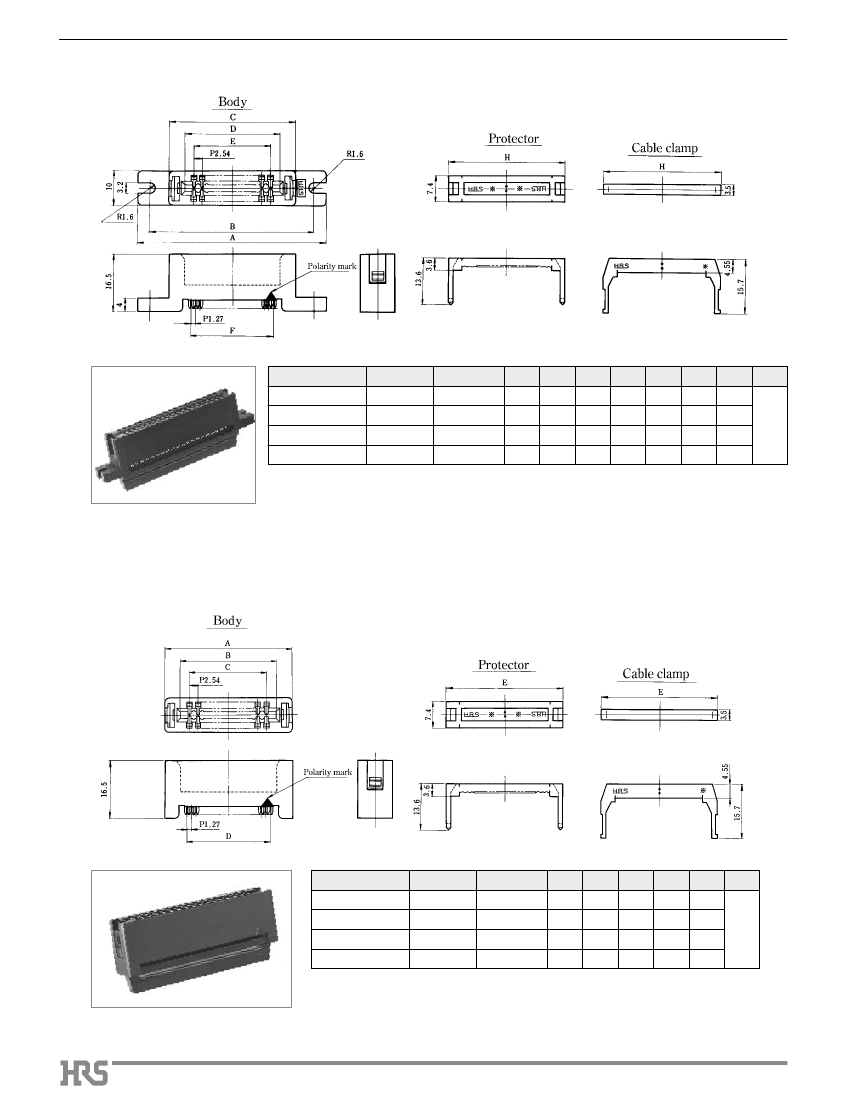

HIF5 Series●Card Edge Type Ribbon Cable Connectors
■
With Mounting Half hole
Sep.1.2019 Copyright 2019 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Part No.
HRS No.
No. of Contacts
20
26
50
60
A
B
C
D
E
F
H
RoHS
HIF5C-20DA-2.54R(91) 564-0020-8 91
HIF5C-26DA-2.54R(91) 564-0021-0 91
HIF5C-50DA-2.54R(91) 564-0024-9 91
HIF5C-60DA-2.54R(91) 564-0025-1 91
50.80 45.72 36.04 28.04 22.86 24.13 33.54
58.42 53.34 43.66 35.66 30.48 31.75 41.16
88.90 83.82 74.14 66.14 60.96 62.23 71.64
101.6 96.52 86.84 78.84 73.66 74.93 84.34
YES
■
Without Mounting Hole
Part No.
HRS No.
No. of Contacts
34
40
50
60
A
B
C
D
E
RoHS
HIF5D-34DA-2.54R(91) 564-0028-0 91
HIF5D-40DA-2.54R(91) 564-0029-2 91
HIF5D-50DA-2.54R(91) 564-0030-1 91
HIF5D-60DA-2.54R(91) 564-0031-4 91
53.82 45.82 40.64 41.91 51.32
61.44 53.44 48.26 49.53 58.94
74.14 66.14 60.96 62.23 71.64
86.84 78.84 73.66 74.93 84.34
YES
B60

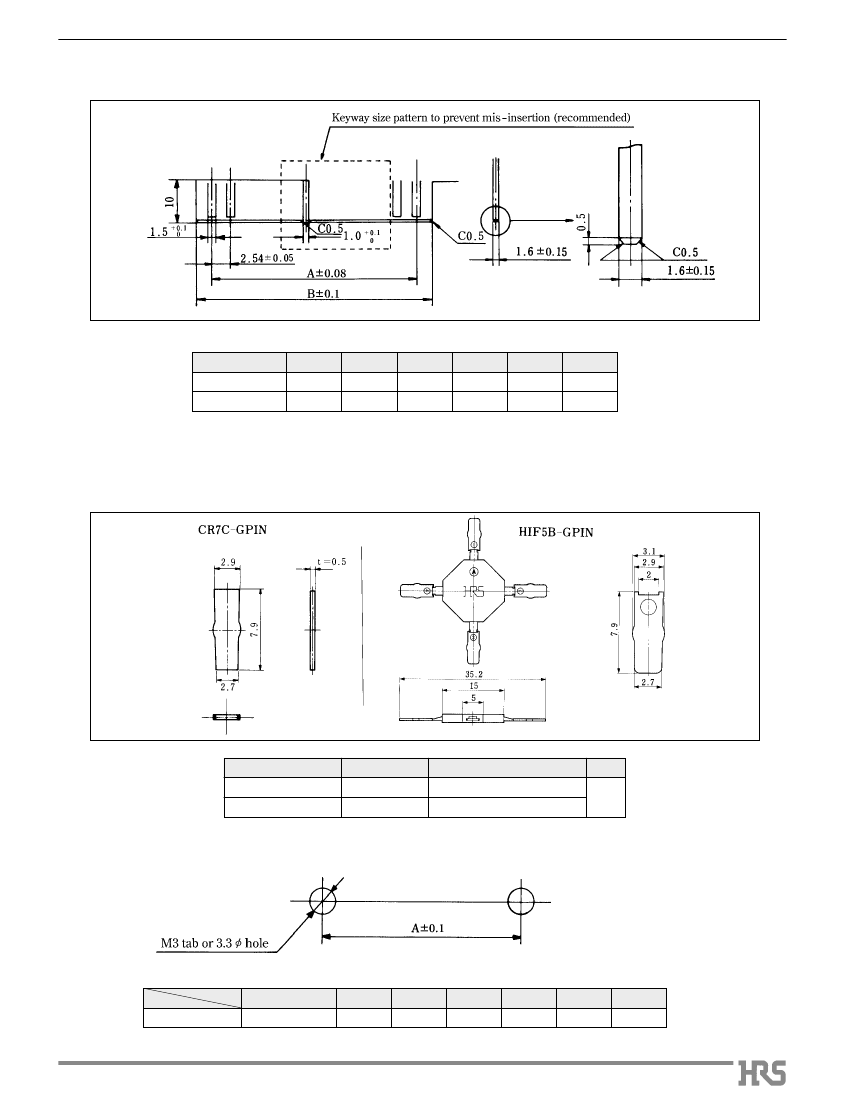

HIF5 Series●Card Edge Type Ribbon Cable Connectors
BConnection
Procedures
Note 1 : Cable length tolerance Less than 500
+
100
(mm)
More than 500 pcs.
%
+3
0
Note 2 : When a cable such as a twist cable or a slit
(like a roller screen) cable is used, the cable
pitch will slightly change according to cable
manufacturers. If connection failure has
occurred, consult HRS Sales Department.
HIF5C Type
HIF5C Type
(No cable clamp)

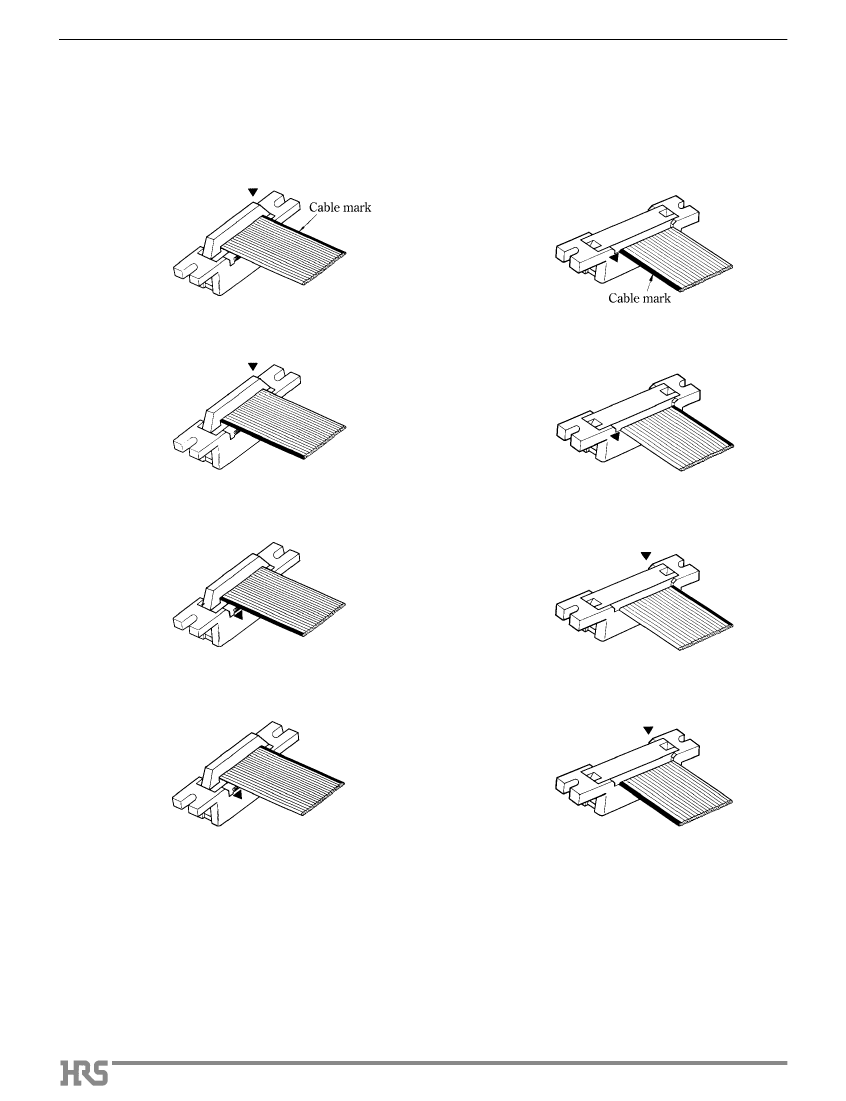

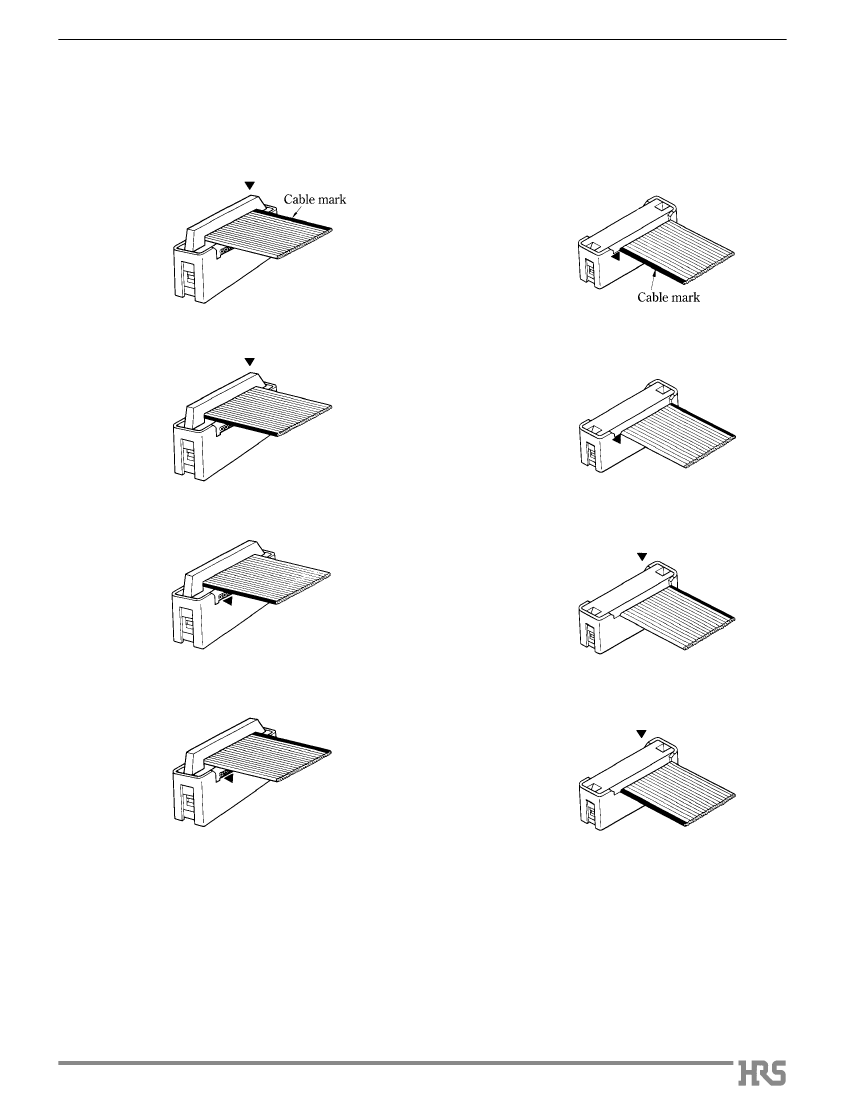

AO Connection
AO Connection
Sep.1.2019 Copyright 2019 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
HIF5C Type
HIF5C Type
(No cable clamp)
BO Connection
BO Connection
HIF5C Type
HIF5C Type
(No cable clamp)
CO Connection
CO Connection
HIF5C Type
HIF5C Type
(No cable clamp)
DO Connection
DO Connection
B62
