Data Sheet

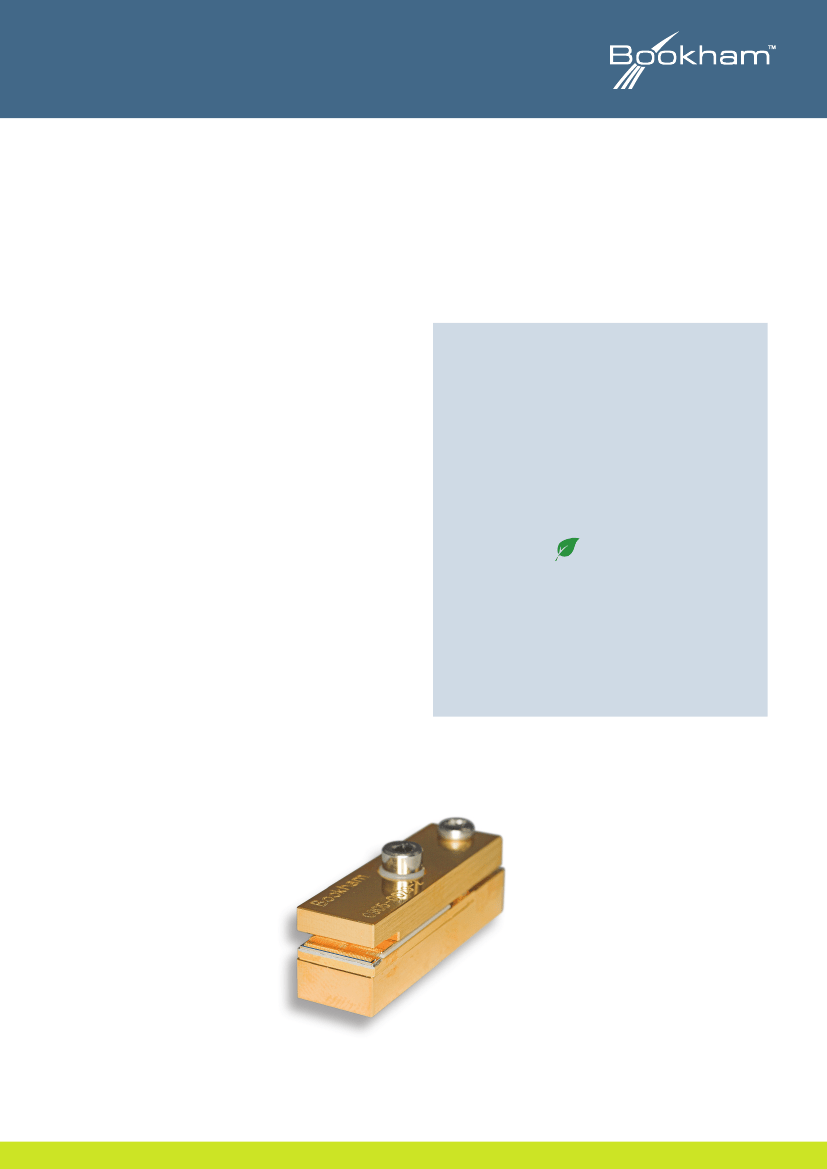

80W 9xxnm High Power Laser Diode Bar on
Microchannel Cooler
BAC80C-9xx-01/02
The Bookham BAC80C-9xx-01/02 50% fill factor laser diode
bar on microchannel cooler series has been designed to
provide the high brightness and reliability required for pumping
solid-state and fibre lasers, and for direct applications.
The proprietary E2 front mirror passivation process, developed
at our Zurich site, prevents Catastrophic Optical Damage
(COD) to the laser diode facet even at extremely high output
powers. The laser diode bars are mounted on an expansion
matched CuW submount onto a water-cooled microchannel
package providing very high reliability in CW and pulsed
(1-Hz type) applications.
Features:
• Mounted 10mm x 1.2mm laser diode bar
• Active microchannel cooler (water-cooled)
• 80W operating power
• Highly reliable single quantum well MBE structure
• Telecom grade AuSn mounting technology
• Assembly option with Cu base and cover
• Standard wavelengths at 915nm, 940nm, and 980nm
(others available on request)
• RoHS compliant
Applications:
• Solid-state and fiber laser pumping
• Direct applications such as material processing
• Printing
• Medical
1
Data Sheet
Characteristics
Parameter
CW Output Power
Center Wavelength
[1]
BAC80C-915-01/02
BAC80C-940-01/02
BAC80C-980-01/02
Spectral Width (FWHM)
Wavelength Shift with Temperature
Beam Divergence
Parallel to Junction (90% of Power)
Perpendicular to Junction (FWHM)
Polarization
Threshold Current
Slope Efficiency
Conversion Efficiency
Series Resistance
Operating Current
Operating Voltage
Operating Temperature
Microcooler Flow
Microchannel Cooler Differential Pressure
Symbol
P
op
λ
c915
λ
c940
λ
c980
∆λ
dλ
c
/dT
op
θ
//
θ⊥
–
I
th
η
D
=P
op
/(I
op
-I
th
)
H=P
op
/(V
op
×I
op
)
R
s
I
op
V
op
T
op
Q
w
P
w
Typical
80
915 ± 10
940 ± 10
980 ± 10
3
0.3
7
26
TE
9
1
60
5
87
1.5
25 ± 5
22 ± 4
0.7
Unit
W
nm
nm
nm/°C
deg
–
A
W/A
%
mΩ
A
V
°C
l/hrs
bar
[1] Reduced wavelength window / extended range available on request (900-1060nm).
Bar Dimensions
Parameter
Bar Width
Resonator Length
Number of Emitters
Emitter Spacing
Emitter Width
Fill Factor
Symbol
b
l
n
p
w
f
Typical
10
1.2
25
400
200
50
Unit
mm
mm
–
µm
µm
%
2
Data Sheet
RoHS Compliance
Bookham is fully committed to environment
protection and sustainable development and has
set in place a comprehensive program for removing
polluting and hazardous substances from all of its
products. The relevant evidence of RoHS
compliance is held as part of our controlled
documentation for each of our compliant products.
RoHS compliance parts are available to order,
please refer to the ordering information section for
further details.
Ordering Information:
BAC80C-915-01
BAC80C-940-01
BAC80C-980-01
BAC80C-915-02
BAC80C-940-02
BAC80C-980-02
80W 915nm Laser Diode Bar on Microchannel Cooler
80W 940nm Laser Diode Bar on Microchannel Cooler
80W 980nm Laser Diode Bar on Microchannel Cooler
80W 915nm Laser Diode Bar on Microchannel Cooler with Base and Cover
80W 940nm Laser Diode Bar on Microchannel Cooler with Base and Cover
80W 980nm Laser Diode Bar on Microchannel Cooler with Base and Cover
