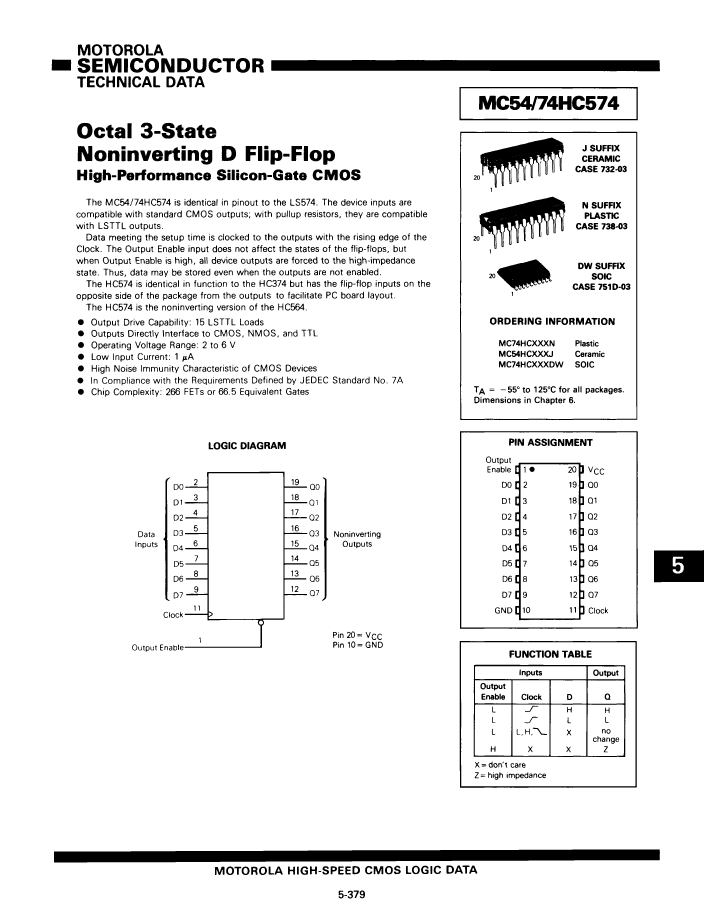

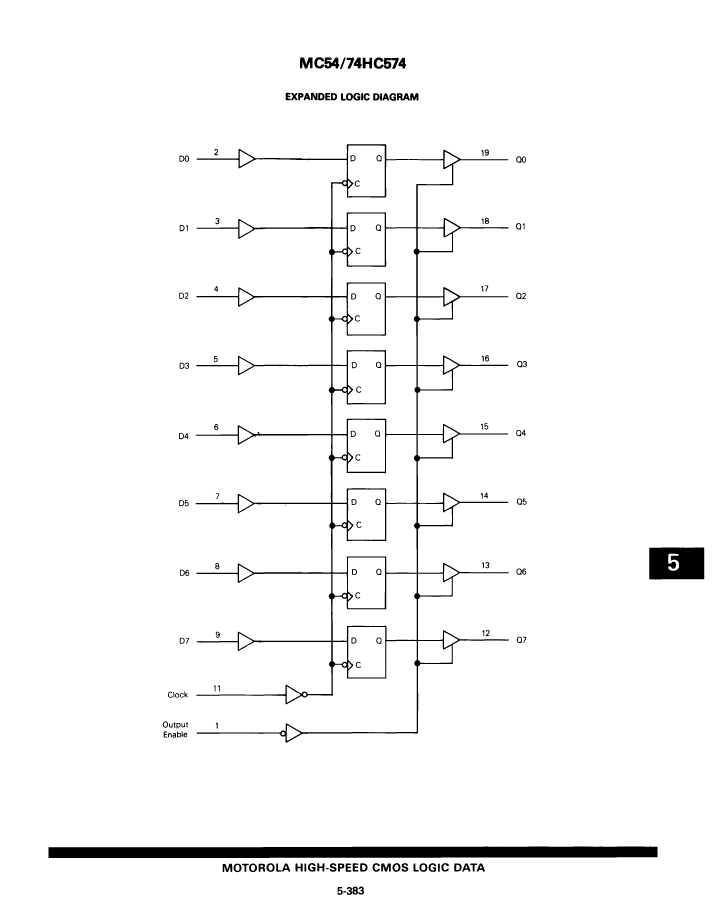

HC/UH SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDIP20, LEAD FREE, CERAMIC, DIP-20
| Parameter Name | Attribute value |
| Maker | Motorola ( NXP ) |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 20 |
| Reach Compliance Code | unknown |
| Other features | BROADSIDE VERSION OF 374 |
| series | HC/UH |
| JESD-30 code | R-CDIP-T20 |
| Logic integrated circuit type | BUS DRIVER |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |

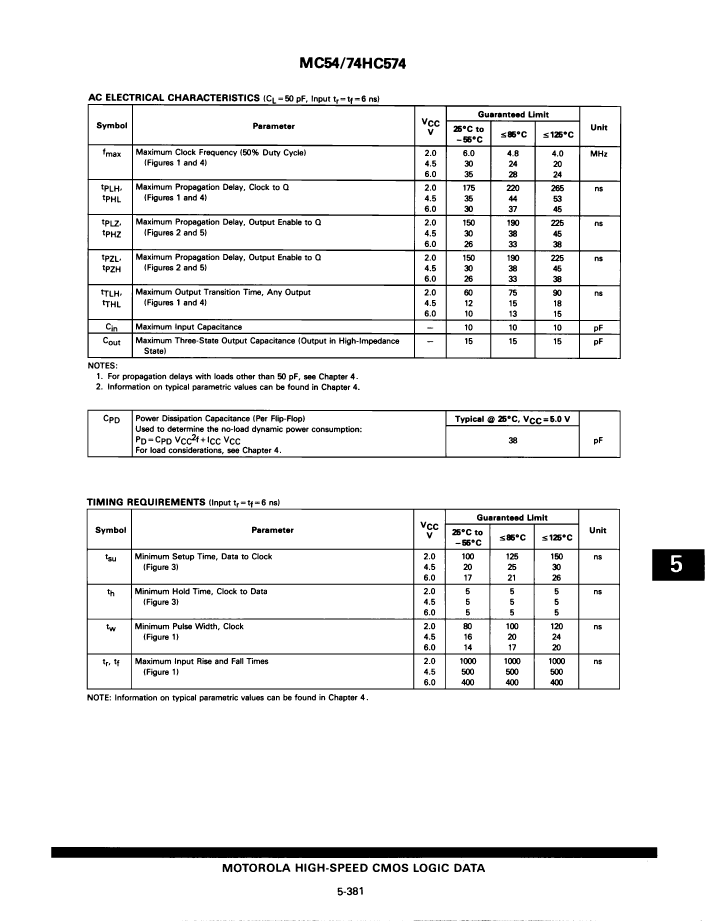

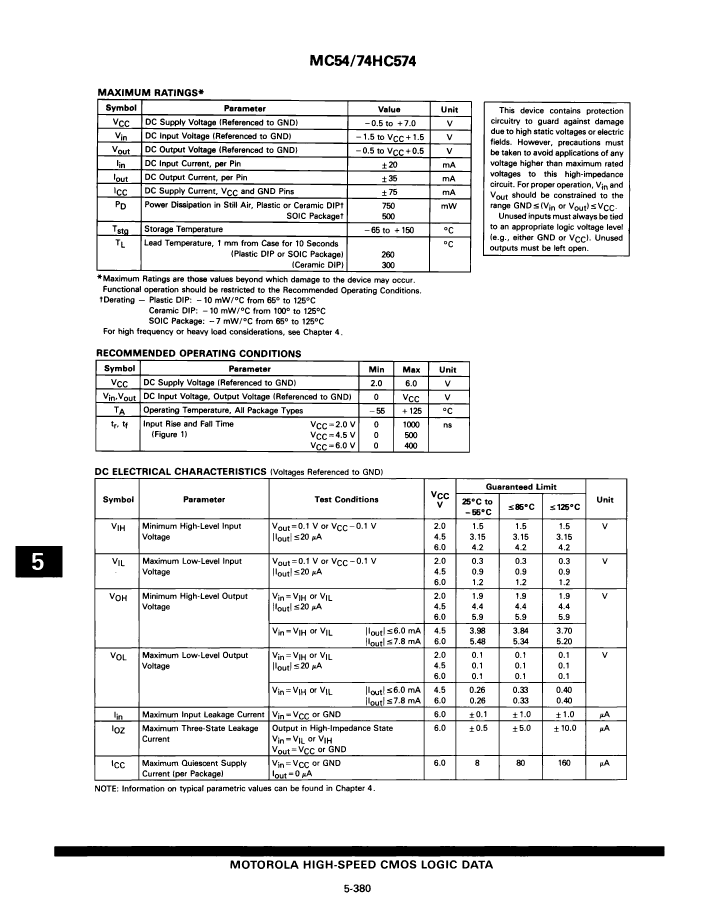

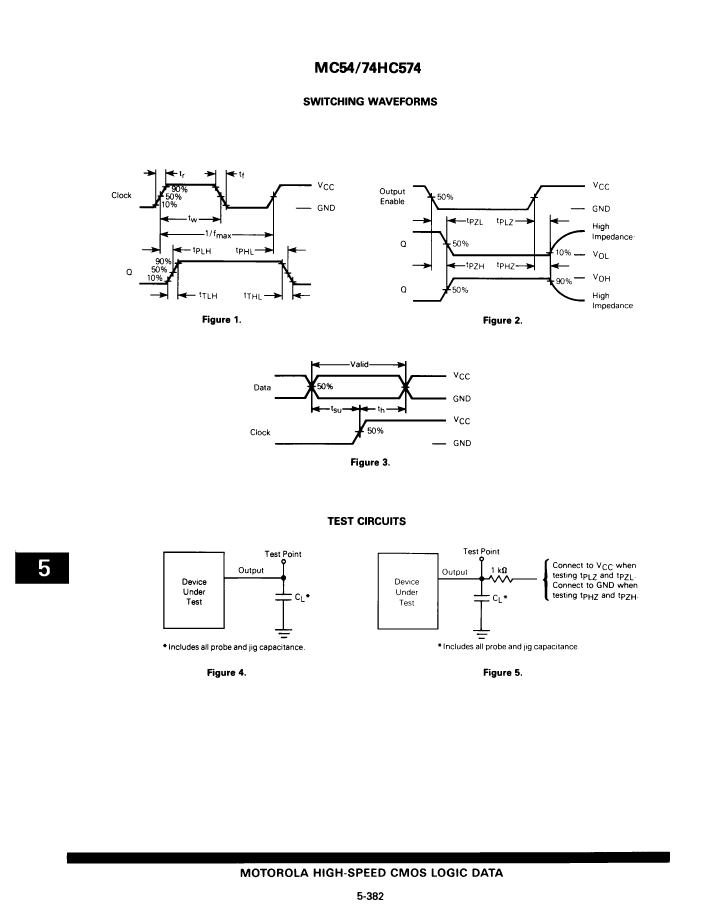

| propagation delay (tpd) | 53 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 6 V |
| Minimum supply voltage (Vsup) | 2 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal form | THROUGH-HOLE |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| MC74HC574JG | MC74HC574NG | MC74HC574DWR2 | |
|---|---|---|---|
| Description | HC/UH SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDIP20, LEAD FREE, CERAMIC, DIP-20 | Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, PDIP20, LEAD FREE, PLASTIC, DIP-20 | HC/UH SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, SOIC-20 |
| Maker | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) |
| package instruction | DIP, | DIP, | SOP, |
| Reach Compliance Code | unknown | unknown | unknown |
| Other features | BROADSIDE VERSION OF 374 | BROADSIDE VERSION OF 374 | BROADSIDE VERSION OF 374 |
| series | HC/UH | HC/UH | HC/UH |
| JESD-30 code | R-CDIP-T20 | R-PDIP-T20 | R-PDSO-G20 |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER |
| Number of digits | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 |
| Number of ports | 2 | 2 | 2 |
| Number of terminals | 20 | 20 | 20 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | DIP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | SMALL OUTLINE |
| propagation delay (tpd) | 53 ns | 53 ns | 53 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 6 V | 6 V | 6 V |
| Minimum supply voltage (Vsup) | 2 V | 2 V | 2 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V |
| surface mount | NO | NO | YES |
| technology | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | MILITARY |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | GULL WING |
| Terminal location | DUAL | DUAL | DUAL |
| Parts packaging code | DIP | - | SOIC |
| Contacts | 20 | - | 20 |
| length | - | 26.415 mm | 12.8 mm |
| Maximum seat height | - | 4.57 mm | 2.65 mm |
| Terminal pitch | - | 2.54 mm | 1.27 mm |
| width | - | 7.62 mm | 7.5 mm |
