PROFESSIONAL / INDUSTRIAL QUALITY
REMOVABLE CONTACT
STANDARD DENSITY D-SUBMINIATURE
Positronic Industries
connectpositronic.com
Size 20 Signal and
Thermocouple Contacts,
Crimp Removable
Two Performance Levels
For Best Cost /
Performance Ratio
IEC Publication 60807-3
Performance Level Two - Professional
Performance Level One - Industrial
Di
rec
tive
2002
/9
ORD SERIES TECHNICAL CHARACTERISTICS
MATERIALS AND FINISHES:
Glass filled DAP per ASTM-D-5948, SDG-F,
UL 94V-0, green color.
Contacts:
Precision machined copper alloy.
Contact Plating:
Industrial performance - gold flash over nickel
plate. Other finishes available upon request.
Shells:
Steel with tin plate; zinc plate with chromate
seal, stainless steel passivated. Other mate-
rials and finishes available upon request.
Mounting Spacers:
Nylon; copper alloy or steel with zinc plate
and chromate seal or tin plate; phosphor
bronze with tin plate; stainless steel, passi-
vated.
Vibration Lock Systems:
Slide lock and lock tabs, steel with nickel
plate.
Jackscrew Systems:
Brass or steel with zinc plate and chromate
seal or clear zinc plate or tin plate; stainless
steel, passivated.
Hoods:
Composite and plastic, UL 94V-0; brass or
steel with zinc plate and chromate seal.
Aluminum; aluminum with electroless nickel
plate. For aluminum hoods, zinc content is
1% maximum. Die cast zinc.
Low magnetic versions are available, contact Technical Sales.
Insulators:
Polarization:
Locking Systems:
Mechanical Operations:
Trapezoidally shaped shells and polarized
jackscrews.
Jackscrews and vibration locking systems.
500 operations minimum per IEC 60512-5 for
“Robi-D” Open Entry” design.
1000 operations minimum per IEC 60512-5
for PosiBand closed entry female contact.
ELECTRICAL CHARACTERISTICS:
Contact Current Rating:
Open Entry Contacts:
7.5 amperes nominal
Closed Entry Contacts, tested per UL 1977:
18 amperes, 2 contacts energized.
14 amperes, 6 contacts energized.
11 amperes, 15 contacts energized.
10 amperes, 25 contacts energized.
9 amperes, 50 contacts energized.
See temperature rise curves on page 2 for details.
0.008 ohms maximum for open entry
Initial Contact Resistance:
0.004 ohms maximum for closed entry
Proof Voltage:
1000 V r.m.s.
Insulator Resistance:
5 G ohms.
Clearance and Creepage
Distance [minimum]:
0.039 inch [1.0mm].
Working Voltage:
300 V r.m.s.
MECHANICAL CHARACTERISTICS:
Removable Contacts:
Insert contact to rear face of insulator and
release from rear face of insulator. Size 20
contact, male - 0.040 inch [1.02mm] mating
diameter. Female contacts - rugged “Robi-
D” open entry design or PosiBand closed
entry design, see page 1 for details.
9 lbs. [40 N].
Closed barrel crimp, wire sizes 18 AWG
[1.0mm
2
] through 24 AWG [0.25mm
2
].
Tin-plated male shells may be dimpled for
EMI/ESD ground paths.
CLIMACTIC CHARACTERISTICS:
Temperature Range:
Damp Heat, Steady State:
-55°C to +125°C.
10 days.
Contact Retention
In Insulator:
Contact Terminations:
Shells:
THERMOCOUPLE CONTACTS:
Size 20 crimp contacts are available. See page 41 for details.
Printed circuit board mount contacts are available in HDC series, see
page 27 for details.
DIMENSIONS ARE IN INCHES [MILLIMETERS].
ALL DIMENSIONS ARE SUBJECT TO CHANGE.
5/
Compliant
38
ORD SERIES

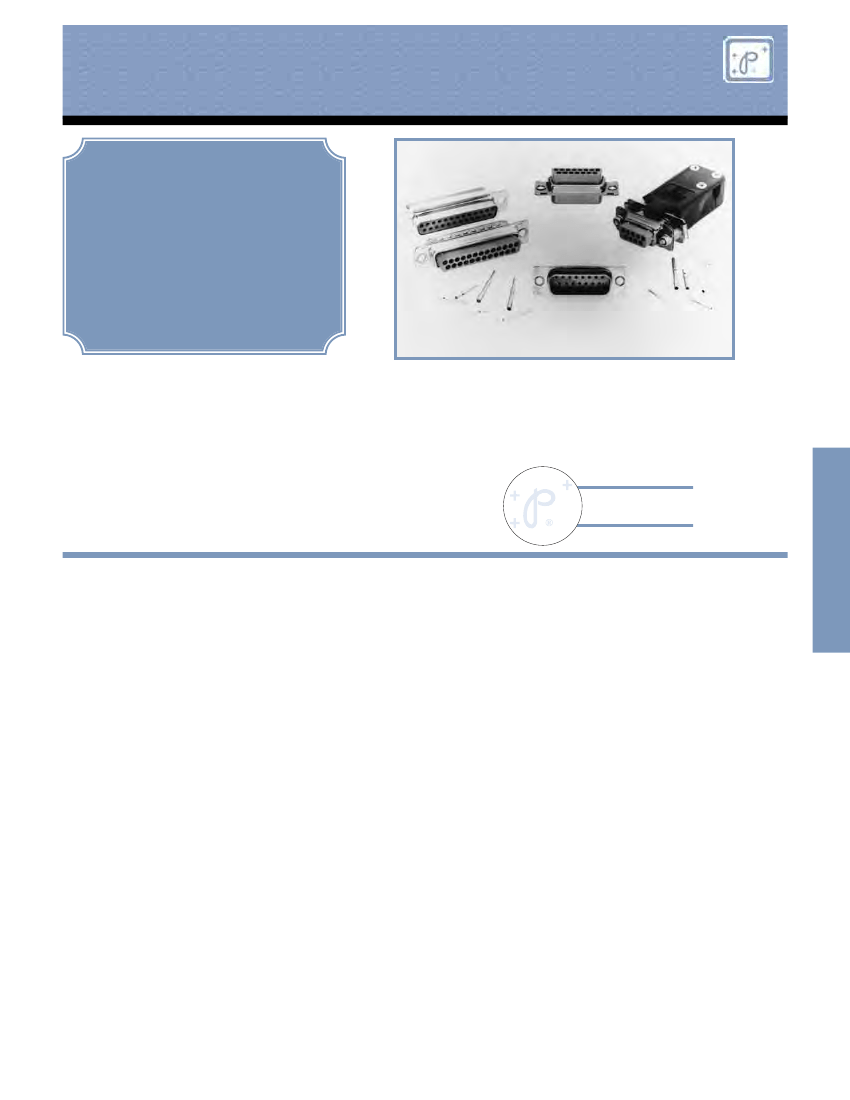

ORD series connectors are professional / industrial quality
connectors with closed barrel crimp removable contacts. ORD
series connectors are recommended for use in sheltered, mild-
ly corrosive environments having a wide range of temperatures
with normal ventilation where high performance is required.
ORD series connectors utilize precision-machined contacts
to provide durability. Female contacts feature the low cost,
high performance Robi-D open entry design, meeting the per-
formance requirements of IEC 60807-3, Performance Level
Two. Female PosiBand closed entry contacts are optional and
meet IEC 807-3, Performance Level One.
Six standard contact variants are offered in arrangements of
9, 15, 25, 29, 37, and 50 contacts. ORD series connectors are
mateable and compatible with all D-Subminiature connectors
conforming to MIL-DTL-24308, IEC 60807-2, and IEC 60807-3.
A wide assortment of cable support hoods and locking sys-
tems is available from stock.
EC
RoHS
IT
R
O
NIC
INDU
S
TR
POS
For RoHS options
see page 42.
IES
•
pe
•
U
rE
Positronic Industries
connectpositronic.com
PROFESSIONAL / INDUSTRIAL QUALITY
REMOVABLE CONTACT
STANDARD DENSITY D-SUBMINIATURE

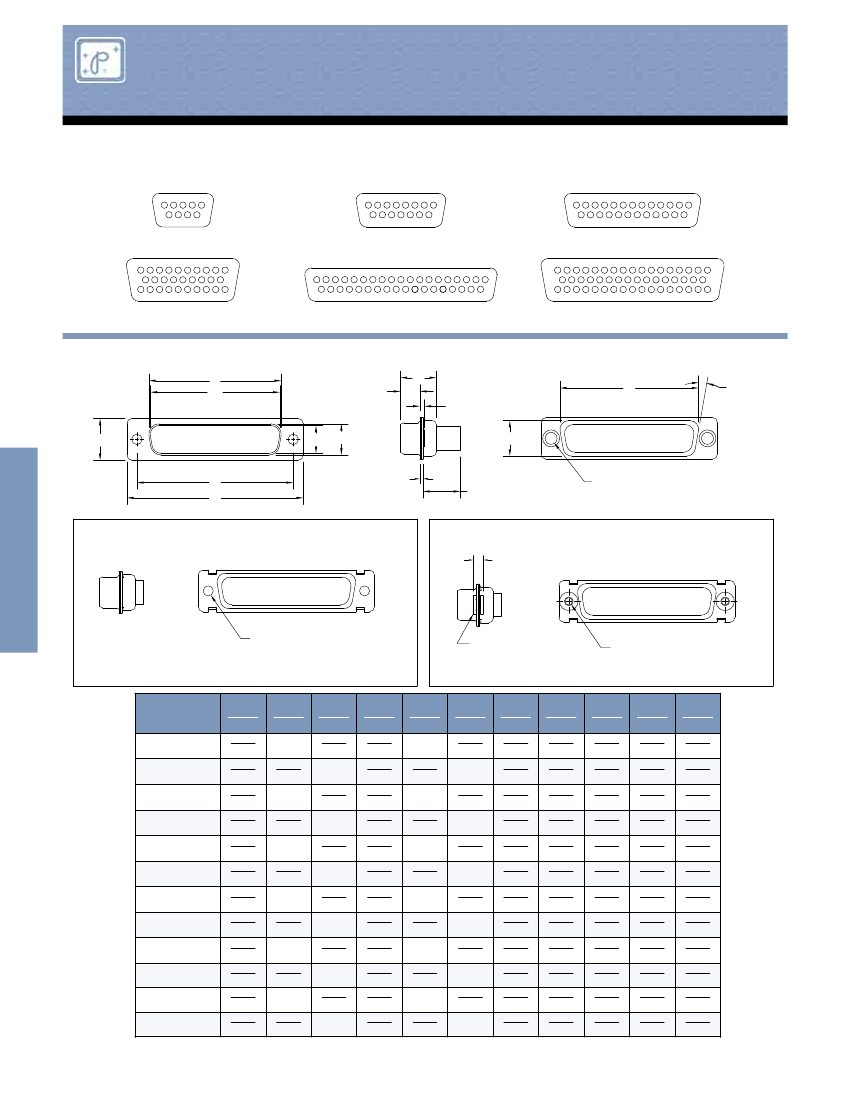

CONTACT VARIANTS
FACE VIEW OF MALE OR REAR VIEW OF FEMALE
D
-
S
ub
1
2
3
4
5
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
10 11 12 13
6
7
8
9
9
10 11 12 13 14 15
14 15 16 17 18 19 20 21 22
23 24 25
ORD 9
1
2
3
4
5
6
7
8
9
10
1
11 12 13 14 15 16 17 18 19
20
21 22 23 24 25 26 27 28 29
2
3
4
5
6
7
ORD 15
1
8
9
10 11 12 13 14 15 16 17 18 19
2
3
4
5
6
ORD 25
7
8
9
10 11 12 13 14 15 16 17
18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33
20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37
34
35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
ORD 29
ORD 37
ORD 50
STANDARD SHELL ASSEMBLY
B
B1
M
K
G
0.050±0.010
[1.27±0.25]
10° Typ.
E
D1
D
0.036±0.008
[0.91±0.20]
H
C
A
0.375 [9.53]
Max.
Ø0.120±0.005 [Ø3.05±0.13]
Mounting hole, two places
ORD SERIES
39
OPTIONAL SHELL ASSEMBLY (0, 02)
OPTIONAL SHELL ASSEMBLY
WITH UNIVERSAL FLOAT MOUNTS (F)
0.120±0.010 [3.08±0.25]
Ø0.120±0.005 [Ø3.05±0.13]
Mounting hole, two places
for stainless steel shell (0 option)
Ø0.154 [3.91] Mounting hole,
two places (02 option)
0.032 [0.81]
Total diametral float
Ø0.086+0.005 Ø2.18+0.13
-0.00
-0.000
Mounting hole, two places
[
]
CONNECTOR
VARIANT SIZES
ORD 9 M
ORD 9 F
ORD 9 S
ORD 15 M
ORD 15 F
ORD 15 S
ORD 25 M
ORD 25 F
ORD 25 S
ORD 29 M
ORD 29 F
ORD 29 S
ORD 37 M
ORD 37 F
ORD 37 S
ORD 50 M
ORD 50 F
ORD 50 S
A
±0.015
[0.38]
1.213
[30.81]
1.213
[30.81]
1.541
[39.14]
1.541
[39.14]
2.088
[53.04]
2.088
[53.04]
1.770
[44.96]
1.770
[44.96]
2.729
[69.32]
2.729
[69.32]
2.635
[66.93]
2.635
[66.93]
B
±0.005
[0.13]
B1
±0.005
[0.13]
0.666
[16.92]
C
±0.005
[0.13]
0.984
[24.99]
0.984
[24.99]
1.312
[33.32]
1.312
[33.32]
1.852
[47.04]
1.852
[47.04]
1.534
[38.96]
1.534
[38.96]
2.500
[63.50]
2.500
[63.50]
2.406
[61.11]
2.406
[61.11]
D
±0.005
[0.13]
D1
±0.005
[0.13]
0.329
[8.36]
E
±0.015
[0.38]
0.494
[12.55]
0.494
[12.55]
0.494
[12.55]
0.494
[12.55]
0.494
[12.55]
0.494
[12.55]
0.605
[15.37]
0.605
[15.37]
0.494
[12.55]
0.494
[12.55]
0.605
[15.37]
0.605
[15.37]
G
±0.010
[0.25]
0.759
[19.28]
0.759
[19.28]
1.083
[27.51]
1.083
[27.51]
1.625
[41.28]
1.625
[41.28]
1.322
[33.58]
1.322
[33.58]
2.272
[57.71]
2.272
[57.71]
2.178
[55.32]
2.178
[55.32]
H
±0.010
[0.25]
0.422
[10.72]
0.422
[10.72]
0.422
[10.72]
0.422
[10.72]
0.422
[10.72]
0.422
[10.72]
0.539
[13.69]
0.539
[13.69]
0.422
[10.72]
0.422
[10.72]
0.534
[13.56]
0.534
[13.56]
K
±0.005
[0.13]
0.233
[5.92]
0.243
[6.17]
0.233
[5.92]
0.243
[6.17]
0.230
[5.84]
0.243
[6.17]
0.217
[5.51]
0.237
[6.02]
0.230
[5.84]
0.243
[6.17]
0.230
[5.84]
0.243
[6.17]
M
±0.010
[0.25]
0.422
[10.72]
0.429
[10.90]
0.422
[10.72]
0.429
[10.90]
0.426
[10.82]
0.429
[10.90]
0.426
[10.82]
0.429
[10.90]
0.426
[10.82]
0.429
[10.90]
0.426
[10.82]
0.429
[10.90]
0.643
[16.33]
0.994
[25.25]
0.971
[24.66]
1.534
[38.96]
1.511
[38.38]
1.274
[32.36]
1.251
[31.78]
2.182
[55.42]
2.159
[54.84]
2.079
[52.81]
2.064
[52.43]
0.311
[7.90]
0.329
[8.36]
0.311
[7.90]
0.329
[8.36]
0.311
[7.90]
0.450
[11.43]
0.431
[10.95]
0.329
[8.36]
0.311
[7.90]
0.441
[11.20]
0.423
[10.74]
DIMENSIONS ARE IN INCHES [MILLIMETERS].
ALL DIMENSIONS ARE SUBJECT TO CHANGE.
D
-
S
ub
PROFESSIONAL / INDUSTRIAL QUALITY
REMOVABLE CONTACT
STANDARD DENSITY D-SUBMINIATURE

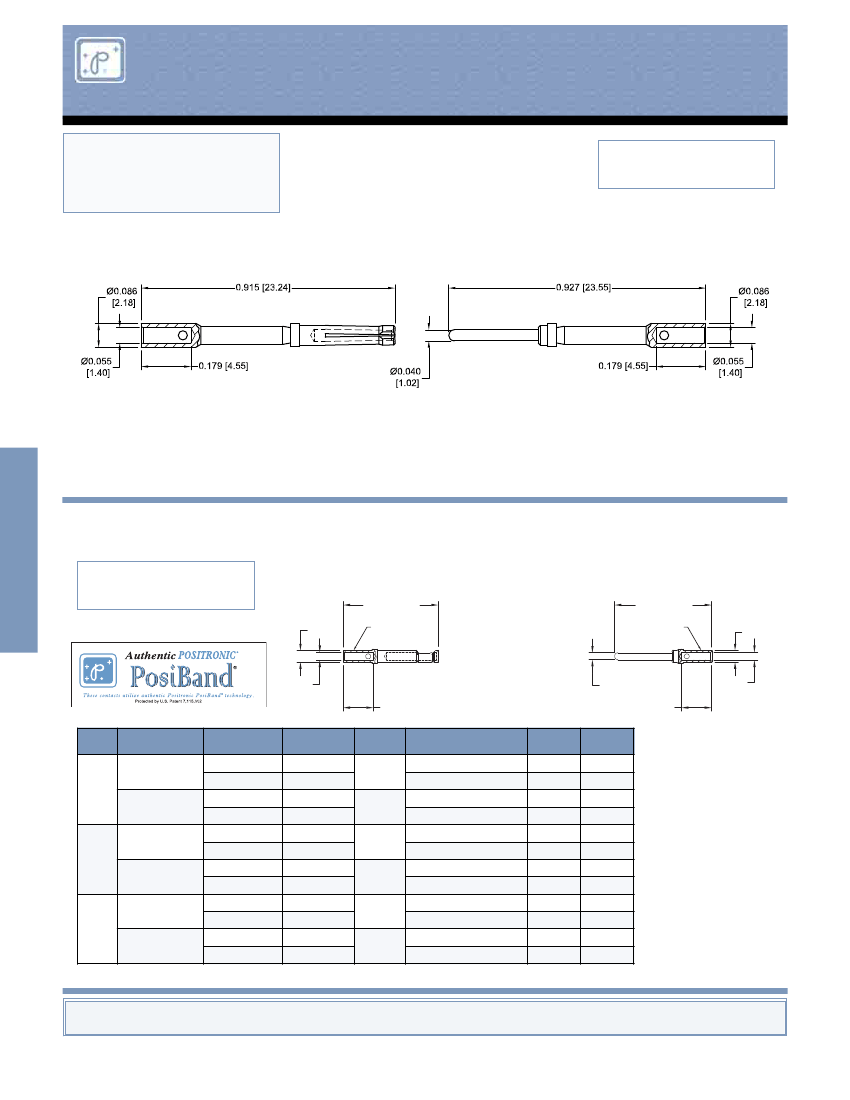

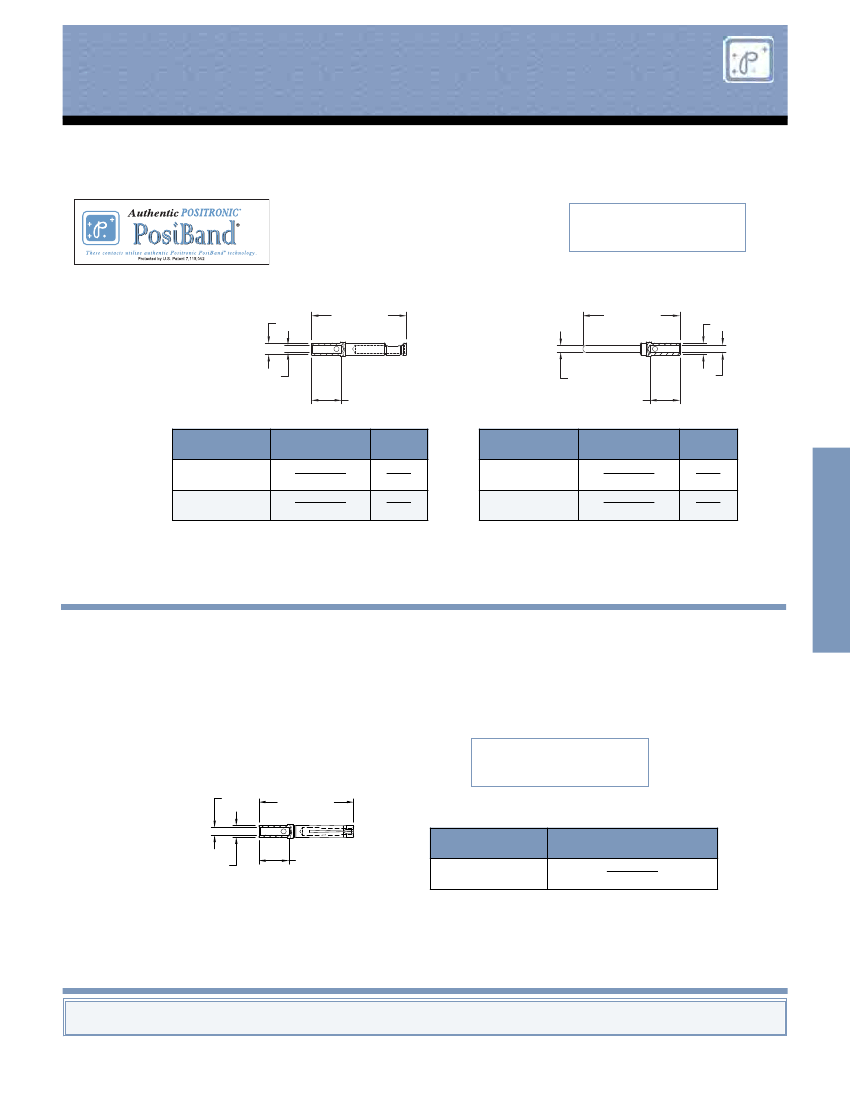

REMOVABLE CRIMP CONTACTS
CODE 1
CONTACTS MAY BE SUPPLIED WITH CONNECTOR OR ORDERED SEPARATELY.
Positronic Industries
connectpositronic.com
Note: Connectors can be kitted with
all applicable crimp contacts,
contact Technical Sales for
connector part number.
FEMALE CONTACT
“CLOSED ENTRY” DESIGN
0.066
[1.68]
0.538 [13.67]
MALE CONTACT
0.550 [13.97]
0.066
[1.68]
ØA
0.170+0.015-0.020
[4.32+0.38-0.51]
Ø0.040 [1.02]
0.170+0.015-0.020
[4.32+0.38-0.51]
ØA
FEMALE
PART NUMBER
WIRE SIZE
AWG/[mm
2
]
20 / 22 / 24
[0.5/0.3/0.25]
26 / 28 / 30
[0.12/0.08/0.05]
ØA
0.045
[1.14]
0.027
[0.69]
MALE
PART NUMBER
WIRE SIZE
AWG/[mm
2
]
20 / 22 / 24
[0.5/0.3/0.25]
26 / 28 / 30
[0.12/0.08/0.05]
ØA
0.045
[1.14]
FC6020D2
FC6026D2
MC6020D
MC6026D
PLATING:
STANDARD FINISH:
Gold flash over nickel plate.
OPTIONAL FINISHES:
0.000030 [0.76] gold over nickel by adding “-14” suffix onto part number. Example: FC6120D2-14
0.000050 inch [1.27] gold over nickel by adding “-15” suffix onto part number. Example: MC6026D-15
REMOVABLE CRIMP CONTACTS
CODE 1
CONTACTS MAY BE SUPPLIED WITH CONNECTOR OR ORDERED SEPARATELY.
FEMALE CONTACT
“ROBI-D OPEN ENTRY” DESIGN
Ø0.045
[1.14]
0.538 [13.67]
Note: Connectors can be kitted with
all applicable crimp contacts,
contact Technical Sales for
connector part number.
FEMALE
Ø0.066
[1.68]
0.170+0.015-0.020
[4.32+0.38-0.51]
PART NUMBER
WIRE SIZE
AWG/[mm
2
]
20 / 22 / 24
[0.5/0.3/0.25]
FC6120D
PLATING:
STANDARD FINISH:
Gold flash over nickel plate.
OPTIONAL FINISHES:
0.000030 [0.76] gold over nickel by adding “-14” suffix onto part number. Example: FC6120D-14
0.000050 inch [1.27] gold over nickel by adding “-15” suffix onto part number. Example: FC6120D-15
For information regarding
CRIMP TOOLS & CRIMPING TOOL TECHNIQUES
, see page 78
.
DIMENSIONS ARE IN INCHES [MILLIMETERS].
ALL DIMENSIONS ARE SUBJECT TO CHANGE.
40
ORD SERIES
0.027
[0.69]
Positronic Industries
connectpositronic.com
PROFESSIONAL / INDUSTRIAL QUALITY
REMOVABLE CONTACT
STANDARD DENSITY D-SUBMINIATURE
D
-
S
ub
The crimp area of this contact is not
protected when fully seated in the connector
molding. These contacts require shrink tubing
after installation. Wire cannot be removed
from molding after insertion. Not suitable for
fully loaded connector.
REMOVABLE CRIMP CONTACTS
18 AWG CRIMP CONTACTS
18 AWG [1.0mm
2
]
Note: Connectors can be kitted with
all applicable crimp contacts,
contact Technical Sales for
connector part number.
CONTACTS MAY BE SUPPLIED WITH CONNECTOR OR ORDERED SEPARATELY.
*FEMALE CONTACT
“ROBI-D OPEN ENTRY” DESIGN
MALE CONTACT
FC6118D
MC6018D
* FEMALE POSIBAND CLOSED ENTRY CONTACTS ARE AVAILABLE, SEE PAGE 36 FOR DETAILS.
PLATING:
STANDARD FINISH:
Gold flash over nickel plate.
OPTIONAL FINISHES:
0.000030 [0.76] gold over nickel by adding “-14” suffix onto part number. Example: FC6118D-14
0.000050 inch [1.27] gold over nickel by adding “-15” suffix onto part number. Example: MC6018D-15
ORD SERIES
†
REMOVABLE THERMOCOUPLE CRIMP CONTACTS
CONTACTS MAY BE SUPPLIED WITH CONNECTOR OR ORDERED SEPARATELY.
Note: Connectors can be kitted with
all applicable crimp contacts,
contact Technical Sales for
connector part number.
FEMALE CONTACT
“CLOSED ENTRY” DESIGN
0.538 [13.67]
ØA
* Color Code
MALE CONTACT
0.550 [13.97]
* Color Code
ØA
ØB
0.170+0.015-0.020
[4.32+0.38-0.51]
Ø0.040 [1.02]
0.170+0.015-0.020
[4.32+0.38-0.51]
ØB
TYPE
MATERIAL
CHROMEL (+)
FEMALE
PART NUMBER
MALE
PART NUMBER
COLOR
CODE
WHITE
WIRE SIZE
AWG [mm
2
]
ØA
ØB
For more information on
the availability of Type J
thermocouple contacts,
and information about
thermocouple contacts
with printed circuit board
solder termination, please
contact Technical Sales.
®
FC6020D2CH
††
FC6026D2CH
K
FC6020D2AL
††
ALUMEL (-)
FC6026D2AL
FC6020D2CU
††
COPPER (+)
FC6026D2CU
T
FC6020D2CO
CONSTANTAN (-)
FC6026D2CO
FC6020D2CH
††
CHROMEL (+)
FC6026D2CH
E
FC6020D2CO
††
CONSTANTAN (-)
FC6026D2CO
Dimensionally equivalent to M39029/64-369
††
MC6020DCH
†
MC6026DCH
MC6020DAL
†
GREEN
MC6026DAL
MC6020DCU
†
RED
MC6026DCU
MC6020DCO
†
20 / 22 / 24 [0.5 / 0.3 / 0.25]
0.066 [1.68] 0.045 [1.14]
26 / 28 / 30 [0.12 / 0.08 / 0.05]
0.048 [1.23] 0.027 [0.69]
20 / 22 / 24 [0.5 / 0.3 / 0.25]
0.066 [1.68] 0.045 [1.14]
26 / 28 / 30 [0.12 / 0.08 / 0.05]
0.048 [1.23] 0.027 [0.69]
20 / 22 / 24 [0.5 / 0.3 / 0.25]
0.066 [1.68] 0.045 [1.14]
26 / 28 / 30 [0.12 / 0.08 / 0.05]
0.048 [1.23] 0.027 [0.69]
20 / 22 / 24 [0.5 / 0.3 / 0.25]
YELLOW
0.066 [1.68] 0.045 [1.14]
MC6026DCO
MC6020DCH
†
WHITE
MC6026DCH
MC6020DCO
†
YELLOW
MC6026DCO
††
26 / 28 / 30 [0.12 / 0.08 / 0.05]
0.048 [1.23] 0.027 [0.69]
20 / 22 / 24 [0.5 / 0.3 / 0.25]
0.066 [1.68] 0.045 [1.14]
Chromel and
®
Alumel are regis-
tered trademarks of
Hoskins
Manufacturing
Company.
26 / 28 / 30 [0.12 / 0.08 / 0.05]
0.048 [1.23] 0.027 [0.69]
20 / 22 / 24 [0.5 / 0.3 / 0.25]
0.066 [1.68] 0.045 [1.14]
26 / 28 / 30 [0.12 / 0.08 / 0.05]
0.048 [1.23] 0.027 [0.69]
Dimensionally equivalent to M39029/63-368
For information regarding
CRIMP TOOLS & CRIMPING TOOL TECHNIQUES
, see page 78
.
41
DIMENSIONS ARE IN INCHES [MILLIMETERS].
ALL DIMENSIONS ARE SUBJECT TO CHANGE.
D
-
S
ub
PROFESSIONAL / INDUSTRIAL QUALITY
REMOVABLE CONTACT
STANDARD DENSITY D-SUBMINIATURE
Positronic Industries
connectpositronic.com
ORDERING INFORMATION - CODE NUMBERING SYSTEM
Specify Complete Connector By Selecting An Option From Step 1 Through 8
STEP
EXAMPLE
1
ORD
2
9
3
M
4
0
5
0
6
0
7
0
8
Z
9
/AA
10
-14
STEP 1 - BASIC SERIES
ORD series
STEP 10 - SPECIAL OPTIONS
-14 - 0.000030 [0.76µ] gold over
nickel.
-15 - 0.000050 [1.27µ] gold over
nickel.
CONTACT TECHNICAL SALES
FOR SPECIAL OPTIONS
NIC
INDU
S
STEP 2 - CONNECTOR VARIANTS
9, 15, 25, 29, 37, 50
STEP 3 - CONNECTOR GENDER
M - Male
F - Female - Professional Level
open entry contacts
S - Female - Industrial Level
PosiBand closed entry contacts
O
EC
RoHS
Compliant
Di
IT
R
STEP 9 - ENVIRONMENTAL
COMPLIANCE
OPTIONS
/AA - Compliant per EU Directive
2002/95/EC (RoHS)
TR
POS
IES
STEP 4 - CONTACT TERMINATION TYPE
0
1
- Contacts ordered separately, see pages 40-41.
- Crimp, 20 AWG-24 AWG [0.5mm
2
-0.25mm
2
].
rec
tive
2002
/9
NOTE:
If compliance to environmental
legislation is not required, this step will not
be used. Example: ORD9M0000Z
5/
*
1
STEP 5 - MOUNTING STYLE
0
02
F
S2
S5
-
-
-
-
-
Mounting Hole, 0.120 [3.05] Ø.
Mounting Hole, 0.154 [3.91] Ø.
Float Mounts, Universal.
Swaged Spacer, 4-40 Threads, 0.125 [3.18] Length.
Swaged Locknut, 4-40 Threads.
STEP 8 - Shell Options
0
C
*
3
S
X
Z
-
-
-
-
-
Zinc plated, with chromate seal.
Cadmium plated with chromate seal.
Stainless steel, passivated.
Tin plated.
Tin plated and dimpled (male connectors only).
*
1
STEP 6 - HOODS
0
J
L
Y
-
-
-
-
None.
Hood, Top Opening, Plastic.
Hood, Side Opening, Plastic.
Hood, Top Opening, Plastic with Rotating Male Jackscrews.
Available in size 50 only.
Hood, Top Opening, Plastic with Rotating Male and Female
Polarized Jackscrews. Available in size 50 only.
Hood, Top or Side Opening, Robust Extended Height,
Composite and Plastic with Rotating Male Jackscrews.
Available in size 9, 15, 25, 37, and 50 only.
Hood, Top Opening, Metal. Available in size 15, 25, 37, and 50
only.
Hood, EMI/RFI, Die Cast Zinc. Available in size 9, 15, 25, 37,
and 50 only.
Lightweight Aluminum Hood, nickel finish.
Lightweight Aluminum Hood, no finish.
Hood, Top or Side Opening, Plastic. Available in size 9, 15,
and 25 only.
*
1
STEP 7 - LOCKING AND POLARIZING SYSTEMS
0-
*
2
V3 -
*
2
V5 -
*
2
VL -
T-
T2 -
T6 -
E-
E2 -
E3 -
E6 -
None.
Lock Tab, connector front panel mounted.
Lock Tab, connector rear panel mounted.
Lock Lever, used with Hoods Only.
Fixed Female Jackscrews.
Fixed Female Jackscrews.
Fixed Male and Female Polarized Jackscrews.
Rotating Male Jackscrews.
Rotating Male Screw Locks.
Rotating Male with internal hex for 3/32 hex drives
Rotating Male and Female Polarized Jackscrews.
Y6 -
Z-
H-
G-
*
4
AN -
*
4
AC -
W-
NOTE:
Once you have made a connector selection, contact
Technical Sales if you would like to receive a drawing in DXF, PDF
format or a 3-dimensional IGES, STEP or SOLIDWORKS file.
,
*
1
For additional information on accessories listed in steps
5, 6 and 7, see Accessory Catalog.
*
2
VL, V3 and V5 locking systems are not available for connector variants
37 and 50. Jackscrews are highly recommended to minimize damage to
contacts on variants with high mating forces.
3
*
For stainless steel dimpled male versions contact Technical Sales.
*
4
AN and AC hood are not available for connector variant 29. Consult
Technical Sales for availability.
For information regarding
CRIMP TOOLS &
CRIMPING TOOL TECHNIQUES,
see page 78
.
2-D Drawing
3-D Model
DIMENSIONS ARE IN INCHES [MILLIMETERS].
ALL DIMENSIONS ARE SUBJECT TO CHANGE.
42
ORD SERIES
•
pe
•
U
rE
京公网安备 11010802033920号
EEWORLD
