86093248314H48V1LF datasheet, PDF

86093248314H48V1LF: DescriptionBoard Euro Connector, 24 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size107KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

86093248314H48V1LF Overview

Board Euro Connector, 24 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Other features	STANDARD: DIN 41612
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	MATTE TIN OVER NICKEL
Contact point gender	FEMALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	8609
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	24
UL Flammability Code	94V-0
Base Number Matches	1

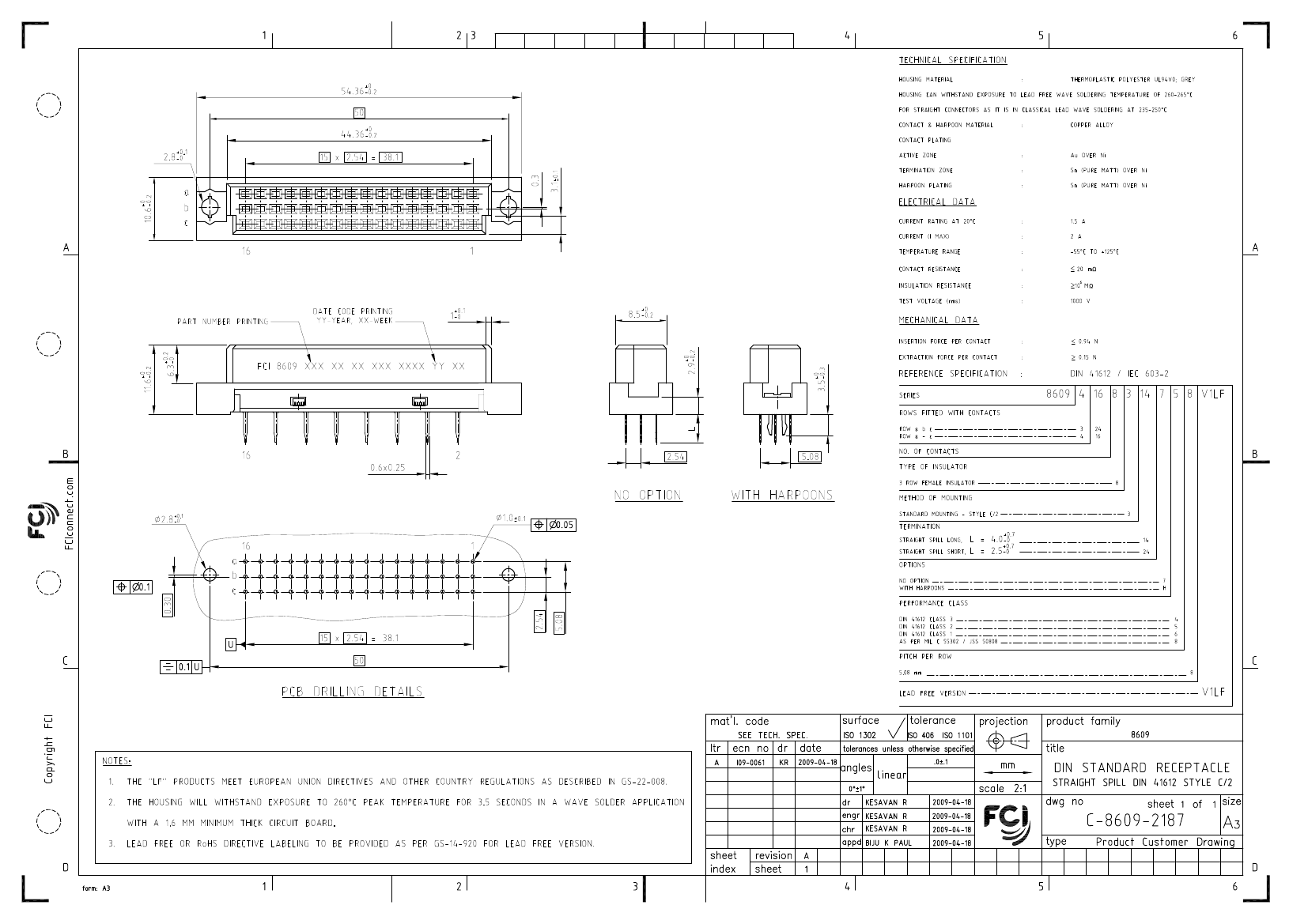

Ø

PDM: Rev:A

STATUS:

Released

Printed: May 14, 2011

.
