55321210TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 55321210TR

55321210TR: DescriptionCard Edge Connector, 12 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size242KB，2 Pages; ManufacturerW+P Products GmbH

Download Datasheet Parametric Compare View All

55321210TR Overview

Card Edge Connector, 12 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking

55321210TR Parametric

Parameter Name	Attribute value
Maker	W+P Products GmbH
Reach Compliance Code	compliant
body width	0.114 inch
subject depth	0.232 inch
body length	0.713 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN ON NI
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
maximum insertion force	ZIF N
Insulation resistance	500000000 Ω
insulator material	THERMOPLASTIC
Plug contact pitch	0.039 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	12
Base Number Matches	1

Preview

Download Datasheet

View All

5532

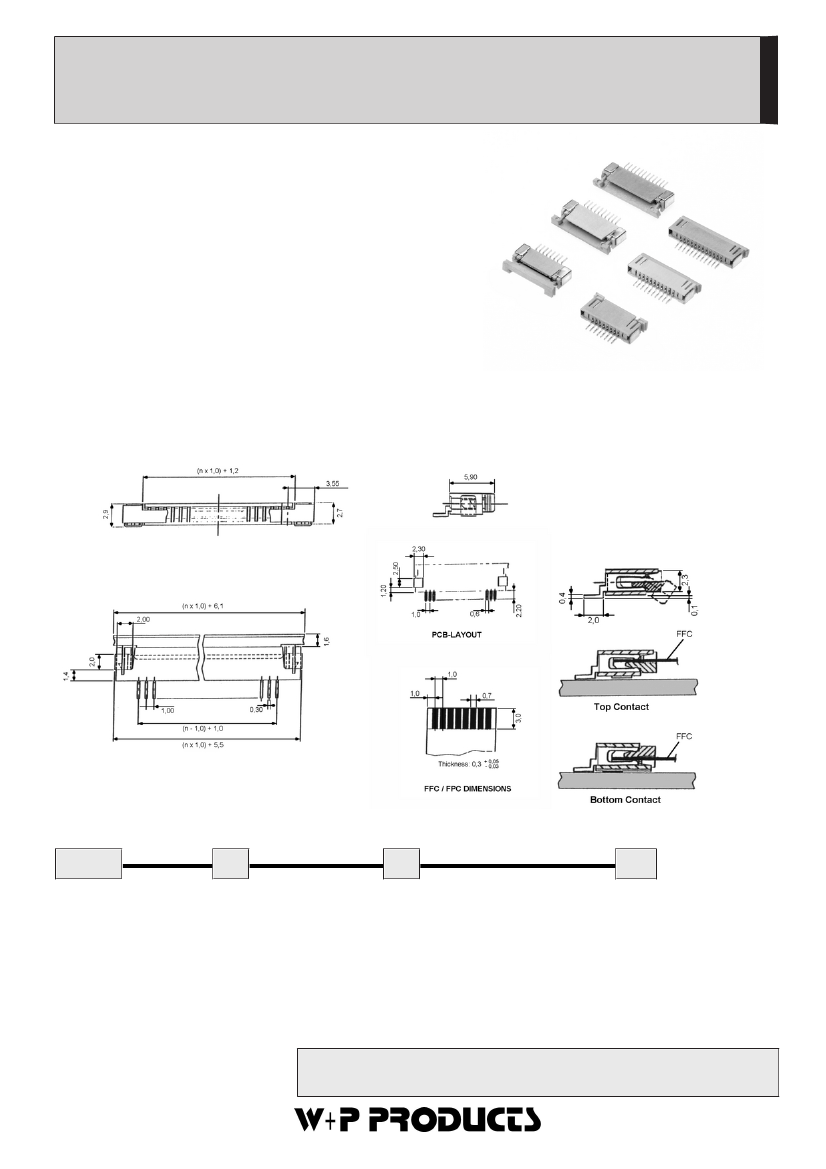

ZIF-Stecker - SMT - RM 1,00mm - horizontaler Eingang

ZIF-Connector - SMT - Pitch 1,00mm - Horizontal Entry

Technische Daten /Technical

Data

Isolierkörper

Thermoplastischer Kunststoff, nach UL94 V-0

Insulator

Thermoplastic, rated UL94 V-0

Kontaktmaterial

Phosphorbronze

Contact Material

Phosphor bronze

Kontaktoberfläche

Zinn über Nickel

Contact Surface

Tin plated over nickel

Lötbarkeit

IEC512-12A

Solderability

IEC512-12A

Durchgangswiderstand

< 20mΩ

Contact Resistance

< 20mΩ

Isolationswiderstand

> 5x10

Ω

Insulation Resistance

> 5x10

Ω

Spannungsfestigkeit

500V

Test Voltage

500V

Nennspannung

60V

Voltage Rating

60V

Nennstrom

0,5A

Current Rating

0,5A

Temperaturbereich

-40°C ... +105°C

Temperature Range

-40°C ... +105°C

Verarbeitung

Reflow-Lötverfahren; weitere Informationen in Kapitel T

Processing

Reflow-soldering, detailed information in ch. T

Passendes Flex-Kabel:

Flexible Flat Cable:

599

Series

Contacts

Type

Packing

5532

04-30

Kontakt oben

Top contact

Kontakt unten

Bottom contact

(

Bestellbeispiel - Bitte durch Ihre

Spezifikationen ersetzen.

Order example - To be replaced by your

specifications.)

TEL.: +49 5223 98507-0

FAX.: +49 5223 98507-50

Lieferformen /

Packing Options:

= In Stangen ohne PP-Pad /

Packed in tubes

= Tape & Reel Verpackung /

Tape & Reel packing

E-MAIL: sales@wppro.com

INTERNET: www.wppro.com
