ST333C04CHK1L datasheet, PDF - EEWORLD Datasheet

ST333C04CHK1L: DescriptionSilicon Controlled Rectifier, 1435A I(T)RMS, 720000mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, TO-200AB, METAL CASE WITH CERAMIC INSULATOR, EPUK-3; CategoryAnalog mixed-signal IC Trigger device; File Size427KB，10 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric View All

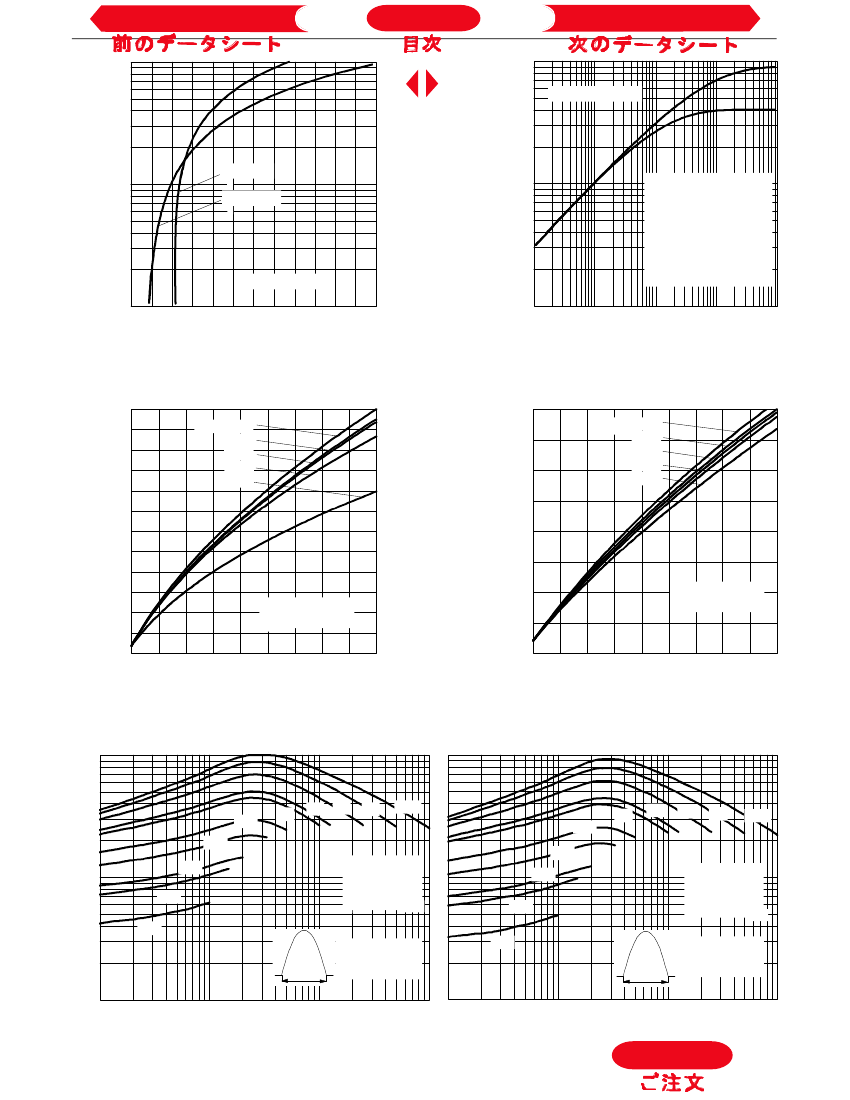

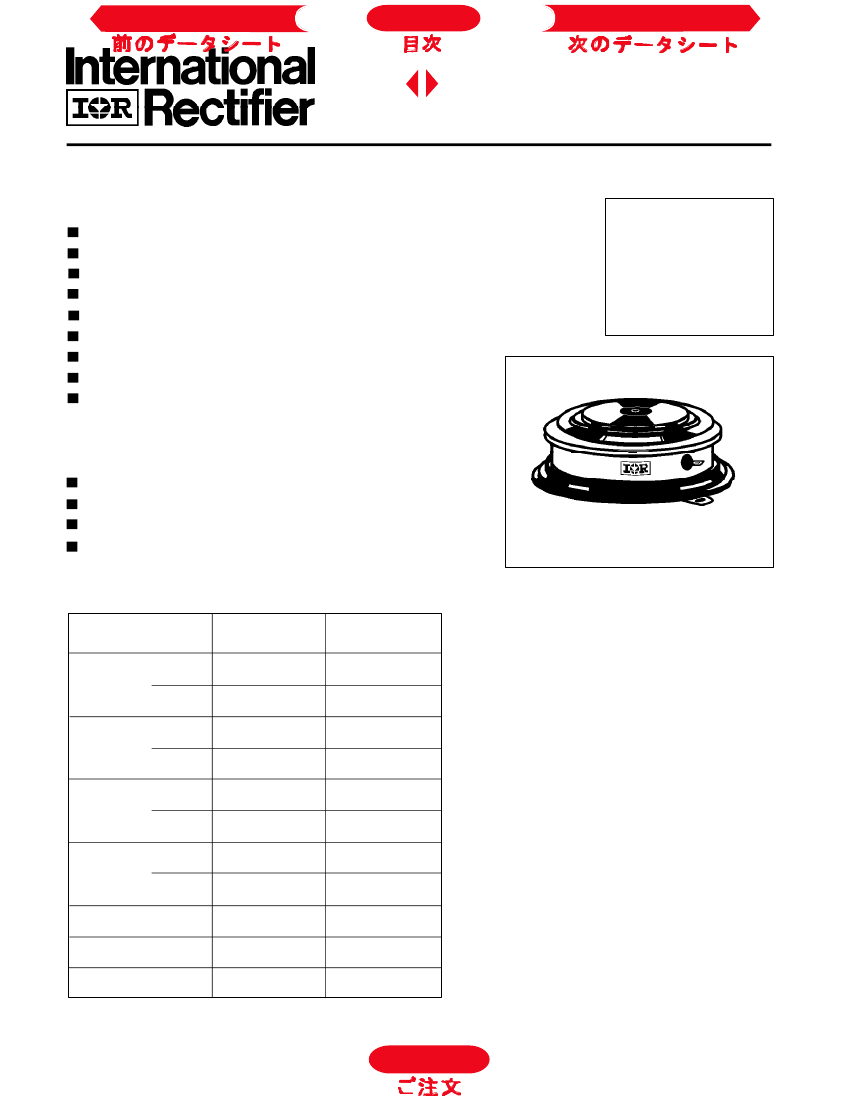

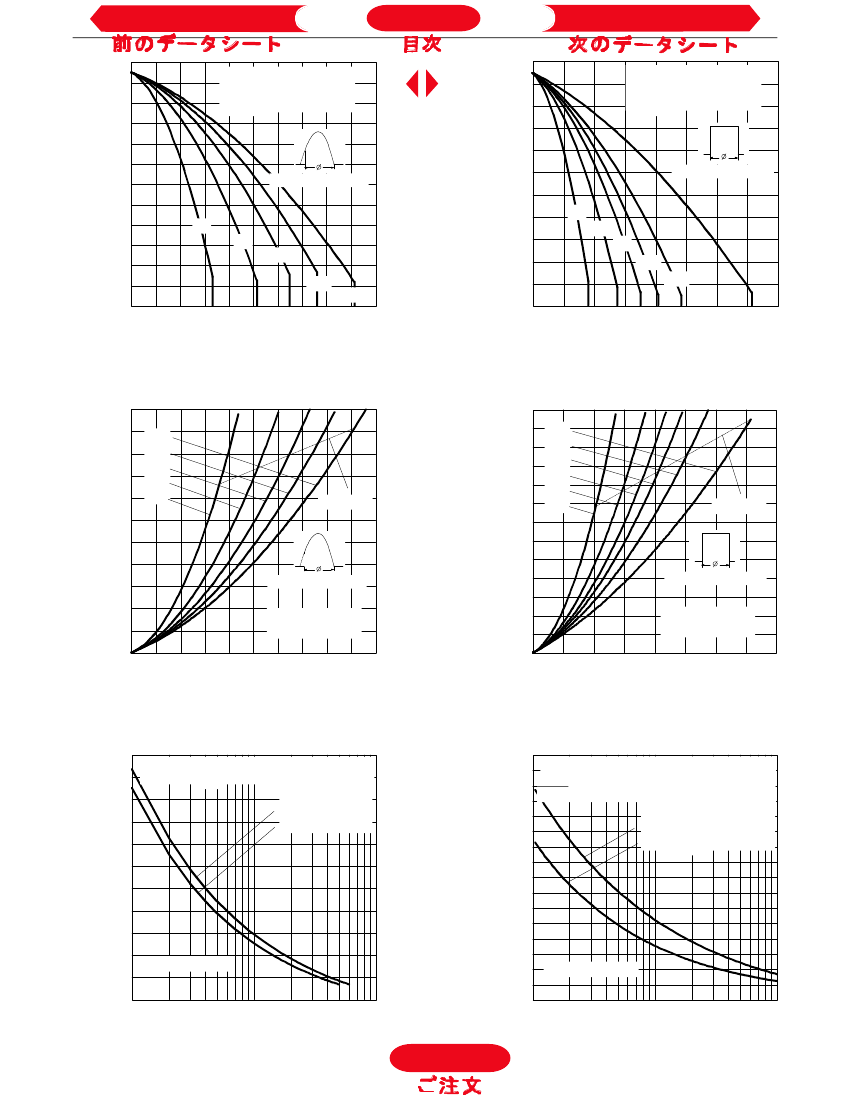

ST333C04CHK1L Overview

Silicon Controlled Rectifier, 1435A I(T)RMS, 720000mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, TO-200AB, METAL CASE WITH CERAMIC INSULATOR, EPUK-3

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	International Rectifier （ Infineon ）
Parts packaging code	BUTTON
package instruction	DISK BUTTON, O-CEDB-N2
Contacts	2
Reach Compliance Code	compliant
Other features	HIGH SPEED
Shell connection	ISOLATED
Nominal circuit commutation break time	20 µs
Configuration	SINGLE
Maximum DC gate trigger current	200 mA
Maximum DC gate trigger voltage	3 V
Maximum holding current	600 mA
JEDEC-95 code	TO-200AB
JESD-30 code	O-CEDB-N2
JESD-609 code	e0
Maximum leakage current	50 mA
On-state non-repetitive peak current	11500 A
Number of components	1
Number of terminals	2
Maximum on-state current	720000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	DISK BUTTON
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	1435 A
Maximum repetitive peak off-state leakage current	50000 µA
Off-state repetitive peak voltage	400 V
Repeated peak reverse voltage	400 V
surface mount	YES
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal location	END
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
Base Number Matches	1
