CT1008LS-562GG datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> CT1008LS-562GG

Preview

CT1008LS-562GG: DescriptionGeneral Purpose Inductor, 5.6uH, 2%, 1 Element, Ferrite-Core, SMD, CHIP, 1008; CategoryPassive components inductor; File Size275KB，2 Pages; ManufacturerCT [ Central Technologies ]

Download Datasheet Parametric View All

CT1008LS-562GG Overview

General Purpose Inductor, 5.6uH, 2%, 1 Element, Ferrite-Core, SMD, CHIP, 1008

CT1008LS-562GG Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	CT [ Central Technologies ]
Reach Compliance Code	compliant
ECCN code	EAR99
core material	FERRITE
DC Resistance	1.7 Ω
Nominal inductance(L)	5.6 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CT1008LS
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Minimum quality factor (at nominal inductance)	26
Maximum rated current	0.36 A
self resonant frequency	70 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 7.9 MHZ
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	7.9 MHz
Tolerance	2%
Base Number Matches	1

Preview

Download Datasheet

View All

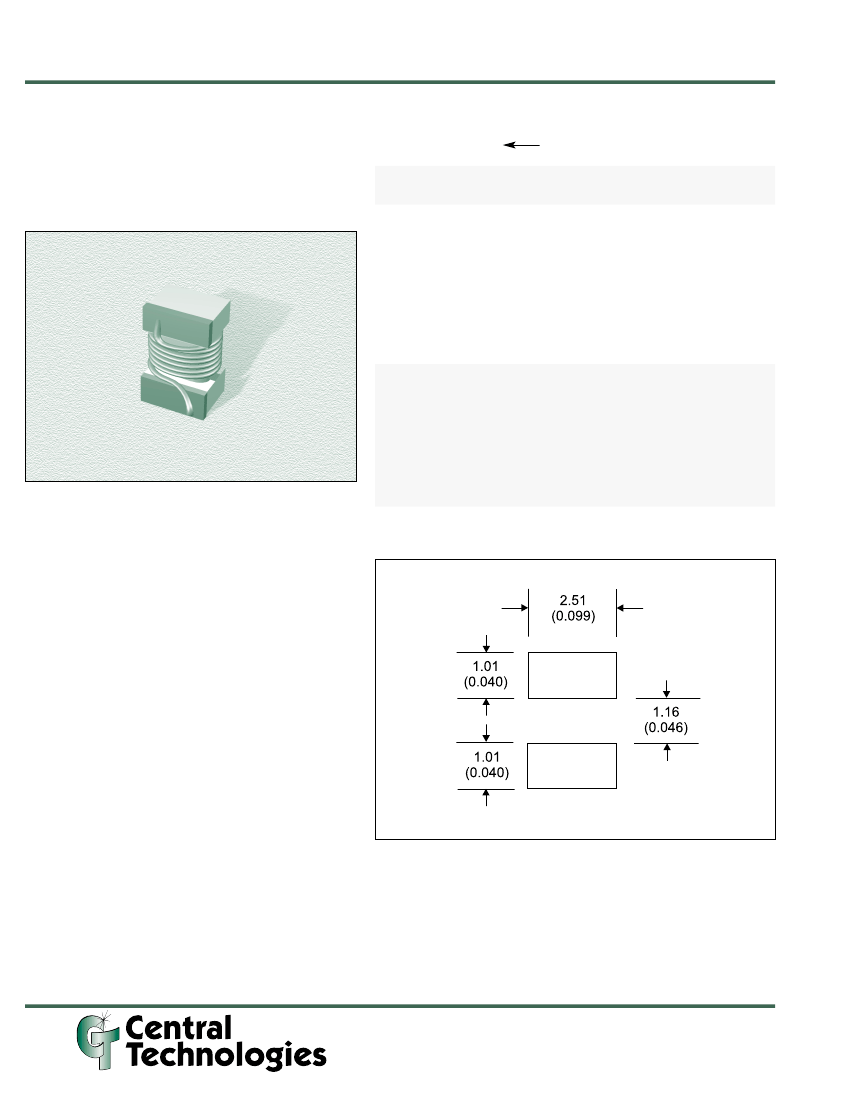

SMD Wire-wound Chip Inductors

NEW!

www.ctparts.com

CT1008LS Series

From 1.2 µH to 56 µH

Not shown at actual size.

Ordering Info

Please specify tolerance code when ordering.

CT1008LS-122_

G = ±2%, J = ±5%, K = ±10%, M = ±20%

Add Letter‘G’ at the end of part number for gold terminations

Central Tech

Part

Number

CT1008LS-122_

CT1008LS-152_

CT1008LS-182_

CT1008LS-222_

CT1008LS-272_

CT1008LS-332_

CT1008LS-392_

CT1008LS-472_

CT1008LS-562_

CT1008LS-682_

CT1008LS-822_

CT1008LS-103_

CT1008LS-123_

CT1008LS-153_

CT1008LS-183_

CT1008LS-223_

CT1008LS-273_

CT1008LS-333_

CT1008LS-393_

CT1008LS-473_

CT1008LS-563_

Inductance

(µH)

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

10

12

15

18

22

27

33

39

47

56

L Test

Freq.

(MHz)

7.9

2.5

Q

Fact.

Min.

32

31

29

28

27

26

25

24

23

22

21

20

Q Test

Freq.

(MHz)

50

25

7.9

5.0

SRF

Min.

(MHz)

220

200

180

160

140

130

80

70

45

40

35

30

20

DCR

Max.

Ω

(Ω)

0.60

0.70

0.82

1.0

1.1

1.3

1.4

1.5

1.7

1.9

2.3

2.5

3.1

3.9

5.8

6.8

7.7

8.9

9.2

10.5

11.8

Rated

DC

(mA)

600

500

450

400

360

310

300

290

260

220

200

190

180

170

160

150

Characteristics

Operating Temperature:

-55°C to +85°C

Inductance Tolerance:

±2%, ±5%, ±10% & ±20%

Material:

Wire-wound ferrite core

Packaging:

Tape & Reel, 2,000 parts per reel

Solderability:

Wave & Reflow soldering

Terminations:

Tin termination (standard). Gold flashing also

available by adding a ‘G’ after tolerance.

Pad Layout

5/16/00

©

Volume Manufacturer of Quality Inductors,

Chokes & Coils

26

For more information contact our distributor:

Inductors Inc.,

5 Technology Drive, Irvine, CA 92618

Inside US 800-533-8295

q

Outside US 949-623-2460

q

Fax 949-623-1401
