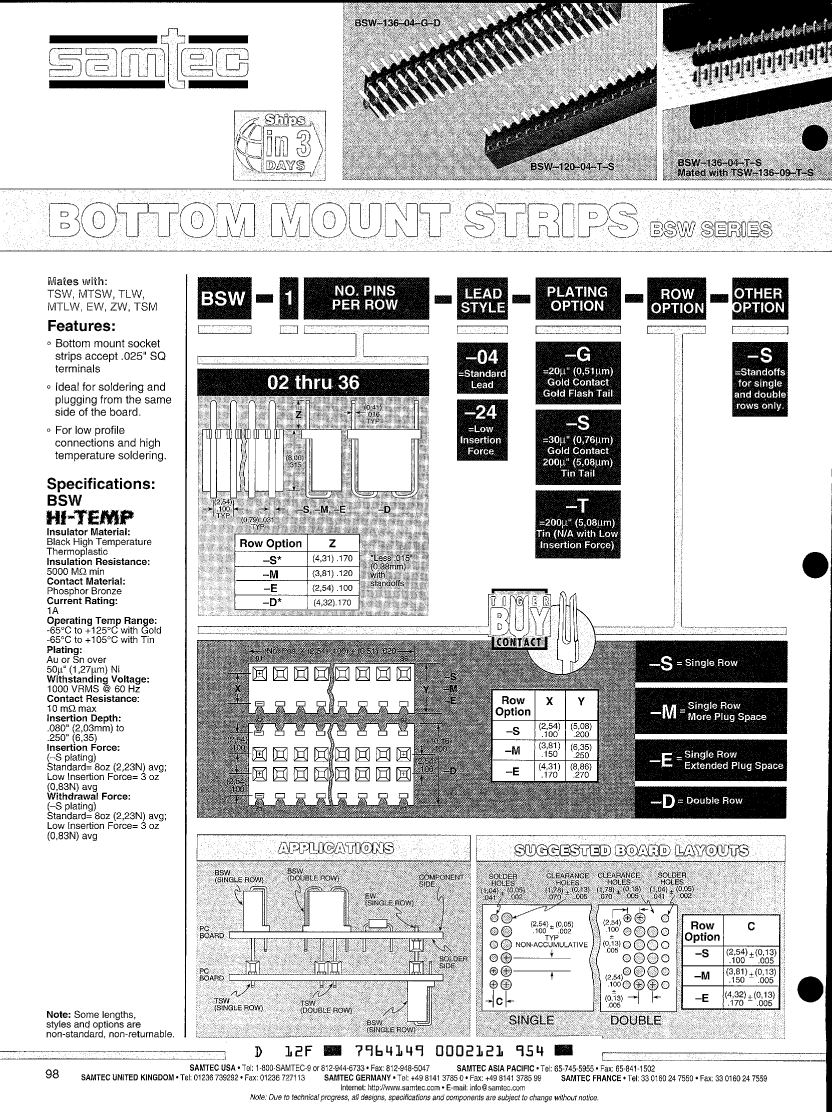

BSW-128-04-G-M-S datasheet, PDF

BSW-128-04-G-M-S: DescriptionBoard Connector, 28 Contact(s), 1 Row(s), Female, Straight Bottom Mount, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size346KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

BSW-128-04-G-M-S Overview

Board Connector, 28 Contact(s), 1 Row(s), Female, Straight Bottom Mount, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BOARD STANDOFFS
body width	0.2 inch
subject depth	0.35 inch
body length	2.83 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1400VAC V
maximum insertion force	2.224 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	BSW
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT BOTTOM MOUNT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	20u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	28
Evacuation force-minimum value	2.224 N
Base Number Matches	1
