ICL7129: Description1-CH 4-BIT DUAL-SLOPE ADC, PARALLEL ACCESS, PDIP40; Categorysemiconductor logic; File Size6MB，12 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

ICL7129 Overview

1-CH 4-BIT DUAL-SLOPE ADC, PARALLEL ACCESS, PDIP40

Parameter Name	Attribute value
Number of functions	1
Number of terminals	40
Maximum operating temperature	70 Cel
Minimum operating temperature	0.0 Cel
Rated supply voltage	9 V
Maximum limit analog input voltage	2 V
Minimum limit analog input voltage	-3 V
Processing package description	Plastic, DIP-40
state	ACTIVE
Craftsmanship	CMOS
packaging shape	Rectangle
Package Size	IN-line
Terminal form	THROUGH-hole
Terminal spacing	2.54 mm
terminal coating	tin lead
Terminal location	pair
Packaging Materials	Plastic/Epoxy
Temperature level	COMMERCIAL
Output format	Parallel, WORD
Type of converter	double slope
Number of digits	4
Output bit encoding	binary
Number of analog channels	1

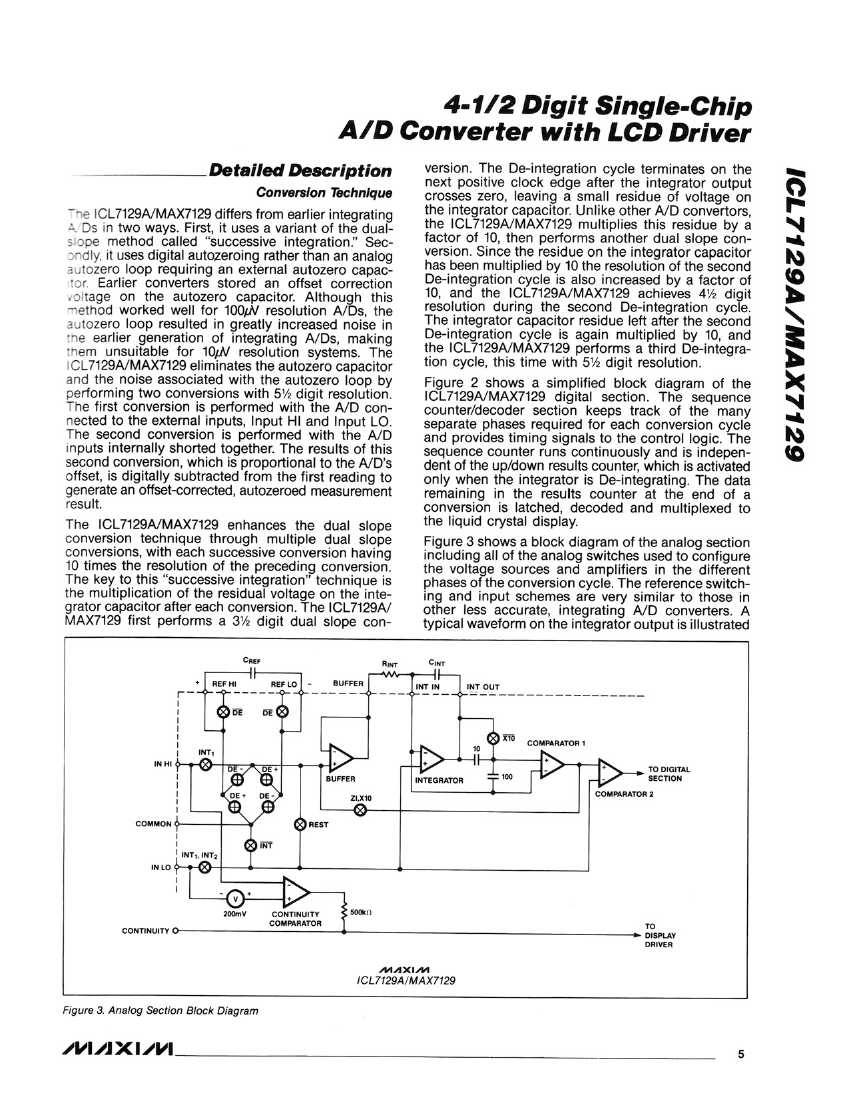

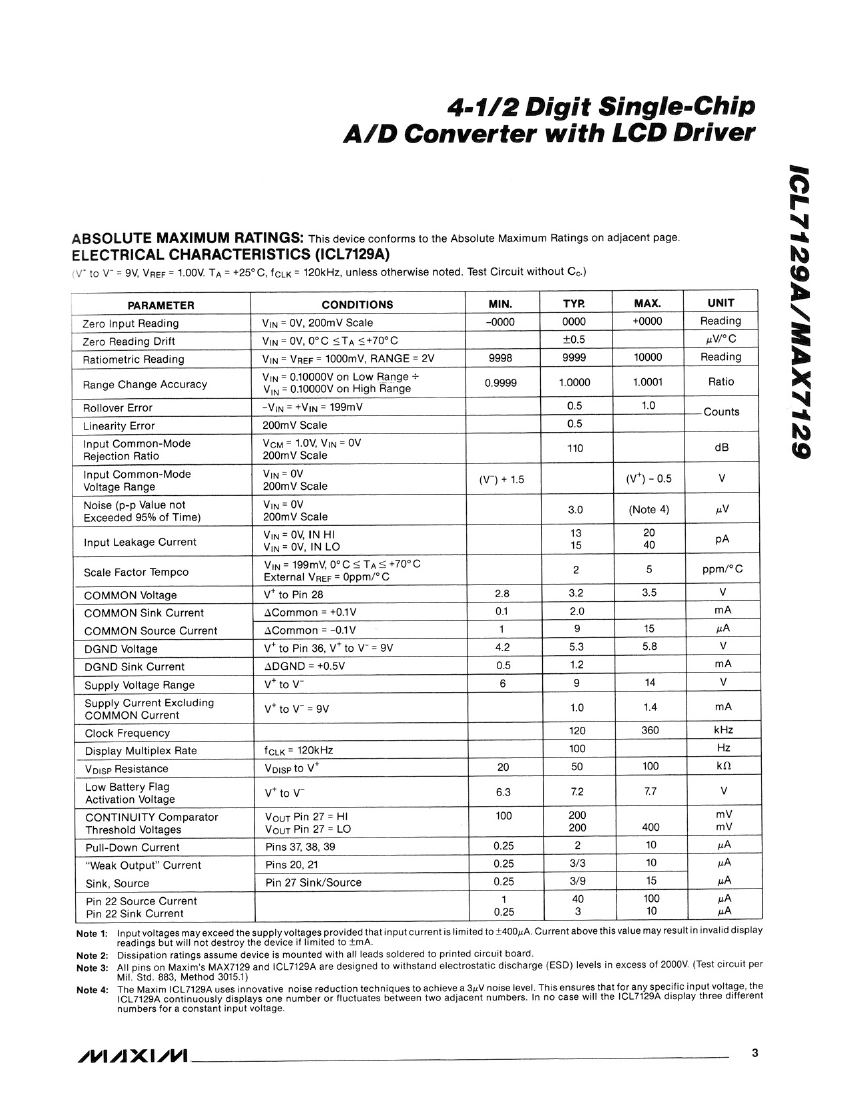

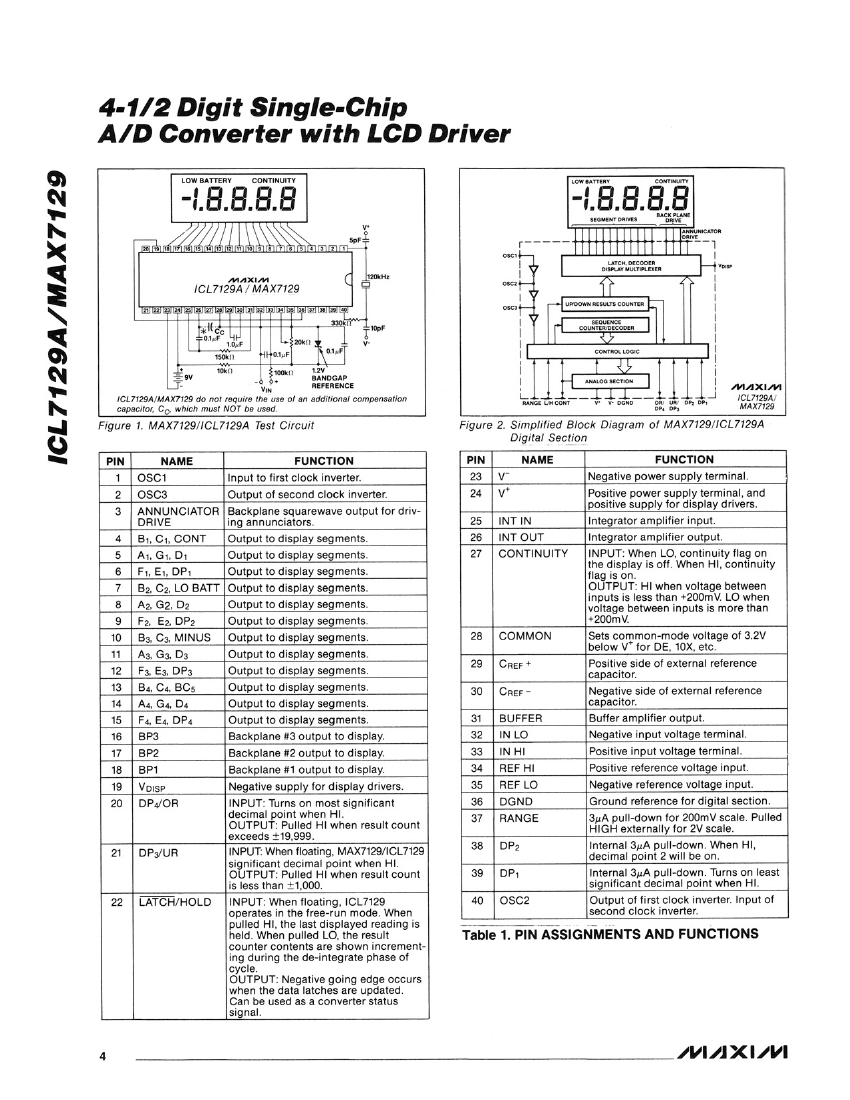

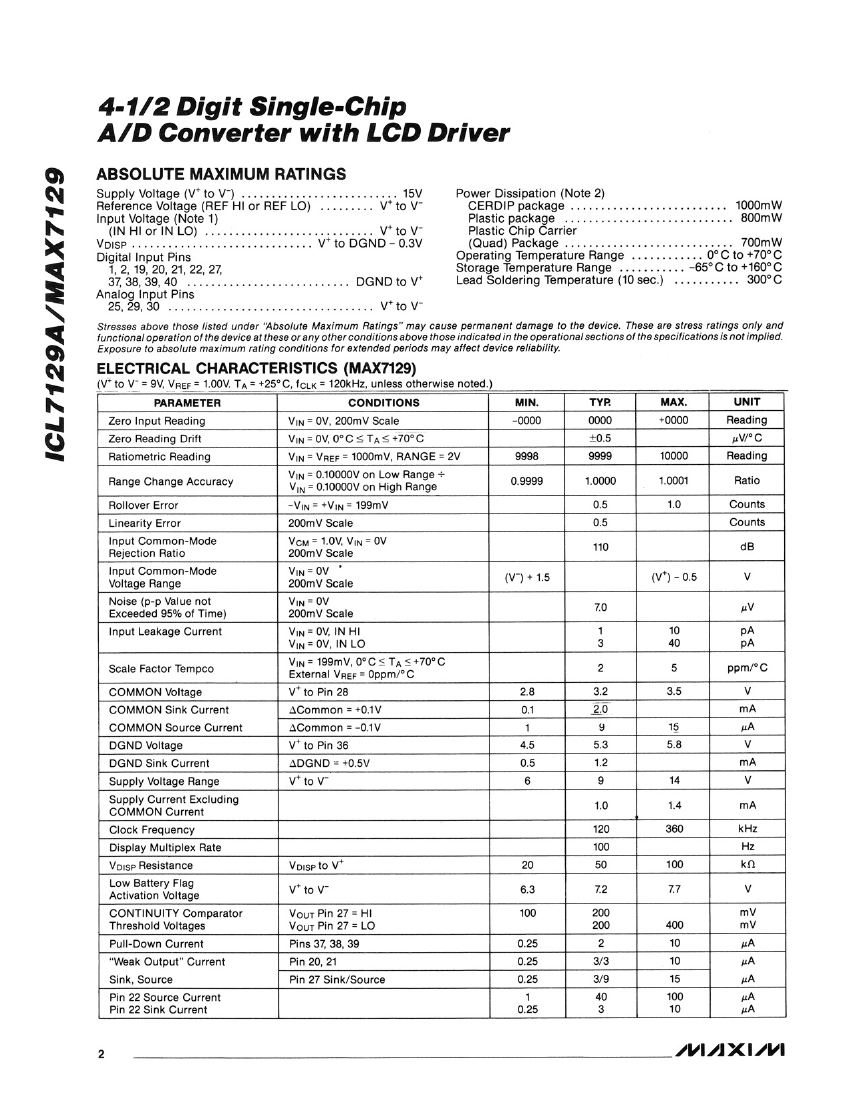

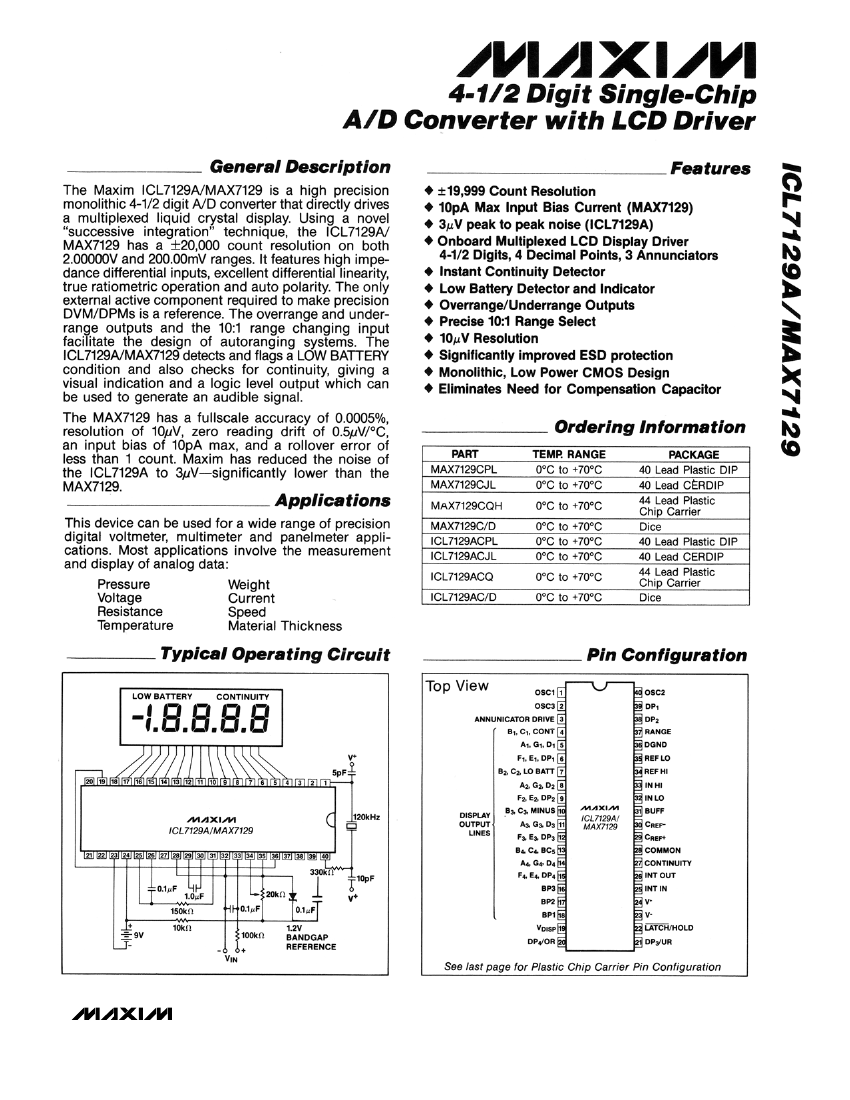

____________________________________________________________________________

Maxim

Integrated Products

1

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at

1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

	ICL7129	MAX7129CQH	MAX7129CC/D	ICL7129A	ICL7129ACJL	ICL7129ACQ
Description	1-CH 4-BIT DUAL-SLOPE ADC, PARALLEL ACCESS, PDIP40	1-CH 4-BIT DUAL-SLOPE ADC, PARALLEL ACCESS, PDIP40	1-CH 4-BIT DUAL-SLOPE ADC, PARALLEL ACCESS, PDIP40	1-CH 4-BIT DUAL-SLOPE ADC, PARALLEL ACCESS, PDIP40	1-CH 4-BIT DUAL-SLOPE ADC, PARALLEL ACCESS, PDIP40	1-CH 4-BIT DUAL-SLOPE ADC, PARALLEL ACCESS, PDIP40
Number of functions	1	1	1	1	1	1
Number of terminals	40	44	40	40	40	44
Maximum operating temperature	70 Cel	70 °C	70 Cel	70 Cel	70 °C	70 °C
Terminal form	THROUGH-hole	J BEND	THROUGH-hole	THROUGH-hole	THROUGH-HOLE	J BEND
Terminal location	pair	QUAD	pair	pair	DUAL	QUAD
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Output format	Parallel, WORD	PARALLEL, WORD	Parallel, WORD	Parallel, WORD	PARALLEL, WORD	PARALLEL, WORD
Number of digits	4	4	4	4	4	4
