HDMR-29-01-F-SM: DescriptionTelecom and Datacom Connector, 29 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size716KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

HDMR-29-01-F-SM Overview

Telecom and Datacom Connector, 29 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle, ROHS COMPLIANT

HDMR-29-01-F-SM Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Other features	HDMI
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	HT THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	HDMR
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	STEEL
Termination type	SURFACE MOUNT
Total number of contacts	29
Base Number Matches	1

Preview

Download Datasheet

View All

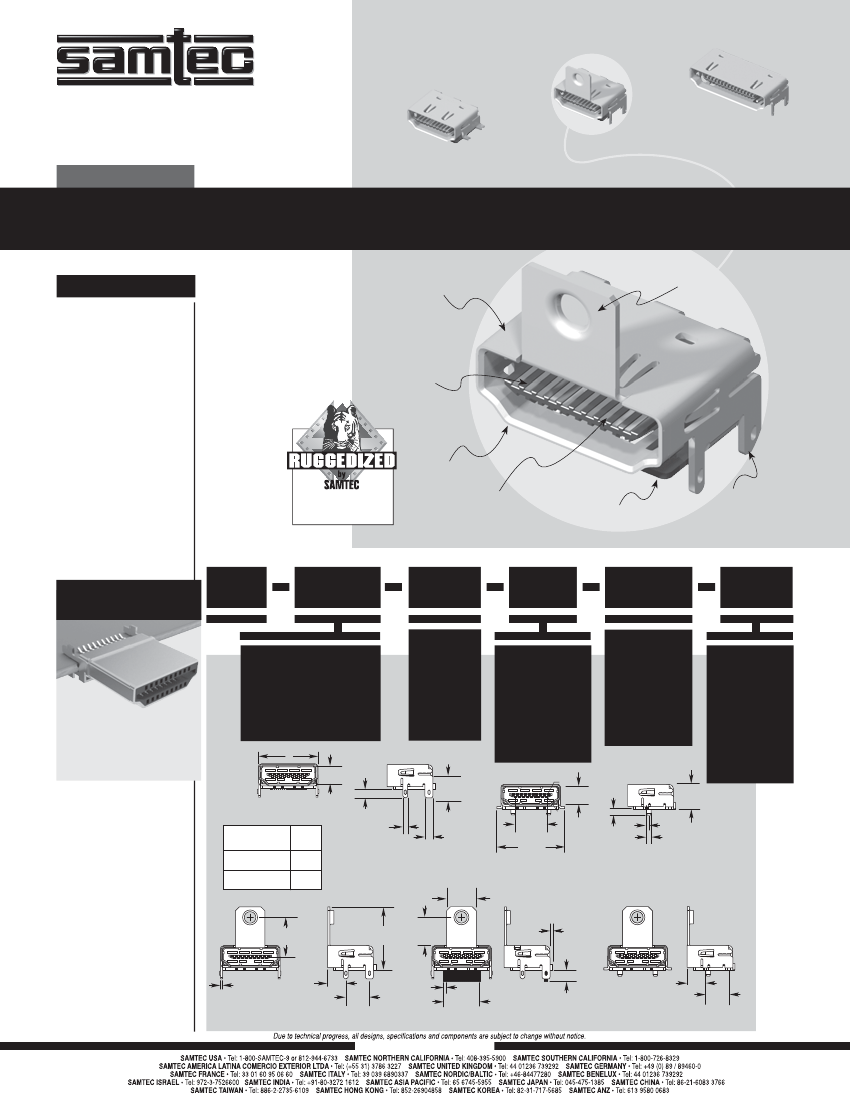

F-213 SUPPLEMENT

HDMR–19–01–F–SM–PF

HDMR–29–01–S–SM

HDMR–19–02–S–SM

HDMR SERIES

HIGH SPEED I/O RECEPTACLES

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts

see www.samtec.com?HDMR

Insulator Material:

High Temperature

Thermoplastic

Contact Material:

Copper Alloy

Shell Material:

Steel

Operating Temp Range:

-25°C to +85°C

Plating:

Gold on Contacts, Nickel on

Shell and Tin on Tails

Current Rating:

1.2 A per contact

Voltage Rating:

40 VAC

Contact Resistance:

30 mΩ

Minimum Cycles:

100

Lead-Free Solderable:

Yes

RoHS Compliant:

Yes

Mates with:

HPDPI

Meets Digital Display

Working Group Single

Monitor Interface

Speciﬁcations

Optional Panel Flange

(19 position only)

Hot

Pluggable

Selectively

Plated

• Panel ﬂange option

• Locking option

19 or 29

Positions

Surface Mount

or Through-hole

Signal Leads

Through-hole

or Surface Mount

(19 only)

Ground tails

ALSO

AVAILABLE

HDMR

NO. OF

POSITIONS

LEAD

STYLE

PLATING

TAIL

OPTION

OPTIONS

–01

–19

= 19 Positions / Mates with

HPXXX 5 Pairs

= Through-hole

Ground Tails

–SM

–F

= Gold Flash on

Mating Area,

Tin on Tails

= Surface Mount

(Signal Leads)

(Leave Blank for

no Panel Flange)

–02

= Surface

Mount

Ground Tails

(-19 only)

–TH

= Through-hole

(Only available on

HDMR–19–01–X–

TH–PF–L)

–PF

= Panel Flange

HDMP is an Edge Mount

plug that mates to

HDMR receptacles.

Call Samtec for HDMP

Series speciﬁcations.

–29

= 29 Positions / Mates with

HPXXX 8 Pairs

A

(4,55)

.179

(2,20)

.087

–S

= 30µ" (0,76 µm)

Gold on Mating Area,

Tin on Tails

01

–L

= Locking Option

(Only available on

HDMR–19–01–X–

TH–PF–L)

(6,18)

.243

(1,20)

.047

(4,55)

.179

(8,00)

02

.315

(17,20)

.677

(1,60)

.062

(6,18)

.243

(0,76)

.030

–01

NO. OF

POSITIONS

–19

–29

A

(15,00)

.591

(22,30)

.878

(2,00)

.079

–02

(1,20)

.047

(7,50)

.295

(16,05)

.632

(7,20)

.283

(0,35)

.014

(2,80)

.110

(0,50)

.020

(4,60) .181

(9,00)

.354

–19–01–PF–L

–19–02–PF

(9,98)

.393

(0,50)

.020

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

(4,60)

.181

–19–01–PF

(5,96)

.235

(5,96)

.235

WWW.SAMTEC.COM

HDMR-29-01-F-SM Related Products

	HDMR-29-01-F-SM	HDMR-19-01-F-TH-PF-L	HDMR-19-01-S-TH-PF-L	HDMR-19-02-F-SM-PF	HDMR-29-01-F-SM-PF	HDMR-29-01-S-SM-PF
Description	Telecom and Datacom Connector, 29 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 19 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 19 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 19 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 29 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 29 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Factory Lead Time	2 weeks	8 weeks	3 weeks	3 weeks	3 weeks	2 weeks
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD FLASH	GOLD FLASH	GOLD (30)	GOLD FLASH	GOLD FLASH	GOLD (30)
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN	TIN
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
insulator material	HT THERMOPLASTIC	HT THERMOPLASTIC	HT THERMOPLASTIC	HT THERMOPLASTIC	HT THERMOPLASTIC	HT THERMOPLASTIC
JESD-609 code	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Termination type	SURFACE MOUNT	SOLDER	SOLDER	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	29	19	19	19	29	29
Base Number Matches	1	1	1	1	1	1
Manufacturer's serial number	HDMR	HDMR	-	HDMR	HDMR	-
