LTC1731CMS8-4.1: DescriptionIC BATTERY CHARGE CONTROLLER, PDSO8, PLASTIC, MSOP-8, Switching Regulator or Controller; CategoryPower/power management The power supply circuit; File Size647KB，8 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

LTC1731CMS8-4.1 Overview

IC BATTERY CHARGE CONTROLLER, PDSO8, PLASTIC, MSOP-8, Switching Regulator or Controller

LTC1731CMS8-4.1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
Parts packaging code	MSOP
package instruction	TSSOP,
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	BATTERY CHARGE CONTROLLER
control mode	CURRENT-MODE
Maximum input voltage	15 V
Minimum input voltage	4.5 V
Nominal input voltage	6 V
JESD-30 code	S-PDSO-G8
JESD-609 code	e0
length	3 mm
Humidity sensitivity level	1
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	SQUARE
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	245
Certification status	Not Qualified
Maximum seat height	1.1 mm
surface mount	YES
Switch configuration	SINGLE
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3 mm
Base Number Matches	1

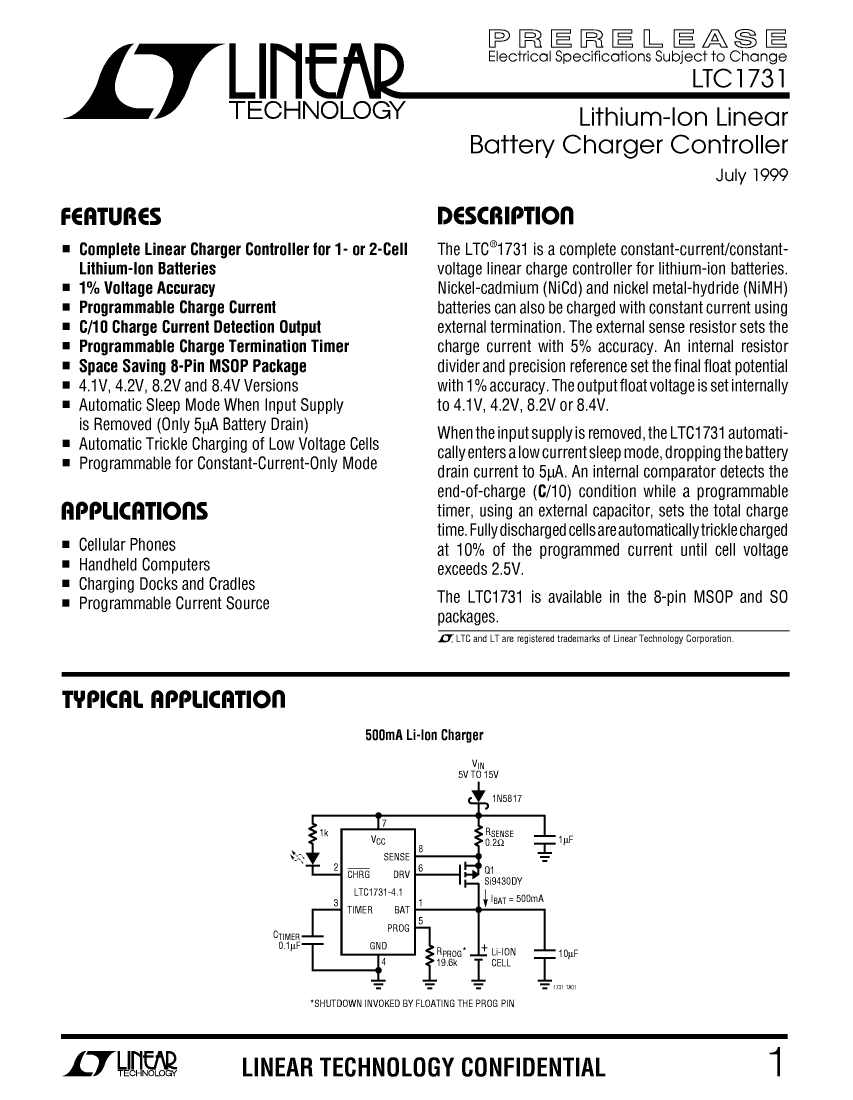

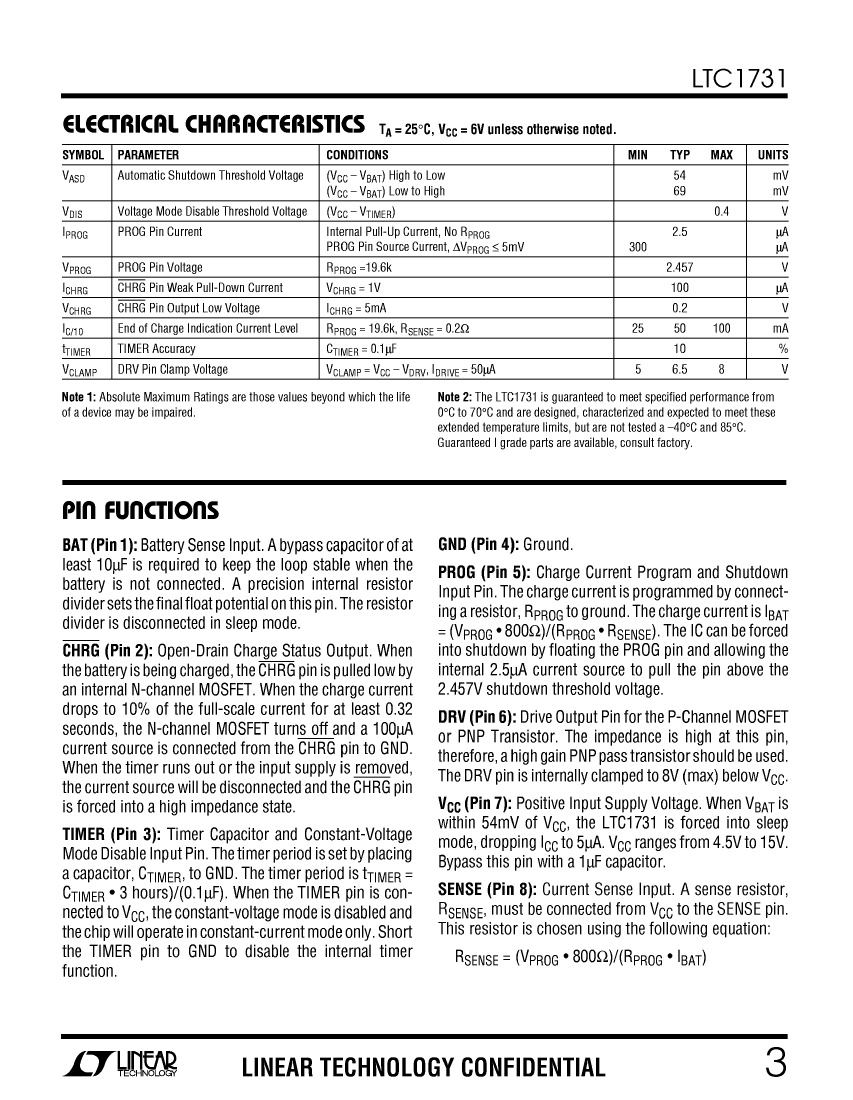

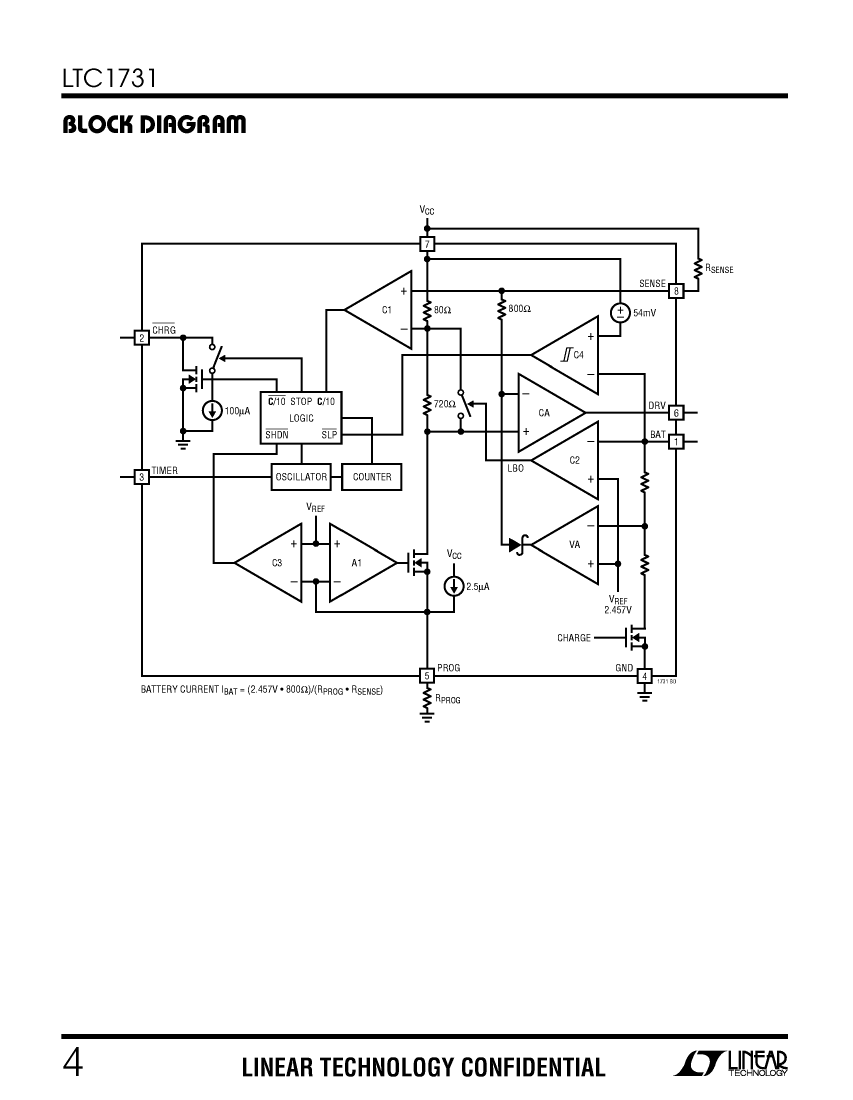

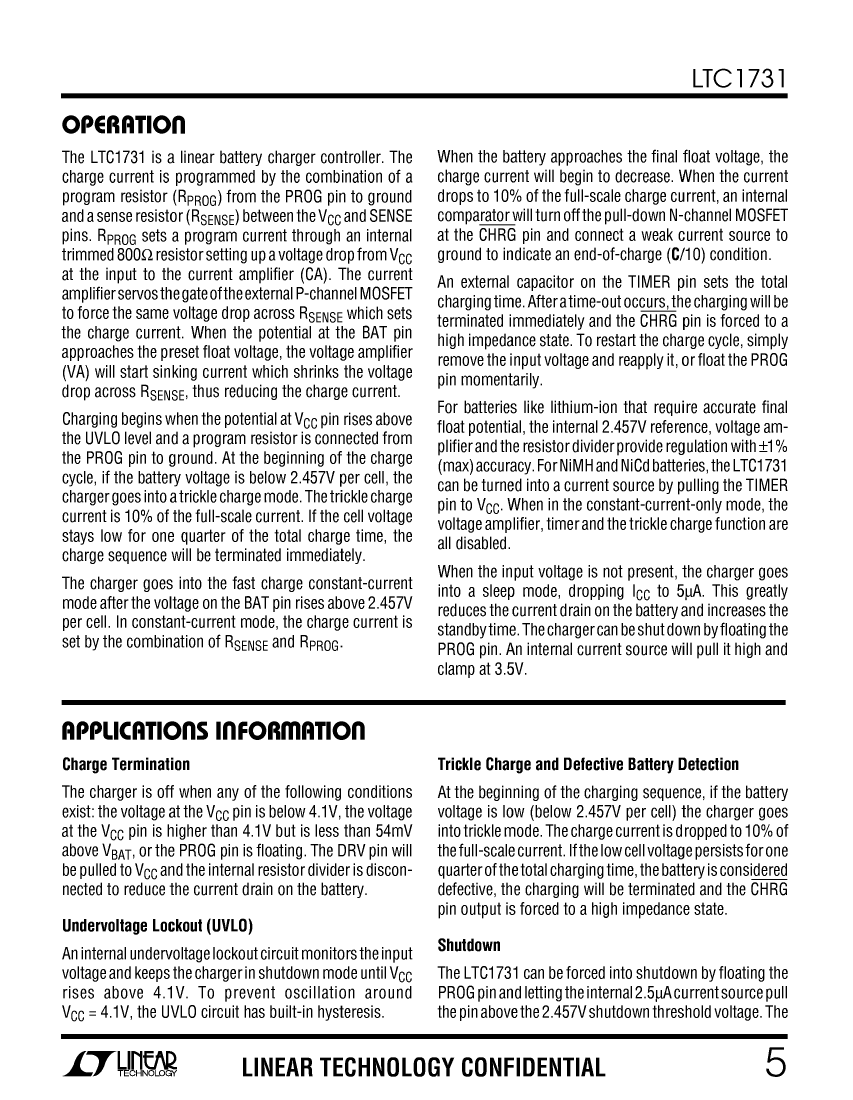

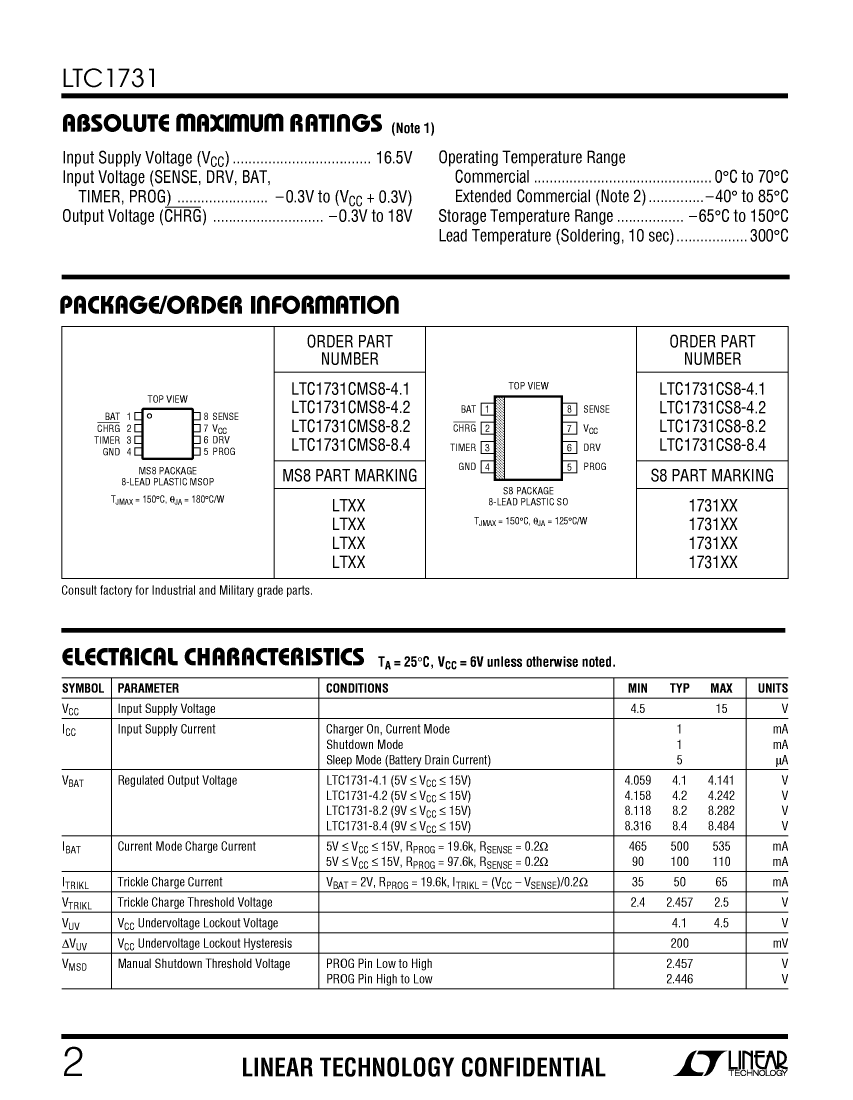

Preview

Download Datasheet

View All

LTC1731CMS8-4.1 Related Products

	LTC1731CMS8-4.1	LTC1731CMS8-8.2	LTC1731CMS8-8.4	LTC1731CS8-4.1	LTC1731CMS8-4.2
Description	IC BATTERY CHARGE CONTROLLER, PDSO8, PLASTIC, MSOP-8, Switching Regulator or Controller	IC BATTERY CHARGE CONTROLLER, PDSO8, PLASTIC, MSOP-8, Switching Regulator or Controller	IC BATTERY CHARGE CONTROLLER, PDSO8, PLASTIC, MSOP-8, Switching Regulator or Controller	IC BATTERY CHARGE CONTROLLER, PDSO8, 0.150 INCH, PLASTIC, SO-8, Switching Regulator or Controller	IC BATTERY CHARGE CONTROLLER, PDSO8, PLASTIC, MSOP-8, Switching Regulator or Controller
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	MSOP	MSOP	MSOP	SOIC	MSOP
package instruction	TSSOP,	TSSOP,	TSSOP,	SOP,	TSSOP,
Contacts	8	8	8	8	8
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	BATTERY CHARGE CONTROLLER	BATTERY CHARGE CONTROLLER	BATTERY CHARGE CONTROLLER	BATTERY CHARGE CONTROLLER	BATTERY CHARGE CONTROLLER
control mode	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE
Maximum input voltage	15 V	15 V	15 V	15 V	15 V
Minimum input voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal input voltage	6 V	6 V	6 V	6 V	6 V
JESD-30 code	S-PDSO-G8	S-PDSO-G8	S-PDSO-G8	R-PDSO-G8	S-PDSO-G8
JESD-609 code	e0	e0	e0	e0	e0
length	3 mm	3 mm	3 mm	4.9 mm	3 mm
Humidity sensitivity level	1	1	1	1	1
Number of functions	1	1	1	1	1
Number of terminals	8	8	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	TSSOP	TSSOP	SOP	TSSOP
Package shape	SQUARE	SQUARE	SQUARE	RECTANGULAR	SQUARE
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	245	245	245	245	245
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.1 mm	1.1 mm	1.1 mm	1.75 mm	1.1 mm
surface mount	YES	YES	YES	YES	YES
Switch configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	0.65 mm	1.27 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	3 mm	3 mm	3 mm	3.9 mm	3 mm
Maker	Linear ( ADI )	-	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )
