DSX840GA-FREQ-STBY2-TOL2-CL2: DescriptionParallel - Fundamental Quartz Crystal, 8MHz Min, 50MHz Max,; CategoryPassive components Crystal/resonator; File Size57KB，1 Pages; ManufacturerDaishinku Corp.; Websitehttp://www.kds.info/; Environmental Compliance

Download Datasheet Parametric View All

DSX840GA-FREQ-STBY2-TOL2-CL2 Overview

Parallel - Fundamental Quartz Crystal, 8MHz Min, 50MHz Max,

DSX840GA-FREQ-STBY2-TOL2-CL2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Daishinku Corp.
Reach Compliance Code	unknown
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.005%
frequency tolerance	50 ppm
JESD-609 code	e4
load capacitance	10 pF
Manufacturer's serial number	DSX840GA
Installation features	SURFACE MOUNT
Maximum operating frequency	50 MHz
Minimum operating frequency	8 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L8XB4.5XH1.4 (mm)
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Base Number Matches	1

Preview

Download Datasheet

View All

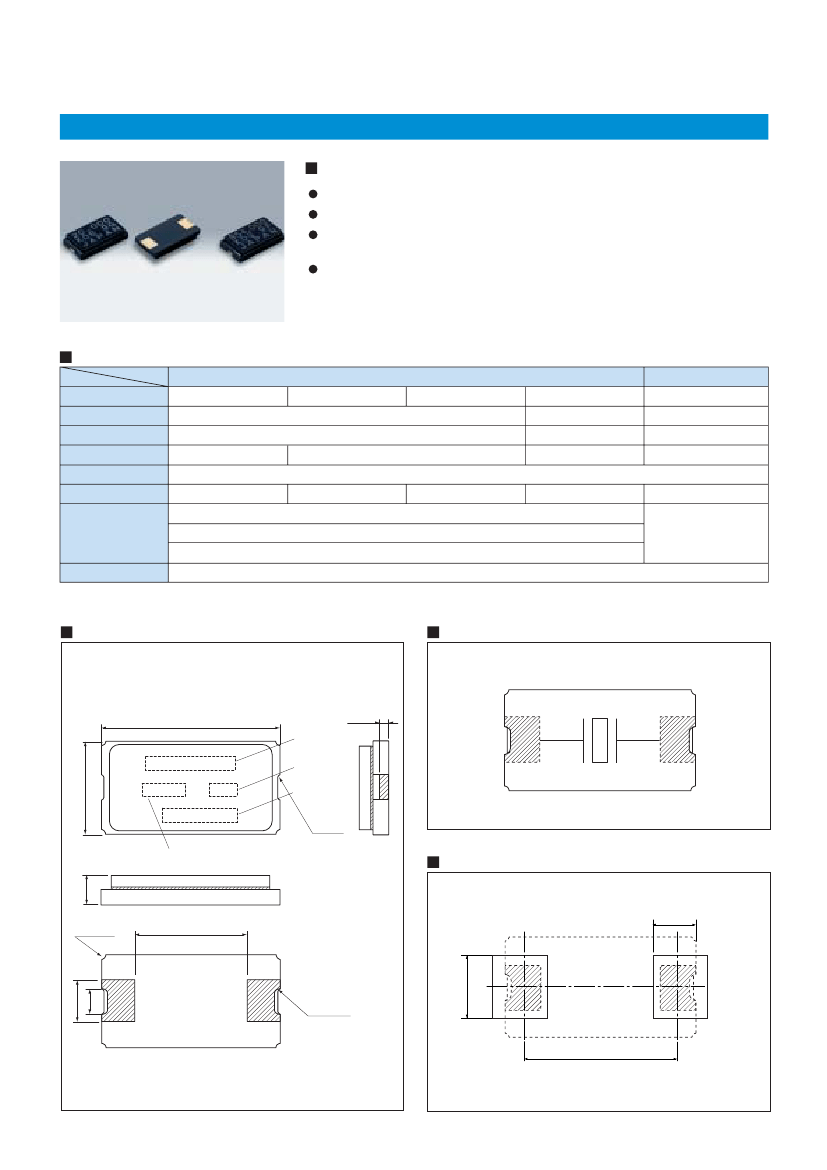

SMD Type Crystal Resonators

DSX840GA, DSX840GAB

Features

Miniature SMD crystal resonators.

（height 1.4mm）

Covers up to 60MHz with fundamental mode.

Reliable ceramic package provides high resistance

against extreme environment.

Good for automatic mounting and reflow soldering.

Generic Specification

Item

Type

DSX840GA

8∼10MHz

10∼12MHz

Fundamental

Series, 8pF, 10pF, 12pF

10μW 100μW max.）

（

150Ωmax.

12∼50MHz

40∼80MHz

3rd overtone

Series

Frequency Range

Vibration Mode

Load Capacitance

Drive Level

Frequency Tolerance

Series Resistance

Frequency

Characteristics

over Temperature

Storage Temperature Range

DSX840GAB

40∼60MHz

Fundamental

Series, 8pF、

10pF、

12pF

10μW（300μW max.）

10μW 500μW max.） 10μW 300μW max.）

（

-6

±30×10 , ±50×10 , ±100×10 （at 25℃）

80Ωmax.

-6

70Ωmax.

50Ωmax.

±30×10

-6

／−10∼＋60℃(Ref. to 25℃)

±50×10 ／−20∼＋70℃(Ref. to 25℃)

±100×10

-6

／−30∼＋80℃(Ref. to 25℃)

−40∼＋85℃

50Ωmax.

±100×10

-6

／−10∼＋60℃

(Ref. to 25℃)

Packing Unit : 1000pcs./reel

Consult our sales representative for other specifications or special specifications.

Dimensions[mm]

Internal Connections

〈Top View〉

8.0±0.2

Frequency

0.44

4.5±0.2

2 0 . 0 0 0

K D S

1G

Lot.No.

Country

J A P A N

4-R0.1

Logo

1.4±0.2

Recommended Land Pattern

[mm]

2.4

4-R0.2

5.0

2.0

1.2

4-R0.25

2.8

6.6

13
