FN410-6/02 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> FN410-6/02

FN410-6/02: Description250V, 50/60 HZ, SINGLE PHASE EMI FILTER, ROHS COMPLIANT PACKAGE-5; CategoryAnalog mixed-signal IC filter; File Size205KB，3 Pages; ManufacturerSchaffner; Environmental Compliance

Download Datasheet Parametric Compare View All

FN410-6/02 Overview

250V, 50/60 HZ, SINGLE PHASE EMI FILTER, ROHS COMPLIANT PACKAGE-5

FN410-6/02 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Schaffner
package instruction	ROHS COMPLIANT PACKAGE-5
Reach Compliance Code	compliant
Other features	INDUCTANCE 0.8 MILLI HENRY
Certification	UL; CSA; ENEC-14
filter type	SINGLE PHASE EMI FILTER
high	19 mm
high potential	760 V
Maximum leakage current	0.373 mA
length	72 mm
Manufacturer's serial number	FN410
Installation type	THROUGH HOLE MOUNT
working frequency	50/60 Hz
Maximum operating temperature	100 °C
Minimum operating temperature	-25 °C
physical size	L72.0XB33.0XH19.0 (mm)/L2.835XB1.299XH0.748 (inch)
Rated current	6.9 A
Rated voltage	250 V
Terminal surface	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

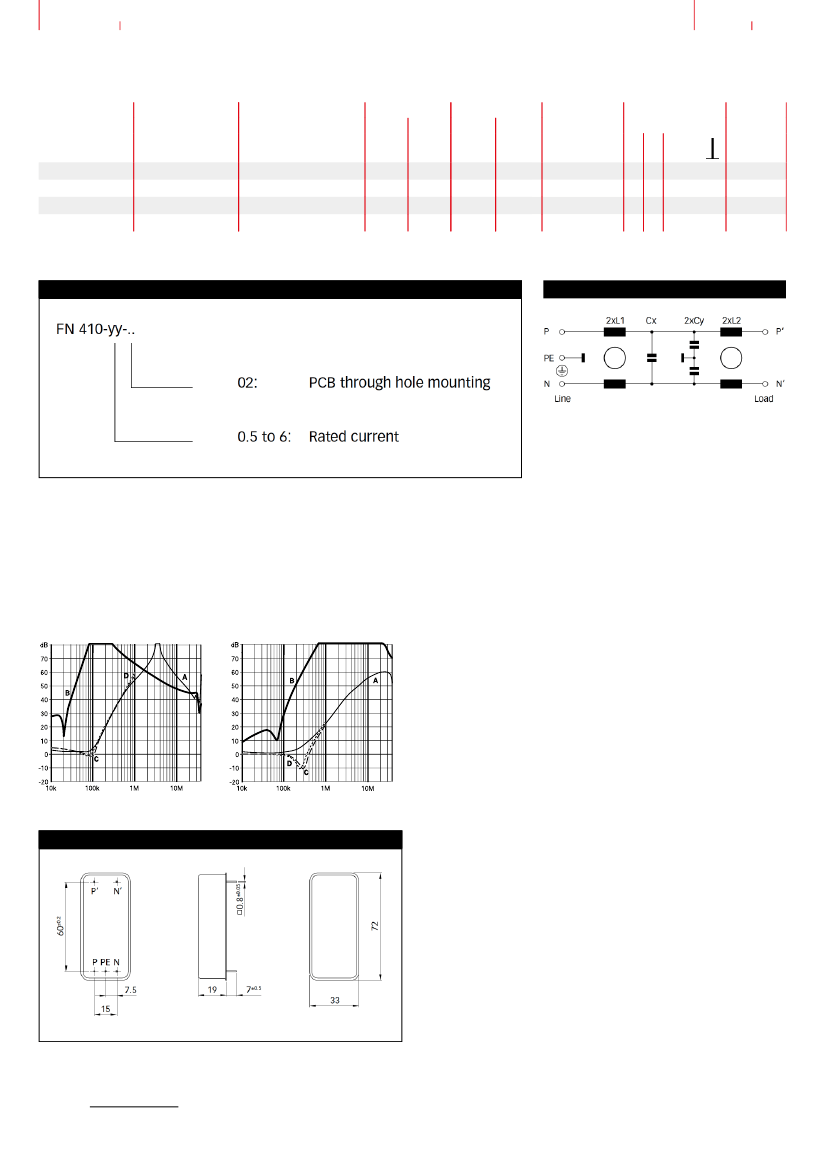

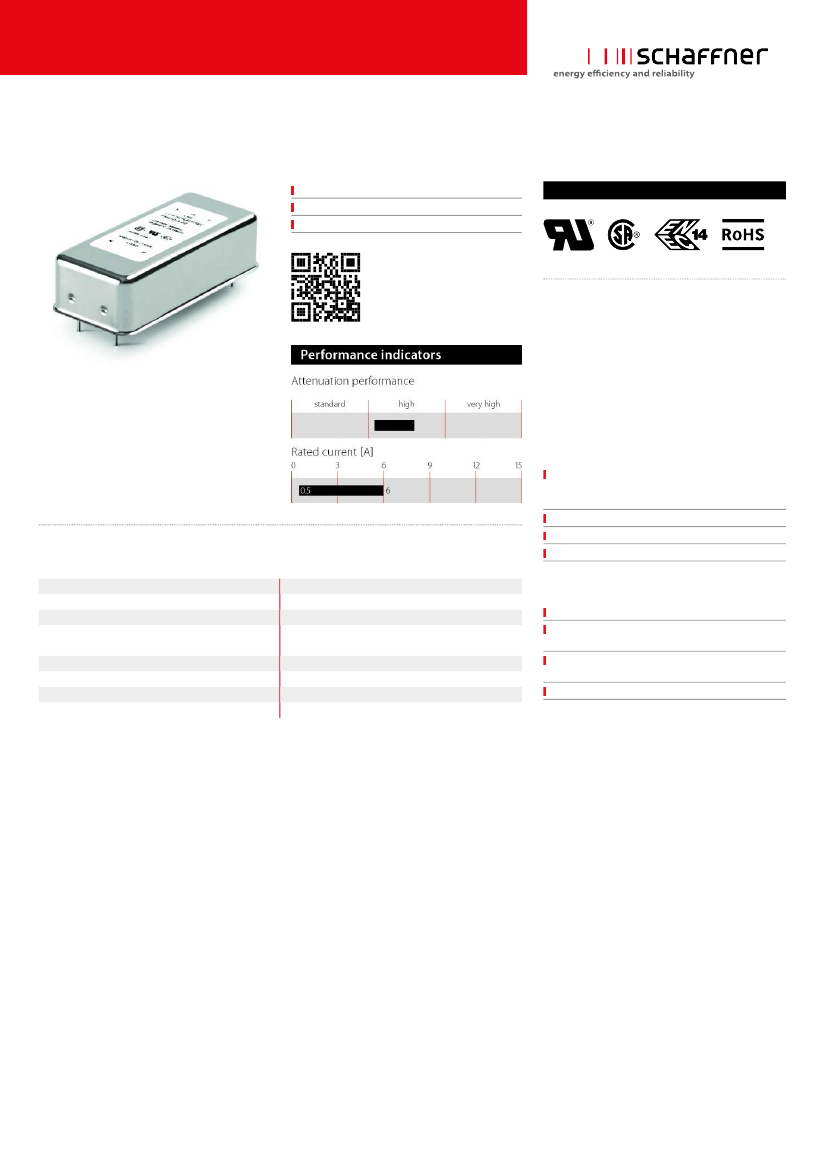

High Performance Two-stage PCB-mounting EMC Filter

PCB Filters FN 410

Rated currents from 0.5 to 6 A

PCB-mountable design

High attenuation two-stage design

Approvals

The FN 410 PCB filter is a single-phase, two-stage filter

designed for easy and fast PCB-mounting. Choosing

the FN 410 product line brings you the rapid

availability of a standard high performance filter

associated with the necessary safety acceptance.

Standard PCB single-phase filters are a practical

solution helping you to pass EMI system approval in a

short time. A selection on amperage ratings are

designed to offer you the desired standard product.

Features and benefits

Very good conducted attenuation performance,

based on chokes with high saturation resistance

and excellent thermal behavior

Two-stage single-phase design

Technical specifications

Maximum continuous operating voltage

Operating frequency

Rated currents

250 VAC, 50/60 Hz

dc to 400 Hz

0.5 to 6 A @ 40 °C max.

PCB through hole mounting

Custom specific versions on request

Typical applications

Electrical and electronic equipment

Small to medium-sized machines and household

equipment

High potential test voltage

Temperature range (operation and storage)

Design corresponding to

Flammability corresponding to

MTBF @ 40°C/230V (Mil-HB-217F)

P –> PE 2000 VAC for 2 sec

P –> N 760 VAC for 2 sec

-25 °C to +100 °C (25/100/21)

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

UL 94 V-2 or better

675,000 hours

Single-phase power supplies, switch-mode power

supplies

Test and measurement equipment

FN410-6/02 Related Products

	FN410-6/02	FN410-0.5/02	FN410-1/02	FN410-3/02
Description	250V, 50/60 HZ, SINGLE PHASE EMI FILTER, ROHS COMPLIANT PACKAGE-5	250V, 50/60 HZ, SINGLE PHASE EMI FILTER, ROHS COMPLIANT PACKAGE-5	250V, 50/60 HZ, SINGLE PHASE EMI FILTER, ROHS COMPLIANT PACKAGE-5	250V, 50/60 HZ, SINGLE PHASE EMI FILTER, ROHS COMPLIANT PACKAGE-5
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Schaffner	Schaffner	Schaffner	Schaffner
package instruction	ROHS COMPLIANT PACKAGE-5	ROHS COMPLIANT PACKAGE-5	ROHS COMPLIANT PACKAGE-5	ROHS COMPLIANT PACKAGE-5
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	INDUCTANCE 0.8 MILLI HENRY	PIN FOR PCB MOUNTING CONNECTIONS	INDUCTANCE 10 MILLI HENRY	INDUCTANCE 2 MILLI HENRY
Certification	UL; CSA; ENEC-14	UL; CSA; ENEC-14	UL; CSA; ENEC-14	UL; CSA; ENEC-14
filter type	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER
high	19 mm	19 mm	19 mm	19 mm
high potential	760 V	760 V	760 V	760 V
Maximum leakage current	0.373 mA	0.21 mA	0.373 mA	0.373 mA
length	72 mm	72 mm	72 mm	72 mm
Manufacturer's serial number	FN410	FN410	FN410	FN410
Installation type	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
working frequency	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz
physical size	L72.0XB33.0XH19.0 (mm)/L2.835XB1.299XH0.748 (inch)	L72XB33XH19 (mm)	L72.0XB33.0XH19.0 (mm)/L2.835XB1.299XH0.748 (inch)	L72.0XB33.0XH19.0 (mm)/L2.835XB1.299XH0.748 (inch)
Rated current	6.9 A	0.6 A	1.2 A	3.6 A
Rated voltage	250 V	250 V	250 V	250 V
Terminal surface	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1	1	1
Maximum operating temperature	100 °C	-	100 °C	100 °C
Minimum operating temperature	-25 °C	-	-25 °C	-25 °C
