FUJITSU MEDIA DEVICE
DATA SHEET
DS04-23122-4E
ASSP Mobile Communication Systems
Piezoelectric SAW BPF
(700 to 1700MHz)
F5CP/F6CP Series (D2 type)
s
DESCRIPTION
The F5CP/F6CP series of SAW band pass filters have 2.5 mm
×
2.0 mm
×
0.9 mm (h) of ultra small package,
which are available in the 700 to 2000 MHz frequency range. They exhibit high stability by using single crystal,
Lithium Tantalate (LiTaO
3
) with a large electro-mechanical coefficient.
Typical applications for the F5CP/F6CP series include RF interstage filtering in mobile communications systems.
Standard devices are available for AMPS, GSM, EGSM, PDC800, PDC1.5G.
s
FEATURES
• Ultra compact and light package (2.5 mm
×
2.0 mm
×
0.9 mm (h) *)
*: 1.0 mm height maximum
• Excellent stop band attenuation
• External matching are not required (50
Ω
I/O)
• Standard devices are available for mobile communication standards
s
PACKAGE
F5CP/F6CP Series
s
PIN ASSIGNMENT
(BOTTOM VIEW)
1
2
4
3
s
PIN DESCRIPTION
Pin No.
1
2
3
4
Symbol
IN
GND
OUT
GND
Input pin
Ground pin
Output pin
Ground pin
Descriptions
2
F5CP/F6CP Series
s
ABSOLUTE MAXIMUM RATINGS
Parameter
Ambient operating temperature
Storage temperature
Input power
F5CP Series
F6CP Series
Symbol
Ta
Tstg
Pin
Rating
Min.
−30
−40
−5
Max.
+85
+100
+15
+10
+5
Unit
°C
°C
dBm
dBm
V
Input DC voltage
WARNING: Piezoelectric devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.
s
RECOMMENDED OPERATING CONDITIONS
Parameter
Operating temperature
Symbol
Ta
Value
Min.
−30
Max.
+85
Unit
°C
WARNING: The recommended operating conditions are required in order to ensure the normal operation of the
piezoelectric device. All of the device’s electrical characteristics are warranted when the device is
operated within these ranges.
Always use piezoelectric devices within their recommended operating conditionranges. Operation
outside these ranges may adversely affect reliability and could result in device failure.
No warranty is made with respect to uses, operating conditions, or combinations not represented on
the data sheet. Users considering application outside the listed conditions are advised to contact their
FUJITSU representatives beforehand.
s
STANDARD DEVICES
System
PDC800
AMPS/CDMA/
TDMA
GSM
EGSM
PDC1.5G
T
X
R
X
T
X
R
X
T
X
R
X
R
X
T
X
R
X
Center
Band width
frequency (MHz)
(MHz)
950.0
820.0
836.5
881.5
902.5
947.5
942.5
1441.0
1489.0
20
20
25
25
25
25
35
24
24
Part
symbol
9
2
3
4
5
6
1
7
R
8
Part number
FAR-F5CP-950M00-D209
FAR-F5CP-820M00-D202
FAR-F5CP-836M50-D203
FAR-F5CP-881M50-D204
FAR-F5CP-902M50-D205
FAR-F5CP-947M50-D206
FAR-F5CP-942M50-D201
FAR-F6CP-1G4410-D207
FAR-F6CP-1G4410-D20R
FAR-F6CP-1G4890-D208
Re-
marks
3
F5CP/F6CP Series
s

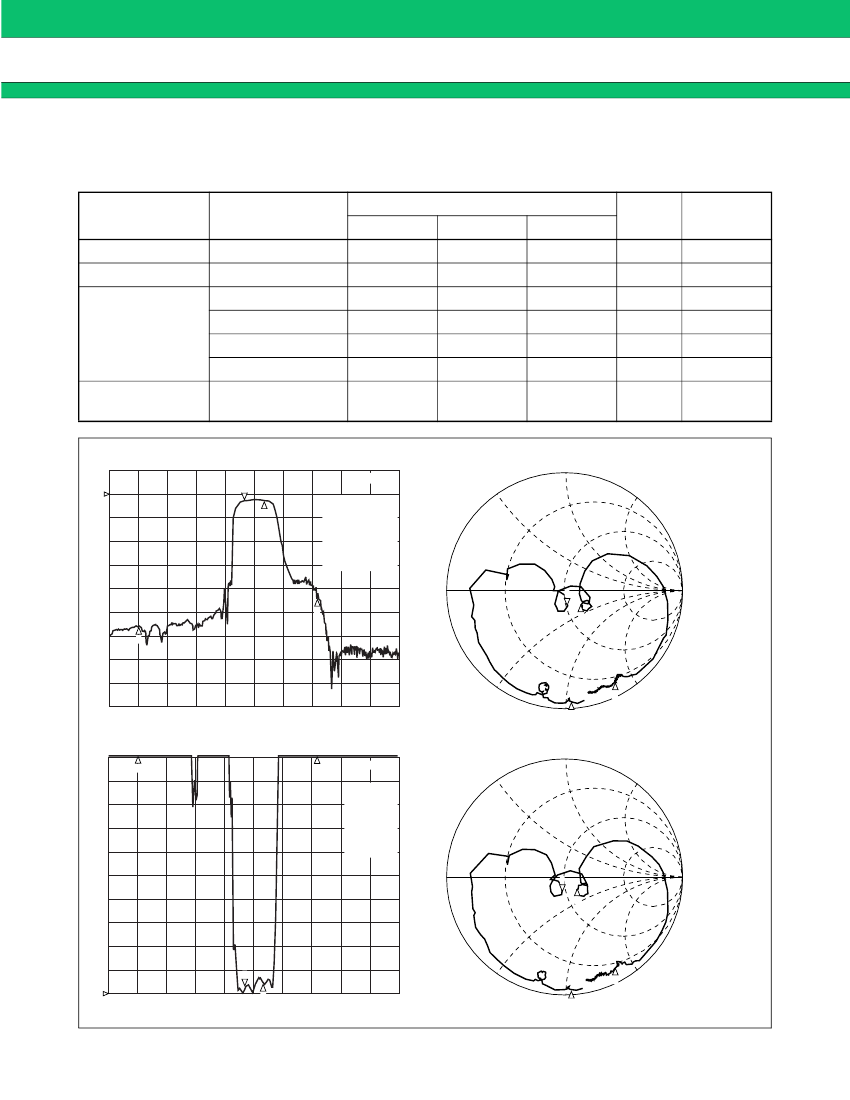

ELECTRICAL CHARACTERISTICS AND TYPICAL FREQUENCY RESPONSE
1. SYSTEM : PDC800-Tx
PART NUMBER : FAR-F5CP-950M00-D209
Parameter
Insertion loss
In-band ripple
Conditions
940 to 960 MHz
940 to 960 MHz
DC to 830 MHz
Absolute
attenuation
1015 to 1106 MHz
1106 to 1700 MHz
1700 to 2000 MHz
In-band VSWR
(Return loss)
940 to 960 MHz
Value
Min.
45
35
45
40
(8.1)
Typ.
3.1
0.8
52
42
55
48
2.1
(9.0)
Max.
3.5
1.2
2.3
()
Unit
dB
dB
dB
dB
dB
dB
(dB)
Remarks
S
21
log MAG
10 dB/
1
REF 0 dB
1 :
−2.8224
dB
940 MHz
2 :
−2.672
dB
960 MHz
3 :
−55.793
dB
830 MHz
4 :
−43.18
dB
1.015 GHz
S
11
1U FS
1 : 51.404
Ω
−11.736 Ω
14.426 pF
940 MHz
2 : 65.227
Ω
−15.25 Ω
960 MHz
3 : 3.3965
Ω
−52.201 Ω
830 MHz
4 : 13.656
Ω
−85.102 Ω
1.015 GHz
2
1
4
3
2
4
CENTER 950 MHz
S
11
SWR
3
1/
REF 1
4
SPAN 300 MHz
1 : 1.2627
940 MHz
2 : 1.4555
960 MHz
3 : 30.774
830 MHz
4 : 14.488
1.015 GHz
1
2
CENTER 950 MHz
3
SPAN 300 MHz
−11.197 Ω
S
22
1U FS
1 : 48.162
Ω
15.121 pF
940 MHz
2 : 62.332
Ω
−11.52 Ω
960 MHz
3 : 3.3203
Ω
−51.557 Ω
830 MHz
4 : 14.066
Ω
−83.52 Ω
1.015 GHz
1
CENTER 950 MHz
2
SPAN 300 MHz
CENTER 950 MHz
3
4
SPAN 300 MHz
4
F5CP/F6CP Series

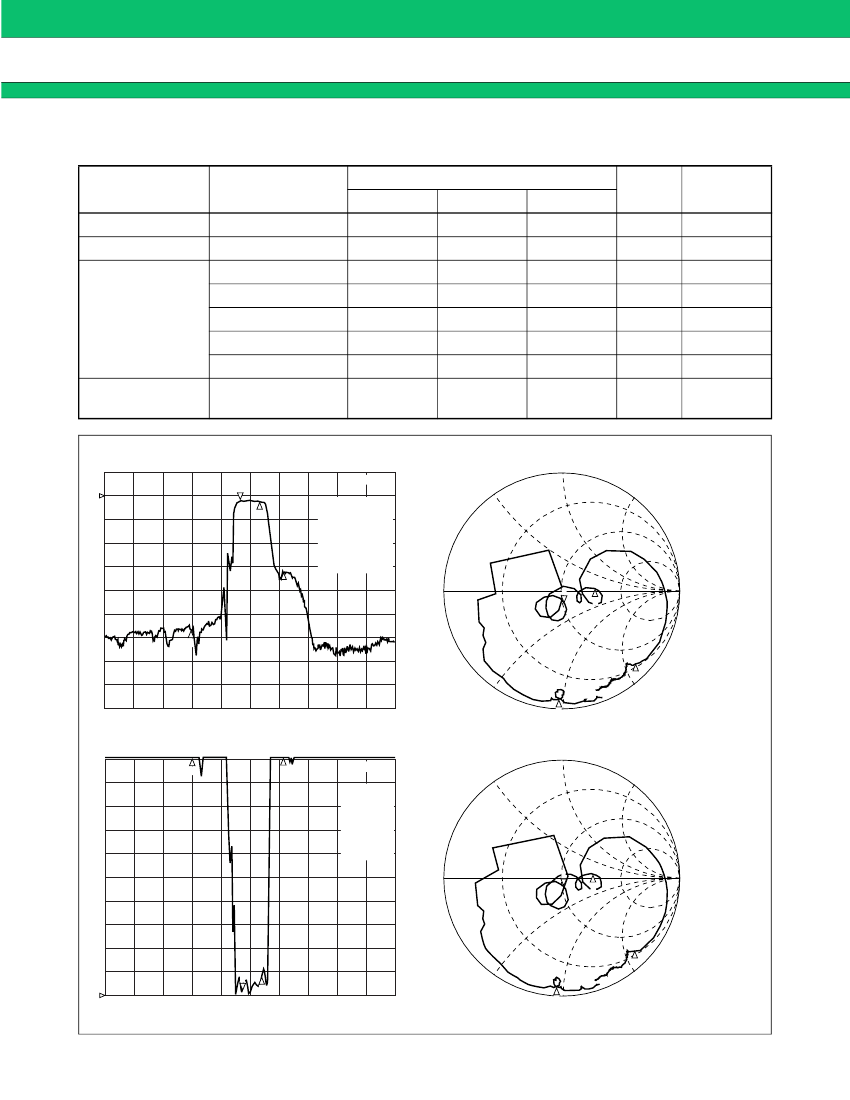

2. PDC800-R
X
PART NUMBER : FAR-F5CP-820M00-D202
Parameter
Insertion loss
In-band ripple
Conditions
810 to 830 MHz
810 to 830 MHz
DC to 760 MHz
855 to 875 MHz
Absolute
attenuation
875 to 920 MHz
920 to 1200 MHz
1200 to 2000 MHz
In-band VSWR
(Return loss)
810 to 830 MHz
Value
Min.
45
28
35
45
40
(8.5)
Typ.
2.6
0.8
52
30
38
55
47
2.0
(9.5)
Max.
3.3
1.5
2.2
()
Unit
dB
dB
dB
dB
dB
dB
dB
(dB)
Remarks
S
21
log MAG
10 dB/
1
REF 0 dB
1 :
−2.4056
dB
810 MHz
2 :
−2.5113
dB
830 MHz
3 :
−56.9
dB
760 MHz
4 :
−31.782
dB
855 MHz
S
11
1U FS
1 : 50.861
Ω
−8.7852 Ω
22.366 pF
810 MHz
2 : 88.93
Ω
5.2227
Ω
830 MHz
3 : 4.5723
Ω
−48.232 Ω
760 MHz
4 : 22.301
Ω
−121.53 Ω
855 MHz
2
4
1
2
3
4
3
CENTER 820 MHz
S
11
SWR
3
1/
REF 1
4
SPAN 300 MHz
1 : 1.1966
810 MHz
2 : 1.7897
830 MHz
3 : 21.137
760 MHz
4 : 15.897
855 MHz
CENTER 820 MHz
SPAN 300 MHz
−8.2246 Ω
S
22
1U FS
1 : 51.545
Ω
23.89 pF
810 MHz
2 : 86.727
Ω
6.6094
Ω
830 MHz
3 : 4.5059
Ω
−47.348 Ω
760 MHz
1
2
4 : 22.906
Ω
−119.41 Ω
855 MHz
4
1
CENTER 820 MHz
2
SPAN 300 MHz
CENTER 820 MHz
3
SPAN 300 MHz
5
