FBS0603-260E: DescriptionFerrite Bead, 1 Function(s), 1A, ROHS COMPLIANT, EIA STD PACKAGE SIZE 0603, 2 PIN; CategoryAnalog mixed-signal IC filter; File Size2MB，4 Pages; ManufacturerVENKEL LTD; Environmental Compliance

Download Datasheet Parametric View All

FBS0603-260E Overview

Ferrite Bead, 1 Function(s), 1A, ROHS COMPLIANT, EIA STD PACKAGE SIZE 0603, 2 PIN

FBS0603-260E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	VENKEL LTD
package instruction	0603
Reach Compliance Code	compliant
ECCN code	EAR99
shell code	0603
structure	Chip Bead
Maximum DC resistance	0.08 Ω
filter type	FERRITE BEAD
maximum frequency	100 MHz
minimum frequency	100 MHz
high	0.8 mm
JESD-609 code	e3
length	1.6 mm
Manufacturer's serial number	FBS0603
Material	Ferrite
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance	26 OHM Ω
method of packing	TAPE AND REEL
physical size	L1.6XB0.8XH0.8 (mm)/L0.063XB0.031XH0.031 (inch)
Rated current	1 A
series	FBS SERIES
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
width	0.8 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Ferrite Beads

For EMI Suppression

The FBS and FBM Series are used for EMI suppression.

These inductors suppress electro-magnetic wave noise by increased

impedence, especially by increased resistance at noise frequency.

FBS Series:

The FBS Series is composed of a single layer internal electrode

that is for low impedance and low DC resistance.

FBM Series:

The FBM Series displays high impedance because it is composed

of multi-layered internal electrodes and has excellent attenuation characteristics for

wide band frequencies.

Features

•

Smallest beads possible for surface mounting and high impedance

Perfect shape for automatic mounting with no directionality

Excellent solderability and high heat resistance for either flow or reflow soldering

Monolithic inorganic material construction for high reliability

Closed magnetic circuit configuration avoids crosstalk and is suitable

for high density PCBs

Application

Dimensions

•

High frequency EMI prevention in computers, printers, VCRs, TVs and

portable telephones.

Unit: mm (inch)

Size

0402

0603

1.0 ± 0.05

(0.040 ± 0.002)

1.6 ± 0.15

(0.063 ± 0.006)

2.0 ± 0.2

(0.079 ± 0.008)

3.2 ± 0.2

(0.126 ± 0.008)

3.2 ± 0.2

(0.126 ± 0.008)

4.5 ± 0.2

(0.177 ± 0.008)

4.5 ± 0.2

(0.177 ± 0.008)

0.5 ± 0.05

(0.020 ± 0.002

0.8 ± 0.15

(0.031 ± 0.006)

1.25 ± 0.2

(0.050 ± 0.008)

1.6 ± 0.2

(0.063 ± 0.008)

2.5 ± 0.2

(0.098 ± 0.008)

1.6 ± 0.2

(0.063 ± 0.008)

3.2 ± 0.2

(0.126 ± 0.008)

0.5 ± 0.05

(0.020 ± 0.002

0.8 ± 0.15

(0.031 ± 0.006)

0.9 ± 0.2

(0.036 ± 0.008)

1.1 ± 0.2

(0.043 ± 0.008)

1.3 ± 0.2

(0.051 ± 0.008)

1.6 ± 0.2

(0.063 ± 0.008)

1.5 ± 0.2

(0.060 ± 0.008)

0.25 ± 0.1

(0.010 ± 0.004)

0.3 ± 0.2

(0.012 ± 0.008)

0.5 ± 0.3

(0.020 ± 0.012)

0.5 ± 0.3

(0.020 ± 0.012

0.5 ± 0.3

(0.020 ± 0.012

0.5 ± 0.3

(0.020 ± 0.02)

0.5 ± 0.3

(0.020 ± 0.012

Ferrite body

Termination finish is

100% matte Tin (Sn)

over Nickel (Ni)

0805

1206

1210

1806

1812

Operating Temperature Range

Storage Temperature Range

-55 to +125° C

-10 to +40° C

How To Order

FBM0805

Series

—

121

Impedance

Values

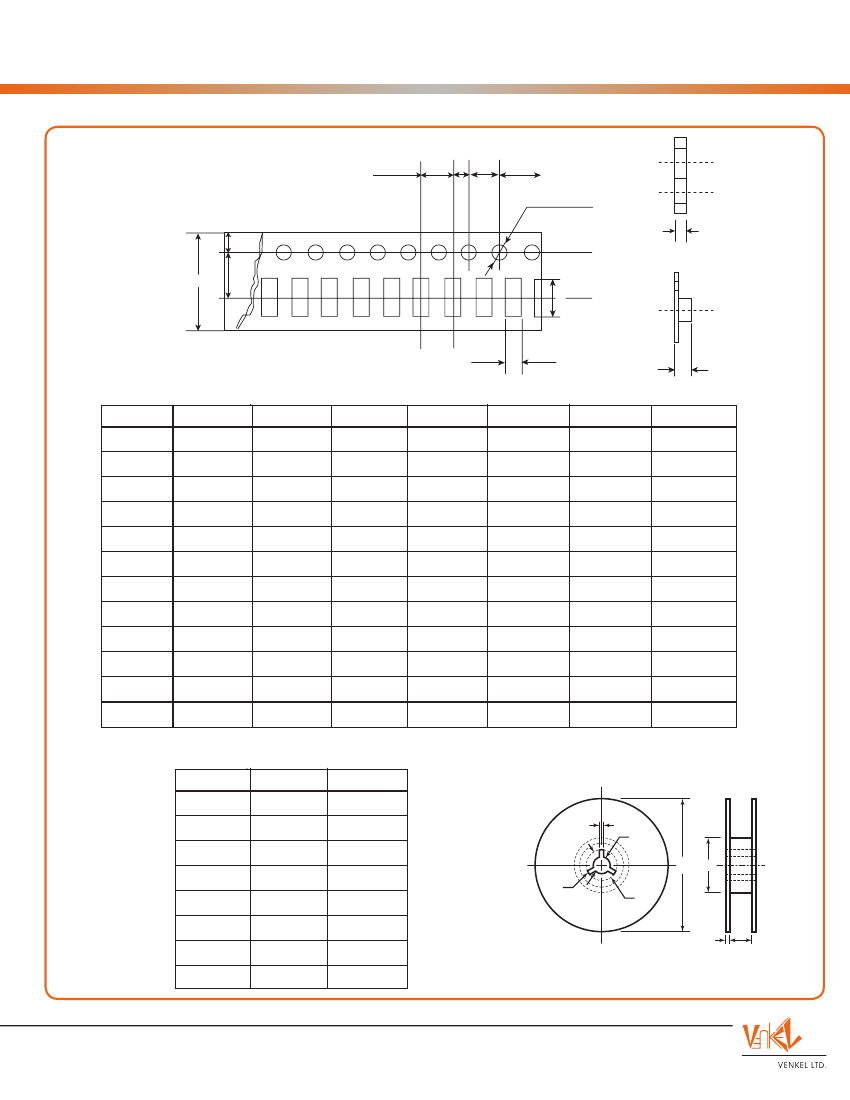

Packaging

E: Embossed Tape

P: Paper Tape

Standard termination finish for this product is

100% matte Tin (Sn)

All components in this section are RoHS compliant per the EU directives and definitions.

5900 Shepherd Mountain Cove • Austin, TX 78730

Phone: 512 / 794-0081 • Fax: 512 / 794-0087 • Toll Free: 800 / 950-8365

e-mail: sales@venkel.com • www.venkel.com
