LFCN-3800D+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> LFCN-3800D+

LFCN-3800D+: DescriptionCeramic LPF, 7 Section(s) Min, 7 Section(s) Max, 4850MHz, ROHS COMPLIANT, CERAMIC, CASE FV1206, 4 PIN; CategoryAnalog mixed-signal IC filter; File Size318KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric View All

LFCN-3800D+ Overview

Ceramic LPF, 7 Section(s) Min, 7 Section(s) Max, 4850MHz, ROHS COMPLIANT, CERAMIC, CASE FV1206, 4 PIN

LFCN-3800D+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mini-Circuits
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TAPE AND REEL
Maximum attenuation frequency (+/- delta f)	850000 kHz
Attenuation frequency (+/-Δf) - minimum value	1150000 kHz
Attenuation at maximum frequency	30 dB
Attenuation@frequency min	20 dB
average input power	8 W
Center frequency or cutoff frequency (fo/fc)	4850 MHz
filter type	CERAMIC LPF
high	0.94 mm
Input/output impedance	50 OHM
Maximum insertion loss	1.5 dB
JESD-609 code	e3
length	3.2 mm
Installation type	SURFACE MOUNT
Number of partitions-max	7
Number of partitions - minimum	7
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
physical size	L3.2XB1.6XH0.94 (mm)/L0.126XB0.063XH0.037 (inch)
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
voltage standing wave ratio	1.3
width	1.6 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Low Pass Filter

50Ω

Operating Temperature

Storage Temperature

RF Power Input*

Max. DC Voltage at pins 1 & 3

DC Current Input to Output

Ceramic

LFCN-3800D+

CASE STYLE: FV1206

PRICE: $3.49 ea. QTY (20)

DC to 3900 MHz

-55°C to 100°C

8W max. at 25°C

25 VDC

0.5A max. at 25°C

Maximum Ratings

Features

* Passband rating, derate linearly to 3W at 100°C ambient.

Permanent damage may occur if any of these limits are exceeded.

• LTCC construction

•

protected by U.S. Patent 6,943,646

•

excellent power handling, 8W

•

small size

•

7 sections

•

temperature stable

•

hermetically sealed

+RoHS Compliant

The +Suffix identifies RoHS Compliance. See our web site

for RoHS Compliance methodologies and qualifications

Pin Connections

RF IN

RF OUT

GROUND

2,4

Applications

• lab use

•

harmonic rejection

•

VHF/UHF transmitters/receivers

Reel Size

7”

and Reel

Available Tape cost

extra

at no

Devices/Reel

20, 50, 100, 200, 500,1000, 3000

Electrical Speciﬁcations

1,2

at 25°C

Parameter

DC-F1

F4-F5

F5-F6

F3-F6

Frequency (MHz)

DC-3900

4850

DC-3900

6000

5700-8300

8300-13000

6000-13000

Min.

—

Typ.

—

3.0

1.3

—

Max.

1.5

—

Unit

Insertion Loss

Freq. Cut-Off

VSWR

Rejection Loss

VSWR

Outline Drawing

(ON TOP)

Pass Band

Stop Band

(ON TOP)

1. DC Resistance to ground is 100 Mohms min.

2. Measured on Mini-Circuits Characterization Test Board TB-270.

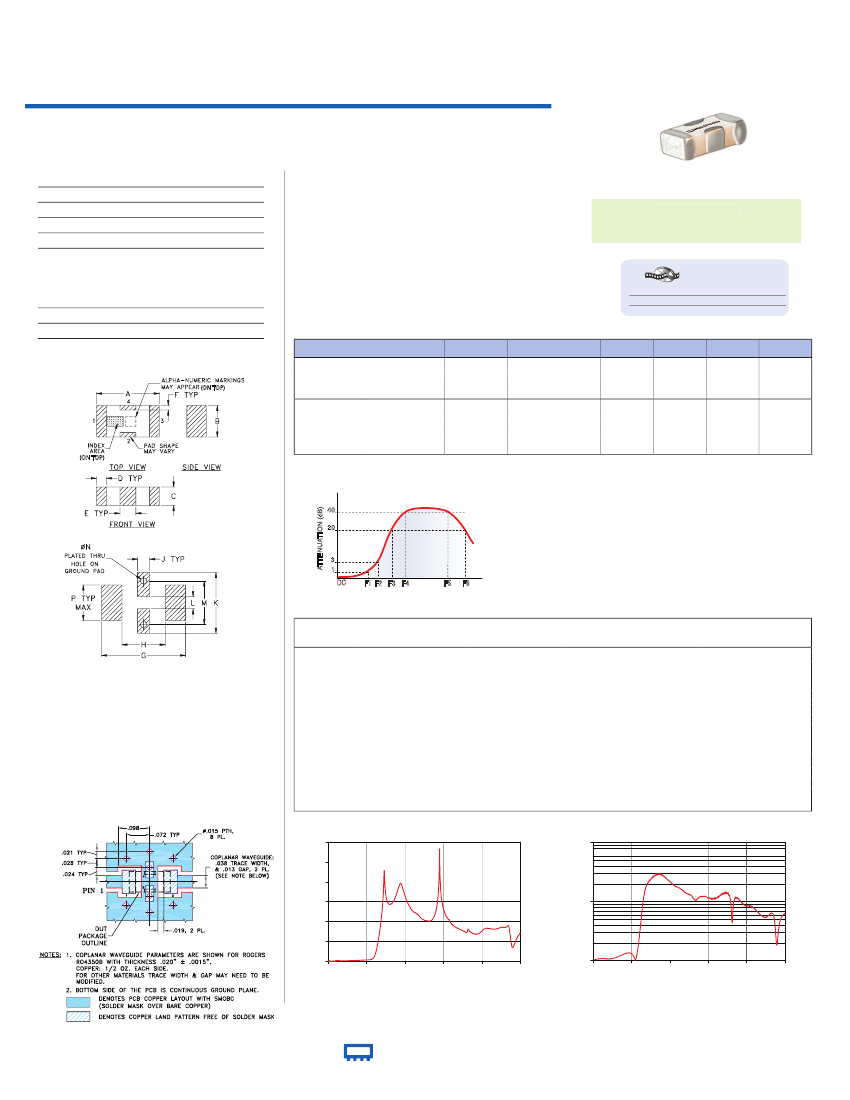

Typical Frequency Response

ATTENUATION (dB)

Electrical Schematic

PCB Land Pattern

F1 F2 F3 F4

FREQUENCY

Typical Performance Data at 25°C

Frequency

(MHz)

Suggested Layout,

Tolerance to be within

±.002

Insertion Loss

(dB)

0.06

0.27

0.48

0.66

0.95

1.93

2.76

3.84

7.65

15.30

30.21

33.71

29.24

18.04

14.19

VSWR

(:1)

1.03

1.07

1.25

1.34

1.11

1.95

2.60

3.48

7.05

14.15

20.22

23.49

19.76

12.09

6.35

Outline Dimensions (

inch

)

.126

3.20

.087

2.21

.063

1.60

.024

0.61

.037

0.94

.122

3.10

.020

0.51

.024

0.61

.032

0.81

.087

2.21

.009

0.23

.012

0.30

.169

4.29

.071 grams

1.80

.020

1550

3060

3900

4510

4760

4850

4930

5120

5380

5700

6000

8300

13000

20000

Demo Board MCL P/N: TB-270

Suggested PCB Layout (PL-137)

LFCN-3800D+

INSERTION LOSS

100

LFCN-3800D+

VSWR

INSERTION LOSS (dB)

VSWR

4000

8000

12000

16000

20000

4000

FREQUENCY (MHz)

8000

12000

FREQUENCY (MHz)

16000

20000

Notes

Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.

Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.

The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled

to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp

www.minicircuits.com

P.O. Box 35166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com

Mini-Circuits

REV. OR

M125148

LFCN-3800D+

EDR-7684/1A

RAV

130829

Page 1 of 1
