LFU09H03: DescriptionData Line Filter, 2 Function(s),; CategoryAnalog mixed-signal IC filter; File Size174KB，1 Pages; ManufacturerDelta Electronics

Download Datasheet Parametric Compare View All

LFU09H03 Overview

Data Line Filter, 2 Function(s),

LFU09H03 Parametric

Parameter Name	Attribute value
Maker	Delta Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum DC resistance	2.47 Ω
filter type	DATA LINE FILTER
high	12.5 mm
inductance	7200 µH
length	16 mm
Manufacturer's serial number	LFU09H
Installation type	THROUGH HOLE MOUNT
Number of functions	2
physical size	L16.0XB15.0XH12.5 (mm)/L0.63XB0.591XH0.492 (inch)
width	15 mm
Base Number Matches	1

Preview

Download Datasheet

View All

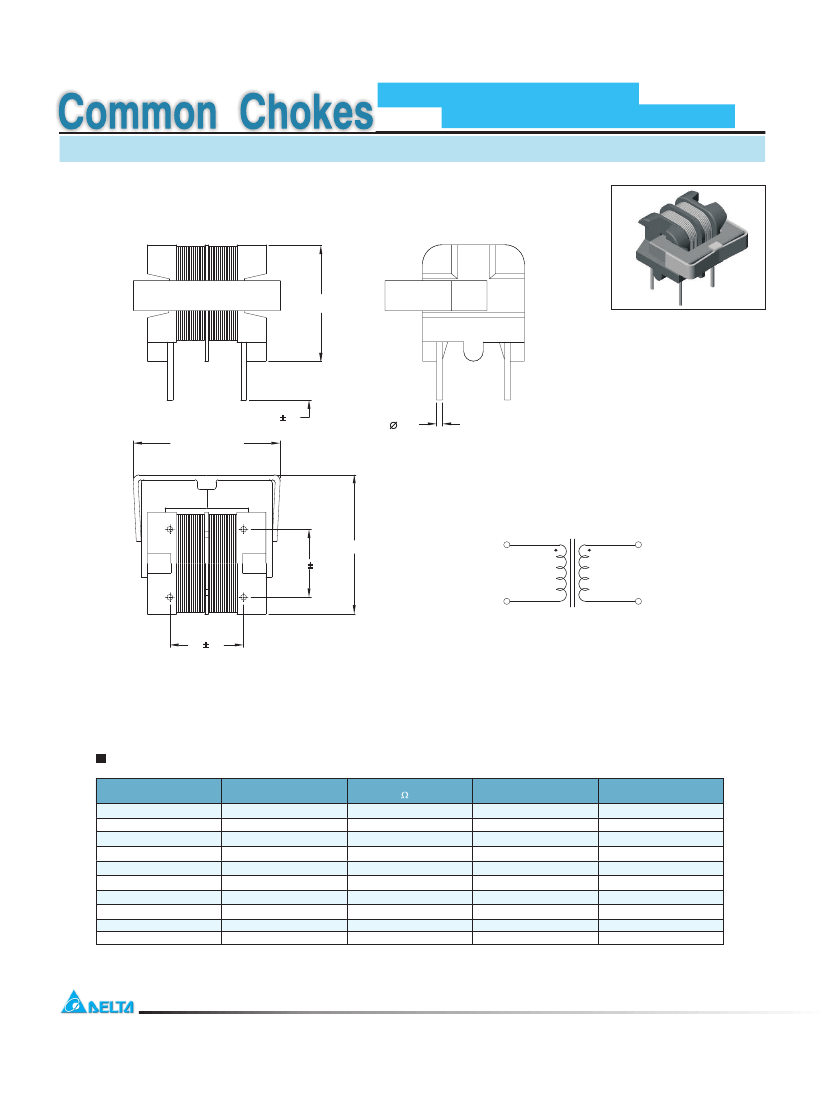

EMI Common-Mode

Suppression Inductors

LFU09H Type

Mechanical Dimension:

Unit: mm

12.5 Max.

4.0 1.0

16.0 Max.

0.6

Schematic :

15.0 Max.

7.0 0.3

PRI

SEC

8.0 0.3

Electrical Characteristics:

AT 25

C, 1KHz/1V Tested:

PART NO.

LFU09H01

LFU09H02

LFU09H03

LFU09H04

LFU09H05

LFU09H06

LFU09H07

LFU09H08

LFU09H09

LFU09H10

INDUCTANCE

(mH) MIN

43.2

14.4

7.2

4.3

3.3

1.8

1.4

1.2

0.9

0.7

DCR

( ) MAX

14.5

5.42

2.47

1.47

1.16

0.67

0.50

0.37

0.31

0.26

RATED CURRENT

(Aac)

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1.0

TEMPERATURE

RISE (

C) MAX

* WITHSTANDING VOLTAGE BETWEEN L1 & L2 1.5KV 1 MINUTE

* GOOD DIFFERENCE IN WINDING L1 & L2 INDUCTANCE

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG)

252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.

TEL: 886-3-3591968; FAX: 886-3-3591991

http://www.deltaww.com
