PS2401S datasheet, PDF - EEWORLD Datasheet

PS2401S: DescriptionTrigger Output SSR, 1-Channel, 3750V Isolation, SURFACE MOUNT,4PIN; CategoryLED optoelectronic/LED photoelectric; File Size325KB，3 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

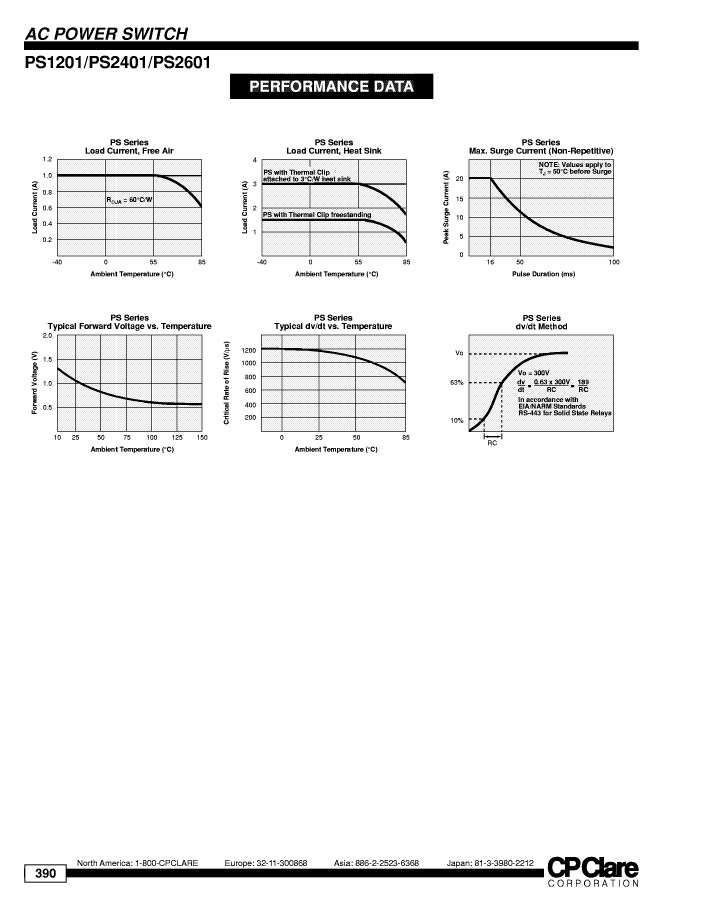

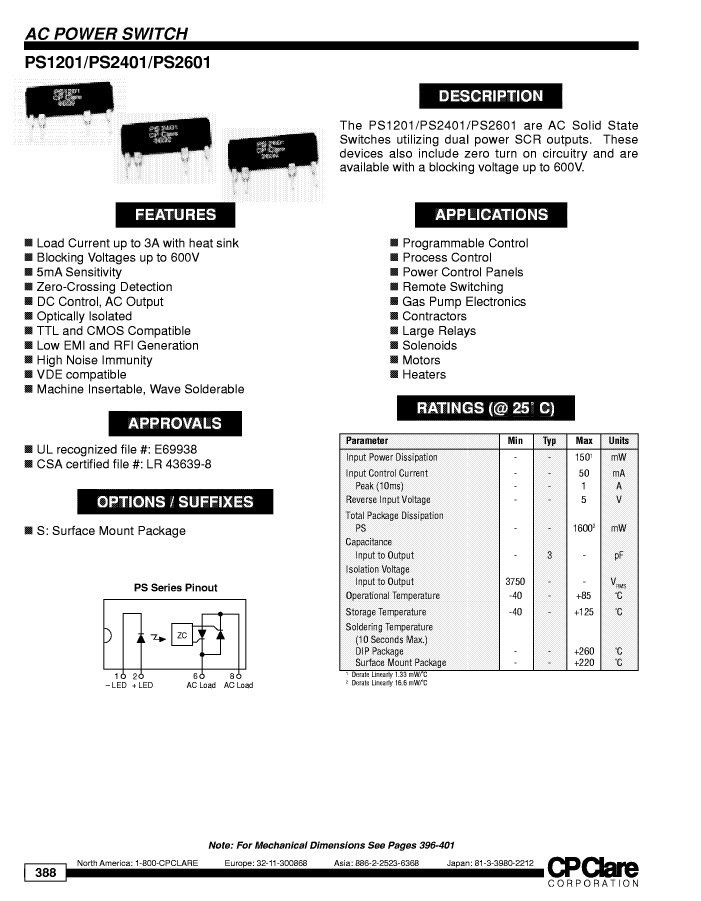

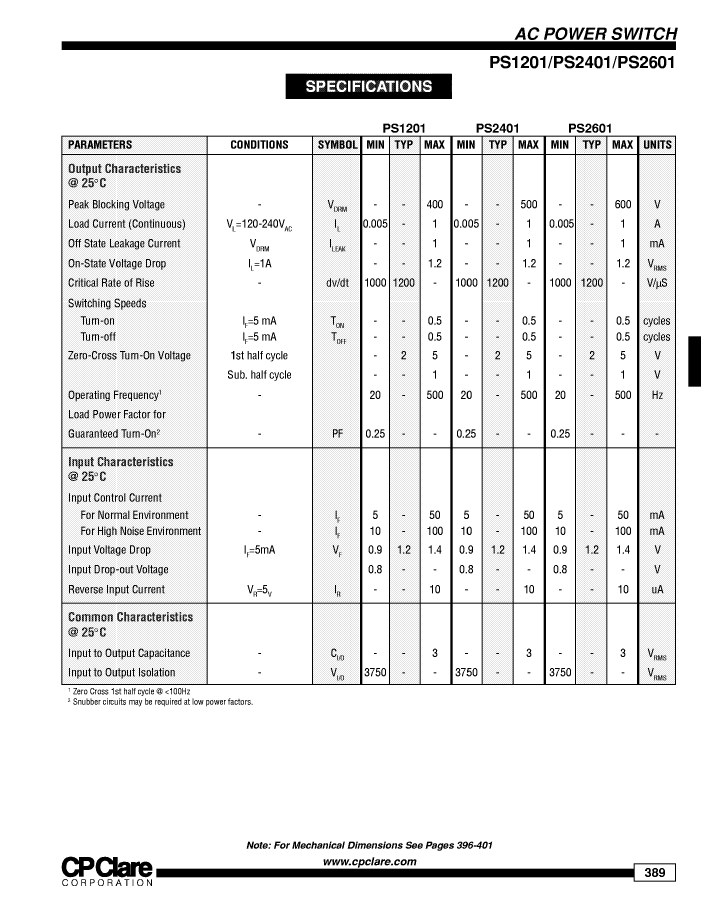

PS2401S Overview

Trigger Output SSR, 1-Channel, 3750V Isolation, SURFACE MOUNT,4PIN

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IXYS
package instruction	SURFACE MOUNT,4PIN
Reach Compliance Code	compliant
Other features	UL RECOGNIZED, CMOS COMPATIBLE, WITH ZERO CROSSOVER CIRCUIT
Configuration	SINGLE
control current	0.002 A
control voltage	0.9 V
Maximum forward current	0.05 A
input type	DC
Maximum insulation voltage	3750 V
JESD-609 code	e0
Number of components	1
Maximum on-state current	1 A
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRIGGER OUTPUT SSR
Output circuit type	Back to Back SCR
total length	19 mm
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

	PS2401S	PS1201S	PS2601S
Description	Trigger Output SSR, 1-Channel, 3750V Isolation, SURFACE MOUNT,4PIN	Trigger Output SSR, 1-Channel, 3750V Isolation, SURFACE MOUNT,4PIN	Trigger Output SSR, 1-Channel, 3750V Isolation
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compliant	unknown
Other features	UL RECOGNIZED, CMOS COMPATIBLE, WITH ZERO CROSSOVER CIRCUIT	UL RECOGNIZED, CMOS COMPATIBLE, WITH ZERO CROSSOVER CIRCUIT	UL RECOGNIZED, CMOS COMPATIBLE, WITH ZERO CROSSOVER CIRCUIT
Configuration	SINGLE	SINGLE	SINGLE
control current	0.002 A	0.002 A	0.002 A
control voltage	0.9 V	0.9 V	0.9 V
Maximum forward current	0.05 A	0.05 A	0.05 A
input type	DC	DC	DC
Maximum insulation voltage	3750 V	3750 V	3750 V
JESD-609 code	e0	e0	e0
Number of components	1	1	1
Maximum on-state current	1 A	1 A	1 A
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Optoelectronic device types	TRIGGER OUTPUT SSR	TRIGGER OUTPUT SSR	TRIGGER OUTPUT SSR
Output circuit type	Back to Back SCR	Back to Back SCR	Back to Back SCR
total length	19 mm	19 mm	19 mm
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maker	IXYS	-	IXYS
package instruction	SURFACE MOUNT,4PIN	SURFACE MOUNT,4PIN	-
Base Number Matches	1	1	-
