DRF1200
®
15V, 13A, 30MHz
MOSFET Driver Hybrid
The DRF1200 MOSFET driver hybrid. This hybrid includes a high power gate driver and
the power MOSFET. It was designed to provide the system designer increased flexibility
and lowered cost over a non-integrated solution.
DRIVER FEATURES
• Switching Frequency: DC TO 30MHz
• Low Pulse Width Distortion
• Single Power Supply
• 3V CMOS Schmitt Trigger Input 1V
Hysteresis
• Drivers > 3nF
MOSFET FEATURES
• Switching Frequency: DC TO 30MHz
• Switching Speed 3-4ns
• B
Vds
= 1kV
• I
ds
= 13A avg.
• R
ds(on)
≤ 1 Ohm
• P
D
= 350W
TYPICAL APPLICATIONS
• Class C, D and E RF Generators
• Switch Mode Power Amplifiers
• Pulse Generators
• Ultrasound Transducer Drivers
• Acoustic Optical Modulators
Driver Absolute Maximum Ratings
Symbol
V
DD
V
IN
Parameter
Supply Voltage
Input Single Voltage
Ratings
18
5.5
Unit
V
Driver Specifications
Symbol
V
DD
V
IN
V
IN(R) 6
V
IN(F) 6
I
DDQ
I
O
C
oss
C
iss
V
IL
V
IH
T
DLY
Parameter
Supply Voltage
Input Voltage
Input Voltage Rising Edge
Input Voltage Falling Edge
Quiescent Current
Max Output Current
Output Capacitance
Input Capacitance
Input Low
Input High
Time Delay (throughput)
Min
8
1.8
0.8
Typ
3
Max
Unit
V
ns
µA
A
pF
18
2.2
1.2
200
8.5
2500
3
0.8
1.9
38
1.0
2.2
V
ns
Driver Specifications
Symbol
t
r
t
f
T
D
T
J
= 25°C unless otherwise specified
Test Conditions
15V
DD
15V
DD
15V
15V
DD
3
Parameter
Rise Time
2,3
Fall Time
2,3
Min
RL
Typical
CL
Max
Unit
2-2006
050-4913
Rev A
3.1
2.8
33
1.2
7.5
7.5
38
ns
%
Prop. Delay
2,4
Symmetry
1
APT Website - http://www.advancedpower.com
MOSFET Absolute Maxumum Ratings
Symbol
V
DSS
I
D
R
DS(on)
DRF1200
Min
Typ
1000
13
0.90
Parameter
Drain-Source Voltage
Continuos Drain Current T
HS
= 25°C
Drain-Source On State Resistance
Max
Unit
V
A
Ω
Unit
pF
Dynamic Characteristics
Symbol
C
iss
C
oss
C
rss
Parameter
Input Capacitance
Output Resistance
Reverse Transfer Capacitance
Min
Typ
2000
165
75
Max
Thermal Characteristics
Symbol
R
θ
JC
T
J
P
D
P
DC
Characteristic
Junction to Case Thermal Resistance
Operating and Storage Junction Temperature
Maximum Power Dissipation
Total Power Dissipation @ T
C
= 25°C
Ratings
0.13
175
>100
1050
Unit
°C/W
°C
W
1.
2
3
4
5
6
APT reserves the right to change, without notice, the specifications and information contained herein.
Test curcuit show on page 3.
All measurements were made with the Anti-Ring circuit activated unless noted.
Symmetry is the percent difference in high and low FWHM times with a 50% duty cycle square wave input.
R
L
= 50Ω, C
L
= 3000pF
10% - 90% See Test Circuit
50% - 50%, see Test Circuit
V
DD
= 18V, C
L
= 3000pF, F = 10MHz
Performance specified with this input.

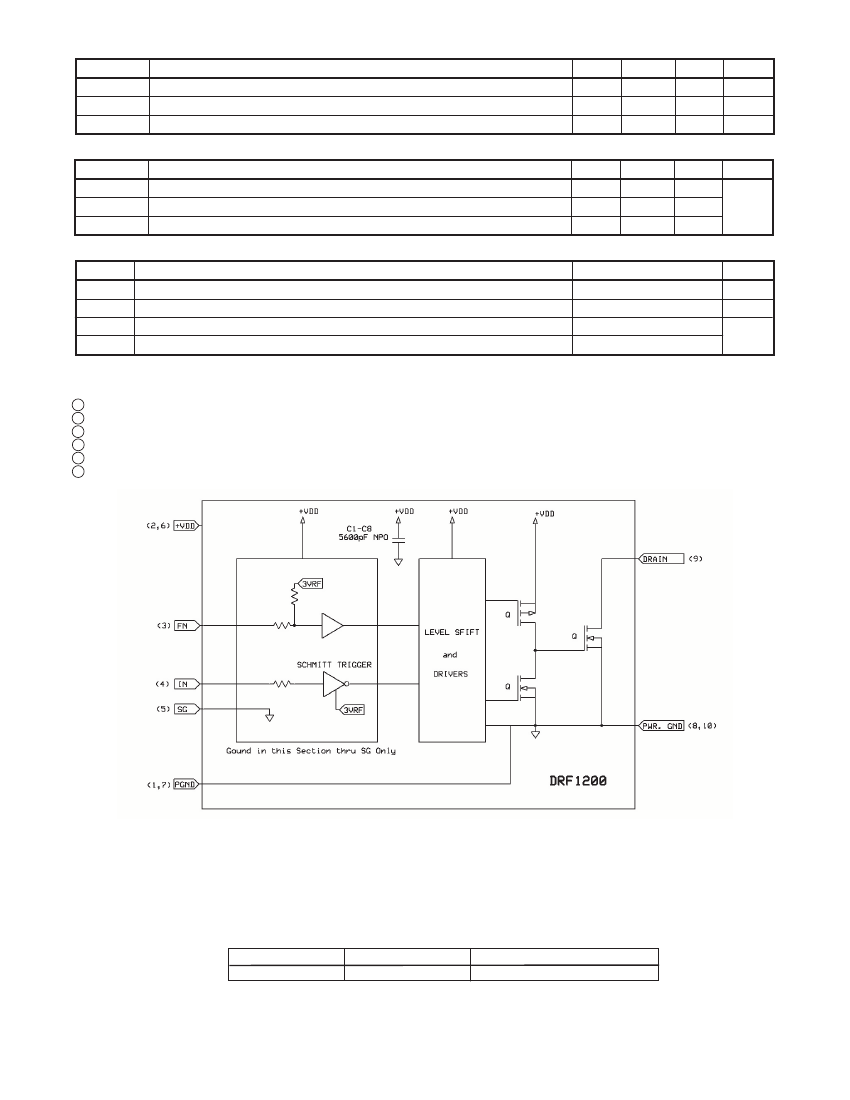

Figure 1, DRF1200 Simplified Ciruit Diagram
A Simplified DRF1200 Circuit Diagram is illustrated above. By including the driver high speed by-pass capacitors (C1-C8), their
contribution to the internal parasitic loop inductance of the driver output is greatly reduced. This, coupled with the tight geometry of the
hybrid, allows optimal the gate drive to the MOSFET. This low parasitic approach, coupled with the Schmitt trigger input, Kelvin signal
ground and the Anti-Ring Function, Provide improved stability and control in Kilowatt to Multi-Kilowatt, High Frequency applications.
The IN pin is the input for the control signal and is applied to a Schmitt Trigger. The signal is then applied to the intermediate drivers
and level shifters; this section contains proprietary circuitry designed specifically for ring abatement. The P channel and N channel
power drivers provide the high current to the gate of the MOSFET and the MOSFET drain is attached to the OUT pin (9).
2-2006
Driver Control Logic
Driver Output LOW
Driver Output HIGH
Rev A
In (4) HIGH Driver
In (4) LOW Driver
MOSFET OFF Drain (9) HIGH
MOSFET ON Drain (9) LOW
050-4913
The FUNCTION, FN, pin (3) is used to disable the Anti-Ring function. It is recommended that the device be operated with this function
enabled. Func. = Hi (+5V or Float) Anti-Ring on, Func. = Low (0V or GND.) Anti-ring off.
On the Output side are the POWER GROUND connections pin 8 and pin 10. The DRAIN connection is pin 9. It is suggested that
output currents be restricted to these pins by design.
DRF1200

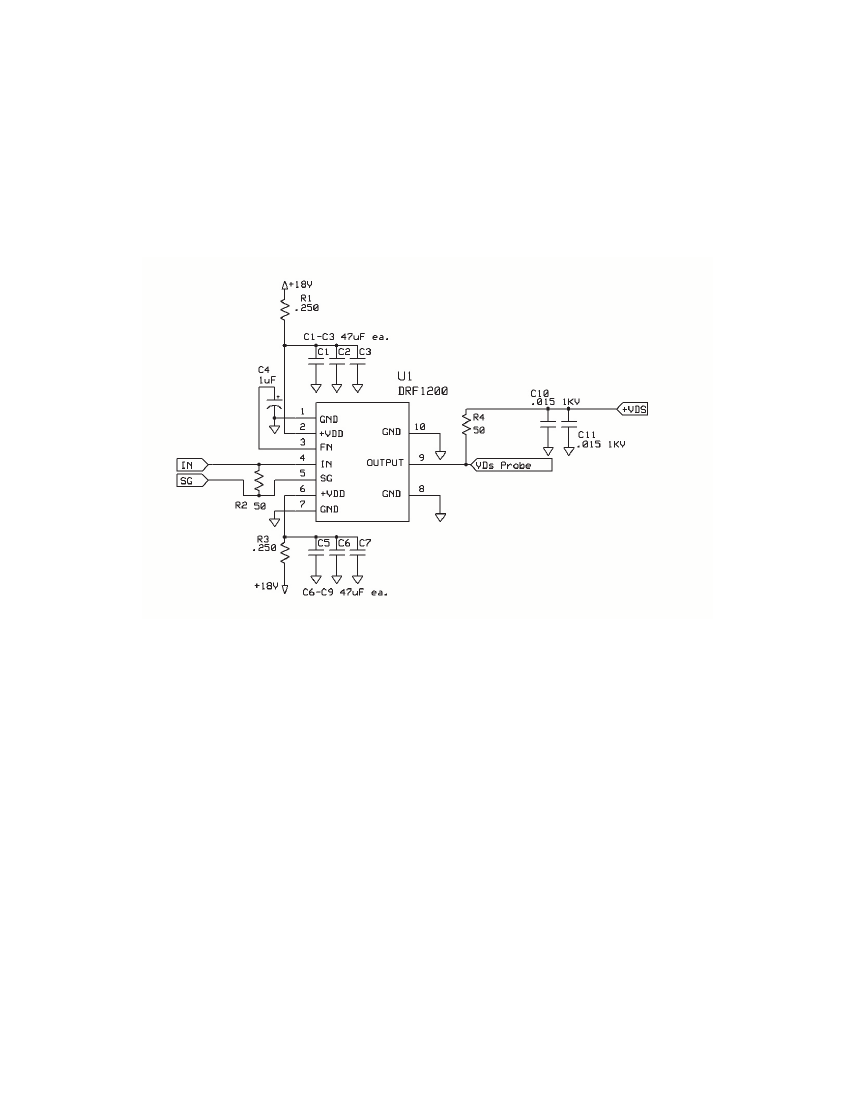

Figure 2, Test Circuit
The Test Circuit illustrated above was used to evaluate the DRF1200 (available as an evaluation Board DRF1200
EVAL). The input control signal is applied to the DRF1200 via IN(4) and SG(5) pins using RG188. This provides excel-
lent noise immunity and control of the signal ground currents.
The FN pin is very sensitive and unwanted signals can cause erratic behavior, Therefore FN pin is heavily by-passed
on the Evaluation board, see FN (3) above.
The +VDD inputs (2,6) are By-Passed (C1-C3, C5-C7), this is in addition to the internal bypassing mentioned previ-
ously. The capacitors used for this function must be capable of supporting the RMS currents and frequency of the gate
load.
A 50Ω (R4) load is used evaluate the output performance of the DRF1200.
050-4913
Rev A
2-2006
DRF1200

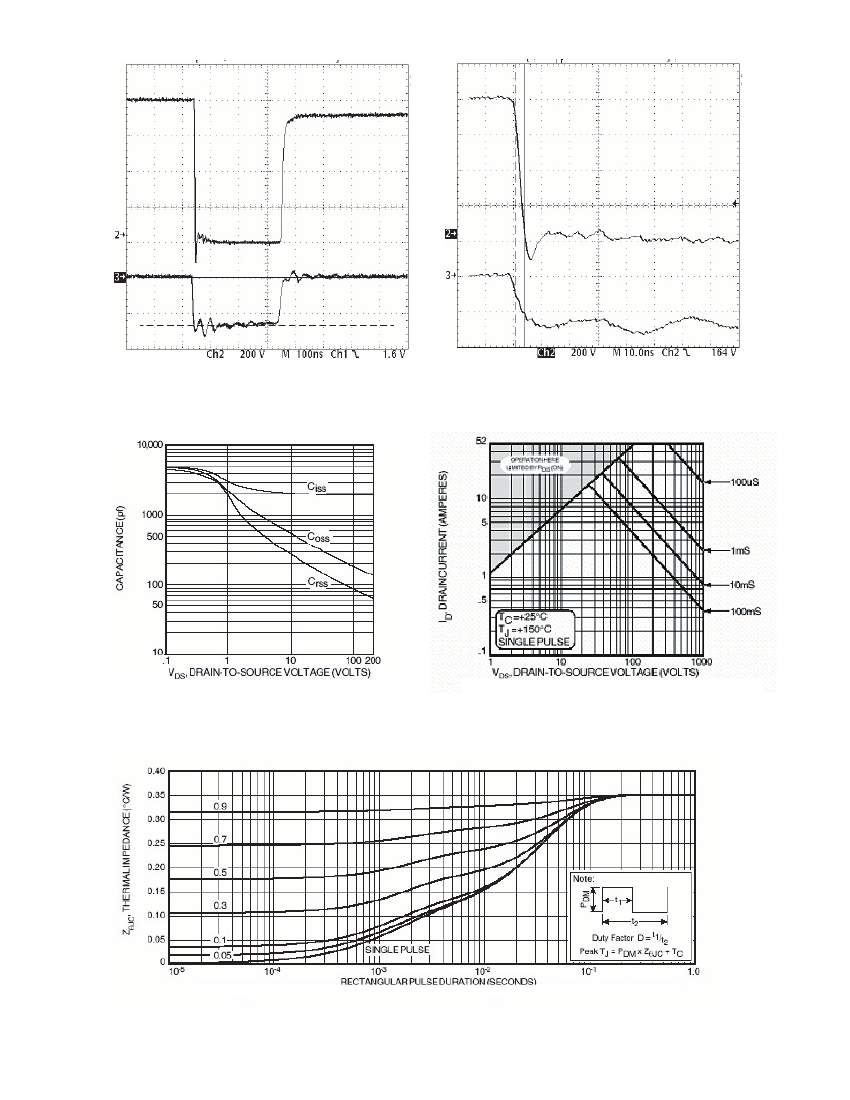

Figure 3, Drain & Current Waveforms
Figure 4, Drain Fall Time
In Figure 3 we see a drain voltage fall of 800V and the current rise of 13.6A in a 50Ω Load. The drain voltage fall time is 3.4ns 10%
to 90% as shown in Figure 4.
Figure 5, Typical Capacitance vs. Drain-to-Source Voltage
Figure 6, Typical Maximum Safe Operating Area
Rev A
2-2006
Figure 7, Maximum Effective Transient Thermal Impedance, Junction-to -Case vs. Pulse Duration
050-4913
DRF1200
0.275
0.200
10
SOURCE
GND
0.369
9
DRAIN
0.200
8
SOURCE
GND
0.275
.090 Gap
Typ.
0.300
.115 in. Clear 4 Places
5600
5600
5600
5600
APT
DRF1200
0.750
5600
5600
5600
5600
1.00
0.300
1
GND
+V
DD
0.06
2
3
4
5
6
7
GND
.050 Gap Typ.
.005in. Typ. Half Hard
Copper Gold Plated
0.100
+V
DD
FN
IN SG +V
DD
0.04
1.25
1.500
0.040
0.300
Figure 8, DRF1200 Mechanical Outline
050-4913
Rev A
2-2006
