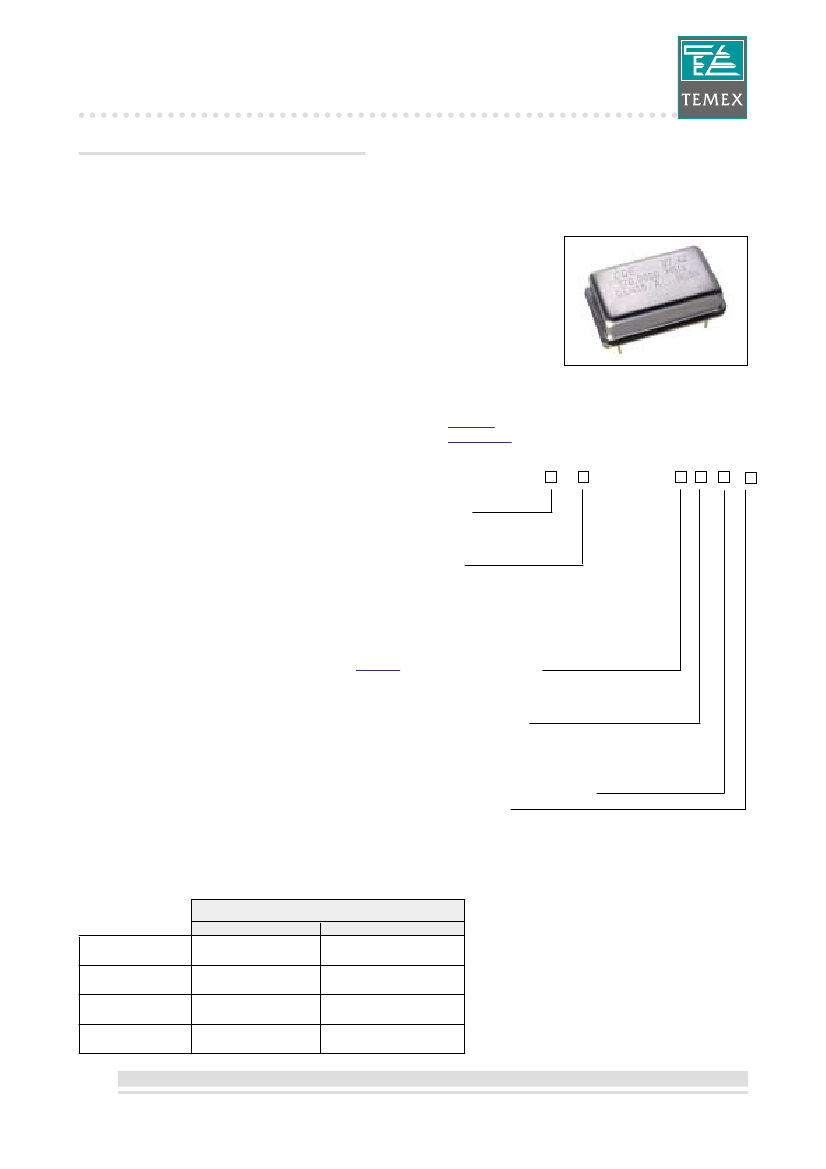

FULL MILITARY DIL XO
QEN 49/55-EH
FULL MILITARY DIL XO
Description
These high performance DIL clock oscillators are designed for high
vibration and extended temperature range up to -55° C to +125° C.
For the same military temperature ranges, our QEN49/55-EH uses
ACMOS active circuit technology with a high performance crystal
resonator mounted on 3 points. It allows an upper frequency of 60 MHz,
as opposed to the classic HCMOS types, which are limited to much
lower frequencies.
Frequency range
14 MHz to 160 MHz
Applications
Test equipment
Military airborne
Space applications
Features
Temperature ranges:
up to -55° C to +125° C
Frequency stability:
±25 to ±100 ppm
Supply voltage:
+5 V or -5.2 V
Current consumption:
20 mA to 50 mA+0.2xF (MHz)
Load (EH version):
See
table 1
Duty cycle:
50/50 ± 20 %
Option screening:
B or S
st
Ageing (45°C/1 year) :
≤
± 5 ppm
Minimum ordering information requirement
(See
Table 1
for available combinations)
(See
page 3-19
for package drawing)
Example: QEN 55 - EH
70 MHz AY50 SB / T
/
Package
55 = DIL 4 pins
49 = DIL 14 pins
Output
EH = ACMOS output
Note:
1. Options with the same marker may not be combined with
each other.
2. Frequency stability inclusive of 25° C calibration,
temperature, Vcc and load change.
3. Temperature range feasible up to 70 MHz for EH version.
Table 1:
Other temperature ranges and stability available
Temperature range
DT = -40° C ~ +85° C
•
AY = -55° C ~ +125° C
◊
(3)
Thermal stability
± 25 ppm
◊
± 50 ppm
± 100 ppm
Screening option:
SB / SS
•
Tinned pins: T
QEN 49/55-EH
14 MHz - 70 MHz
70 MHz - 160 MHz
Input current
(without load)
Output levels
(max. load)
Max. output
Rise/fall time
(max. load)
3-16
Vol. 2
SALES OFFICES: VISIT OUR WEB SITE AT
http://www.temex.net
<20 mA up to 40 MHz
<40 mA up to 70 MHz
Low < 0.5 V
High > 4.5 V
10-TTL or 25 pF
<10 ns from 20 MHz
<50 mA +0.2 F (MHz)
@ 25° C, Vcc = 5 V
Low < 0.44 V
High > 3.7 V
±24 mA up to 85° C
±15 mA from +85° C to +125° C
<2 ns
