LatticeECP2/M Family Data Sheet
DS1006 Version 02.7, July 2007
LatticeECP2/M Family Data Sheet
Introduction
July 2007
Advance Data Sheet DS1006
Features
■
High Logic Density for System Integration
• 6K to 95K LUTs
• 90 to 616 I/Os
■
Pre-Engineered Source Synchronous I/O
• DDR registers in I/O cells
• Dedicated gearing logic
• Source synchronous standards support
– SPI4.2, SFI4 (DDR Mode), XGMII
– High Speed ADC/DAC devices
• Dedicated DDR and DDR2 memory support
– DDR1: 400 (200MHz) / DDR2: 533 (266MHz)
• Dedicated DQS support
■
Embedded SERDES (LatticeECP2M Only)
• Data Rates 540 Mbps to 3.125 Gbps
• 270 Mbps with Half Rate mode
Up to 16 channels per device
PCI Express, Ethernet (1GbE, SGMII), OBSAI,
CPRI and Serial RapidIO.
■
sysDSP™ Block
• 3 to 42 blocks for high performance multiply and
accumulate
• Each block supports
– One 36x36, four 18X18 or eight 9X9 multipliers
■
Programmable sysIO™ Buffer Supports
Wide Range Of Interfaces
•
•
•
•
•
•
•
•
•
•
•
LVTTL and LVCMOS 33/25/18/15/12
SSTL 3/2/18 I, II
HSTL15 I and HSTL18 I, II
PCI and Differential HSTL, SSTL
LVDS, RSDS, Bus-LVDS, MLVDS, LVPECL
1149.1 Boundary Scan compliant
Dedicated bank for configuration I/Os
SPI boot flash interface
Dual boot images supported
TransFR™ I/O for simple field updates
Soft Error Detect macro embedded
■
Flexible Memory Resources
• 55Kbits to 5308Kbits sysMEM™ Embedded
Block RAM (EBR)
– 18Kbit block
– Single, pseudo dual and true dual port
– Byte Enable Mode support
• 12K to 202Kbits distributed RAM
– Single port and pseudo dual port
■
Flexible Device Configuration
■
sysCLOCK Analog PLLs and DLLs
• Two GPLLs and up to six SPLLs per device
– Clock multiply, divide, phase & delay adjust
– Dynamic PLL adjustment
• Two general purpose DLLs per device
■
Optional Bitstream Encryption
(LatticeECP2/M “S” Versions Only)
■
System Level Support
• ispTRACY™ internal logic analyzer capability
• On-chip oscillator for initialization & general use
• 1.2V power supply
Table 1-1. LatticeECP2 (including “S-Series”) Family Selection Guide
Device
LUTs (K)
Distributed RAM (Kbits)
EBR SRAM (Kbits)
EBR SRAM Blocks
sysDSP Blocks
18x18 Multipliers
GPLL + SPLL + DLL
Maximum Available I/O
Packages and I/O Combinations
144-pin TQFP (20 x 20 mm)
208-pin PQFP (28 x 28 mm)
256-ball fpBGA (17 x 17 mm)
484-ball fpBGA (23 x 23 mm)
190
90
93
131
193
297
131
193
331
331
339
ECP2-6
6
12
55
3
3
12
2+0+2
190
ECP2-12
12
24
221
12
6
24
2+0+2
297
ECP2-20
21
42
276
15
7
28
2+0+2
402
ECP2-35
32
64
332
18
8
32
2+0+2
450
ECP2-50
48
96
387
21
18
72
2+2+2
500
ECP2-70
68
136
1032
56
22
88
2+4+2
583
© 2007 Lattice Semiconductor Corp. All Lattice trademarks, registered trademarks, patents, and disclaimers are as listed at www.latticesemi.com/legal. All other brand
or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.
www.latticesemi.com
1-1
DS1006
Introduction_01.5
Lattice Semiconductor
Introduction
LatticeECP2/M Family Data Sheet
Table 1-1. LatticeECP2 (including “S-Series”) Family Selection Guide
Device
672-ball fpBGA (27 x 27 mm)
900-ball fpBGA (31 x 31 mm)
ECP2-6
ECP2-12
ECP2-20
402
ECP2-35
450
ECP2-50
500
ECP2-70
500
583
Table 1-2. LatticeECP2M (including “S-Series”) Family Selection Guide
Device
LUTs (K)
sysMEM Blocks (18kb)
Embedded Memory (Kbits)
Distributed Memory (Kbits)
sysDSP Blocks
18x18 Multipliers
GPLL+SPLL+DLL
Maximum Available I/O
256-ball fpBGA (17 x 17 mm)
484-ball fpBGA (23 x 23 mm)
672-ball fpBGA (27 x 27 mm)
900-ball fpBGA (31 x 31 mm)
1152-ball fpBGA (35 x 35 mm)
1156-ball fpBGA (35 x 35 mm)
ECP2M20
19
66
1217
41
6
24
2+6+2
304
4 / 140
4 / 304
ECP2M35
34
114
2101
71
8
32
2+6+2
410
4 / 140
4 / 303
4 / 410
4 / 270
8 / 372
8 / 410
16 / 416
16 / 430
16 / 416
16 / 520
16 / 616
ECP2M50
48
225
4147
101
22
88
2+6+2
410
ECP2M70
67
246
4534
145
24
96
2+6+2
430
ECP2M100
95
288
5308
202
42
168
2+6+2
616
Packages and SERDES / I/O Combinations
Introduction
The LatticeECP2/M family of FPGA devices has been optimized to deliver high performance features such as
advanced DSP blocks, high speed SERDES (LatticeECP2M family only) and high speed source synchronous inter-
faces in an economical FPGA fabric. This combination was achieved through advances in device architecture and
the use of 90nm technology.
The LatticeECP2/M FPGA fabric was optimized for the new technology from the outset with high performance and
low cost in mind. The LatticeECP2/M devices include LUT-based logic, distributed and embedded memory, Phase
Locked Loops (PLLs), Delay Locked Loops (DLLs), pre-engineered source synchronous I/O support, enhanced
sysDSP blocks and advanced configuration support, including encryption (“S” versions only) and dual boot capabil-
ities.
The LatticeECP2M family of devices features high speed SERDES with PCS. These high jitter tolerance and low
transmission jitter SERDES with PCS blocks can be configured to support an array of popular data protocols
including PCI Express, Ethernet (1GbE and SGMII), OBSAI and CPRI. Transmit Pre-emphasis and Receive Equal-
ization settings make SERDES suitable for chip to chip and small form factor backplane applications.
The ispLEVER
®
design tool from Lattice allows large complex designs to be efficiently implemented using the
LatticeECP2/M family of FPGA devices. Synthesis library support for LatticeECP2/M is available for popular logic
synthesis tools. The ispLEVER tool uses the synthesis tool output along with the constraints from its floor planning
tools to place and route the design in the LatticeECP2/M device. The ispLEVER tool extracts the timing from the
routing and back-annotates it into the design for timing verification.
Lattice provides many pre-engineered IP (Intellectual Property) ispLeverCORE™ modules for the LatticeECP2/M
family. By using these IPs as standardized blocks, designers are free to concentrate on the unique aspects of their
design, increasing their productivity.
1-2
LatticeECP2/M Family Data Sheet
Architecture
July 2007
Advance Data Sheet DS1006
Architecture Overview
Each LatticeECP2/M device contains an array of logic blocks surrounded by Programmable I/O Cells (PIC). Inter-
spersed between the rows of logic blocks are rows of sysMEM™ Embedded Block RAM (EBR) and rows of sys-
DSP™ Digital Signal Processing blocks as shown in the ECP2-6 in Figure 2-1. In addition, the LatticeECP2M
family contain SERDES Quads in one or more of the corners. Figure 2-2 shows the block diagram of ECP2M20
with one quad.
There are two kinds of logic blocks, the Programmable Functional Unit (PFU) and Programmable Functional Unit
without RAM (PFF). The PFU contains the building blocks for logic, arithmetic, RAM and ROM functions. The PFF
block contains building blocks for logic, arithmetic and ROM functions. Both PFU and PFF blocks are optimized for
flexibility allowing complex designs to be implemented quickly and efficiently. Logic Blocks are arranged in a two-
dimensional array. Only one type of block is used per row.
The LatticeECP2/M devices contain one or more rows of sysMEM EBR blocks. sysMEM EBRs are large dedicated
18K fast memory blocks. Each sysMEM block can be configured in variety of depths and widths of RAM or ROM. In
addition, LatticeECP2/M devices contain up to two rows of DSP Blocks. Each DSP block has multipliers and adder/
accumulators, which are the building blocks for complex signal processing capabilities.
The LatticeECP2M devices feature up to 16 embedded 3.125Gbps SERDES (Serializer / Deserializer). Each SER-
DES Channel contains independent 8b/10b encoding / decoding, polarity adjust and elastic buffer logic. Each
group of four SERDES along with its Physical Coding Sub-layer (PCS) block creates a Quad. The functionality of
the SERDES/PCS Quads can be controlled by memory cells set during device configuration or by registers addres-
sable during device operation. The registers in every quad can be programmed by a soft IP interface, referred to as
the SERDES Client Interface (SCI). These quads (up to four) are located at the corners of the devices.
Each PIC block encompasses two PIOs (PIO pairs) with their respective sysIO buffers. The sysIO buffers of the
LatticeECP2/M devices are arranged into eight banks, allowing the implementation of a wide variety of I/O stan-
dards. In addition, a separate I/O bank is provided for the programming interfaces. PIO pairs on the left and right
edges of the device can be configured as LVDS transmit/receive pairs. The PIC logic also includes pre-engineered
support to aid in the implementation of the high speed source synchronous standards such as SPI4.2 along with
memory interfaces including DDR2.
Other blocks provided include PLLs, DLLs and configuration functions. The LatticeECP2/M architecture provides
two General PLLs (GPLL) and up to six Standard PLLs (SPLL) per device. In addition, each LatticeECP2/M family
member provides two DLLs per device. The GPLLs and DLLs blocks are located in pairs at the end of the bottom-
most EBR row; the DLL block located towards the edge of the device. The SPLL blocks are located at the end of
the other EBR/DSP rows.
The configuration block that supports features such as configuration bit-stream decryption, transparent updates
and dual boot support is located toward the center of this EBR row. Every device in the LatticeECP2/M family sup-
ports a sysCONFIG™ port located in the corner between banks four and five, which allows for serial or parallel
device configuration.
In addition, every device in the family has a JTAG port. This family also provides an on-chip oscillator and soft error
detect capability. The LatticeECP2/M devices use 1.2V as their core voltage.
© 2007 Lattice Semiconductor Corp. All Lattice trademarks, registered trademarks, patents, and disclaimers are as listed at www.latticesemi.com/legal. All other brand
or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.
www.latticesemi.com
2-1
DS1006
Architecture_01.5
Lattice Semiconductor

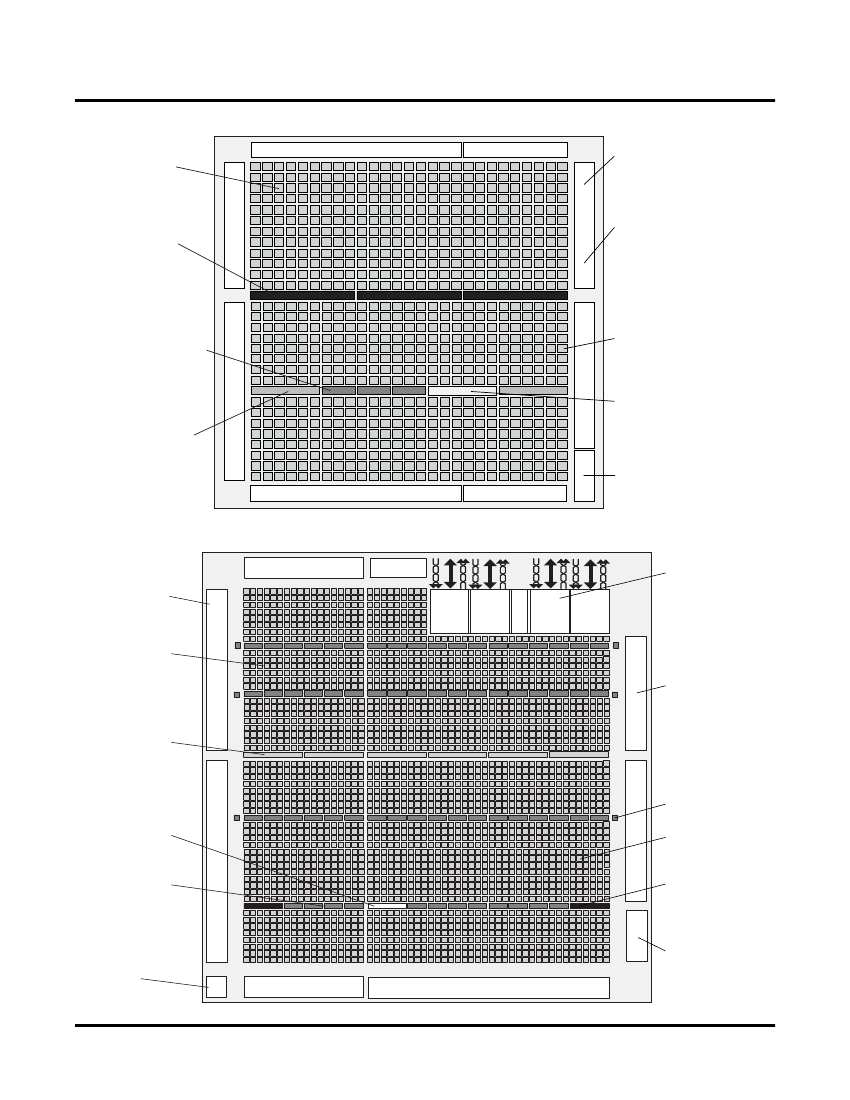

Figure 2-1. Simplified Block Diagram, ECP2-6 Device (Top Level)
Programmable
Function Units
(PFUs)
Architecture
LatticeECP2/M Family Data Sheet
Flexible sysIO Buffers:
LVCMOS, HSTL, SSTL,
LVDS, and other standards
sysDSP Blocks
Multiply and
Accumulate Support
Pre-engineered source
synchronous support
• DDR1/2
• SPI4.2
• ADC/DAC devices
sysMEM Block RAM
18kbit Dual Port
Flexible routing optimized
for speed, cost and routability
sysCLOCK PLLs and DLLs
Frequency Synthesis and
Clock Alignment
Configuration logic, including
dual boot and encryption.
On-chip oscillator and
soft-error detection.
Configuration port
Figure 2-2. Simplified Block Diagram, ECP2M20 Device (Top Level)
SERDES
Flexible sysIO
Buffers:
LVCMOS, HSTL
SSTL, LVDS
Programmable
Function Units
(PFUs)
Pre-Engineered
Source Synchronous
Support
• DDR1/2
• SPI4.2
• ADC/DAC devices
Channel
3
Channel
2
Channel
1
Channel
0
DSP Blocks
Multiply & Accumulate
Support
sysCLOCK SPLLs
Configuration
Logic, Including
dual
boot
and encryption,
and soft-error detection
sysMEM Block
RAM 18kbit Dual Port
Flexible Routing
optimized for speed,
cost & routability
sysCLOCK GPLLs
& GDLLs
Frequency Synthesis
& Clock Alignment
Configuration Port
On-Chip
Oscillator
2-2
