3144F datasheet, PDF - EEWORLD Datasheet

3144F: DescriptionRF/Microwave Termination, 0MHz Min, 4000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size547KB，1 Pages; ManufacturerCobham PLC

Download Datasheet Parametric Compare View All

3144F Overview

RF/Microwave Termination, 0MHz Min, 4000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE

Parameter Name	Attribute value
Maker	Cobham PLC
Reach Compliance Code	unknown
Other features	BNC-F, I/P POWER-MAX(PEAK)=4000W
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	40 dBm
JESD-609 code	e4
Maximum operating frequency	4000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.25
Base Number Matches	1

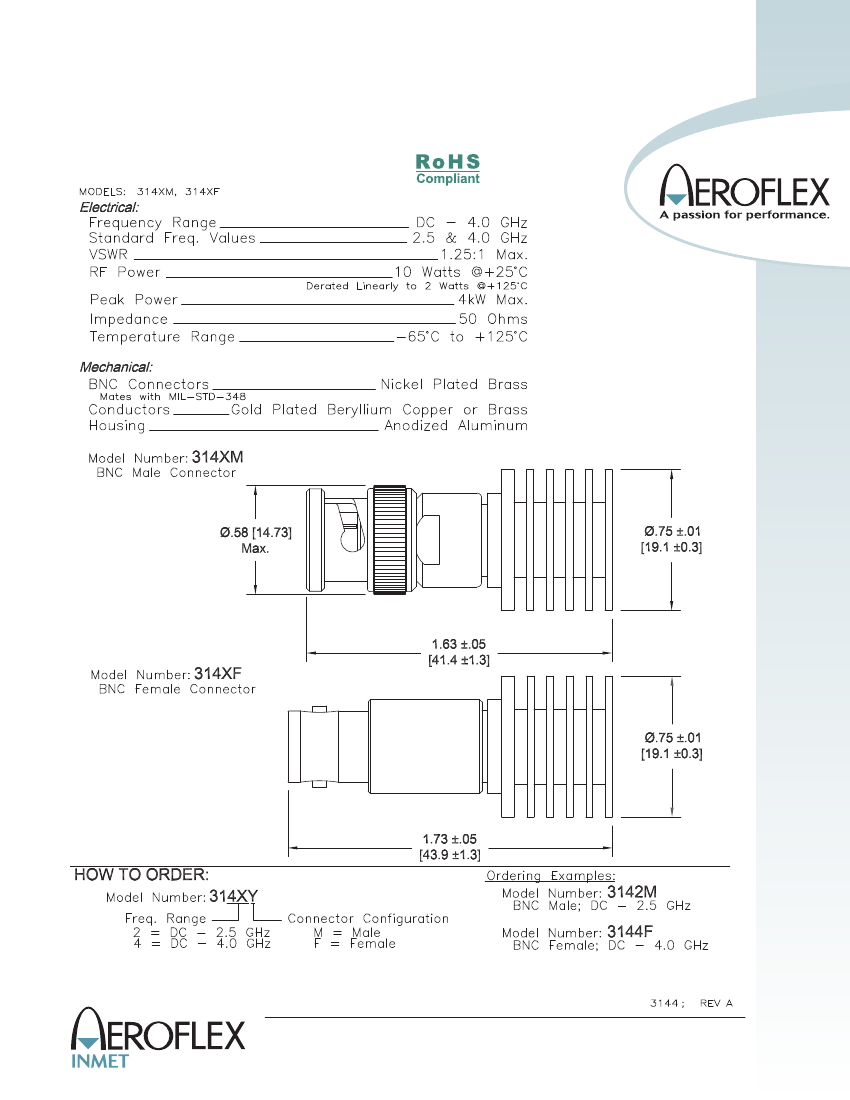

TERMINATION

BNC, UP TO 4 GHz, 10 Watts

SPECIFICATIONS:

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design specifications are subject to change without notice.

Contact factory for technical specifications before purchasing or use.

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex-inmet.com • inmetsales@aeroflex-.com

	3144F
Description	RF/Microwave Termination, 0MHz Min, 4000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE
Maker	Cobham PLC
Reach Compliance Code	unknown
Other features	BNC-F, I/P POWER-MAX(PEAK)=4000W
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	40 dBm
JESD-609 code	e4
Maximum operating frequency	4000 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.25
Base Number Matches	1
