NB10HSA065

Description
Rectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 65V V(RRM), Silicon,
CategoryDiscrete semiconductor    diode
File Size1MB,7 Pages
ManufacturerKyocera
Environmental Compliance
Download Datasheet Parametric View All

NB10HSA065 Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 65V V(RRM), Silicon,

NB10HSA065 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerKyocera
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresLOW LEAKAGE CURRENT
applicationGENERAL PURPOSE
Shell connectionCATHODE
ConfigurationSEPARATE, 2 ELEMENTS
Diode component materialsSILICON
Diode typeRECTIFIER DIODE

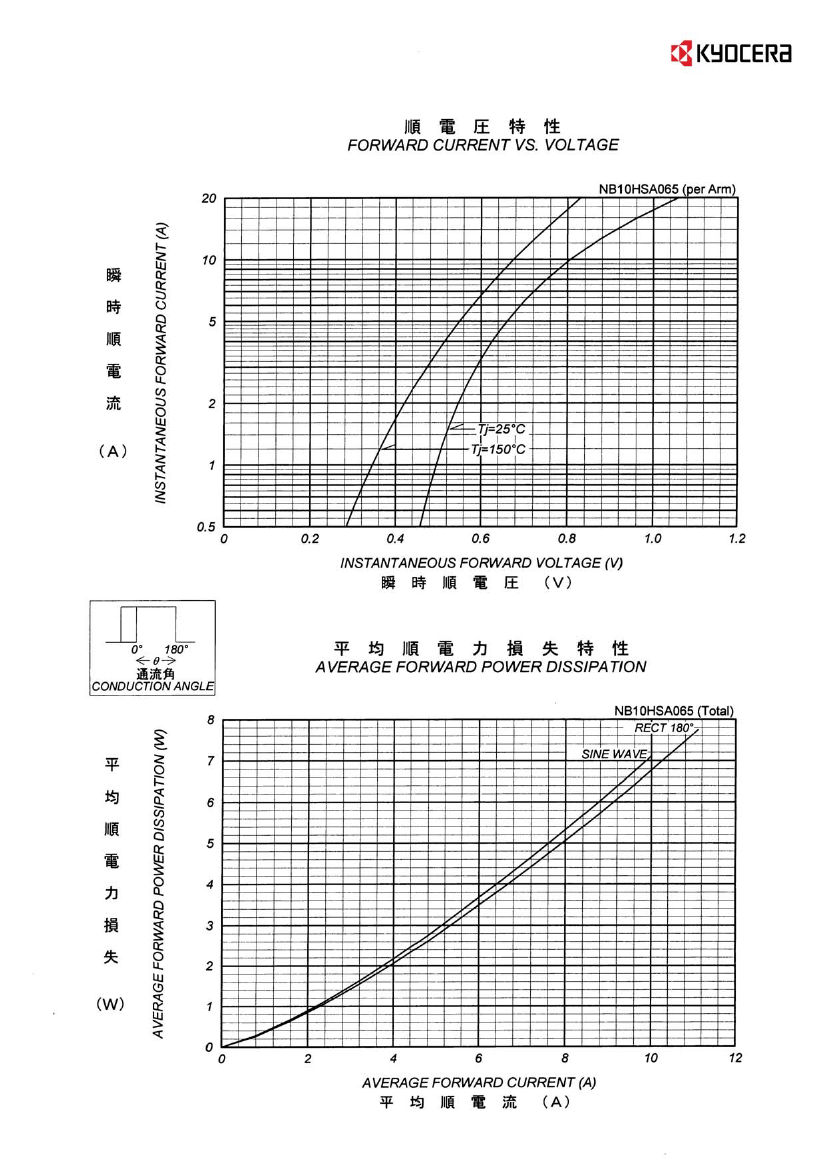

Maximum forward voltage (VF)0.66 V
JESD-30 codeR-PDSO-F4

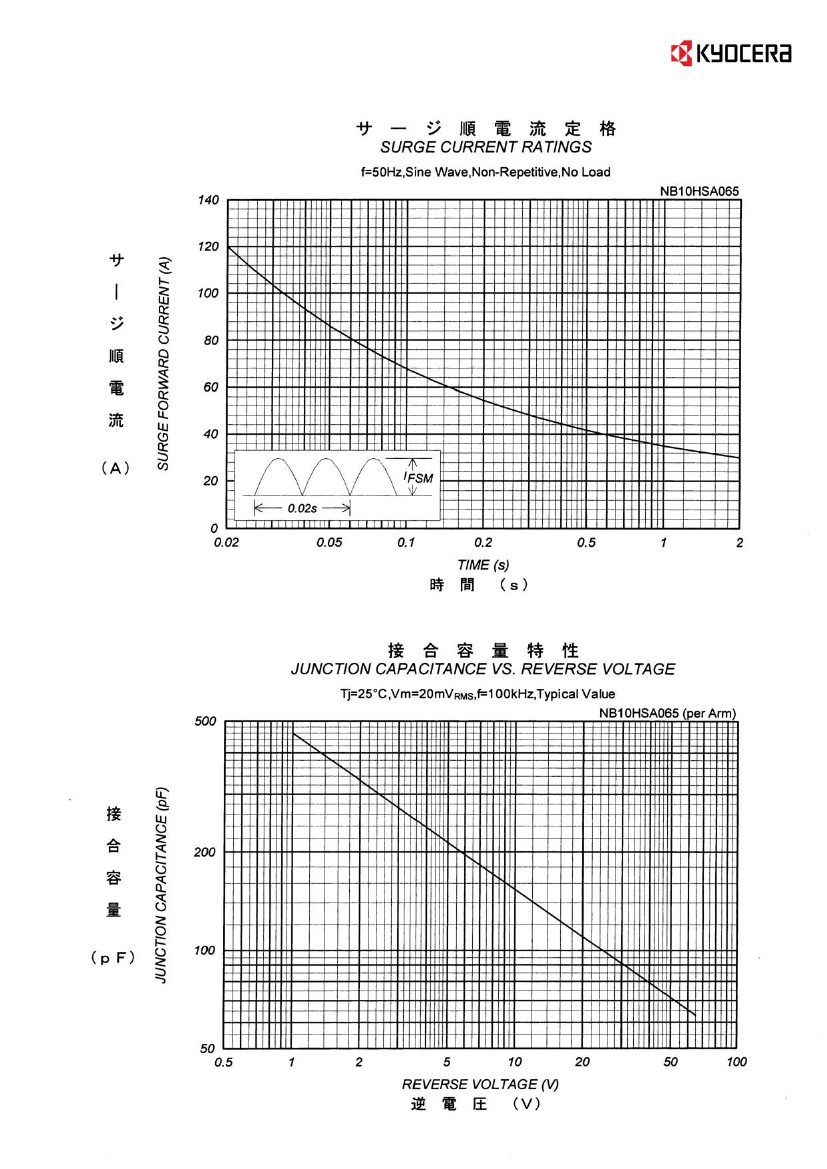

Maximum non-repetitive peak forward current120 A
Number of components2
Phase1
Number of terminals4
Maximum operating temperature150 °C
Minimum operating temperature-40 °C

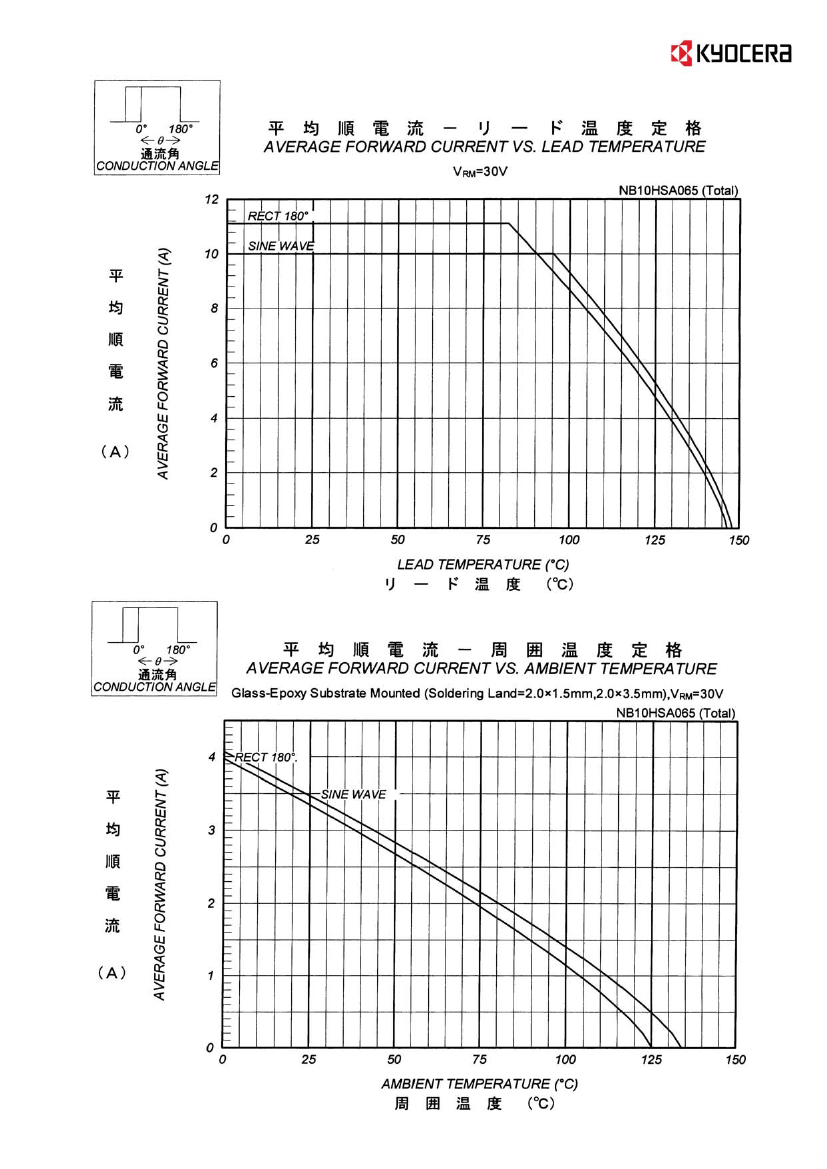

Maximum output current10 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum repetitive peak reverse voltage65 V

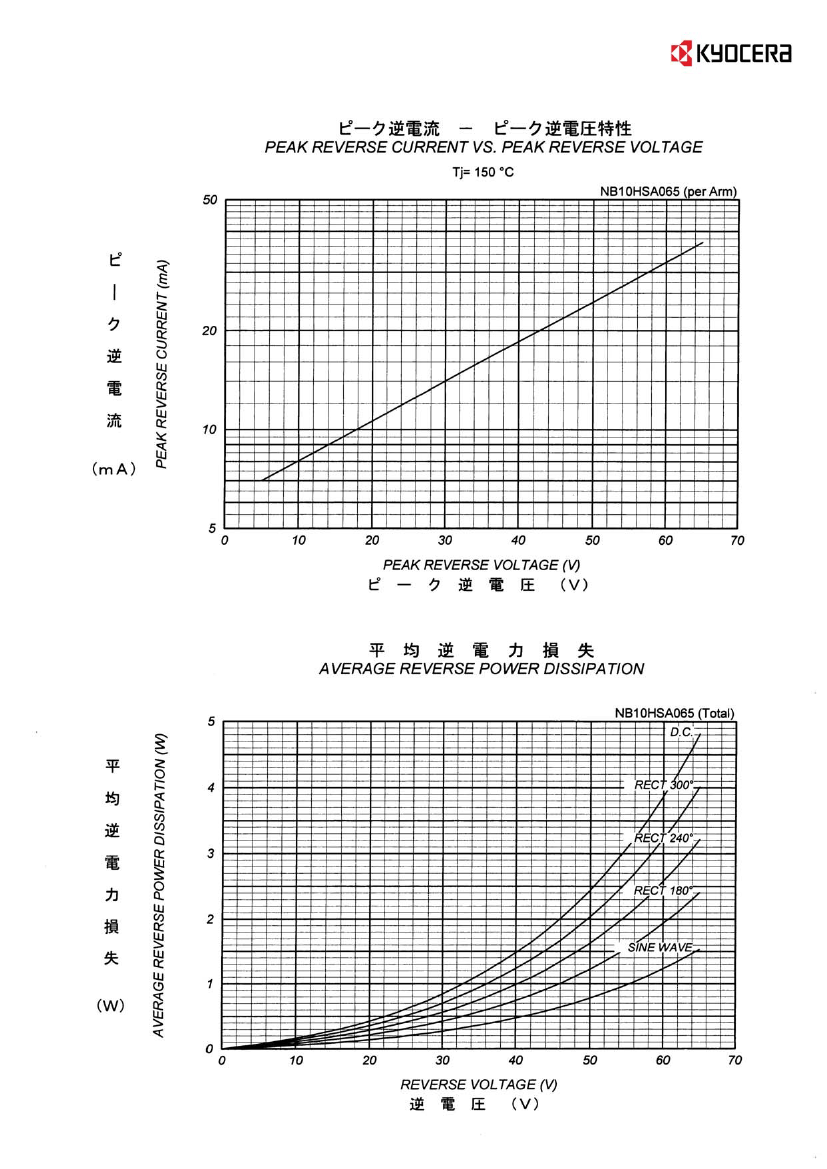

Maximum reverse current100 µA
surface mountYES
technologySCHOTTKY
Terminal formFLAT
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1
