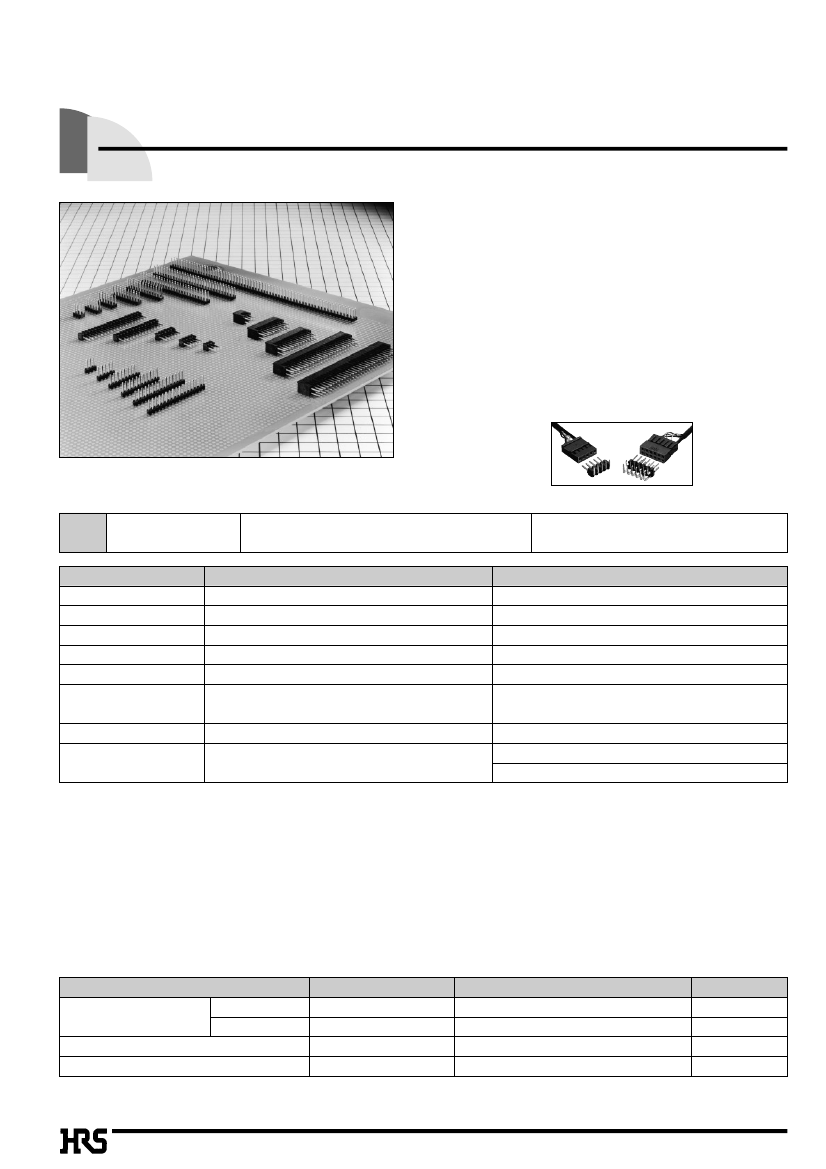

2.54mm Pitch High Density Connector
A1 and A2 Series
sFeatures
1. High Density Mounting
Connectors are aligned in the longitudinal direction on the
2.54 mm mesh board, so that no idle space can occur.
2. Variation in Number of Contacts
The A1 series contains 16 types of 6 to 64 contacts, while
the A2 series contains 20 types of 1 to 20 contacts,
3. Compatibility
The A1 series is compatible with HIF3B series cable side
and HIF3H receptacle for wide applications.
sProduct
Specifications
Rating
Current rating: 3A
Operating Temperature Range:
-55 to +85ç (Note 1)
40 to 80%
Storage Temperature Range: -10 to +60ç (Note 2)
Storage Humidity Range:
Condition
500V DC
650V AC/1 minute
0.1A
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(-65ç: 30 minutes
➝15
to 35ç: 5 minutes max.➝
125ç: 30 minutes➝ 15 to 35ç: 5 minutes max.) 5 cycles
500 cycles
Flow: 260ç for 10 seconds
Manual soldering: 300ç for 3 seconds
40 to 70% (Note 2)
Voltage rating: 200V AC Operating Moisture Range:
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
4. Vibration
5.Humidity
(Steady state)
6. Temperature Cycle
7. Operating Life
8. Resistance to Soldering heat
1000M ohms min.
No flashover or insulation breakdown.
15m ohms max.
No electrical discontinuity of 1µs or more
Insulation resistance 1000M ohms min.
No damage, cracks, or parts looseness.
Contact resistance: 15m ohms max.
No deformation of components affecting performance.
Specification
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
sApplications
Computers, VTR, and other various kinds of electronic equipment
sMaterial
Part
Pin header
Crimping socket
Crimping contact
Insulator
Contact
Material
PBT
Brass
Polyamid
Phosphor bronze
Finish
Black
Selective gold plated
Black
Selective gold plated
Remarks
UL94V-0
–––––––
UL94V-0
–––––––
C2
s
Ordering Information
K
Pin Header
q
w
e
Series Name: A
Series No.:1 (double row)
2 (single row)
Number of contacts: A1...6, 8, 10, 12, 14, 16, 20, 24, 26,
34, 40, 50, 60, 64
A2...1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12,
13, 14, 15, 16, 17, 18, 19, 20

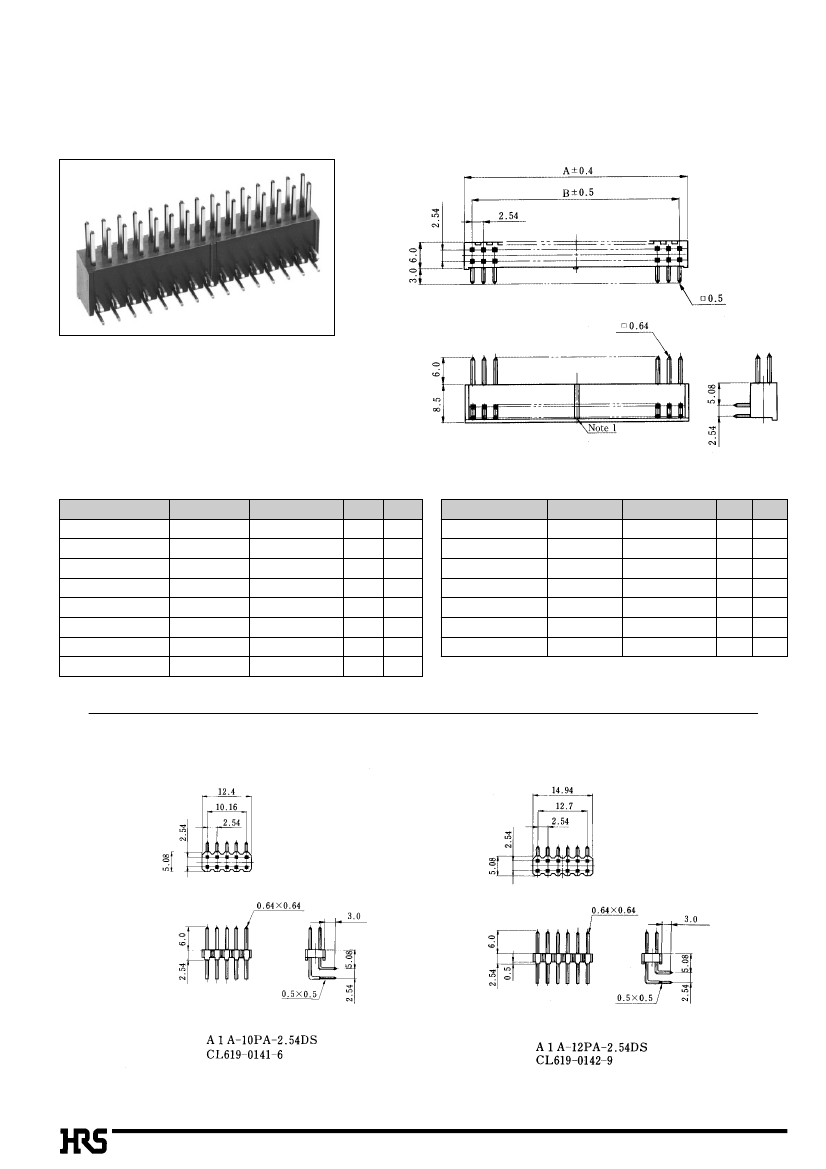

A 1 - 6 P A - 2.54 DS
q
w
e
r
t
y
u
r
t
y
u

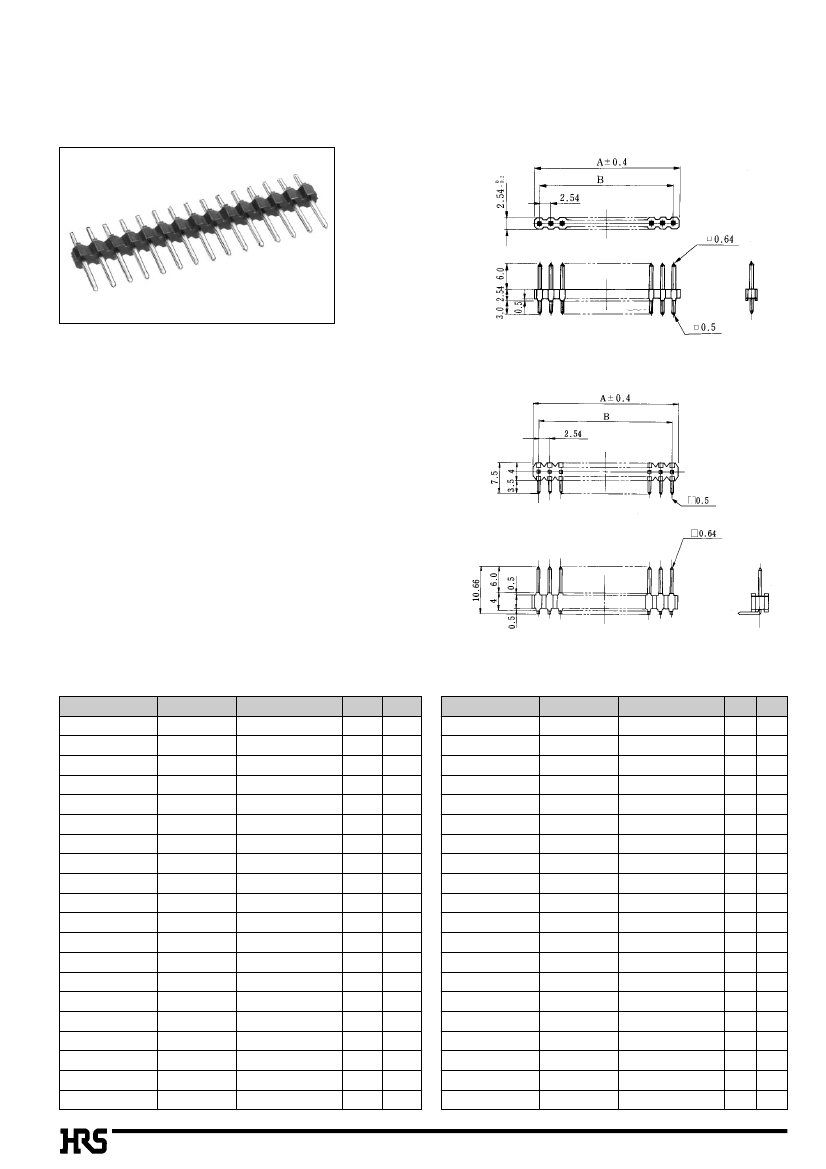

P: Pin header
A: Selective gold plated
Contact pitch : 2.54mm
Contact type:
DS : Right angle type

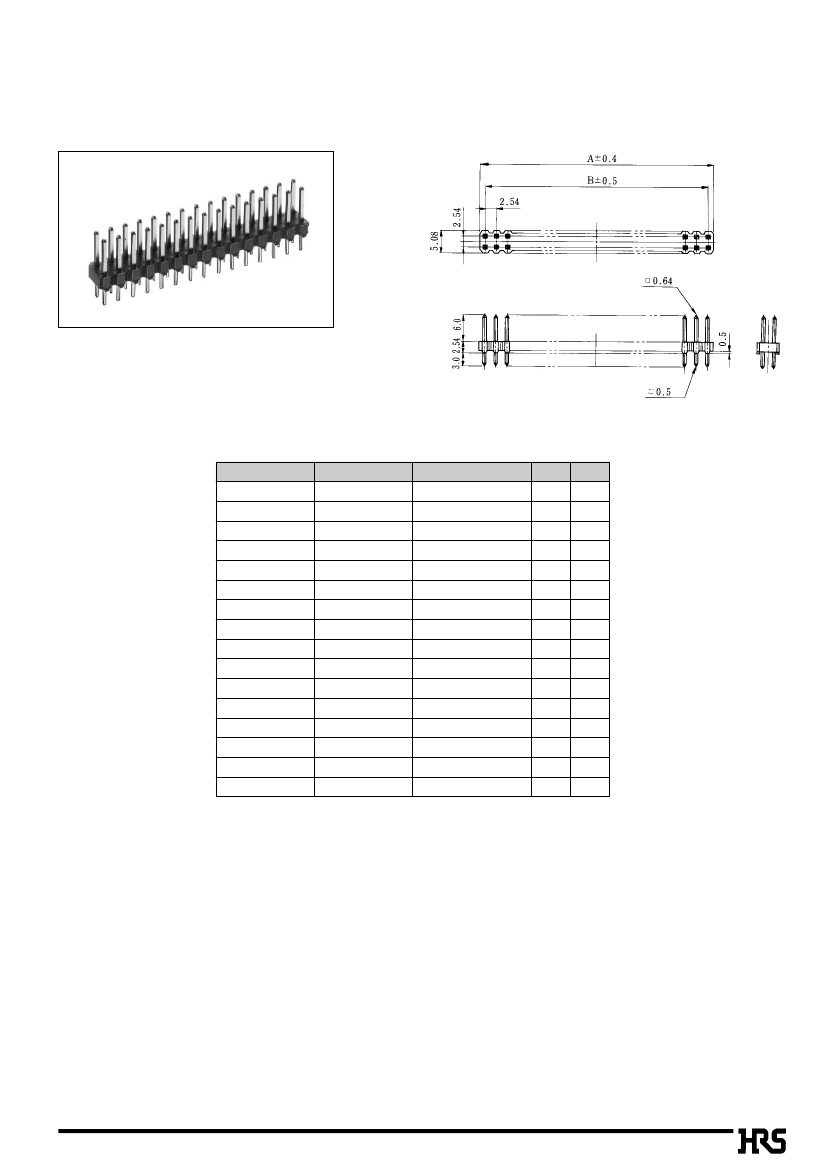

DSA : Straight type
K
Crimping Socket
q
w
e
r
t
y
Series Name : A
Series No. : 1 (double row)
2 (single row)
Number of contacts: A1 : 8, 10, 12
A2 : 5, 6
Contact alignment : A1 : D (double row)
A2 : S (single row)
Contact pitch : 2.54mm
Connection type: C : crimping
A 1 - 12 D - 2.54 C
q
w
e
r
t
y
K
Crimping Contact
q
w
e
Series Name : A
Series No. : 1
Applicable cable size
2226: AWG#22~ AWG#26
2630: AWG#26~ AWG#30
3236: AWG#32~ AWG#36
A 1 - 3236 - SCFC
q
w
e
r
r
Packaging type
SCFC : Reel
SCC : Bag
C3
