EP36
Series
• RoHS Compliant (Pb-Free)
• EPO™ Programmable Oscillators
• 3.3V supply voltage
• LVHCMOS output
• Ceramic SMD package
• Stability to ±50ppm
• Available on tape and reel
EP36
H 1.3
L 5.0
W 3.2
OSCILLATOR
ELECTRICAL SPECIFICATIONS
Frequency Range
Operating Temperature Range
Storage Temperature Range
Supply Voltage (V
DD
)
Input Current
Disable Current (TS Option)
Standby Current (PD Option)
Frequency Tolerance / Stability
Inclusive of all conditions: Calibration Tolerance at 25°C,
Frequency Stability over the Operating Temperature Range,
Supply Voltage Change, Output Load Change, First Year
Aging at 25°C, Shock, and Vibration
Output Voltage Logic High (V
OH
)
Output Voltage Logic Low (V
OL
)
Rise Time / Fall Time
Duty Cycle
Load Drive Capability
Output Control Function
Output Control Function Input Voltage
20% to 80% of waveform
at 50% of waveform
at 50% of waveform (<50.000MHz Only)
<50.000MHz
>50.000MHz
TS
PD
V
IH
: No Connection or
≥70%
of V
DD
V
IL
: (TS Option) <20% of V
DD
V
IL
: (PD Option) <20% of V
DD
Aging (at 25°C)
Start Up Time
Period Jitter: Absolute
Period Jitter: One Sigma
<33.000MHz
>33.000MHz
<33.000MHz
>33.000MHz
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
1.000MHz to 106.250MHz
-20°C to 70°C or -40°C to 85°C
-55°C to 125°C
3.3V
DC
±0.3V
DC
28mA Maximum (Unloaded)
16mA Maximum (Pin 1=Ground)
20µA Maximum (Pin 1=Ground)
±100ppm or ±50ppm Maximum
V
DD
-0.4V
DC
Minimum I
OH
=-8mA
0.4V
DC
Maximum
I
OL
=+8mA
4 nSeconds Maximum
50 ±10(%) (Standard)
50 ±5(%) (Optional)
30pF HCMOS Load Maximum
15pF HCMOS Load Maximum
Tri-State
Power Down
Enables Output
Disable Output: High Impedance
Disable Output: Logic Low
±5ppm / year Maximum
10 mSeconds Maximum
±250pSec Maximum, ±100pSec Typical
±125pSec Maximum, ±75pSec Typical
±50pSec Maximum
±40pSec Maximum
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EP36
CERAMIC
3.3V
OS89
01/04
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
PART NUMBERING GUIDE
EP36 00 ET T TS - 24.000M TR
FREQUENCY TOLERANCE / STABILITY
00=±100ppm Maximum (Standard)
45=±50ppm Maximum
OPERATING TEMP. RANGE
Blank=-20°C to 70°C or
ET=-40°C to 85°C
DUTY CYCLE
Blank=50 ±10(%) (Standard)
T=50 ±5(%)
AVAILABLE OPTIONS
Blank=Bulk (Standard)
TR=Tape and Reel
FREQUENCY
OUTPUT CONTROL FUNCTION
TS=Tri-State
PD=Power Down

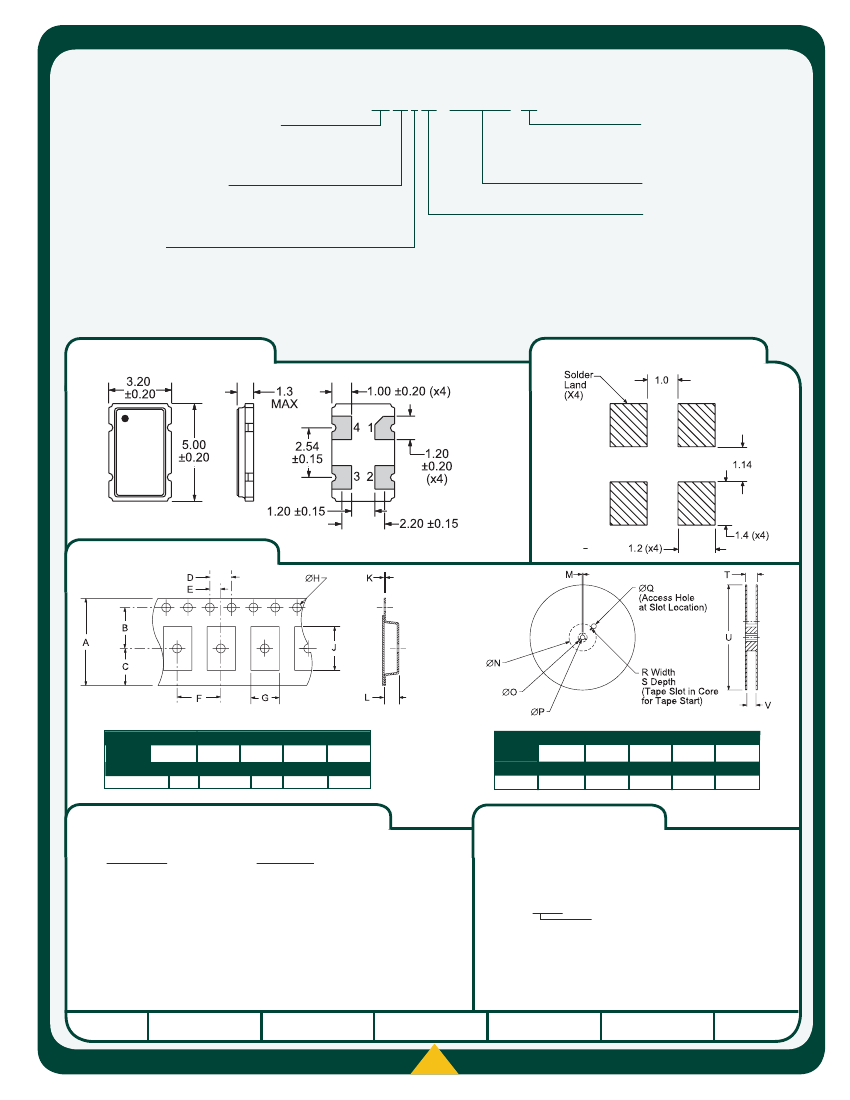

MECHANICAL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
SUGGESTED SOLDER PAD LAYOUT
ALL DIMENSIONS IN MILLIMETERS
TAPE AND REEL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
Pin 1: Tri-State or Power Down
Pin 2: Case Ground
Pin 3: Output
Pin 4: Supply Voltage
Tolerances = +0.1
TAPE
A
12.0±0.2
B
5.5±0.1
C
6.5±0.1
D
4.0±0.1
E
2.0±0.1
F
REEL
M
1.5 MIN
N
50 MIN
O
U
180 MAX
P
V
12.4+2-0
Q
40 MIN
QTY/REEL
1,000
20.2 MIN 13.0±0.2
F
8.0±0.1
G
H
J
A0*
K
0.30 ±0.05
L
K0*
R
2.5 MIN
S
10 MIN
T
18.4 MAX
B0* 1.5 +0.1-0.0
*Compliant to EIA 481A
ENVIRONMENTAL/MECHANICAL SPECIFICATIONS
MARKING SPECIFICATIONS
Characteristic
Fine Leak Test
Gross Leak Test
Mechanical Shock
Vibration
Solderability
Temperature Cycling
Resistance to Soldering Heat
Resistance to Solvents
Specification
MIL-STD-883, Method 1014, Condition A
MIL-STD-883, Method 1014, Condition C
MIL-STD-202, Method 213, Condition C
MIL-STD-883, Method 2007, Condition A
MIL-STD-883, Method 2002
MIL-STD-883, Method 1010
MIL-STD-202, Method 210
MIL-STD-202, Method 215
Line 1: E XX.XXX
Frequency in MHz (5 Digits Maximum + Decimal)
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EP36
CERAMIC
3.3V
OS89
01/04
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
