M31022AMLJFREQ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> M31022AMLJFREQ

M31022AMLJFREQ: DescriptionLVDS Output Clock Oscillator, 150MHz Min, 1400MHz Max, ROHS COMPLIANT, J LEADED, CERAMIC PACKAGE-9; CategoryPassive components oscillator; File Size357KB，3 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

M31022AMLJFREQ Overview

LVDS Output Clock Oscillator, 150MHz Min, 1400MHz Max, ROHS COMPLIANT, J LEADED, CERAMIC PACKAGE-9

M31022AMLJFREQ Parametric

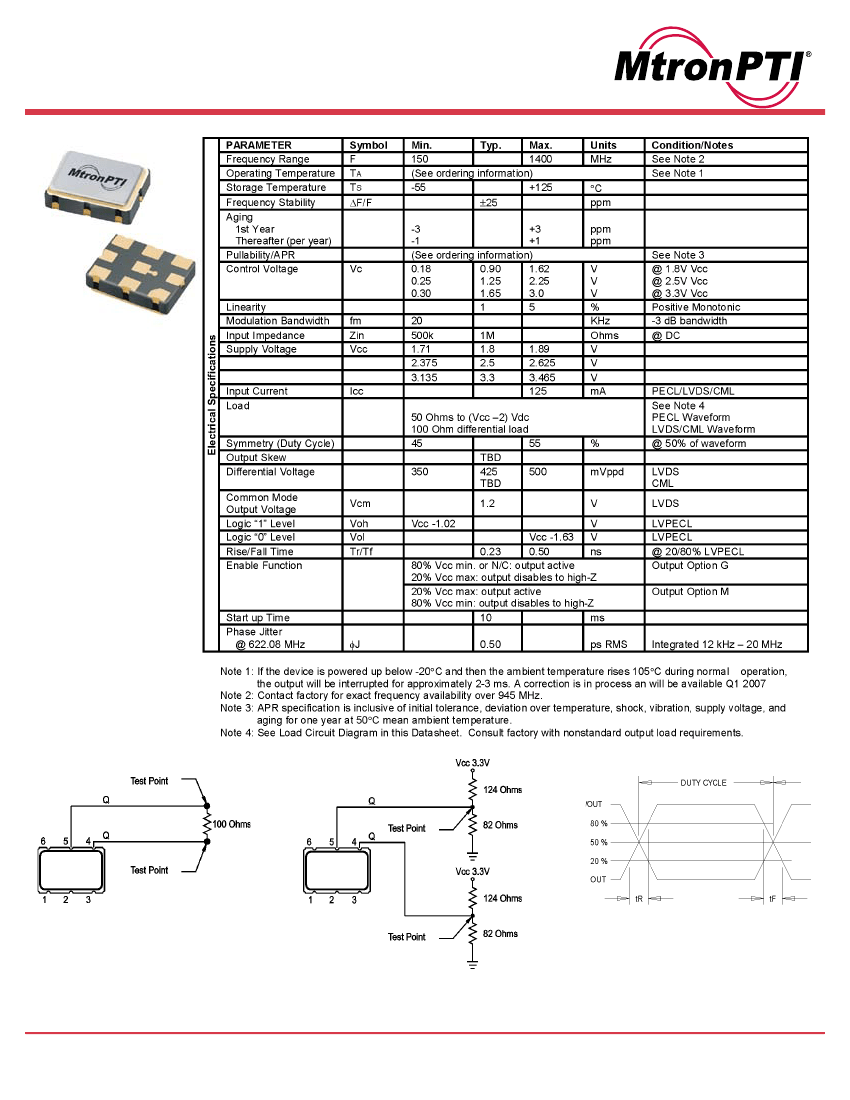

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MtronPTI
Reach Compliance Code	unknown
Other features	COMPLEMENTARY OUTPUT; ENABLE/DISABLE FUNCTION; TAPE AND REEL
Maximum control voltage	1.62 V
Minimum control voltage	0.18 V
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	50 ppm
frequency stability	25%
JESD-609 code	e4
linearity	5%
Installation features	SURFACE MOUNT
Maximum operating frequency	1400 MHz
Minimum operating frequency	150 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVDS
Output load	100 OHM
Maximum supply voltage	1.89 V
Minimum supply voltage	1.71 V
Nominal supply voltage	1.8 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Nickel/Gold (Ni/Au)
Base Number Matches	1

Preview

Download Datasheet

View All

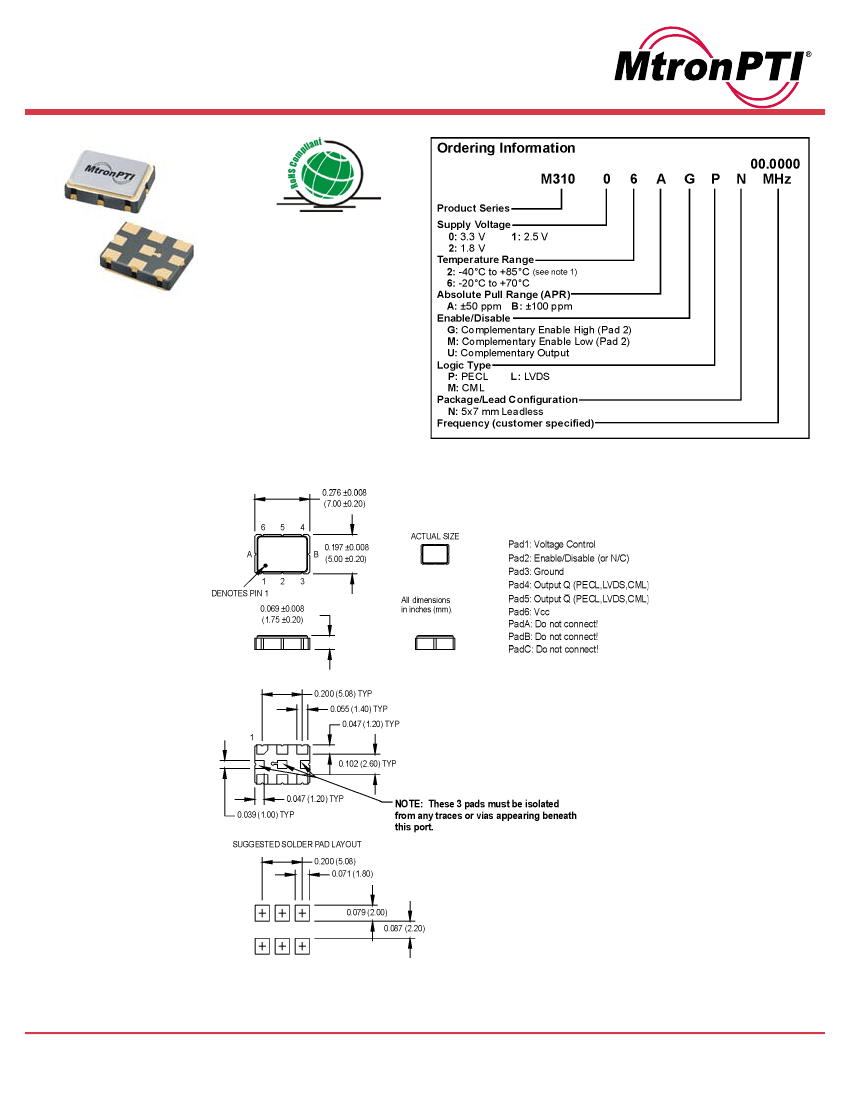

M310x Series

5x7 mm, 3.3/2.5/1.8 Volt, PECL/LVDS/CML, VCXO

Featuring

QiK Chip

Technology

Superior Jitter Performance (comparable to SAW based)

APR of

±50 or ±100ppm over industrial temperature range

Frequencies from 150 MHz to 1.4 GHz

Designed for a short 2 week cycle time

Phase Lock Loop Applications:



Telecommunications such as SONET / SDH / DWDM / FEC /

SERDES / OC-3 thru OC-192



Wireless base stations / WLAN / Gigabit Ethernet



Avionic flight controls and military communications



MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Revision: 11-21-06
