Preview

DR340-1-122: DescriptionGeneral Purpose Inductor, 1.2uH, 40%, 1 Element, SMD, CHIP, 4747; CategoryPassive components inductor; File Size108KB，2 Pages; ManufacturerDatatronic; Environmental Compliance

Download Datasheet Parametric Compare View All

DR340-1-122 Overview

General Purpose Inductor, 1.2uH, 40%, 1 Element, SMD, CHIP, 4747

DR340-1-122 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Datatronic
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	0.007 Ω
Nominal inductance(L)	1.2 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
Maximum rated current	9.8 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	40%
Base Number Matches	1

Preview

Download Datasheet

View All

November 8, 2011

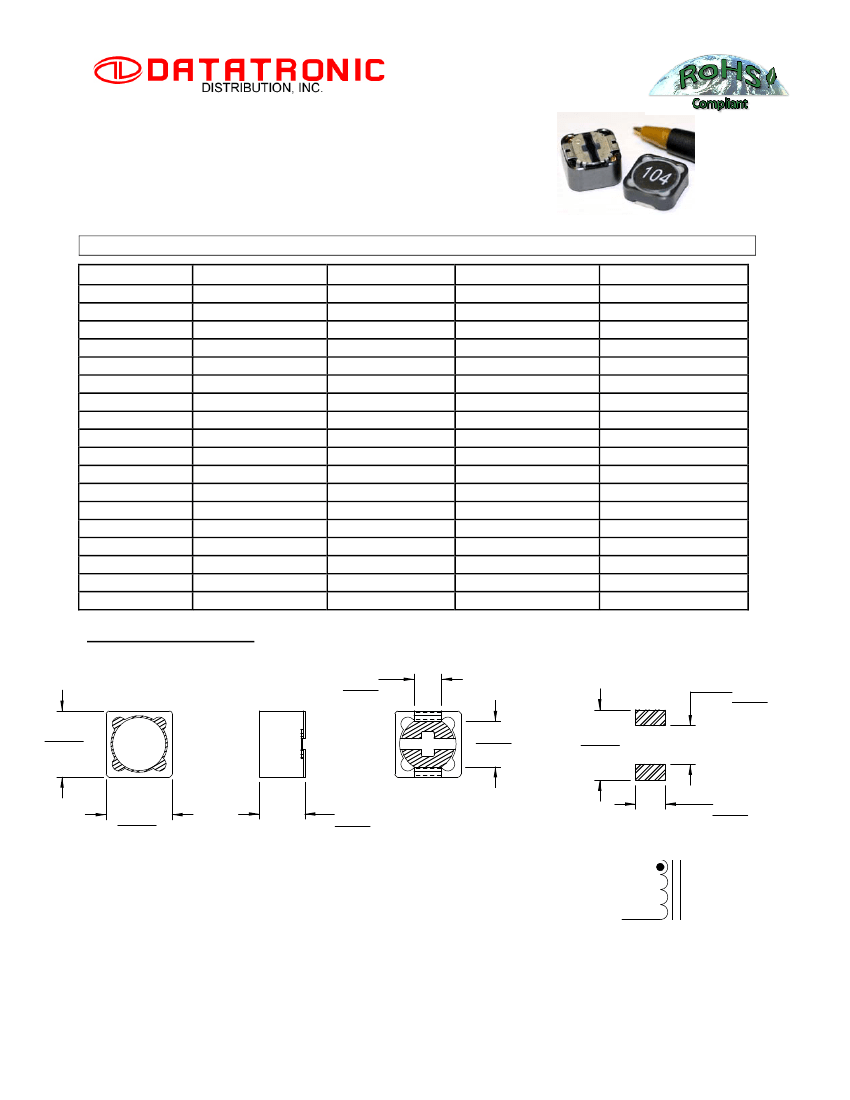

SHIELDED POWER INDUCTOR DR340-1 SERIES

Features



Maximum Height: 8.0mm

Footprint: 12mm x 12mm Max.

Inductance Range from 1.2 µH to 47µH

Non-RoHS Versions are Available

(Note 7)

OPERATING TEMPERATURE -20°C to +80°C

DCR (Ω) Max.

0.007

0.012

0.014

0.016

0.018

0.020

0.022

0.025

0.027

0.040

0.044

0.046

0.065

0.073

0.100

0.140

0.22

0.52

ELECTRICAL SPECIFICATIONS AT 25°C

Part Number

DR340-1-122

DR340-1-242

DR340-1-352

DR340-1-472

DR340-1-612

DR340-1-762

DR340-1-103

DR340-1-123

DR340-1-153

DR340-1-183

DR340-1-223

DR340-1-273

DR340-1-333

DR340-1-393

DR340-1-473

DR340-1-683

DR340-1-104

DR340-1-334

Inductance (µH)

1.2 +40%/-20%

2.4 +40%/-20%

3.5 +40%/-20%

4.7 +40%/-20%

6.1 +40%/-20%

7.6 +40%/-20%

10



20%

12



20%

15



20%

18



20%

22



20%

27



20%

33



20%

39



20%

47



20%

68 ± 20%

100 ± 20%

330



20%

Test Frequency

100kHz

1kHz

IDC (A) Max.

9.80

8.00

7.50

6.80

6.60

5.90

5.40

4.90

4.50

3.90

3.60

3.40

3.00

2.75

2.50

2.10

1.70

1.50

MECHANICAL OUTLINES

1

.472

12,00

.197

5,00

.311

7,90

.275

7,00

.504

12,80

.212

5,40

XXX

2

.472

12,00

.315 Max.

8,00

1

NOTES:

1. Dimensions are shown in inches/millimeters

2. Unless otherwise specified, tolerance = Inches: ±0.012

= Millimeters: ±0,30

3. IDC MAX based on the inductance being 75% of its initial value

4. Tape & reel quantity, 350 pcs/reel

5. Terminal finish is compliant to RoHS requirements

6. Solder in accordance with J-STD-002 Rev. D

7. Non-RoHS series parts 42-340-1-XXX are finished with leaded solder Sn60Pb40 or equivalent

2

SCHEMATIC

DATATRONIC:

28151 Highway 74, Romoland, CA 92585 Tel: 951-928-7700 Fax: 951-928-7701

Email: ddisales@datatronics.com

499 King’s Road, Hong KongTel: (852) 2562 3858, (852) 2564 8477 Fax: (852) 2565 7214, (852) 2563 1290

All specifications are subject to change without notice.
