ECEC1JA182BA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> ECEC1JA182BA

ECEC1JA182BA: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 63V, 1800uF, THROUGH HOLE MOUNT, CAN, ROHS COMPLIANT; CategoryPassive components capacitor; File Size237KB，7 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

ECEC1JA182BA Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 63V, 1800uF, THROUGH HOLE MOUNT, CAN, ROHS COMPLIANT

ECEC1JA182BA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Panasonic
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	1800 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	22 mm
dielectric materials	ALUMINUM (WET)
ESR	157 mΩ
JESD-609 code	e3
leakage current	1.01025 mA
length	30 mm
Manufacturer's serial number	TS-HA
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Snap-in
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	63 V
ripple current	1700 mA
series	ECE-CA
surface mount	NO
Delta tangent	0.2
Terminal surface	Tin (Sn)
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

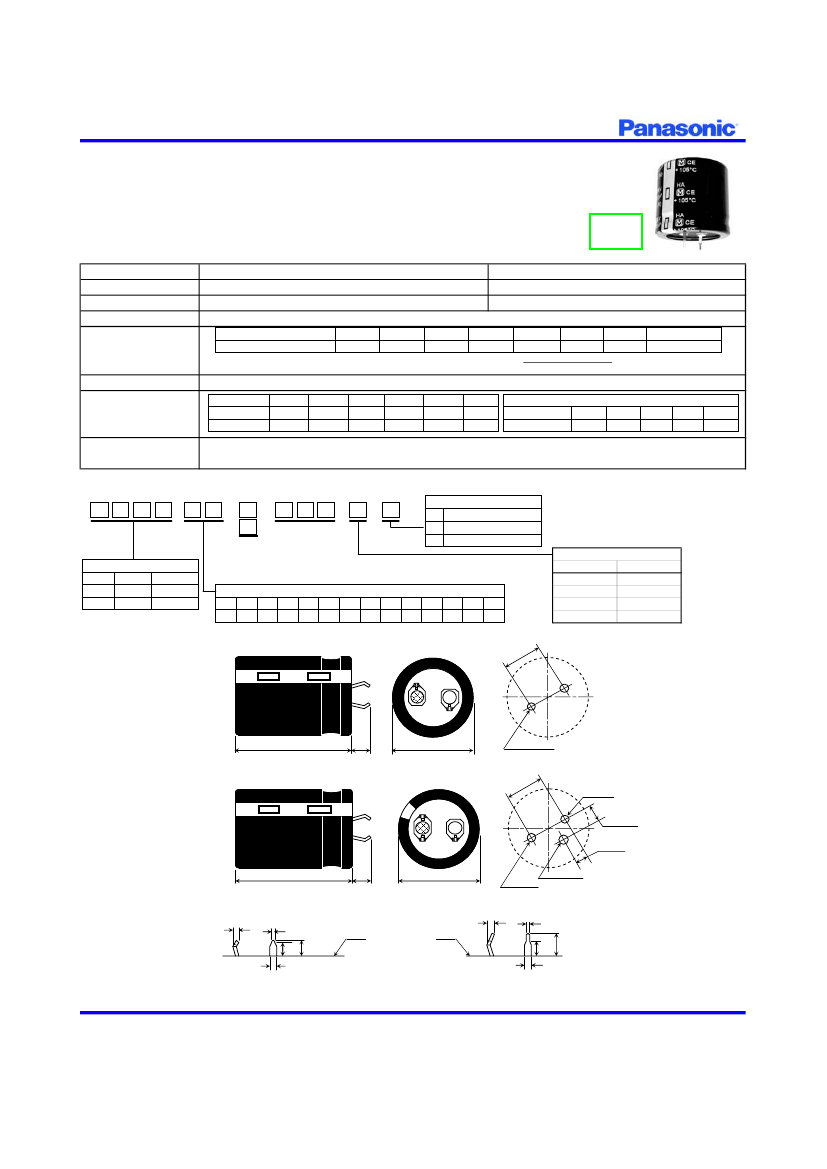

Aluminum Electrolytic Capacitors

TS-HA/HB Series

105°C, 3000 hours

Long 3000 hour life at 105°C with high ripple current capability

2 and 3 pin versions available

Can vent construction

Rated Working Voltage:

Operating Temperature:

Nominal Capacitance:

Capacitance Tolerance:

Dissipation Factor:

(120 Hz, +20°C)

Leakage Current:

Ripple Current Multipliers:

10 ~ 250 VDC

-40 ~ +105°C

180~68000µF

± 20%

Working Voltage [V]:

Max. D.F. (%):

100 ~ 450

RoHS

Compliant

385 ~ 450 VDC

-25 ~ +105°C

82~560µF

For capacitance values > 33000µF, add the value of:

(rated cap. [µF] - 33000 )

1000

3√CV (µA) max. after 5 minutes;

C = Capacitance in µF, V = WV

Frequency(Hz):

16~100WV:

160~450WV:

0.93

0.75

0.95

0.8

100~120

1.0

500

1.05

1.2

1.08

1.25

10k

1.15

1.4

Ripple Current Ambient Temperature Factors**

Temperature (°C): 105°C

85°C

70°C

60°C

Multiplier: 1.0

1.7

2.0

2.2

≤45°C

2.35

Endurance:

3000 hours* at +105°C with maximum specified ripple current (see page 4)

*2000 hours for 20mm length sizes

**Use of temperature ripple current multipliers may limit life to the hours specified for the maximum operating temperature.

Part Number System

Series

Code

Capacitance

Code

Suffix

Standard Ratings

Extended CV Ratings

20mm Length Ratings

RoHS compliant PVC sleeve and top

plate is standard. PET sleeve is

available without top plate.

Terminal Style

Prefix Length # of Pins

ECOS

6.3mm

ECEC

4.0mm

Voltage Code

1J 1K 2A 2C 2D 2E 2T 2G 2W

63 80 100 160 200 250 385 400 450

Diameter

Code

10.0±0.1

Circuit Board Mounting Holes

2 Pin Mounting Style

L+2 max.

D+1 max.

2 x Ø2.0±0.1

10.0±0.1

Circuit Board Mounting Holes

Ø2.0±0.1

4.75±0.1

3.3±0.1

3 Pin Mounting Style

(Optional)

L+2 max.

D+1 max.

Ø2.0±0.1

Ø2.5 min.

Pin Dimensions

2.0 max.

0.8

-0.1

3.5

1.5±0.2

+0.2

2.0 max.

0.8

+0.2

-0.1

Top of Capacitor Body

4.0±0.5

1.5±0.2

4.0

6.3±1.0

4mm Length: Standard on 2 Pin, Available on 3 Pin Mounting Styles

6.3mm Length: Available on 2 Pin Mounting Style Only
