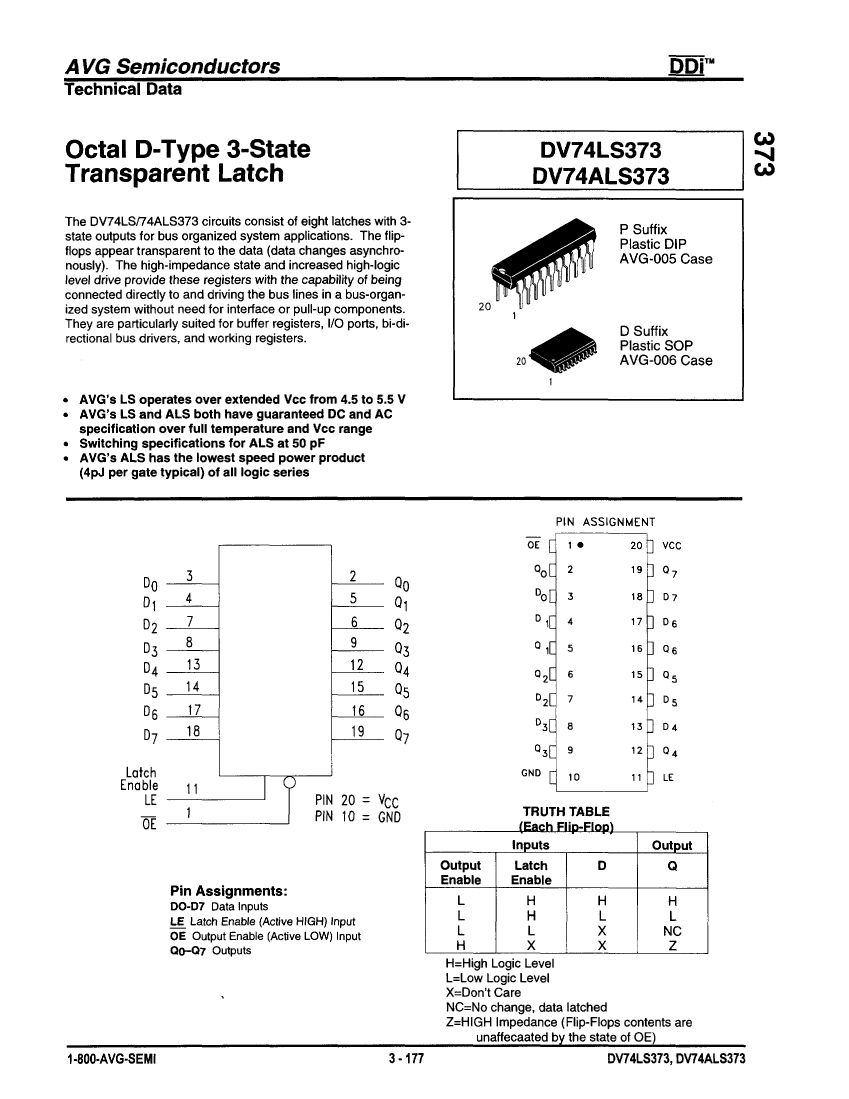

Bus Driver, LS Series, 1-Func, 8-Bit, True Output, TTL, PDIP20, PLASTIC, DIP-20

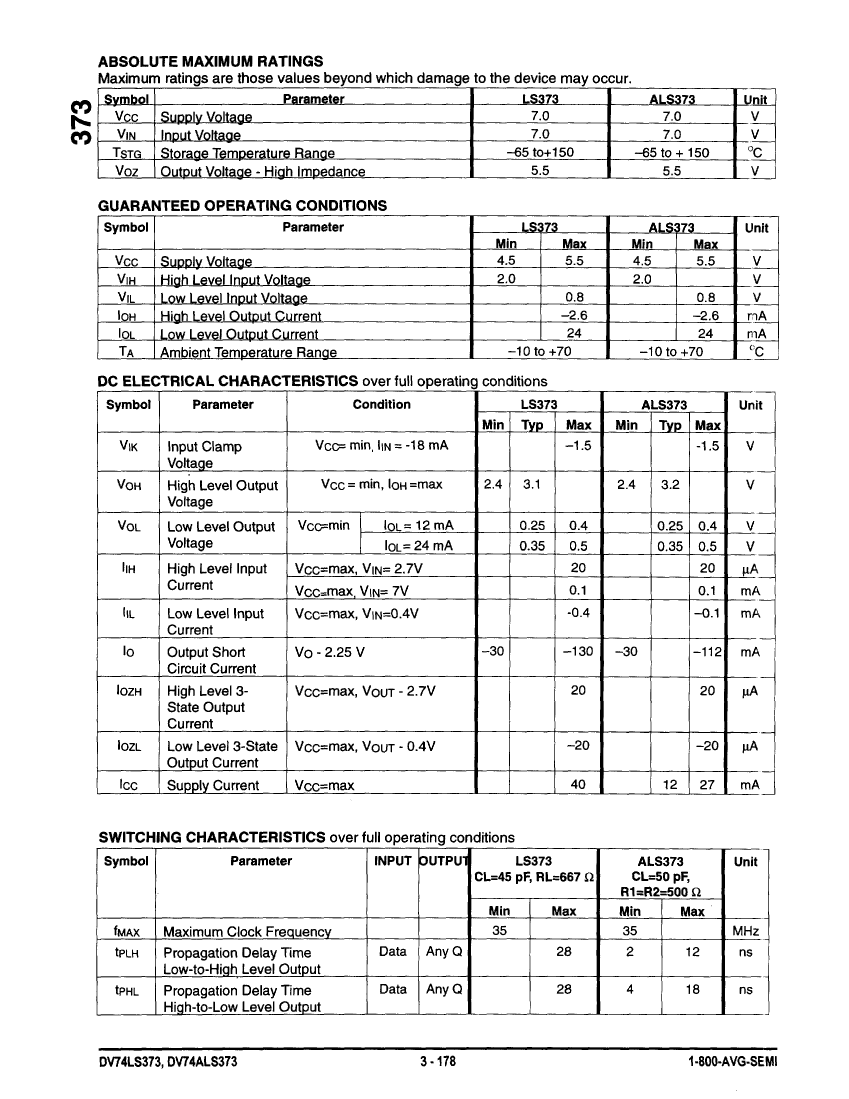

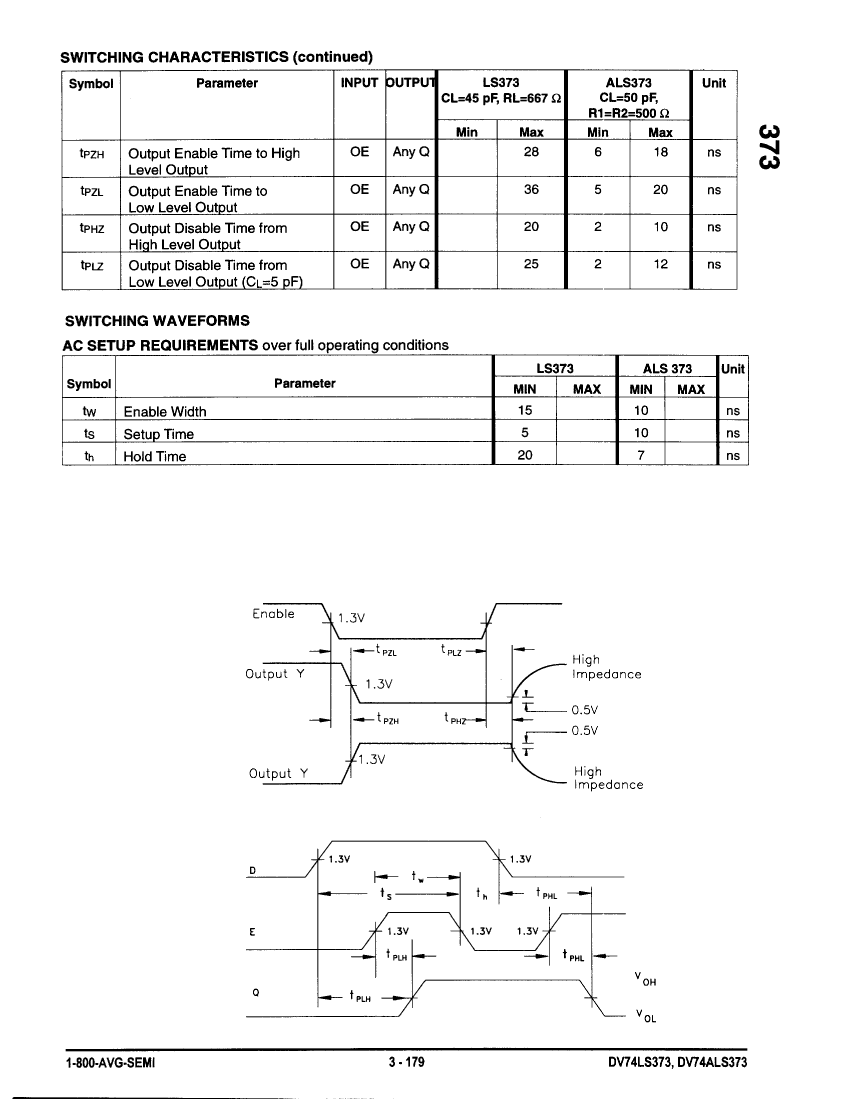

| Parameter Name | Attribute value |
| Maker | AVG [AVG Semiconductors(HITEK)] |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 20 |
| Reach Compliance Code | unknown |
| series | LS |
| JESD-30 code | R-PDIP-T20 |
| length | 26.415 mm |
| Logic integrated circuit type | BUS DRIVER |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | -10 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| propagation delay (tpd) | 28 ns |
| Certification status | Not Qualified |
| Maximum seat height | 4.57 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| width | 7.62 mm |
| Base Number Matches | 1 |
| DV74LS373N | DV74ALS373D | DV74LS373D | |
|---|---|---|---|
| Description | Bus Driver, LS Series, 1-Func, 8-Bit, True Output, TTL, PDIP20, PLASTIC, DIP-20 | Bus Driver, ALS Series, 1-Func, 8-Bit, True Output, TTL, PDSO20, PLASTIC, SOP-20 | Bus Driver, LS Series, 1-Func, 8-Bit, True Output, TTL, PDSO20, PLASTIC, SOP-20 |
| Maker | AVG [AVG Semiconductors(HITEK)] | AVG [AVG Semiconductors(HITEK)] | AVG [AVG Semiconductors(HITEK)] |
| Parts packaging code | DIP | SOIC | SOIC |
| package instruction | DIP, | PLASTIC, SOP-20 | SOP, |
| Contacts | 20 | 20 | 20 |
| Reach Compliance Code | unknown | unknown | unknown |
| series | LS | ALS | LS |
| JESD-30 code | R-PDIP-T20 | R-PDSO-G20 | R-PDSO-G20 |
| length | 26.415 mm | 12.8 mm | 12.8 mm |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER |
| Number of digits | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 |
| Number of ports | 2 | 2 | 2 |
| Number of terminals | 20 | 20 | 20 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C |
| Minimum operating temperature | -10 °C | -10 °C | -10 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | SOP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | SMALL OUTLINE | SMALL OUTLINE |
| propagation delay (tpd) | 28 ns | 18 ns | 28 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 4.57 mm | 2.65 mm | 2.65 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V |
| surface mount | NO | YES | YES |
| technology | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | THROUGH-HOLE | GULL WING | GULL WING |
| Terminal pitch | 2.54 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL |
| width | 7.62 mm | 7.5 mm | 7.5 mm |
| Base Number Matches | 1 | 1 | - |
| Load capacitance (CL) | - | 50 pF | 45 pF |
| Maximum supply current (ICC) | - | 27 mA | 40 mA |
