MRFIC0001

Description
Modulator, Quadraphase, 50MHz Min, 260MHz Max
CategoryWireless rf/communication    Radio frequency and microwave
File Size105KB,6 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric View All

MRFIC0001 Overview

Modulator, Quadraphase, 50MHz Min, 260MHz Max

MRFIC0001 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMotorola ( NXP )
Reach Compliance Codeunknown
structureCOMPONENT
JESD-609 codee0
modulation technologyQUADRAPHASE
Maximum operating frequency260 MHz
Minimum operating frequency50 MHz
Maximum operating temperature85 °C
Minimum operating temperature-30 °C
RF/Microwave Device TypesMODULATOR
Terminal surfaceTin/Lead (Sn/Pb)
Base Number Matches1
MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Order this document
by MRFIC0001/D
Advance Information
The MRFIC Line
Quadrature Modulator

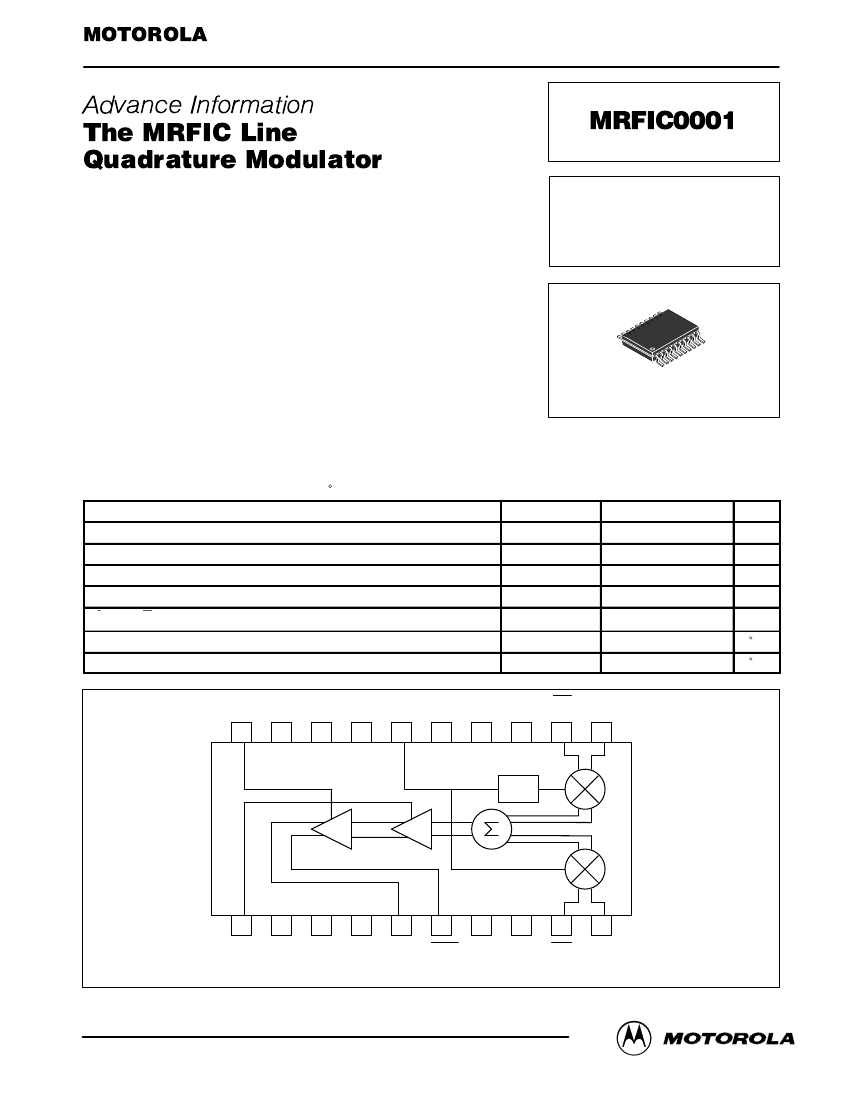

The MRFIC0001 is an integrated Quadrature Modulator designed for
operation in the 50 to 260 MHz frequency range. The design utilizes Motorola’s
advanced MOSAIC 3 silicon bipolar RF process to yield superior performance
in a cost effective monolithic device. Applications include DQPSK for PDC,
NADC, and PHS; GMSK for GSM and DCS1800; and QPSK for CATV.
Linear I/Q Ports
On Chip LO Phase Shifter
I/Q Phase Imbalance = 2 degrees (Typ)
I/Q Amplitude Imbalance = 0.3 dB (Typ)
Gain Control = 30 dB (Typ)
Single Source Low Operating Supply Voltage
Low Power Consumption
Low–Cost, Low Profile Plastic TSSOP Package
Order MRFIC0001R2 for Tape and Reel.
R2 Suffix = 2,500 Units per 16 mm, 13 inch Reel.
Device Marking = M001
ABSOLUTE MAXIMUM RATINGS
(TA = 25
_
C unless otherwise noted)
Parameter
Supply Voltage
Control Voltages
LO Input Power
Differential I/Q Input Voltage
I, I, Q, and Q DC Bias Voltage
Ambient Operating Temperature
Storage Temperature
Symbol
VCC
TX EN, VCNTL
PLO
VD
VB
TA
Tstg
MRFIC0001
QUADRATURE
MODULATOR
INTEGRATED CIRCUIT
CASE 948D–03
(TSSOP–20)
Value
6.5
6.5
0.0
2.0
2.0
–30 to +85
–65 to +125
Unit
Vdc
Vdc
dBm
Vpp
Vdc
_
C
_
C
TX EN
20
GND
19
VCC
18
GND
17
LO
16
GND VCC
15
14
GND
13
Q
12
Q
11
90
VGA
1
VCNTL
2
GND
3
VCC
4
5
6
OUT
7
GND
8
GND
9
I
10
I
GND OUT
Pin Connections and Functional Block Diagram
This document contains information on a new product. Specifications and information herein are subject to change without notice.
REV 4
©
MOTOROLA RF DEVICE DATA
Motorola, Inc. 1997
MRFIC0001
1
