533408 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 533408

533408: DescriptionBoard Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size196KB，4 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

533408 Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle

533408 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS: DIN 41612; IEC 60603-2
body width	0.339 inch
subject depth	0.492 inch
body length	3.701 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	YES
maximum insertion force	.9452 N
Insulation resistance	1000000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	533408
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	ENDS
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32
UL Flammability Code	94V-0
Evacuation force-minimum value	.9452 N
Base Number Matches	1

Preview

Download Datasheet

View All

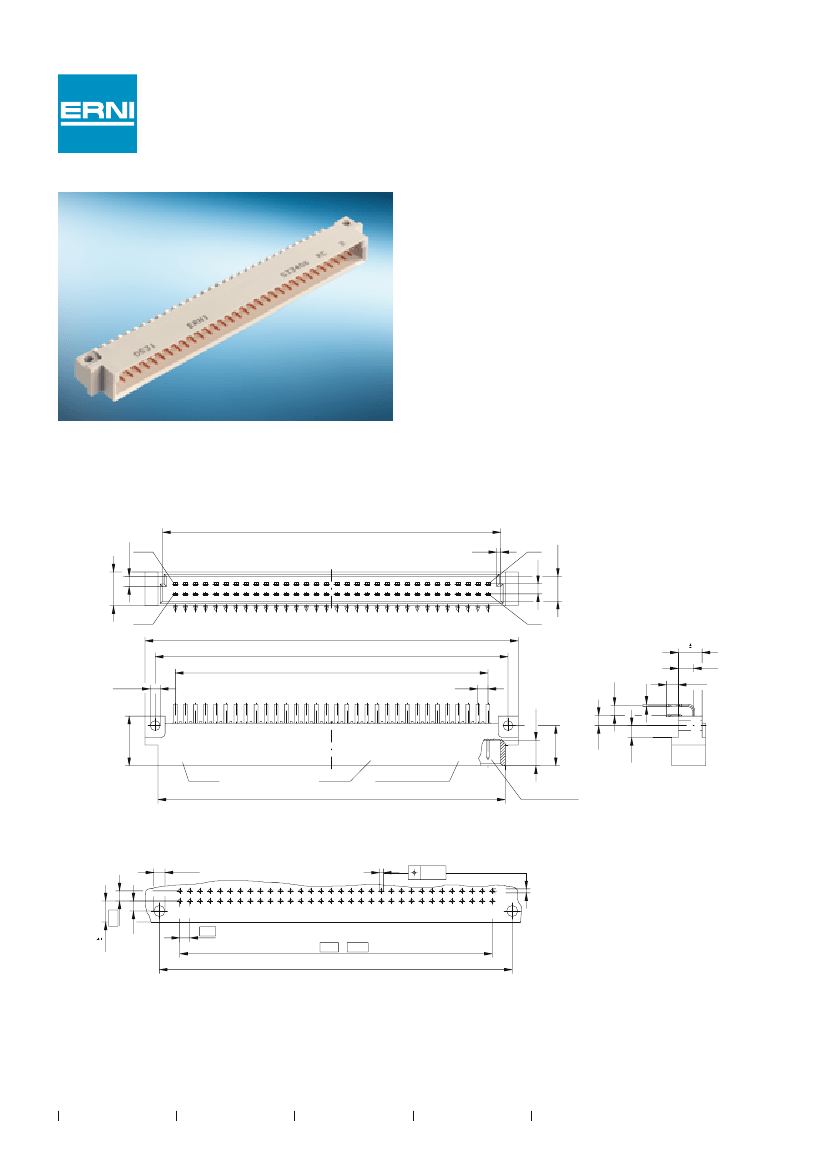

DIN 41612 / IEC 60603-2 Connectors

Type B Male

Dimensional Drawing Pressfit

+0,2

85,2

-0,2

b 32

2,5

+0,1

-0,1

8,6 max.

a 32

94 max.

88,9

31 x 2,54 = 78,74

+0,1

2,54

6,2

0,1

3,85

2,54

12,5

6,4

-0,1

10,2

-0,2

2,54

0,6

2,5

2,54

-0,4

+0,1

Datum

date

Id. Nr.

87,5

Anforderungsstufe

class

Stecklänge

mating length

Leiterplatten-Lochbild /

+0,1

PCB drillhole pattern

0,05

alle Löcher/

all holes

2,8

ø 1,0

+ 0,09

- 0,06

Durchmesser

+ 0,09

- 0,06

Diameter

XXXX

ERNI

XXXXXX

des metallisierten Loches

of finished plated-through hole

2,54

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9

ø 1,15

0,025

Bohrungsdurchmesser des Loches

ø 1,15

0,025

Diameter of drilled hole

2,54

5,3

0,1

2,54

31 x 2,54 = 78,74

88,9

Catalog E 074558

03/06

Edition 1

www.erni.com
