593964 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 593964

593964: DescriptionBoard Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle; CategoryThe connector The connector; File Size230KB，4 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric Compare View All

593964 Overview

Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle

593964 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS: DIN 41612; IEC 60603-2
body width	0.338 inch
subject depth	0.457 inch
body length	3.74 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	YES
maximum insertion force	.9452 N
Insulation resistance	1000000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	593964
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	ENDS
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.787 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	64
UL Flammability Code	94V-0
Evacuation force-minimum value	.9452 N
Base Number Matches	1

Preview

Download Datasheet

View All

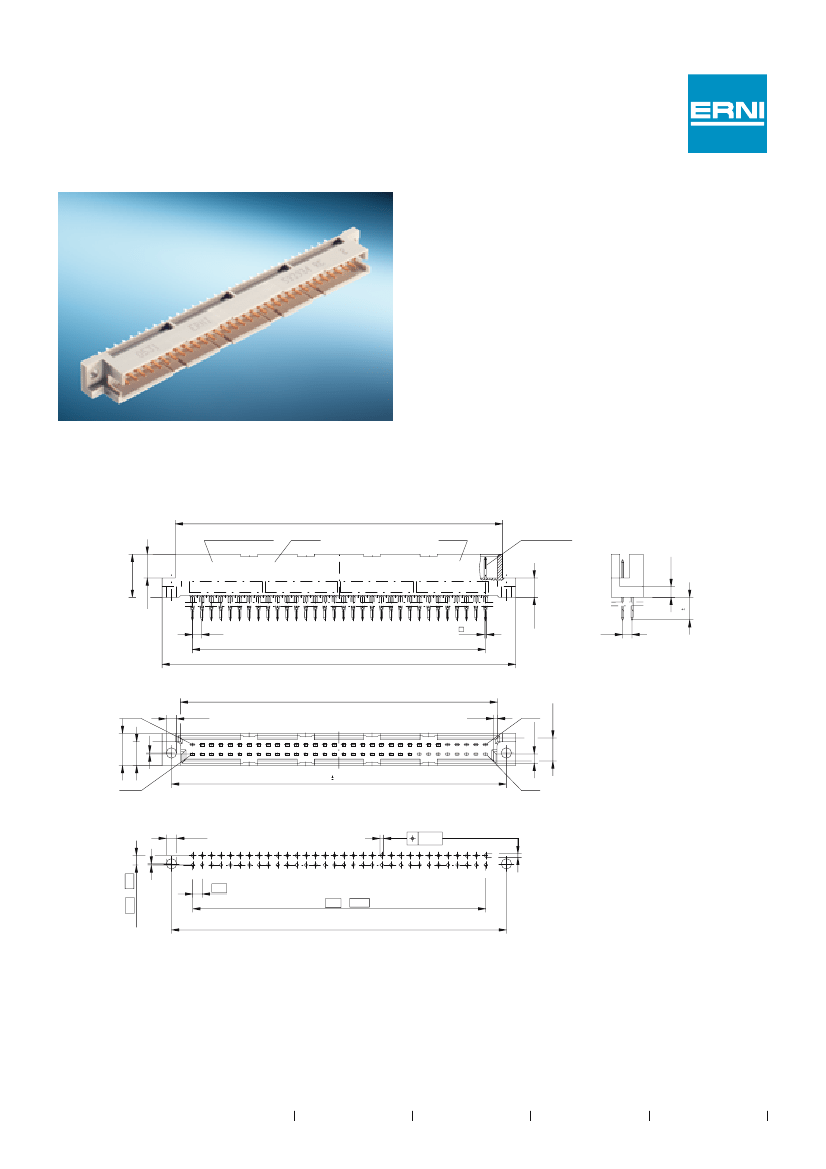

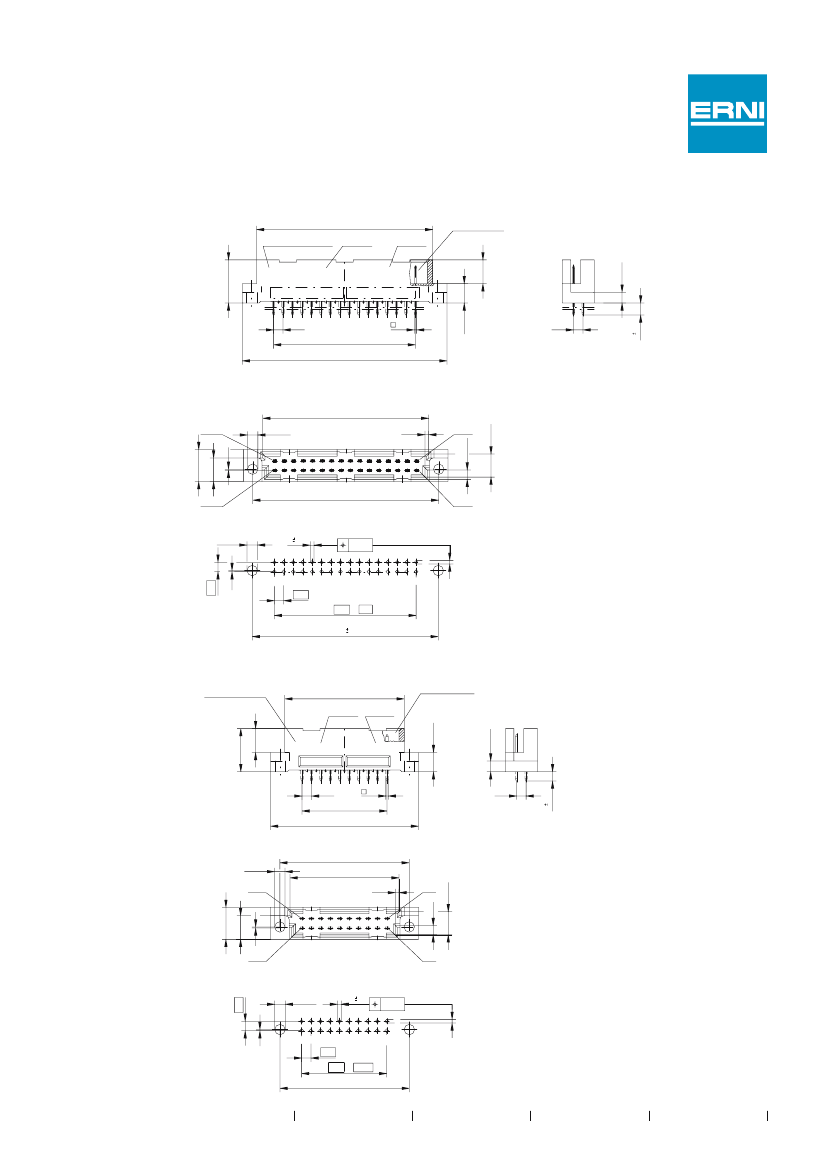

DIN 41612 / IEC 60603-2 Connectors

Type Q Male

Dimensional Drawing Pressfit Type Q

Anforderungsstufe

class

Id.-Nr.

-0,2

Datum

date

Stecklänge

mating length

-0,3

11,6max

-0,1

0,2

6,4

2,9

5,2

2,54

31 x 2,54 = 78,74

95 max.

0,6

+0,2

85,2

+0,1

8,6 max

6,35

0,3

b 32

0,1

Leiterplatten-Lochbild /

+0,1

PCB drillhole pattern

alle Löcher/

0,05

all holes

2,8

2,5

-0,2

6,2

a 32

2,8

-0,1

+0,1

ø 1,0

ø 1,15

+ 0,09

- 0,06

Durchmesser

+ 0,09

- 0,06

Diameter

0,025

des metallisierten Loches

of finished plated-through hole

0,3

2 x 2,54 = 2,54

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9

Bohrungsdurchmesser des Loches

Diameter of drilled hole

2,54

31 x 2.54 = 78,74

Catalog E 074558

03/06

Edition 1

www.erni.com

XXXX

ERNI

XXXXXX

593964 Related Products

	593964	593933	424219	593952	593934
Description	Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle	Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Straight, Solder Terminal	Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Locking, Receptacle	Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	ERNI	ERNI	ERNI	ERNI	ERNI
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Other features	STANDARDS: DIN 41612; IEC 60603-2	STANDARDS: DIN 41612; IEC 60603-2	STANDARDS: DIN 41612; IEC 60603-2	STANDARDS: DIN 41612; IEC 60603-2	STANDARDS: DIN 41612; IEC 60603-2
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES	YES
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	593964	593933	424219	593952	593934
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	PRESS FIT	SOLDER	SOLDER	PRESS FIT	SOLDER
Total number of contacts	64	64	32	64	64
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
ECCN code	EAR99	EAR99	EAR99	-	EAR99
body width	0.338 inch	0.339 inch	-	0.339 inch	0.339 inch
subject depth	0.457 inch	0.457 inch	-	0.457 inch	0.457 inch
body length	3.74 inch	3.74 inch	-	3.74 inch	3.74 inch
Body/casing type	RECEPTACLE	RECEPTACLE	-	RECEPTACLE	RECEPTACLE
Contact resistance	20 mΩ	20 mΩ	-	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	-	1400VAC V	1000VAC V
Durability	400 Cycles	500 Cycles	-	400 Cycles	400 Cycles
maximum insertion force	.9452 N	.9452 N	-	-	.9452 N
Insulation resistance	1000000000000 Ω	1000000000000 Ω	-	10000000000 Ω	1000000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	-	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.1 inch	0.1 inch	-	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	-	0.1 inch	0.1 inch
Loaded row name	A,B	A,B	-	A,B	A,B
PCB row number	2	2	-	2	2
Maximum operating temperature	125 °C	125 °C	-	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-	-55 °C	-65 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm
polarization key	ENDS	HOUSING SIDE	-	POLARIZED HOUSING	HOUSING SIDE
Rated current (signal)	1 A	1 A	-	2 A	1 A
Guideline	UL, CSA	UL, CSA	-	UL	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL
Terminal length	0.787 inch	0.157 inch	-	0.236 inch	0.157 inch
Evacuation force-minimum value	.9452 N	.9452 N	-	-	.9452 N
