STS8550C: DescriptionSMALL SIGNAL TRANSISTOR; CategoryDiscrete semiconductor The transistor; File Size96KB，3 Pages; ManufacturerKODENSHI AUK; Websitehttp://auk.co.kr/

Download Datasheet Parametric Compare View All

STS8550C Overview

SMALL SIGNAL TRANSISTOR

STS8550C Parametric

Parameter Name	Attribute value
Maker	KODENSHI AUK
package instruction	,
Reach Compliance Code	unknown
Maximum collector current (IC)	0.8 A
Configuration	Single
Minimum DC current gain (hFE)	120
Maximum operating temperature	150 °C
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.625 W
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

Semiconductor

STS8550

PNP Silicon Transistor

Descriptions

•

High current application

•

Radio in class B push-pull operation

Feature

•

Complementary pair with STS8050

Ordering Information

Type NO.

STS8550

Marking

STS8550

Package Code

TO-92

Outline Dimensions

3.45±0.1

4.5±0.1

2.25±0.1

unit :

mm

4.5±0.1

0.4±0.02

2.06±0.1

14.0±0.40

1.27 Typ

.

2.54 Typ

.

1 2 3

1.20±0.1

0.38

PIN Connections

1. Emitter

2. Base

3. Collector

KST-9013-000

1

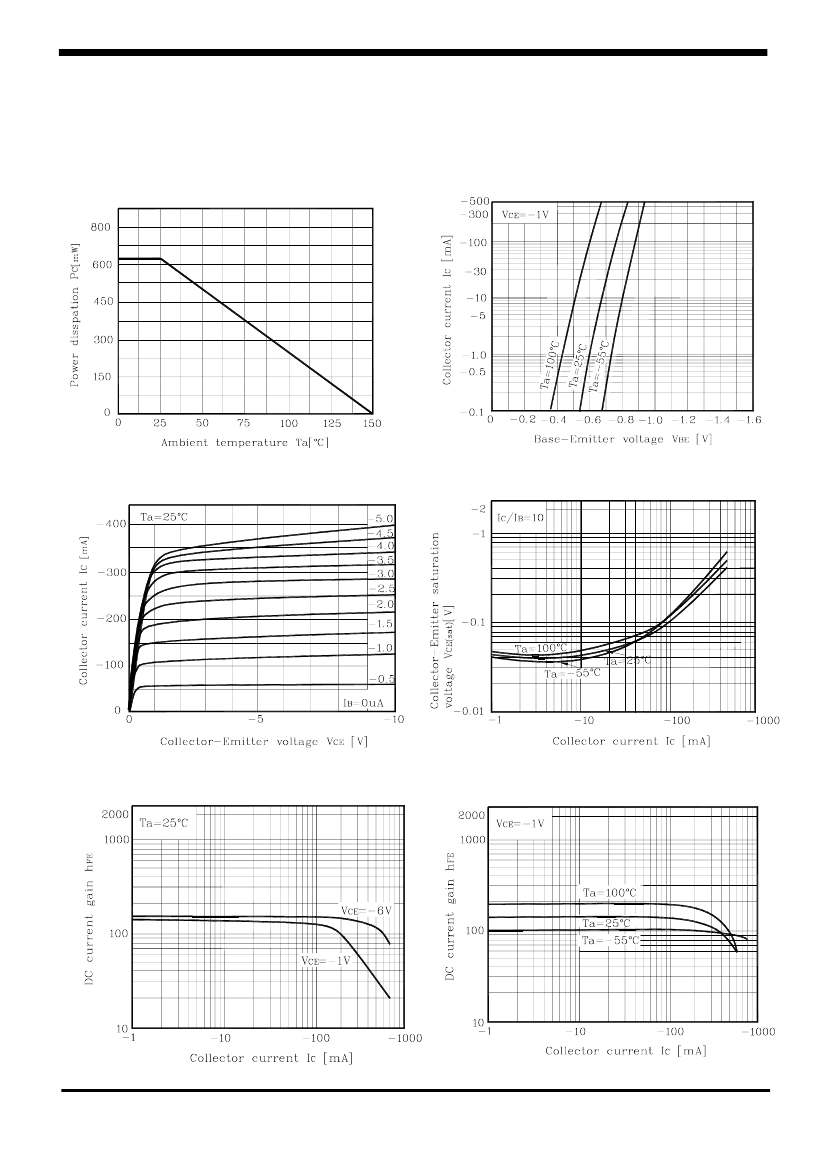

STS8550C Related Products

	STS8550C	STS8550D	STS8550	STS8550B
Description	SMALL SIGNAL TRANSISTOR	SMALL SIGNAL TRANSISTOR	SMALL SIGNAL TRANSISTOR	SMALL SIGNAL TRANSISTOR
Reach Compliance Code	unknown	unknown	unknown	unknown
Base Number Matches	1	1	1	1
Maker	KODENSHI AUK	-	KODENSHI AUK	KODENSHI AUK
Maximum collector current (IC)	0.8 A	0.8 A	-	0.8 A
Configuration	Single	Single	-	Single
Minimum DC current gain (hFE)	120	160	-	85
Maximum operating temperature	150 °C	150 °C	-	150 °C
Polarity/channel type	PNP	PNP	-	PNP
Maximum power dissipation(Abs)	0.625 W	0.625 W	-	0.625 W
surface mount	NO	NO	-	NO
