204921 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 204921

204921: DescriptionD Subminiature Connector, 9 Contact(s), Female, Solder Terminal, M3, Plug,; CategoryThe connector The connector; File Size63KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

204921 Overview

D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, M3, Plug,

204921 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	0.496 inch
subject depth	0.248 inch
body length	1.22 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	YES
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	YES
Mixed contacts	NO
Installation option 1	M3
Installation option 2	SCREW
Installation method	STRAIGHT
Installation type	BOARD AND PANEL
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	6 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	1/E
Terminal length	0.106 inch
Terminal pitch	2.7432 mm
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0
Evacuation force-minimum value	.3614 N
Base Number Matches	1

Preview

Download Datasheet

View All

Verpackt in Tray

Verpackungseinheit 48 St.

6,3

-0,25

5 x 18 = 90

max. 138

tray packaging

packaging unit 48 pcs

14,8

2,7

6,3

3,2

Variante 1

0,6

version 1

Bestückung kraftlos

Pin 1

7 x 36 = 252

Leiterplatte

powerless assembly

+0,2

pcb

-0,4

hood only on version 1

Ansaughaube nur bei Version 1

Variante 2

max. 325

Sonstige Angaben siehe Zeichnung 204628 /

Additional indications according to drawing 204628

Verpackt in Gurtverpackung

Tape on Reel Packaging

Verpackungseinheit: 75 Stück -

Packaging unit: 75 pcs

Abspulrichtung -

Reel

off Direction

21,2

version 2

12,6

±0,3

13,8

Bestückung mit Kraft

assembly with force

±0,1

150

330

56,5

Pin 1

ohne /

without

Mutter /

nut

max. Einschraubtiefe 3,7 mm

Bolzen /

bolt

thread depth max. 3,7 mm

max. Einschraubtiefe 5,5 mm

Layoutvorschlag:

thread depth max. 5,5 mm

3,7

recommended layout:

0,05

4 x 2,74 = 10,96

+0,09

-0,06

0,05

Pin 1

2,84

(9x)

Gewinde

/ thread

/ #4-40

Gewinde

/ thread

/ #4-40

2,74

6,4

3,2

±0,1

1,37

2,74

3 x 2,74 = 8,22

±0,05

0,05

Sonstige Angaben siehe Zeichnung 204625 /

Additional indications according to drawing 204625

M 1:1

204913

204918 204923

#4-40

ohne

without

Mutter

* Tray versiegelt

Tray sealed

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications according to the production documentation

Proprietary notice pursuant to ISO 16016 to be observed.

Anschlussbereich verzinnt

terminal area tin plating

Anforderungsstufe: 2

204917 204922 204927

204916 204921 204926

204915 204920 204925

204914 * 204919 * 204924

Ident-Nr.

part-no.

tape &reel

Variante 1

Ident.-Nr.

Variante 1

Ident.-Nr.

Variante 2

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

class: 2

part-no.

tray

part-no.

tray

thread

Bolzen Bemerkung

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

04.02.2011

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

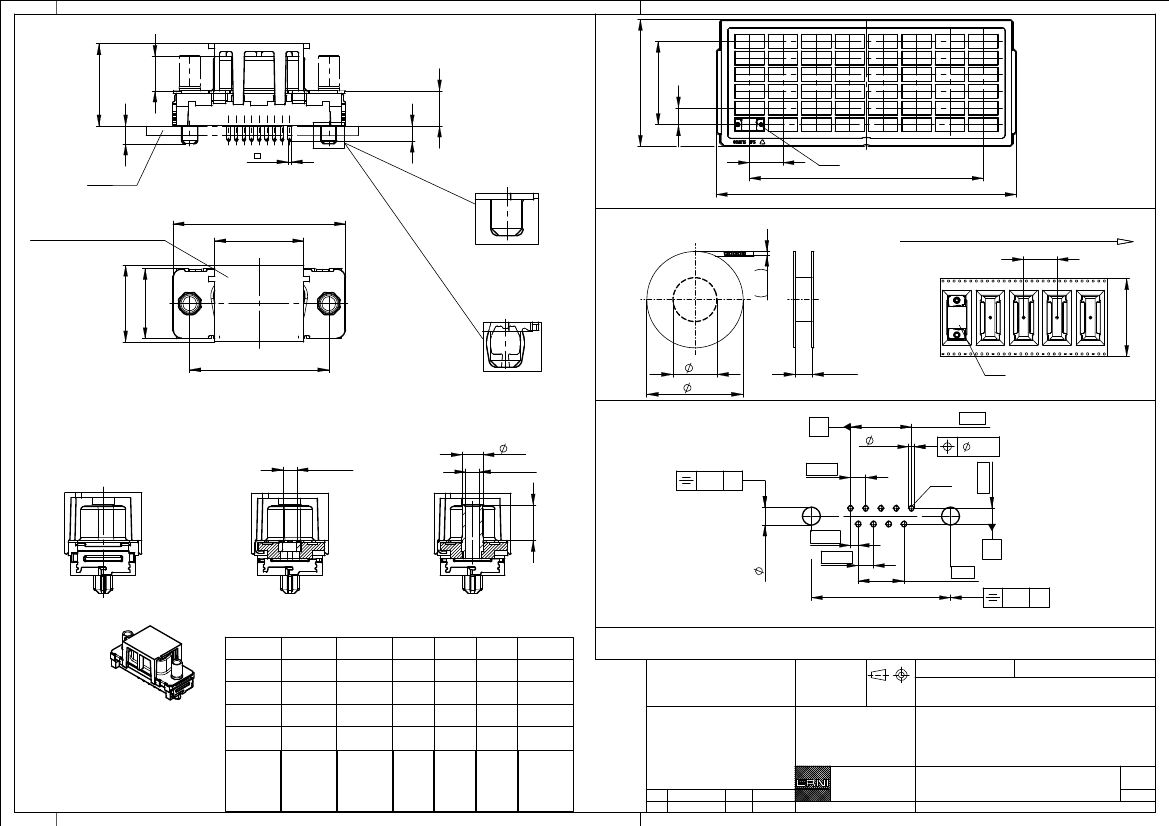

TMC-S 09-THR-2,7-6,3-BA8

TMC-S 09-THR-2,7-6,3-type 8

bolt

remark

www.ERNI.com

Class

144978

TMCS

version 1

version 2
