39-00-0291 datasheet, PDF - EEWORLD Datasheet

39-00-0291: DescriptionPush-On Terminal; CategoryThe connector Connector bracket; File Size63KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

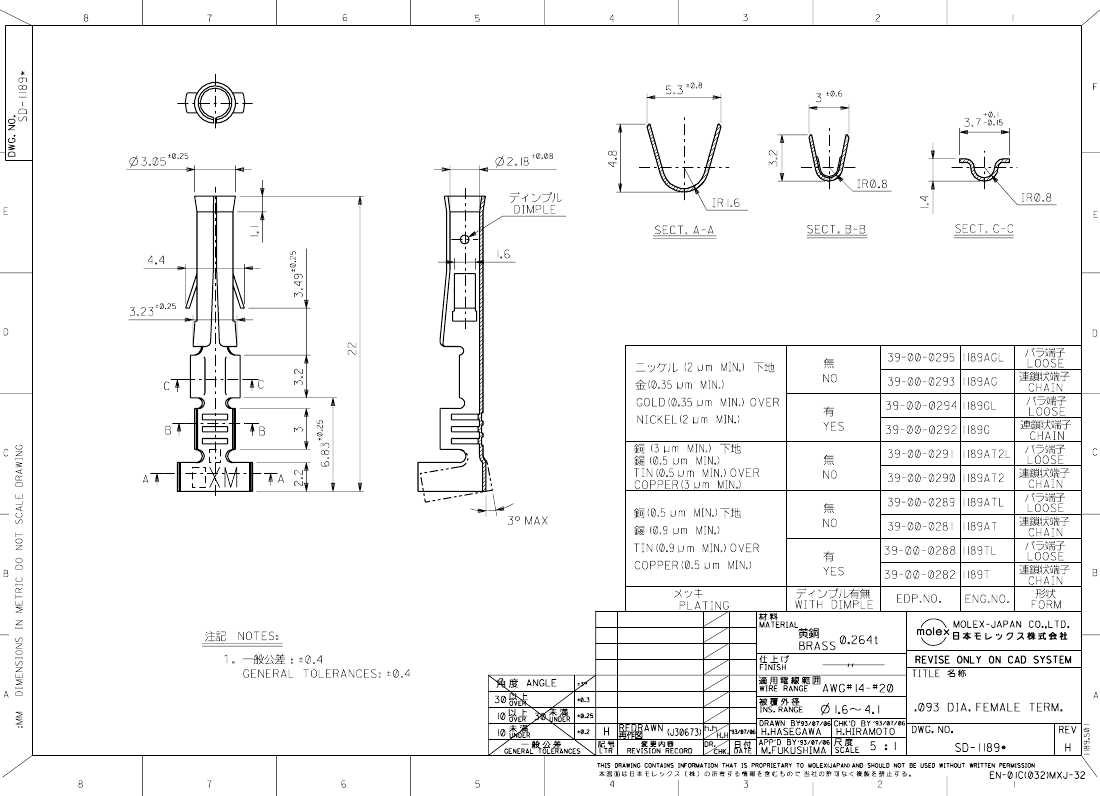

39-00-0291 Overview

Push-On Terminal

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	CONTACT FINISH: TIN OVER COPPER (118)
Assembly name	CONTACT
Connector bracket type	CONNECTOR ACCESSORY
Contact point gender	FEMALE
Contact style	RND PIN-SKT
DIN compliance	NO
Finished thickness	19.7
IEC compliance	NO
MIL compliance	NO
Material	BRASS
Installation method	STRAIGHT
Terminal length	0.269 inch
Terminal type	CRIMP
Maximum wire diameter	14 AWG
Minimum wire diameter	20 AWG
Base Number Matches	1

	39-00-0291	39-00-0292	39-00-0290	39-00-0293
Description	Push-On Terminal	Push-On Terminal	Push-On Terminal	Push-On Terminal
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	CONTACT FINISH: TIN OVER COPPER (118)	CONTACT FINISH: GOLD OVER NICKEL (79)	CONTACT FINISH: TIN OVER COPPER (118)	CONTACT FINISH: GOLD OVER NICKEL (79)
Assembly name	CONTACT	CONTACT	CONTACT	CONTACT
Connector bracket type	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO	NO
Finished thickness	19.7	13.8	19.7	13.8
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Material	BRASS	BRASS	BRASS	BRASS
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Terminal length	0.269 inch	0.269 inch	0.269 inch	0.269 inch
Terminal type	CRIMP	CRIMP	CRIMP	CRIMP
Maximum wire diameter	14 AWG	14 AWG	14 AWG	14 AWG
Minimum wire diameter	20 AWG	20 AWG	20 AWG	20 AWG
Base Number Matches	1	1	1	1
