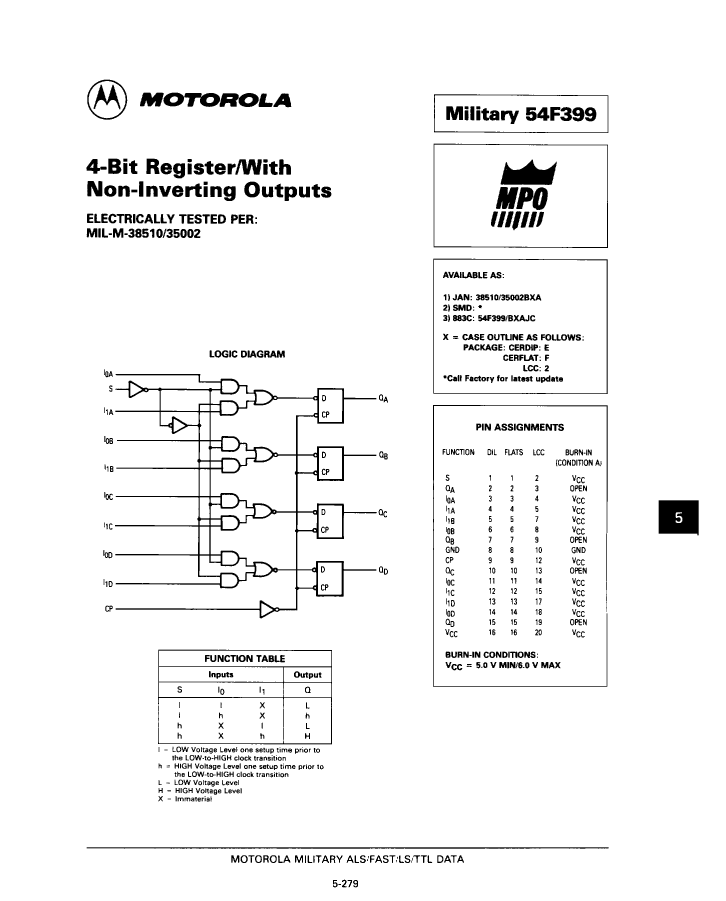

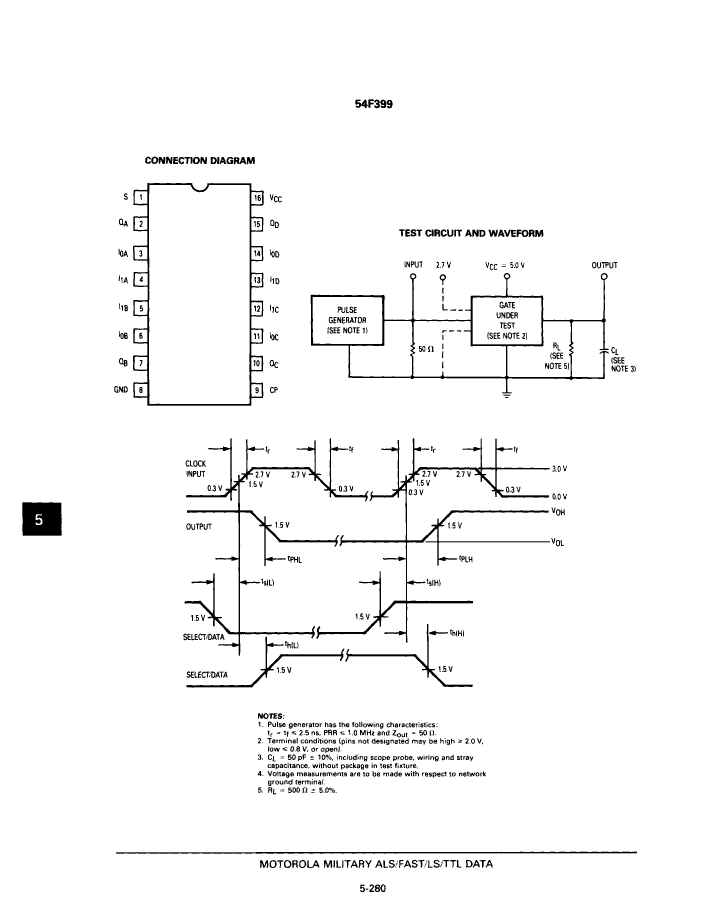

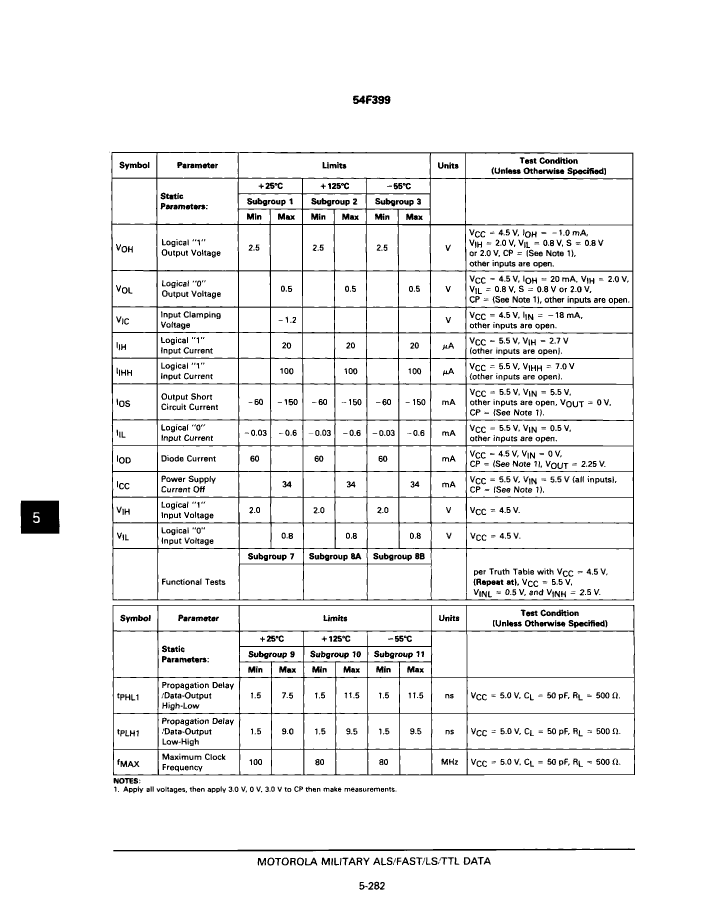

D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20
| Parameter Name | Attribute value |
| Maker | Motorola ( NXP ) |
| package instruction | QCCN, |
| Reach Compliance Code | unknown |
| series | F/FAST |
| JESD-30 code | S-CQCC-N20 |
| length | 8.885 mm |
| Logic integrated circuit type | D FLIP-FLOP |
| Number of digits | 4 |
| Number of functions | 1 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output polarity | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| propagation delay (tpd) | 11.5 ns |
| Certification status | Not Qualified |
| Maximum seat height | 1.9 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal form | NO LEAD |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| Trigger type | POSITIVE EDGE |
| width | 8.885 mm |
| minfmax | 100 MHz |
| Base Number Matches | 1 |
| 38510/35002B2A | 54F399/B2AJC | 38510/35002BFA | 38510/35002BEA | |
|---|---|---|---|---|
| Description | D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20 | F/FAST SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20 | D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, TTL, CDFP16, CERAMIC, FP-16 | D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, TTL, CDIP16, CERDIP-16 |
| package instruction | QCCN, | QCCN, LCC20,.35SQ | DFP, | DIP, |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| series | F/FAST | F/FAST | F/FAST | F/FAST |
| JESD-30 code | S-CQCC-N20 | S-CQCC-N20 | R-GDFP-F16 | R-GDIP-T16 |
| length | 8.885 mm | 8.885 mm | 9.65 mm | 19.3 mm |
| Logic integrated circuit type | D FLIP-FLOP | D FLIP-FLOP | D FLIP-FLOP | D FLIP-FLOP |
| Number of digits | 4 | 4 | 4 | 4 |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of terminals | 20 | 20 | 16 | 16 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C |
| Output polarity | TRUE | TRUE | TRUE | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | QCCN | QCCN | DFP | DIP |
| Package shape | SQUARE | SQUARE | RECTANGULAR | RECTANGULAR |
| Package form | CHIP CARRIER | CHIP CARRIER | FLATPACK | IN-LINE |
| propagation delay (tpd) | 11.5 ns | 11.5 ns | 11.5 ns | 11.5 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.9 mm | 1.9 mm | 2.15 mm | 4.19 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | NO |
| technology | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | NO LEAD | NO LEAD | FLAT | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm | 2.54 mm |
| Terminal location | QUAD | QUAD | DUAL | DUAL |
| Trigger type | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE |
| width | 8.885 mm | 8.885 mm | 6.415 mm | 7.62 mm |
| minfmax | 100 MHz | 100 MHz | 100 MHz | 100 MHz |
| Base Number Matches | 1 | 1 | 1 | 1 |
| Maker | Motorola ( NXP ) | - | Motorola ( NXP ) | Motorola ( NXP ) |
