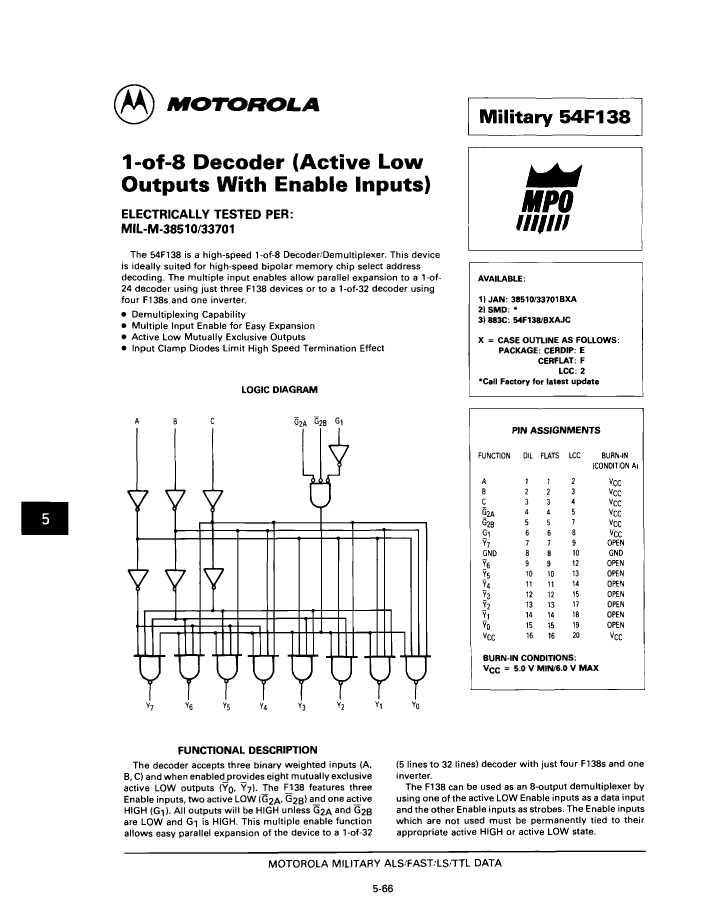

F/FAST SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CDFP16, CERFLAT-16

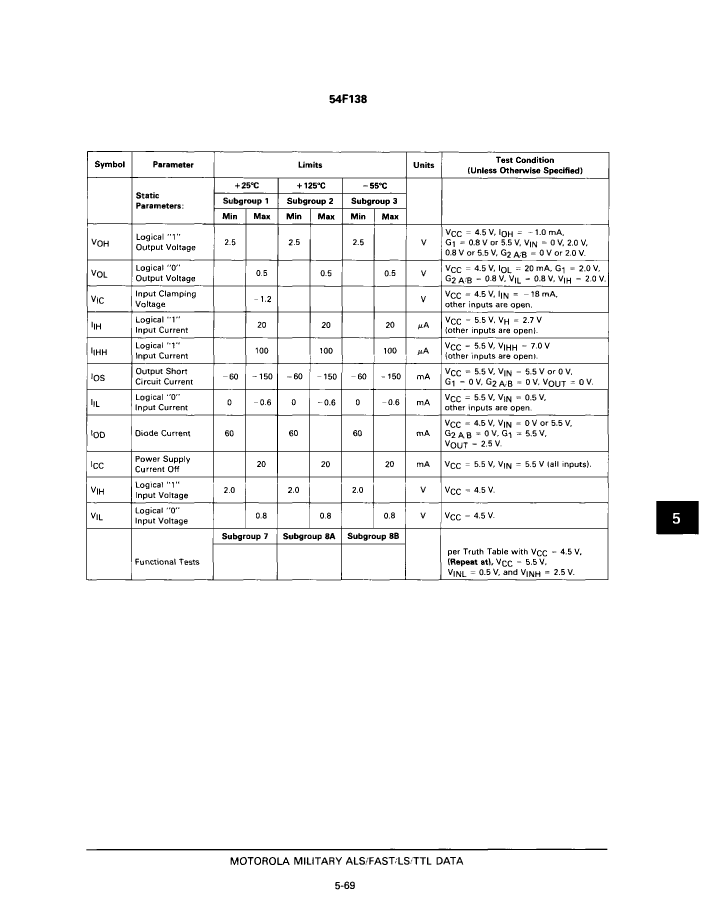

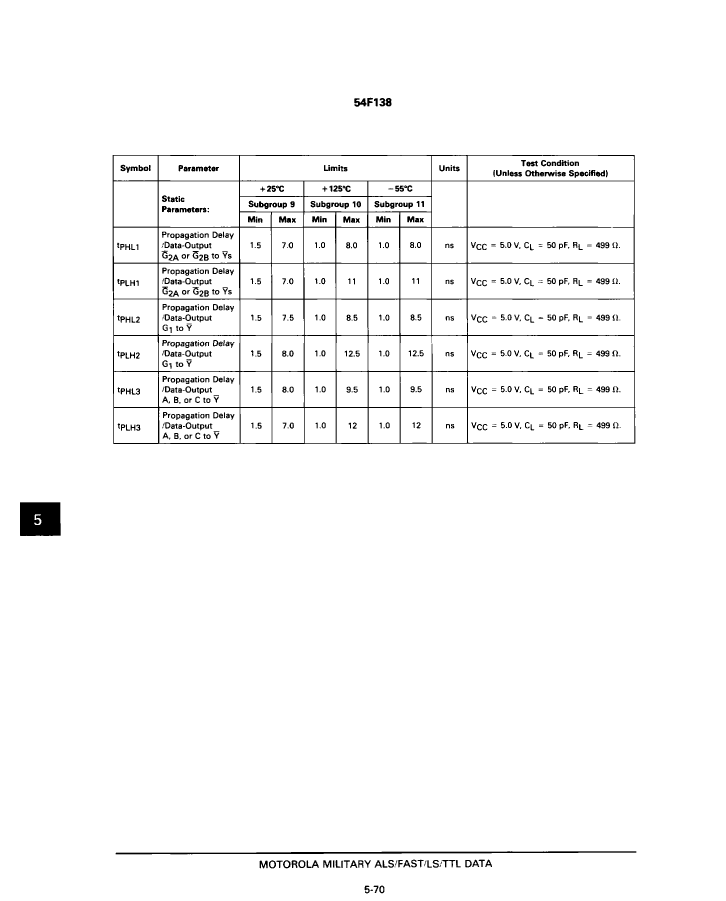

| Parameter Name | Attribute value |
| Maker | Motorola ( NXP ) |
| Parts packaging code | DFP |
| package instruction | DFP, |
| Contacts | 16 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | 3 ENABLE INPUTS |
| series | F/FAST |
| JESD-30 code | R-GDFP-F16 |
| length | 9.65 mm |
| Logic integrated circuit type | OTHER DECODER/DRIVER |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output polarity | INVERTED |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DFP |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |
| propagation delay (tpd) | 9.5 ns |
| Certification status | Not Qualified |
| Maximum seat height | 2.15 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal form | FLAT |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| width | 6.415 mm |
| Base Number Matches | 1 |
| 38510/33701BFA | 54F138/B2A | 54F138/BFA | 54F138/BEA | 38510/33701BEA | 38510/33701B2A | |
|---|---|---|---|---|---|---|
| Description | F/FAST SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CDFP16, CERFLAT-16 | F/FAST SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CQCC20, CERAMIC, LCC-20 | F/FAST SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CDFP16, CERFLAT-16 | F/FAST SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CDIP16, CERDIP-16 | F/FAST SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CDIP16, CERDIP-16 | F/FAST SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CQCC20, CERAMIC, LCC-20 |
| Parts packaging code | DFP | QLCC | DFP | DIP | DIP | QLCC |
| package instruction | DFP, | QCCN, | DFP, | DIP, | DIP, | QCCN, |
| Contacts | 16 | 20 | 16 | 16 | 16 | 20 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | 3 ENABLE INPUTS | 3 ENABLE INPUTS | 3 ENABLE INPUTS | 3 ENABLE INPUTS | 3 ENABLE INPUTS | 3 ENABLE INPUTS |
| series | F/FAST | F/FAST | F/FAST | F/FAST | F/FAST | F/FAST |
| JESD-30 code | R-GDFP-F16 | S-CQCC-N20 | R-GDFP-F16 | R-GDIP-T16 | R-GDIP-T16 | S-CQCC-N20 |
| length | 9.65 mm | 8.89 mm | 9.65 mm | 19.3 mm | 19.3 mm | 8.89 mm |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 16 | 20 | 16 | 16 | 16 | 20 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Output polarity | INVERTED | INVERTED | INVERTED | INVERTED | INVERTED | INVERTED |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DFP | QCCN | DFP | DIP | DIP | QCCN |
| Package shape | RECTANGULAR | SQUARE | RECTANGULAR | RECTANGULAR | RECTANGULAR | SQUARE |
| Package form | FLATPACK | CHIP CARRIER | FLATPACK | IN-LINE | IN-LINE | CHIP CARRIER |
| propagation delay (tpd) | 9.5 ns | 9.5 ns | 9.5 ns | 9.5 ns | 9.5 ns | 9.5 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 2.15 mm | 1.9 mm | 2.15 mm | 4.19 mm | 4.19 mm | 1.9 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | NO | NO | YES |
| technology | TTL | TTL | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | FLAT | NO LEAD | FLAT | THROUGH-HOLE | THROUGH-HOLE | NO LEAD |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm | 1.27 mm |
| Terminal location | DUAL | QUAD | DUAL | DUAL | DUAL | QUAD |
| width | 6.415 mm | 8.89 mm | 6.415 mm | 7.62 mm | 7.62 mm | 8.89 mm |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 |
| Maker | Motorola ( NXP ) | - | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) |
