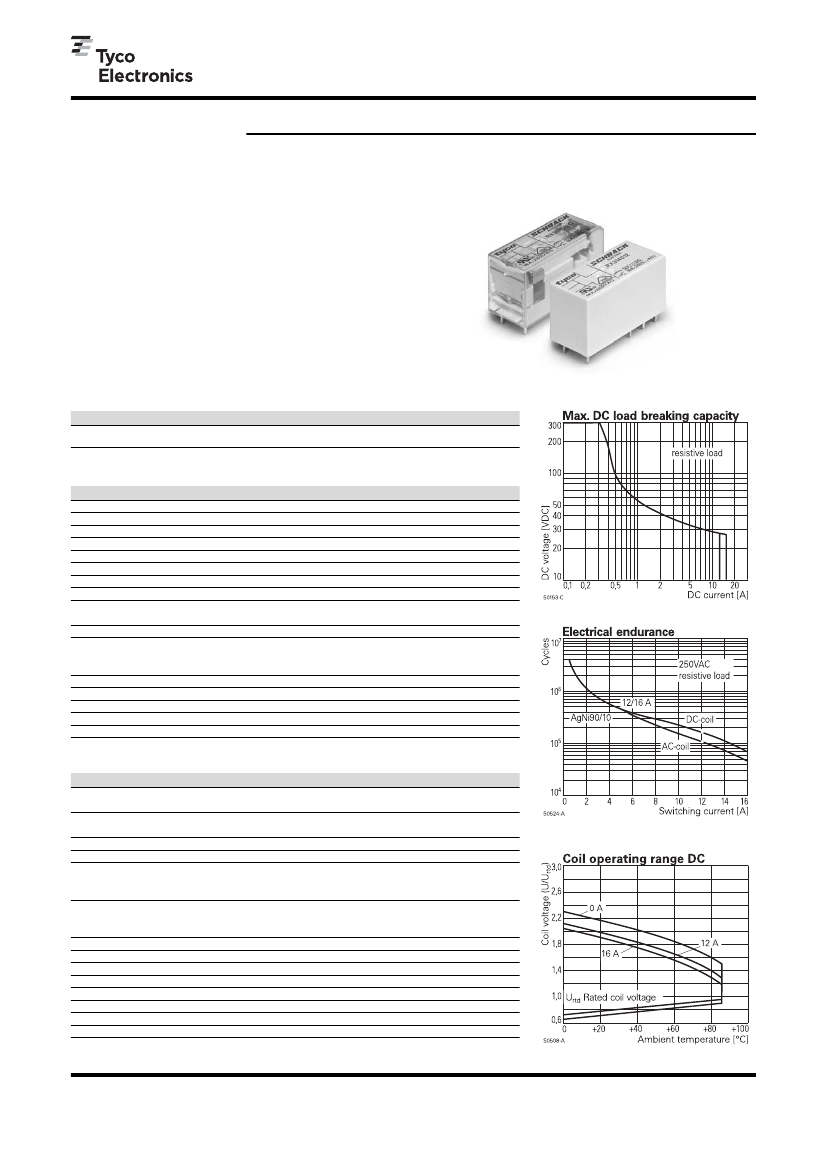

General Purpose Relays
SCHRACK
Power PCB Relay RX1
I
I
I
I
I
1 pole 12 or 16 A, 1 CO or 1 NO
DC- or AC-coil
Reinforced insulation
Transparent cover optional
RoHS compliant (Directive 2002/95/EC)
as per product date code 0413
Applications
Domestic appliances, heating control, emergency lighting,
automatic doors
S0271-A
Approvals
V
REG.-Nr.
of
A651,
Z
on request
E214025
Technical data approved types
Contact data
Contact configuration
1 CO or 1 NO
Contact set
single contact
Type of interruption
micro disconnection
Rated current
12 A
16 A
Rated voltage / max.switching voltage AC
240/400 VAC
Maximum breaking capacity AC
3000 VA
4000 VA
Limiting making capacity, max 4 s, duty factor 10%
25 A
Contact material
AgNi 90/10
Mechanical endurance DC coil
> 5 x 10
6
cycles
AC coil
> 1 x 10
6
cycles
Rated frequency of operation with / without load
6 / 600 min
-1
Contact
Type
RX1
RX1
RX3
RX3
ratings
Load
12 A, 250 VAC,
12 A, 250 VAC,
16 A, 250 VAC,
16 A, 250 VAC,
DC coil, NO contact, 85°C, EN61810-1
AC coil, NO contact, 70°C, EN61810-1
NO contact, 70°C, DF 50%, EN61810-1
NO contact, 85°C, DF 10%, UL508
Cycles
1x10
5
1x10
5
5x10
4
5x10
4
Coil data
Rated coil voltage range DC coil
AC coil
Coil power DC coil
AC coil
Operative range
Coil insulation system according UL1446
5...110 VDC
24...230 VAC
520 mW
typ 0,75 VA
2
class F
Coil versions, DC-coil
Coil
Rated
Operate
Release
Coil
Rated coil
code
voltage
voltage
voltage
resistance
power
VDC
VDC
VDC
Ohm
mW
005
5
3.5
0.5
50+10%
500
006
6
4.2
0.6
68+10%
529
012
12
8.4
1.2
274+10%
526
024
24
16.8
2.4
1095+10%
526
048
48
33.6
4.8
4380+10%
526
060
60
42.0
6.0
6845+10%
526
110
110
77.0
11.0
23010+10%
526
All figures are given for coil without preenergization, at ambient temperature +23°C
1
Datasheet
Rev. GG1
Issued 2007/07
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
General Purpose Relays
SCHRACK
Power PCB Relay RX1
(Continued)
Coil versions, AC-coil 50Hz
Coil
Rated
Operate
Release
Coil
Rated coil
code
voltage
voltage
voltage
resistance
power
50 Hz
50 Hz
50 Hz
VAC
VAC
VAC
Ohm
VA
524
24
18.0
3.6
350+10%
0.76
615
115
86.3
17.3
8100+15%
0.76
730
230
172.5
34.5
32500+15%
0.74
All figures are given for coil without preenergization, at ambient temperature +23°C
Insulation
Dielectric strength coil-contact circuit
open contact circuit
Clearance / creepage coil-contact circuit
Material group of insulation parts
Tracking index of relay base
Insulation to IEC 60664-1
Type of insulation coil-contact circuit
open contact circuit
Rated insulation voltage
Pollution degree 12 A version
16 A version
Rated voltage system
Overvoltage category
4000 V
rms
1000 V
rms
W
8 / 8 mm
W
IIIa
PTI 250 V
reinforced
functional
250 V
3
3
240 V
III
3
2
400 V
Other data
RoHS - Directive 2002/95/EC
compliant as per product date code 0413
Flammability class according to UL94
V-0
1
)
Ambient temperature range DC coil
-40...+85°C
2
)
AC coil
-40...+70°C
Operate- / release time DC coil
typ 7 / 2 ms
Bounce time DC coil, NO / NC contact
typ 1 / 3 ms
Vibration resistance (function) NO / NC contact
20 / 4 g, 10 ... 150 Hz
Shock resistance (destruction)
100 g
Category of protection
RTII - flux proof
Mounting standard version (white cover)
pcb or on socket
transparent version
pcb
Mounting distance
2,5 mm
3
)
Resistance to soldering heat flux-proof version
270 °C / 10 s
Relay weight
14 g
Packaging unit
500 pcs
1
) Version with transparent cover: V-2
2
) Version with transparent cover: -40...+70°C
3
) Version with transparent cover: 5 mm
Accessories
For standard version (white cover), details see datasheet
accessories RT
2
Datasheet
Rev. GG1
Issued 2007/07
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
General Purpose Relays
SCHRACK
Power PCB Relay RX1
(Continued)
Dimensions
S0272-BB
PCB layout / terminal assignment
Bottom view on solder pins
*) With the recommended PCB hole sizes a grid
pattern from 2.5 mm to 2.54 mm can be used.
12 A, pinning 3.5 mm
16 A, pinning 5 mm
S0418-CB
S0418-CA
1 CO contact
1 CO contact
S0163-BG
S0163-BE
1 NO contact
1 NO contact
S0163-BH
S0163-BF
Product key
Type
Version
1
12 A, pinning 3.5 mm, flux proof
3
16 A, pinning 5 mm, flux proof
Contact configuration
1
1 CO contact
3
1 NO contact
Contact material
4
AgNi 90/10
Coil
Coil code: please refer to coil versions table
Cover
Blank
standard cover (white)
C
transparent cover (clear)
R X
4
3
Datasheet
Rev. GG1
Issued 2007/07
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
General Purpose Relays
SCHRACK
Power PCB Relay RX1
(Continued)
Product key
RX114012
RX114012C
RX114024
RX114024C
RX114730
RX114730C
RX134012
RX134024
RX314012
RX314012C
RX314024
RX314024C
RX314730
RX314730C
RX334012
RX334024
Version
12 A
pinning 3.5mm
flux proof
Contacts
1 CO contact
Cont. material
AgNi 90/10
Coil
12 VDC
24 VDC
230 VAC
1 NO contact
16 A
pinning 5mm
flux proof
1 CO contact
12 VDC
24 VDC
12 VDC
24 VDC
230 VAC
Cover
white
transparent
white
transparent
white
transparent
white
transparent
white
transparent
white
transparent
white
1 NO contact
12 VDC
24 VDC
Part number
6-1415502-1
1-1415503-1
7-1415502-1
2-1415503-1
8-1415502-1
5-1415503-1
9-1415502-1
1415503-1
1-1415502-1
3-1415503-1
2-1415502-1
4-1415503-1
3-1415502-1
6-1415503-1
4-1415502-1
5-1415502-1
4
Datasheet
Rev. GG1
Issued 2007/07
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
