372525021305050 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 372525021305050

372525021305050: DescriptionInterconnection Device; CategoryThe connector The connector; File Size32KB，1 Pages; ManufacturerAVX

Download Datasheet Parametric View All

372525021305050 Overview

Interconnection Device

372525021305050 Parametric

Parameter Name	Attribute value
Maker	AVX
Reach Compliance Code	compliant
Other features	VARIPIN
Connector type	INTERCONNECTION DEVICE
Base Number Matches	1

Preview

Download Datasheet

View All

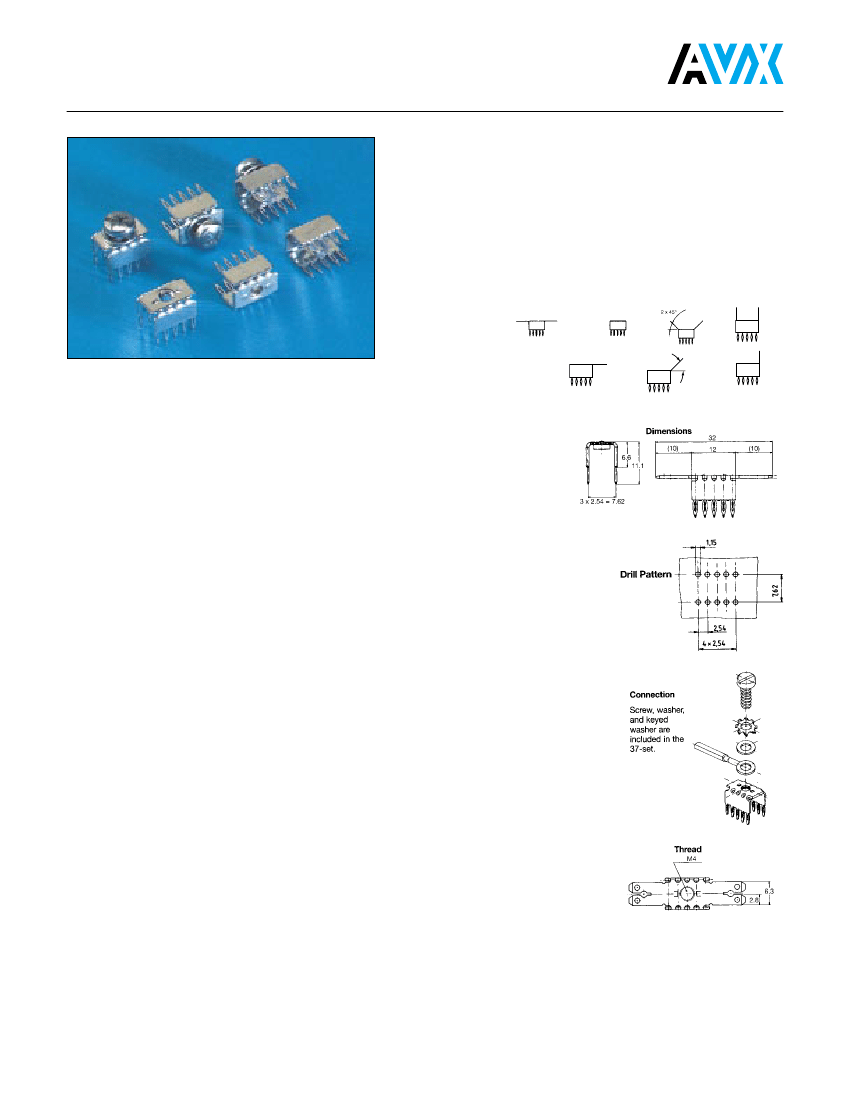

Power Pack Connectors

Series 2525

• Efficient system for high current distribution in backplane

applications

• Press-in element for power connection for P.C. boards

• VARIPIN™ press-fit design

• 30A current rating

• Several different connection versions available

• Suitable for circuit boards with .063 (1.6mm) minimum thickness

• Plating SnPb over Ni

45°

37 2525 0213 01 001

= M4 thread, with flat tabs, with hardware 1 set per bag

37 2525 0213 01 050

= M4 thread, with flat tabs, with hardware 50 pcs in 1 bag

67 2525 0213 01 489

= M4 thread, with flat tabs, without hardware 500 pcs per bag

37 2525 0213 02 001

= M4 thread, without tabs, with hardware 1 set per bag

37 2525 0213 02 050

= M4 thread, without tabs, with hardware 50 pcs in 1 bag

67 2525 0213 02 489

= M4 thread, without tabs, without hardware 500 pcs per bag

37 2525 0213 03 001

= M4 thread, with 45 degree tabs, with hardware 1 set per bag

37 2525 0213 03 050

= M4 thread, with 45 degree tabs, with hardware 50 pcs in 1 bag

67 2525 0213 03 489

= M4 thread, with 45 degree tabs, without hardware 500 pcs per bag

37 2525 0213 04 001

= M4 thread, with 90 degree tabs, with hardware 1 set per bag

37 2525 0213 04 050

= M4 thread, with 90 degree tabs, with hardware 50 pcs in 1 bag

67 2525 0213 04 489

= M4 thread, with 90 degree tabs, without hardware 500 pcs per bag

37 2525 0213 05 001

= M4 thread, with 1 flat tab, with hardware 1 set per bag

37 2525 0213 05 050

= M4 thread, with 1 flat tab, with hardware 50 pcs in 1 bag

67 2525 0213 05 489

= M4 thread, with 1 flat tab, without hardware 500 pcs per bag

37 2525 0213 06 001

= M4 thread, with 1 tab 45 degree, with hardware 1 set per bag

37 2525 0213 06 050

= M4 thread, with 1 tab 45 degree, with hardware 50 pcs in 1 bag

67 2525 0213 06 489

= M4 thread, with 1 tab 45 degree, without hardware 500 pcs per bag

37 2525 0213 07 001

= M4 thread, with 1 tab 90 degree, with hardware 1 set per bag

37 2525 0213 07 050

= M4 thread, with 1 tab 90 degree, with hardware 50 pcs in 1 bag

67 2525 0213 07 489

= M4 thread, with 1 tab 90 degree, without hardware 500 pcs per bag

118

ELCO
