403CNQ600-1
Technical Data
Data Sheet N1810, Rev B
403CNQ600-1 ULTRAFAST RECTIFIER
Features
175
℃
T
J
operation
Dual Diode construction
Low Leakage Current
Low forward voltage drop
High surge current capability
Super Fast Switching
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request

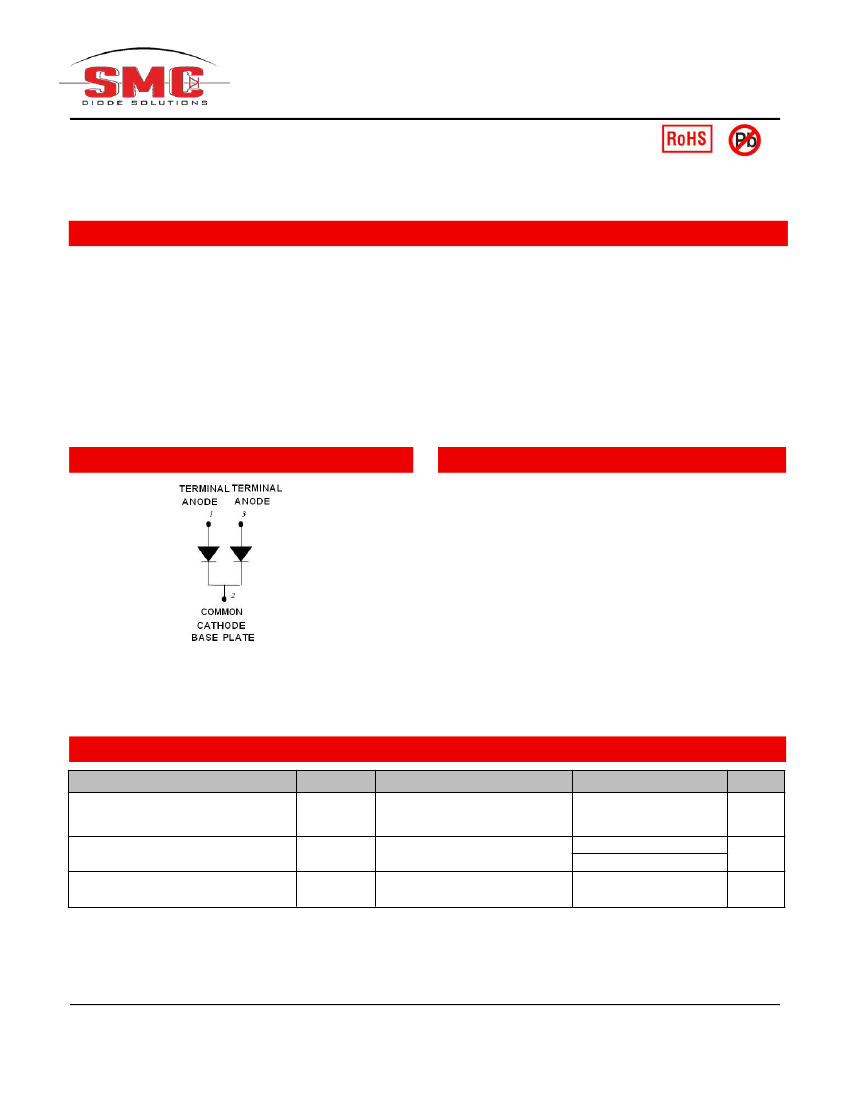

Circuit Diagram
Applications
High current switching power supply
Plating power supply
Free-Wheeling diodes
Reverse battery protection
Converters
UPS System
Welding
403CNQ600-1
The top side is terminal, the bottom side is base plate.
Maximum Ratings:
Characteristics
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Forward Current
Peak One Cycle Non-Repetitive
Surge Current (Per Leg)
Symbol
V
RRM
V
RWM
V
R
I
F(AV)
I
FSM
Condition
-
50% duty cycle @T
C
=125°C,
rectangular wave form
8.3 ms, half Sine pulse
Max.
600
200(Per Leg)
400(Per Device)
2800
Units
V
A
A
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
403CNQ600-1
Technical Data
Data Sheet N1810, Rev B
Electrical Characteristics:
Characteristics
Forward Voltage Drop*
Reverse Current*
Reverse Recovery Time
* Pulse width < 300 µs, duty cycle < 2%
Symbol
V
F1
I
R1
I
R2
t
rr
Condition
@ 200A, Pulse, T
J
= 25
C
@V
R
= rated V
R,
T
J
= 25
C
@V
R
= rated V
R,
T
J
= 125
C
IF=500mA, IR=1A,and
Irm=250mA
Typ.
1.25
0.40
-
146
Max.
1.35
20
3
180
Units
V
μA
mA
ns
Thermal-Mechanical Specifications:
Characteristics
Junction Temperature
Storage Temperature
Typical Thermal Resistance Junction to
Case(Per leg)
Approximate Weight
Mounting torque
Mounting torque
Terminal torque
Approximate Weight
Case Style
Symbol
T
J
T
stg
R
JC
wt
T
M
wt
Condition
-
-
DC operation
-
-
-
PRM4-1 (Non-Isolated)
Specification
-55 to +175
-55 to +175
0.14
80
30(3.4)
18(2.1)
30(3.4)
80
Units
C
C
C/W
g
Lbf.in
(N.M)
g
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
403CNQ600-1
Technical Data
Data Sheet N1810, Rev B

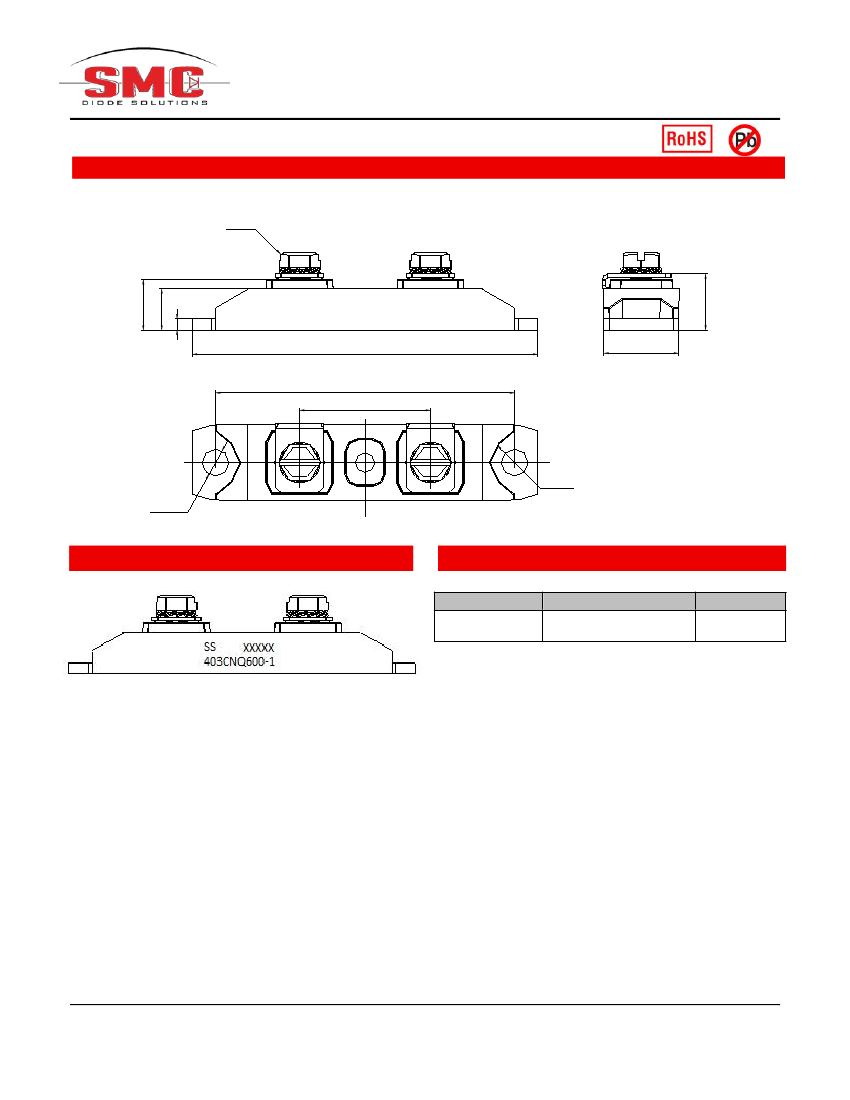

Mechanical Dimensions PRM4-1 Non-Isolated(Millimeters/Inches)
M6 SCREWS
3
92.4
80.0
35.0
20
+1
-0.2
2-R6.5
2-
∮7.2
Marking Diagram
Ordering Information
Device
403CNQ600-1
PRM4-1(Non- Isolated)
(Pb-Free)
Package
16 0.5
13.5
11
Where XXXX is YYWW
403CNQ600-1
SS
YY
WW
L
= Part name
= SS
= Year
= Week
= Lot Number
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
Cautions：Molding
resin
Epoxy resin UL:94V-0
