CALL 512-863-5585
x6464

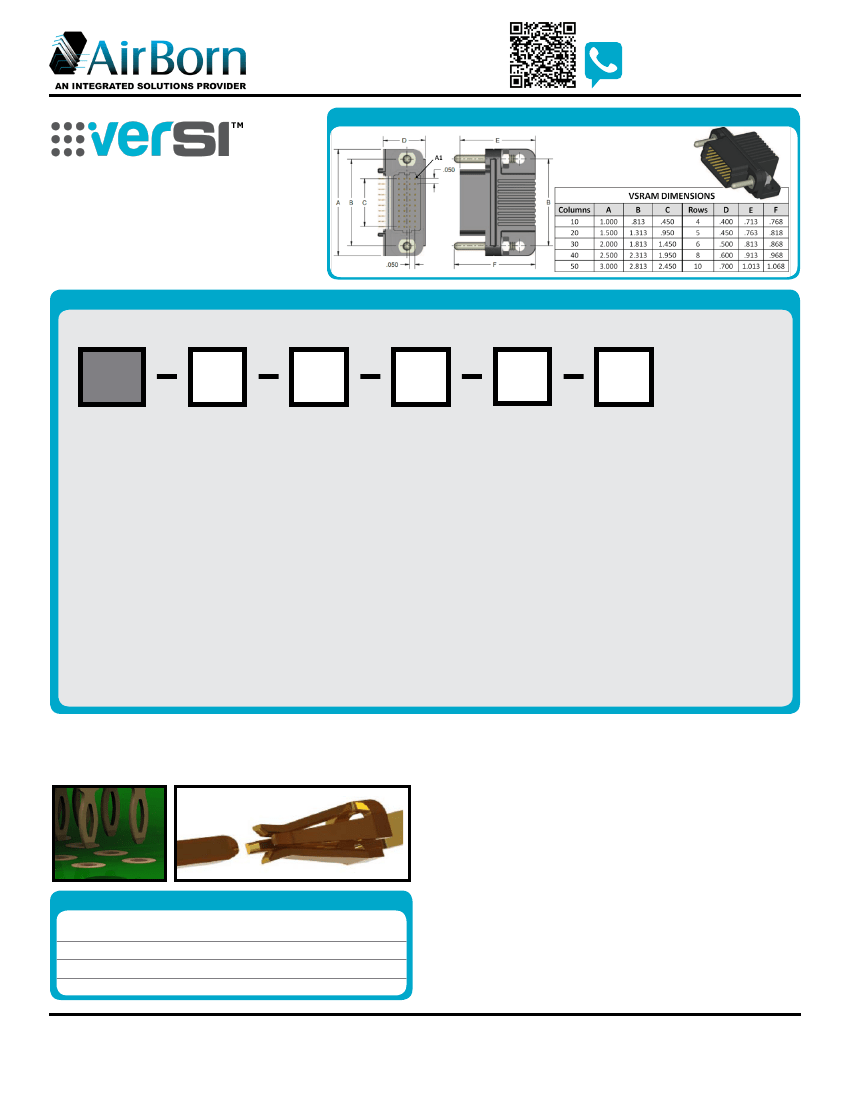

DIMENSIONS
VSRAM – Right Angle (Male)
1.27 mm Pitch
VSRAM signal-integrity connectors are used in
right angle, PCB-mount applications where a male
interface is required. Termination styles include
press-fit, paste-in-hole or plated thru-hole.
CONTACT CUSTOMER SERVICE
ORDER FORM
CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY
VSRAM-04-10-30-02-G
Sample Part Number Format:
DESIGN WORK.
PLEASE
ENTER
CODE
ENTER
CODE
ENTER
CODE
ENTER
CODE
ENTER
CODE
VSRAM
SERIES
Right Angle (Male)
1.27 mm
ROWS
04 – 4 Rows
05 – 5 Rows
06 – 6 Rows
08 – 8 Rows
10 – 10 Rows
COLUMNS
10 – 10 Columns
20 – 20 Columns
30 – 30 Columns
40 – 40 Columns
50 – 50 Columns
CONTACT PLATING
30 – 30 µ” Au
50 – 50 µ” Au
TERMINATION
00 – Press-Fit
01 – Paste-In-Hole
02 – PTH 0.078”
03 – PTH 0.109”
04 – PTH 0.140”
05 – PTH 0.156”
06 – PTH 0.172”
OPTIONS
Blank – No Options
G – Guide Pin
N – #2-56 Locking Jacknut
NOTES
Connector potting is standard.
PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.
FEATURES
verSI board-mount connectors feature low mating force / high-reliability contact system with
four points of contact. The open-pin field design allows for flexibility in termination schemes.
Single-ended, differential pair, power, and ground are all available in one connector design.
Guide hardware is optional.
MATERIALS and FINISHES
Pin Contacts (Mating Face): . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Phos bronze per ASTM B103
Pin Contacts (Termination): . . .
BeCu ASTM B768 (press-fit contact) or brass alloy per ASTM B36
(PIH or PTH)
Contact Finish: . . . . . . . .
Localized gold finish per ASTM B488 over nickel per ASTM B689 Type I
Molded Insulators: . . . . . . . . . . . . . . . . .Glass-filled
liquid crystal polymer (LCP) per ASTM D5138
Hardware: . . . . . . . . . . . . . . . . . . . . . . . . . Stainless steel per ASTM A582/A582M, or ASTM A320;
passivated per ASTM A967, SAE AMS-QQ-P-35
NOTE: AirBorn can manufacture other configurations to your exact specifications.
SI DATA – Simulated (Connectors Only)
1
2
3
4
Diff. Insertion Loss
Diff. Return Loss
Diff. Impedance
Diff. Skew
22 GHz @ -2 db
7.5 GHz @ -20 db
100 ohm ±10%
< 2 psec
17.5 GHz @ -10 db
PERFORMANCE
Contact Rating: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 amperes maximum
Operating Temperature:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -55° C to 125° C
Min. Contact Wipe: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.27 mm (0.050”)
Contact Normal Force: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35–40 grams
Max Recommended Voltage: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 V, RMS, 60 Hz
Insulation Resistance: . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5,000 megaohms minimum @ 500 VDC
Durability:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2500 connector mating cycles
Sinusoidal Vibration: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 g (EIA-364-28, condition IV)
Shock: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 g (EIA-364-27, condition E)
www.airborn.com
(512 ) 863-5585
VSRAM-PNB-1D
