464-40-258-00-580000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 464-40-258-00-580000

464-40-258-00-580000: DescriptionBoard Connector, 58 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size215KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

464-40-258-00-580000 Overview

Board Connector, 58 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

464-40-258-00-580000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN (200) OVER NICKEL (150)
Contact completed and terminated	MATTE TIN (200) OVER NICKEL (150)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	464
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	58
Base Number Matches	1

Preview

Download Datasheet

View All

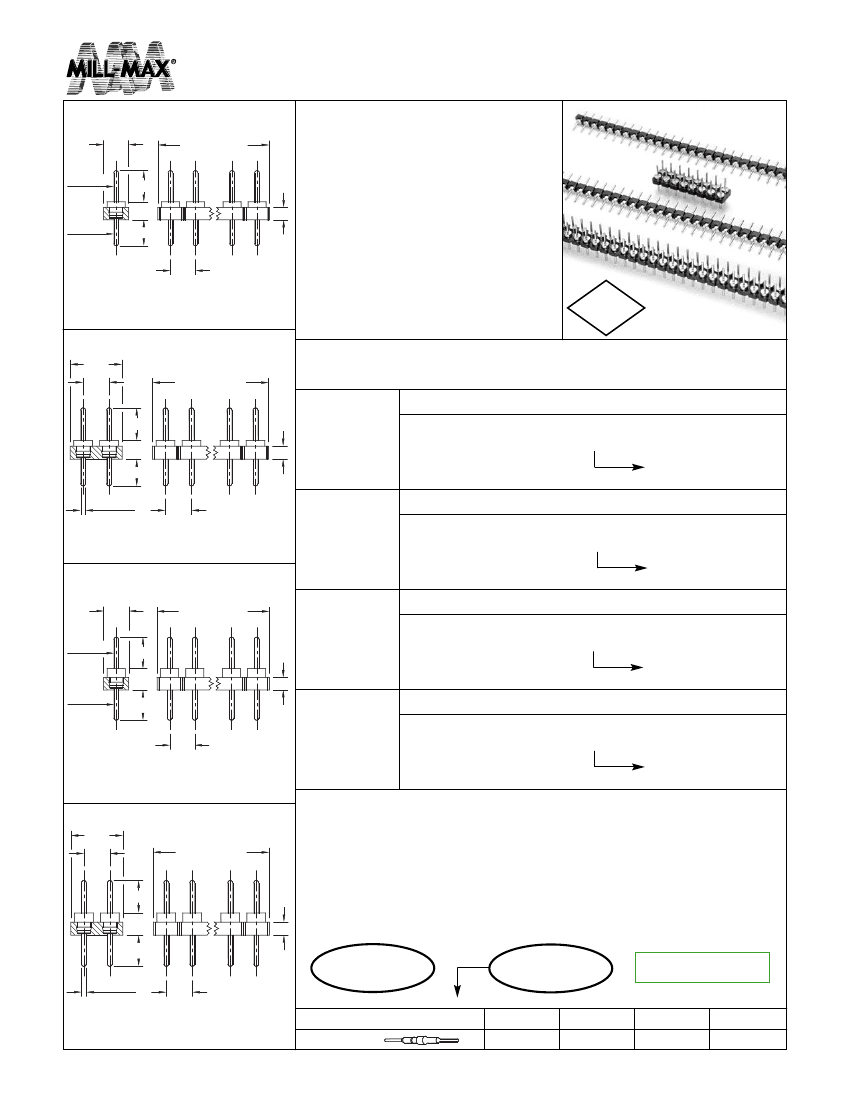

HEADER STRIPS

2,54 Grid (0,46 dia.) Pins, Low Profile

Single and Double Row

Number of Pins

X 2,54

Series 335, 364

435, 464

2,54

•

Series 335 and 435 single and double

row PCB interconnects offer the lowest

profile available 1,78.

•

Series 364 and 464 single and double

row PCB interconnects offer 2,16 profile

above board.

•

Series 335 and 435 use MM #3516 pins.

See page 179 for details.

0,46 DIA.

3,18

1,78

1,27

0,46 DIA.

2,64

2,54

•

Series 364 and 464 use MM #6458 pins.

See page 180 for details.

•

Insulators are high temp. thermoplastic.

Fig. 1

2002/95/EC

RoHS

5,08

2,54

Number of Pins

X 2,54 / 2

Ordering Information

Single Row

1,78 Profile Pin Header

335-XX-1_ _-00-160000

Specify # of pins

01-32

1,78 Profile Pin Header

435-XX-2 _ _-00-160000

Specify # of pins

02-72

2,16 Profile Pin Header

364-10-1_ _-00-580000

Specify # of pins

1,27

3,18

1,78

2,64

1,27

Fig. 1

Double Row

0,46 DIA.

2,54

Fig. 2

Single Row

2,54

Number of Pins

X 2,54

0,46 DIA.

3,18

2,16

Fig. 3

Double Row

2,54

01-32

2,16 Profile Pin Header

0,46 DIA.

3,05

Fig. 4

464-10-2 _ _-00-580000

Specify # of pins

02-72

Fig. 3

5,08

2,54

Number of Pins

X 2,54 / 2

3,18

2,16

1,27

3,05

0,46 DIA.

For Electrical,

Mechanical & Enviromental

Data, See pg. 4

2,54

XX=Plating Code

See Below

For RoHS compliance

select



plating code.

Fig. 4

SPECIFY PLATING CODE XX=



0,25μ Au

5,08μ Sn/Pb



5,08μ Sn

Pin Plating

w w w. m i l l - m a x . c o m

102



516-922-6000
