5962-9174801MJX datasheet, PDF

5962-9174801MJX: DescriptionD/A Converter, 8-Bit, 1 Func, Bipolar, CDIP24,; CategoryAnalog mixed-signal IC converter; File Size580KB，11 Pages; ManufacturerSignal Processing Technologies

Download Datasheet Parametric Compare View All

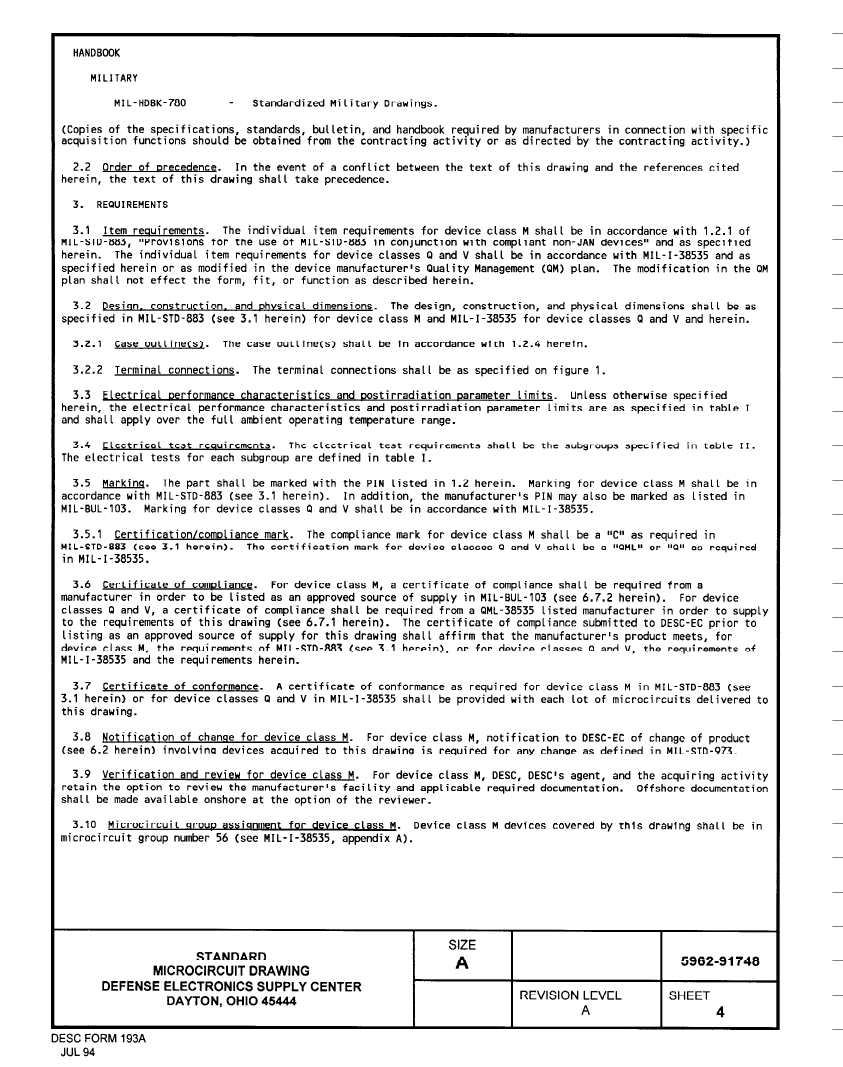

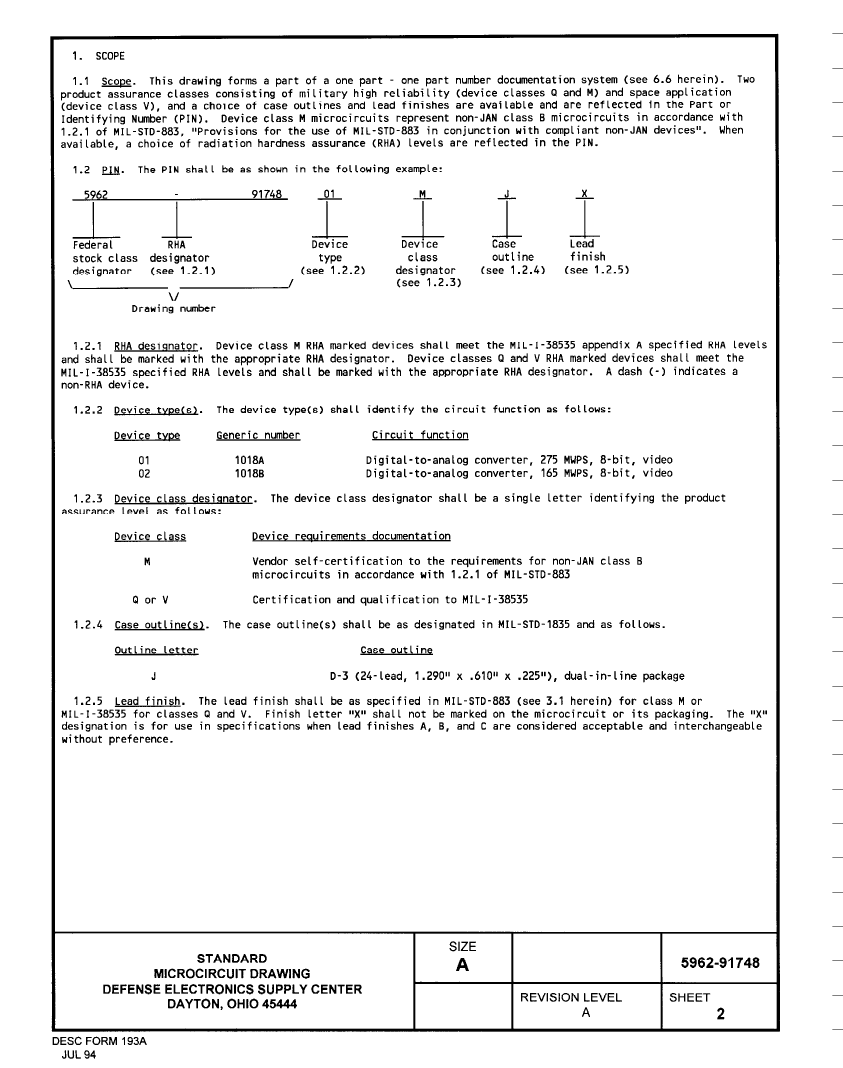

5962-9174801MJX Overview

D/A Converter, 8-Bit, 1 Func, Bipolar, CDIP24,

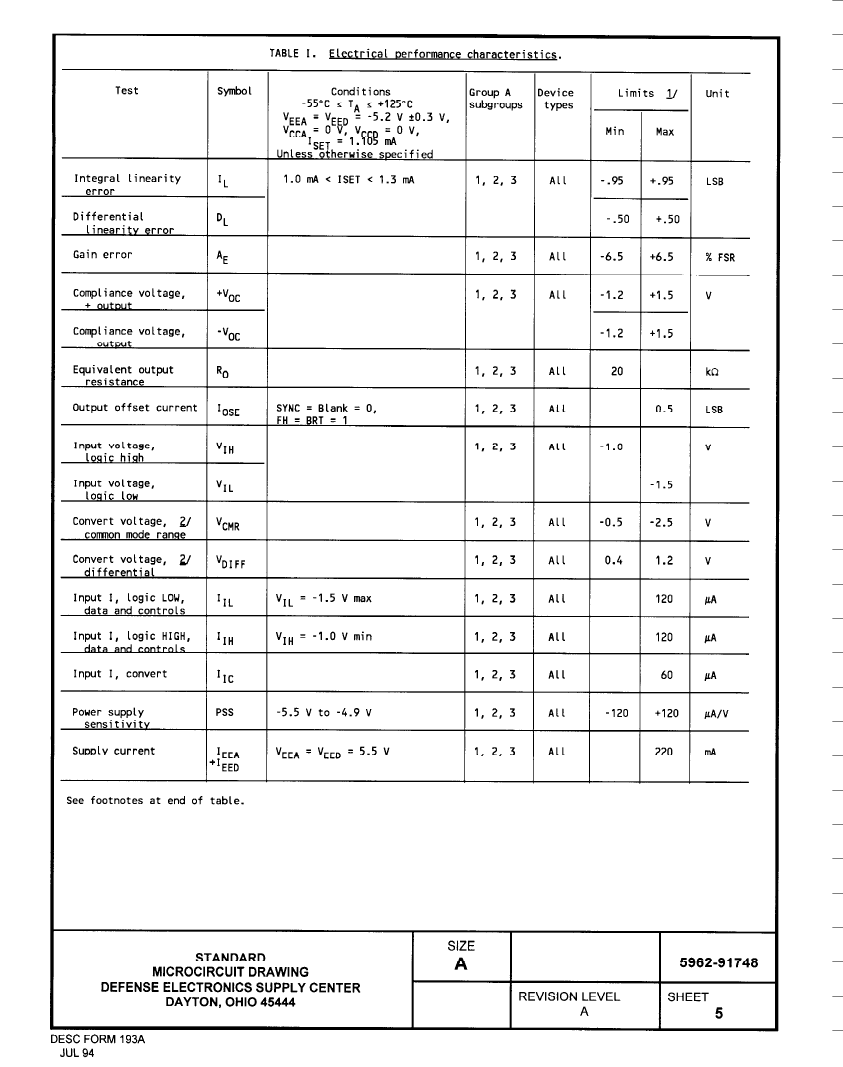

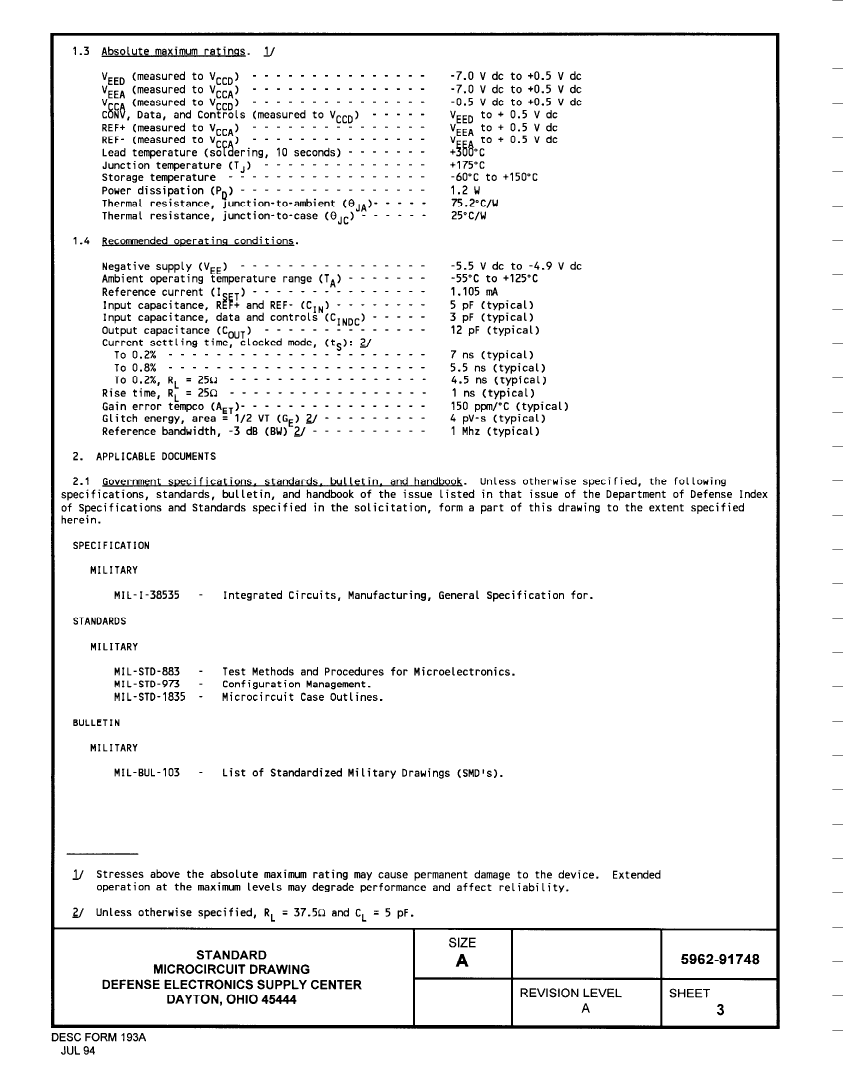

Parameter Name	Attribute value
Maker	Signal Processing Technologies
Reach Compliance Code	unknown
Converter type	D/A CONVERTER
Enter bit code	COMPLEMENTARY BINARY
JESD-30 code	R-XDIP-T24
Maximum linear error (EL)	0.37%
Nominal negative supply voltage	-5.2 V
Number of digits	8
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	-5.2 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum slew rate	220 mA
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	5962-9174801MJX	5962-9174802MJX
Description	D/A Converter, 8-Bit, 1 Func, Bipolar, CDIP24,	D/A Converter, 8-Bit, 1 Func, Bipolar, CDIP24,
Maker	Signal Processing Technologies	Signal Processing Technologies
Reach Compliance Code	unknown	unknown
Converter type	D/A CONVERTER	D/A CONVERTER
Enter bit code	COMPLEMENTARY BINARY	COMPLEMENTARY BINARY
JESD-30 code	R-XDIP-T24	R-XDIP-T24
Maximum linear error (EL)	0.37%	0.37%
Nominal negative supply voltage	-5.2 V	-5.2 V
Number of digits	8	8
Number of functions	1	1
Number of terminals	24	24
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP24,.6	DIP24,.6
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	-5.2 V	-5.2 V
Certification status	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum slew rate	220 mA	220 mA
surface mount	NO	NO
technology	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
