5962-9159001MEA datasheet, PDF

5962-9159001MEA: DescriptionPrescaler, ECL Series, 1-Func, Bipolar, CDIP16, CERDIP-16; Categorylogic logic; File Size86KB，4 Pages; ManufacturerDynex; Websitehttp://www.dynexsemi.com/

Download Datasheet Parametric Compare View All

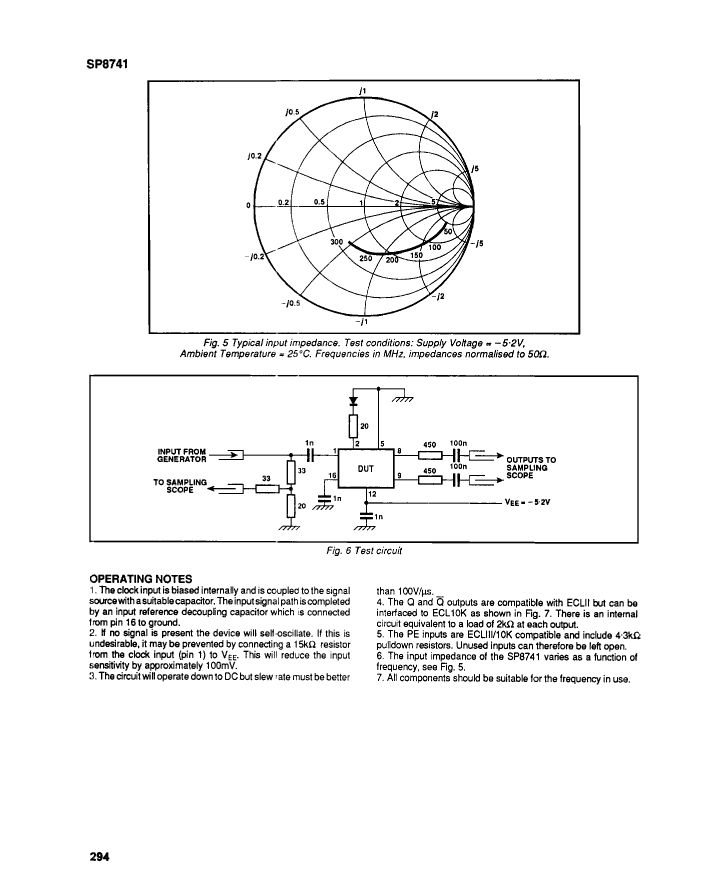

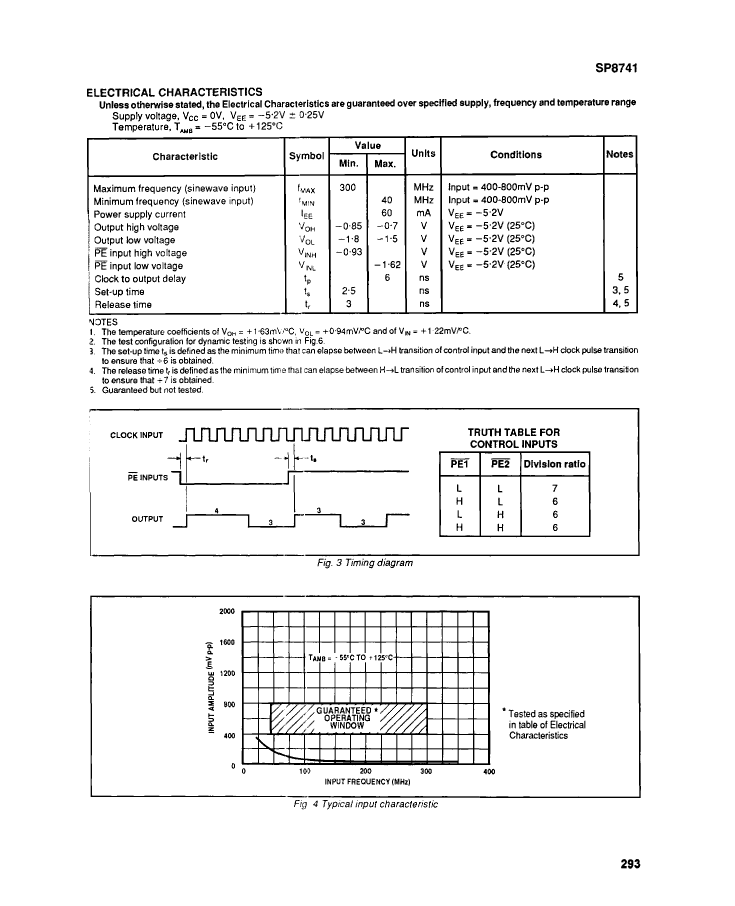

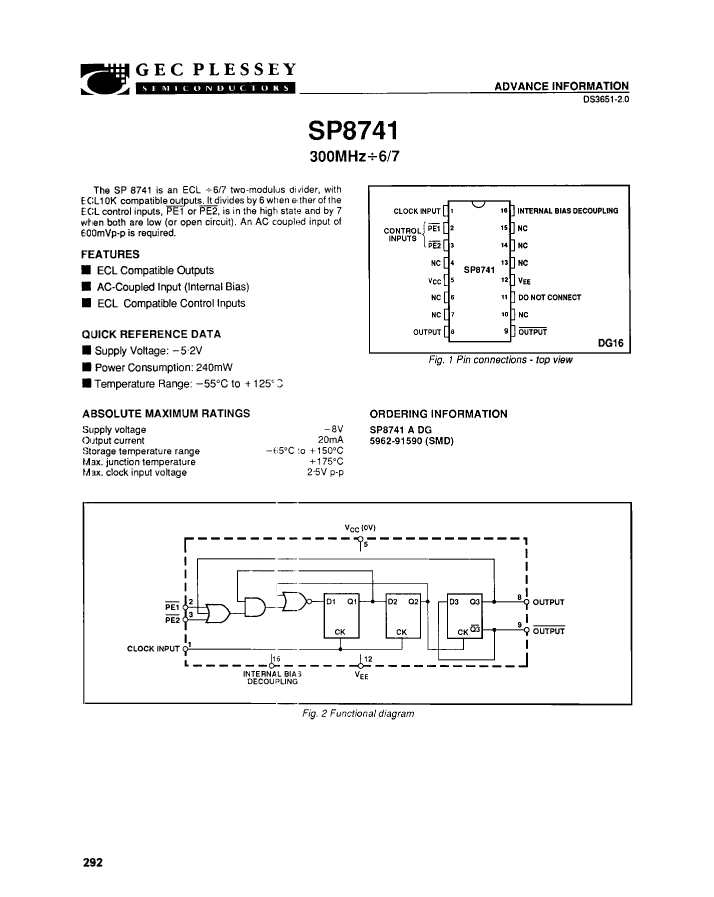

5962-9159001MEA Overview

Prescaler, ECL Series, 1-Func, Bipolar, CDIP16, CERDIP-16

Parameter Name	Attribute value
Maker	Dynex
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	unknown
series	ECL
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	20.32 mm
Logic integrated circuit type	PRESCALER
Number of data/clock inputs	1
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	EMITTER FOLLOWER
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	60 mA
propagation delay (tpd)	6 ns
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	5.08 mm
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
minfmax	300 MHz
Base Number Matches	1

	5962-9159001MEA	SP8741ADG
Description	Prescaler, ECL Series, 1-Func, Bipolar, CDIP16, CERDIP-16	Prescaler, ECL Series, 1-Func, Bipolar, CDIP16
Maker	Dynex	Dynex
package instruction	DIP,	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown
series	ECL	ECL
JESD-30 code	R-GDIP-T16	R-GDIP-T16
JESD-609 code	e0	e0
Logic integrated circuit type	PRESCALER	PRESCALER
Number of data/clock inputs	1	1
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output characteristics	EMITTER FOLLOWER	EMITTER FOLLOWER
Output polarity	COMPLEMENTARY	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Maximum supply current (ICC)	60 mA	60 mA
propagation delay (tpd)	6 ns	6 ns
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
technology	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY
Terminal surface	TIN LEAD	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
minfmax	300 MHz	300 MHz
